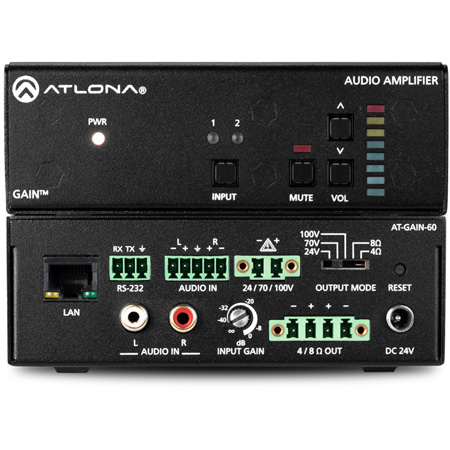

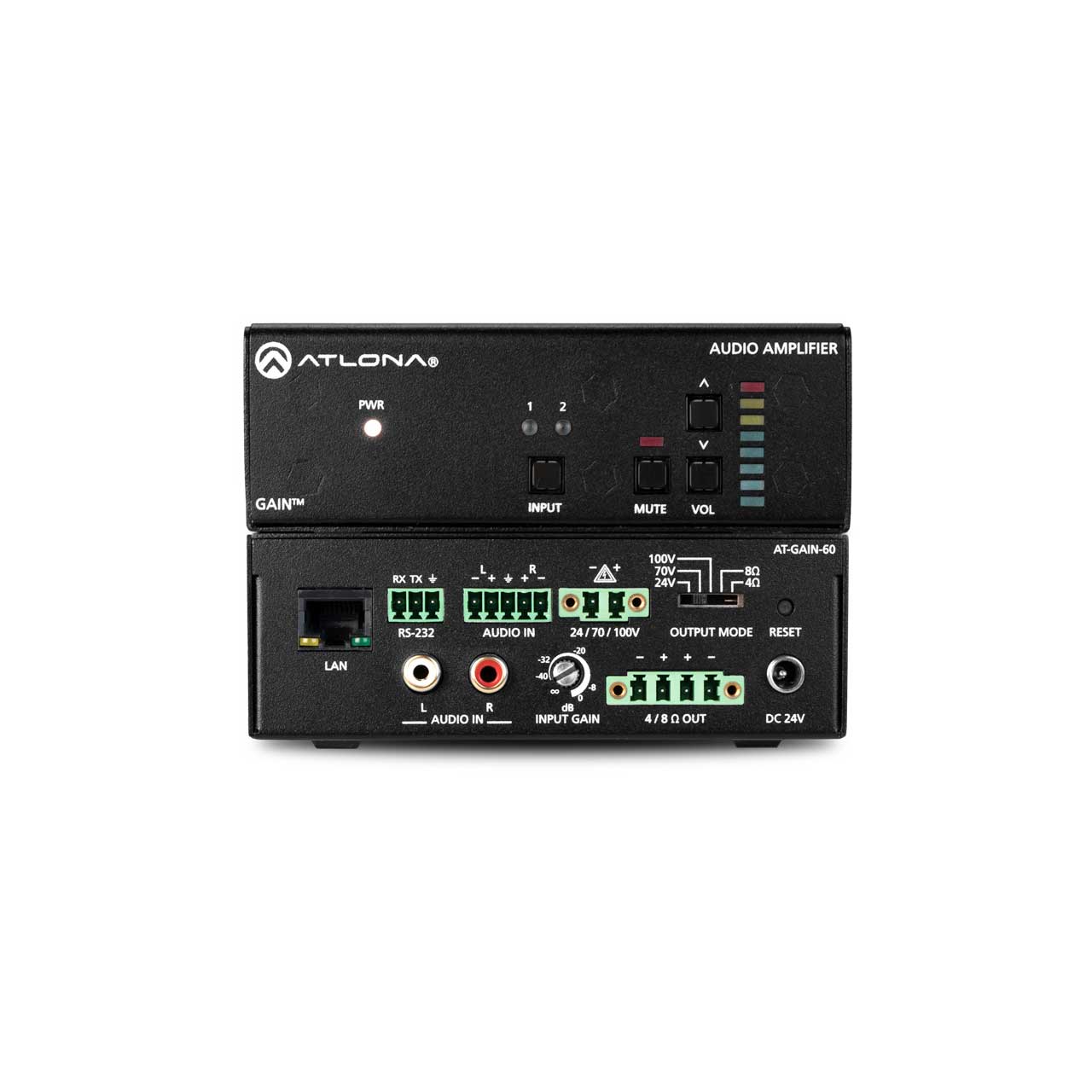

Atlona AT-GAIN-60 Stereo / Mono Audio Power Amplifier - 60 Watts

AT-GAIN-60 - Overview

• Features:

  • Selectable low or high impedance operation
  • 2 x 30 watts @ 4 or 8 ohms
  • 1 x 60 watts @ 24, 70, or 100 volts
  • Selectable balanced and unbalanced audio inputs
  • Class D efficient amplifier design
  • ENERGY STAR qualified
  • Convection cooled - no need for fans
  • UL 2043 plenum rated - allows installation above commercial drop ceilings
  • Automatic standby, configurable from 5 to 25 minutes of inactivity, to minimize power consumption
  • Rear panel input level control
  • Integrated protection circuitry automatically activates in the event of clipping, short circuit, thermal overload, and more
  • Bass and treble tone controls
  • TCP/IP and RS-232 control of volume level, muting, and tone controls
  • Ideal for IP-based control from Atlona VelocityT Control System
  • Front panel button controls for input selection, mute, and volume control
  • Front panel signal status LEDs for power, input selection, mute, and real-time volume level
  • Compact, rack-mountable enclosure


• Specifications:

  • Connectors, Controls, and indicators
  • LAN: 1 - RJ45
  • Audio in 1: 1 - 5-pin captive screw, balanced: 10 kΩ
  • Audio in 2: 2 - RCA-type, female, unbalanced: 20 kΩ
  • 4 / 8 Ω out: 1 - 4-pin, 5.08 mm lock-down screw connector
  • 24 / 70 / 100V: 1 - 5-pin, 3.5mm
  • Power: 1 - 3.5 mm barrel, locking
  • Input gain: 1 - Rotary pot
  • Mode: 1 - Slider switch, 5-pole, 24V / 70V / 100V / 8 Ω / 4 Ω
  • Reset: 1 - Push button, tact-type
  • Input: 1 - Push button, tact-type
  • Mute: 1 - Push button, tact-type
  • VOL: 2 - Push buttons, tact-type
  • PWR: 1 - LED indicator, green
  • 1 / 2 Input indicators: 2 - LED indicators, green
  • Mute indicator: 1 - LED indicator, red
  • Audio Level indicator: 1 - Multi-LED

    Input Signal
  • Analog Input: Balanced: 20 kΩ, unbalanced: 10 kΩ
  • Input gain: Adjustable, -22 dB to 0 dB
  • CMRR: 49 dB / 67 dB
  • Detection Threshold: 0 dBV = 2.218 dBu

    Output Signal
  • Distributed speakers (mono): 24 V / 70 V / 100 V
  • Program speakers (stereo): 4 Ω / 8 Ω, line-level
  • Power: 24 V = 60 Vrms (high-Z); 70 V = 60 Vrms (high-Z); 100 V = 60 Vrms (high-Z); 4 / 8 Ω = 30 W per channel

    Audio Processing
  • Audio Formats: 24-bit uncompressed, selectable at 44.1, 48, 88.2, and 96 kHz sampling rate
  • Signal Processing: Volume, Auto on/off signal sensing, 80 Hz HPF
  • 2-band EQ: Bass / Treble, adjustable: -10 to +10 dB

    Audio Performance
  • Frequency Response: 20 Hz - 20 kHz, ±0.2 / -2 dB @ 4 Ω load
  • THD + N: < 0.1% @ 1kHZ, 3 dB below clipping
  • SNR: > 95 dBA WTD
  • Damping Factor: < 48 @ 8 Ω
  • Amplifier Type: Class D
  • Temperature: Fahrenheit: Celsius
  • Operating: 32 to 122: 0 to 50
  • Storage: -40 to 158: -40 to 70
  • Humidity (RH): 90%, non-condensing

    Power
  • Standby Mode: Powers down after 5-25 minutes (adjustable) of no signal; complies with ENERGY STAR power
  • consumption limits of < 0.5 W in standby mode
  • Consumption: 60 W (max.)
  • Standby Consumption: < 1.2 W
  • Supply: 100 - 240 V AC, 50/60 Hz, 60 W
  • Dimensions: inches: Millimeters
  • H x W x D: 1.69 x 5.00 x 7.95: 43 x 127 x 202
  • Weight: Pounds: Kilograms
  • Device: 3.15: 1.43

    Certification
  • Device: CE, RoHS, WEEE, FCC, ENERGY STAR®


• Item Includes:

  • Installation guide
  • Captive screw connectors
  • External universal power supply


• GTIN:

  0846352005221
