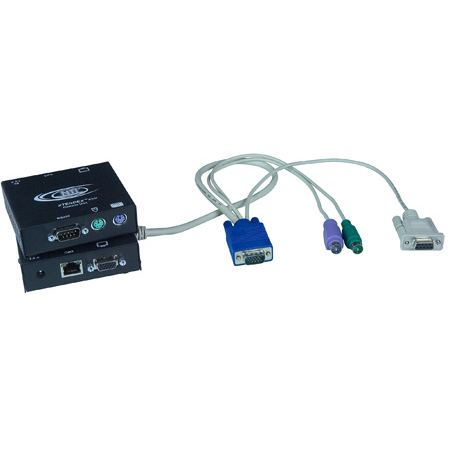

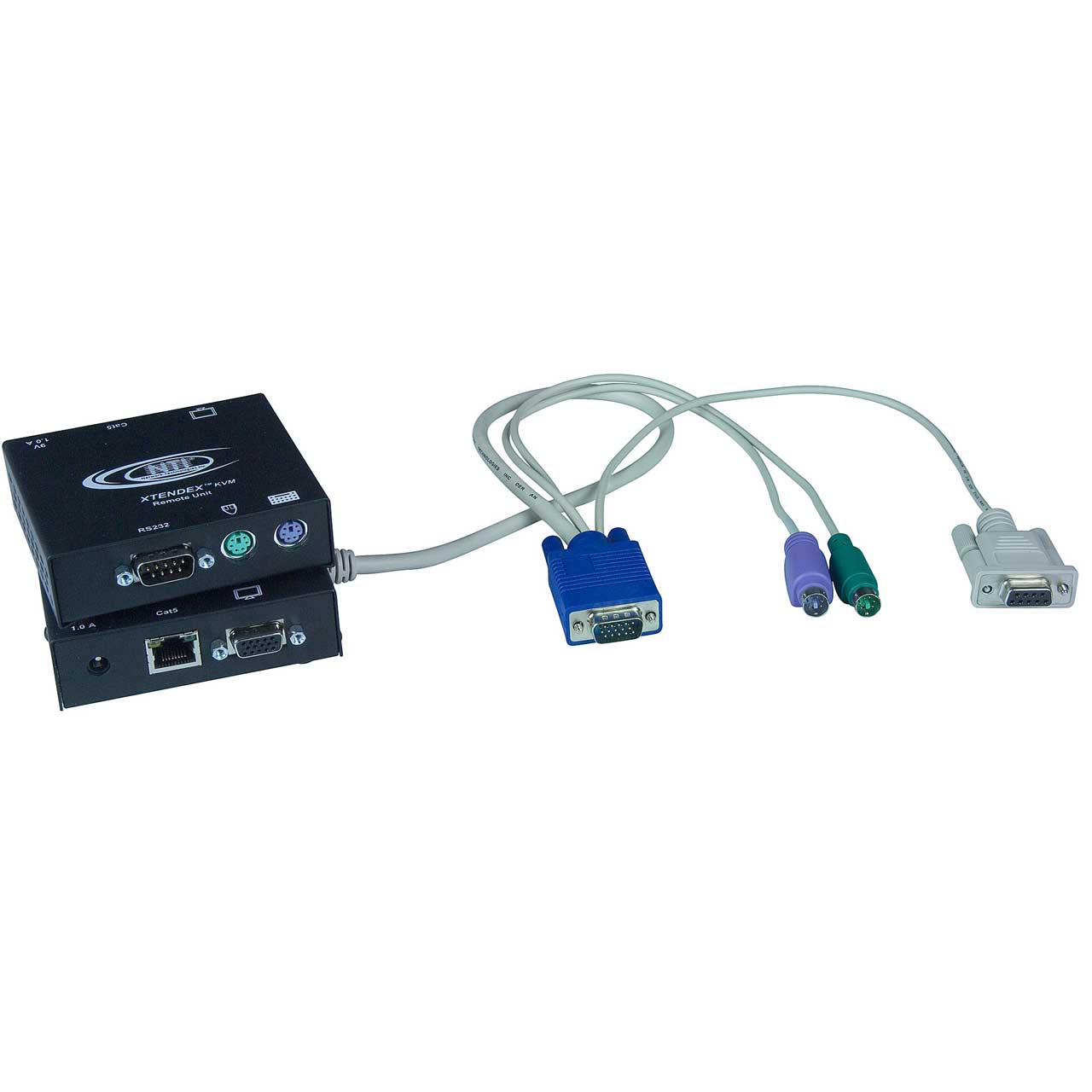

NTI ST-C5KVMRS-600 VGA PS/2 KVM Extender with RS232 via CATx to 600 feet

ST-C5KVMRS-600 - Overview

• Features:

  • Supports two users: one local and one remote
  • Local unit provides local KVM access
  • Supports resolutions to 1920x1440
  • Allows local and remote access to network servers
  • Built-in surge protection
  • Optional external surge protection available
  • Supports RS232 control
  • Keep-alive keboard/mouse emulation for flawless operation
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely
  • Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor


• Specifications:

  • Local Unit
  • Host Connection
  • Supports a PC, SUN Fire V20z, or NTI Switch.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Linux, and FreeBSD.
  • One male 15-pin HD / two male 6-pin miniDIN connectors for PC or NTI KVM switch.
  • RS232 support - female 9-pin D connector.
  • Local Access
  • Crisp and clear 1920x1440 video resolution.
  • One female 15-pin HD / two female 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • RS232 support - male 9-pin D connector.


  • Remote Unit
  • Supports resolutions up to 1920x1440; refer to the resolution chart for resolutions at different lengths.
  • One female 15-pin HD connector / two 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • Male 9-pin D connector for RS232.


  • Video Quality Adjustment
  • Automatically adjusts the video quality to compensate for varying lengths of CAT5 cable.


  • Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
  • DimensionsWxDxH: 3.5x3.1x1.2 in (89x79x30 mm).
  • Weight: 1.2 lbs (0.54 kg).
  • Regulatory Approvals: CE, RoHS, TAA compliant.


  • Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Power Consumption: 10 W (each - local and remote unit).


  • MTBF
  • ST-C5KVMRS-600 (local): 80,292 hours.
  • ST-C5KVMRS-600 (remote): 79,237 hours.


• Item Includes:

  • 1x pair of ST-C5KVMRS-600 extender modules (local and remote)
  • 2x country-specific power cords
  • 1x CD that contains the manual


• Warranty:

  • 2 years
