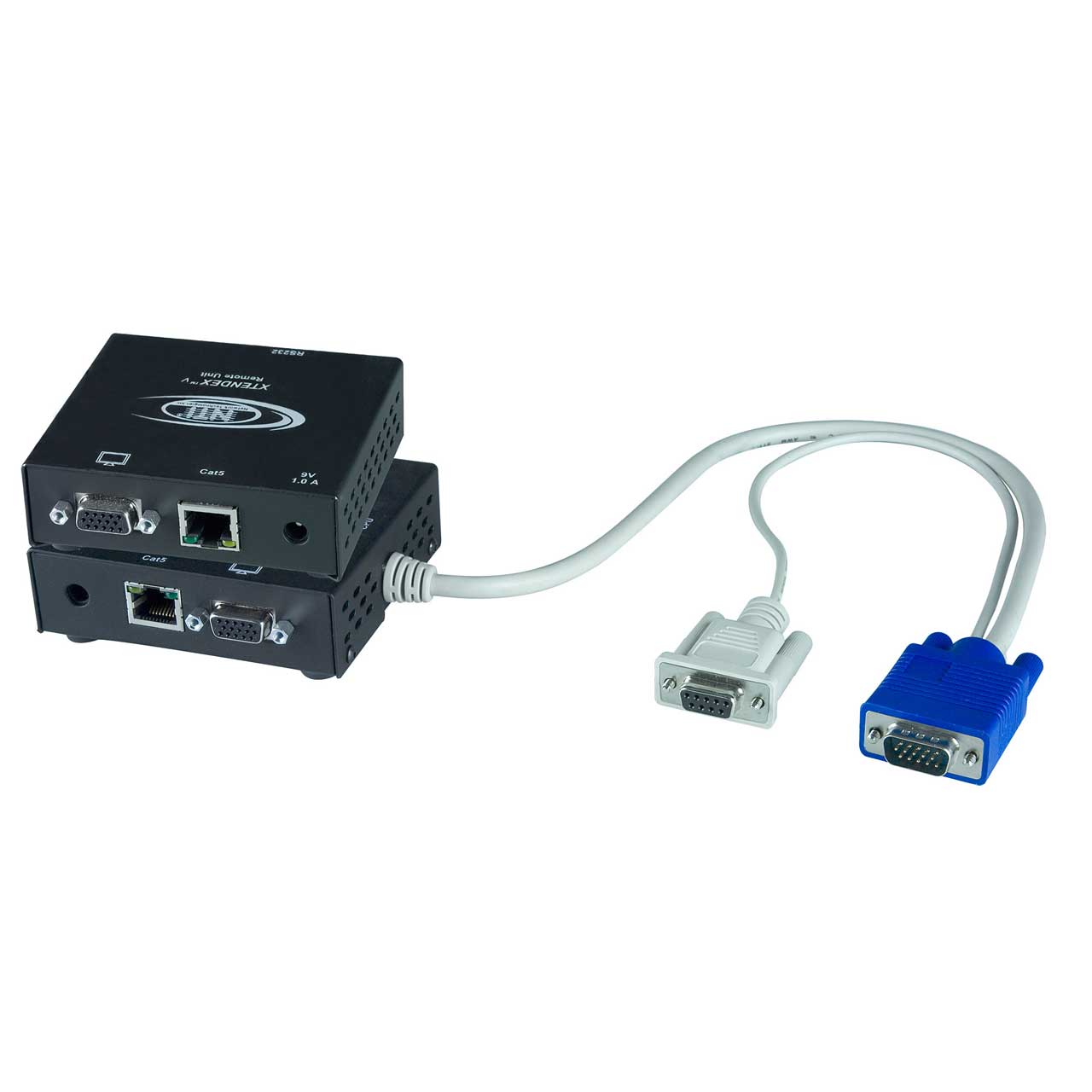

NTI ST-C5VRS-600 VGA Extender with RS232 via CATx to 600 feet

ST-C5VRS-600 - Overview

• Features:

  • Supports local and remote VGA monitors
  • Supports resolutions to 1920x1440
  • Featues RS232 control
  • Built-in surge protection
  • Use in-house CAT5/5e/6/6a phone wiring to locate a monitor remotely
  • Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor


• Specifications:

  • Local Unit
  • Host Connection
  • Supports a PC, SUN, MAC or NTI switch with VGA video.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Male 15-pin HD connector for computer connection.
  • RS232 support - female 9-pin D connector.
  • Local Access
  • Crisp and clear 1920x1440 video resolution.
  • Female 15-pin HD connector for local VGA monitor.
  • Video signal to noise ratio: >55dB
  • Distortion: 65dB at 5MHz
  • RS232 support - male 9-pin D connector.


  • Remote Unit
  • Supports resolutions up to 1920x1440; refer to the resolution chart for resolutions at different lengths.
  • Video signal to noise ratio: >55dB.
  • Distortion: 65dB at 5MHz.
  • Female 15-pin HD connector.
  • Male 9-pin D connector for RS232.
  • Video Quality Adjustment
  • Video quality adjustment for different lengths of CAT5/5e/6/6a cable is done automatically.


  • Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.


  • Dimensions WxDxH: 3.5x3.1x1.2 in (89x79x30 mm).
  • Weight: 1.2 lbs (0.54 kg).


  • Power
  • Local and remote unit: 110 to 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapters included.)
  • Power Consumption: 10 W (each - local and remote unit).


  • MTBF
  • ST-C5VRS-600 (local): 82,338 hours.
  • ST-C5VRS-600 (remote): 79,714 hours.


  • Cables
  • Use CAT5, CAT5e or CAT6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).


  • Regulatory Approvals: CE, RoHS, TAA compliant.


• Item Includes:

  • 1x pair of ST-C5VRS-600 extender modules (local and remote)
  • 2x country-specific power cords
  • 1x CD that contains the manual


• Warranty:

  • 2 years
