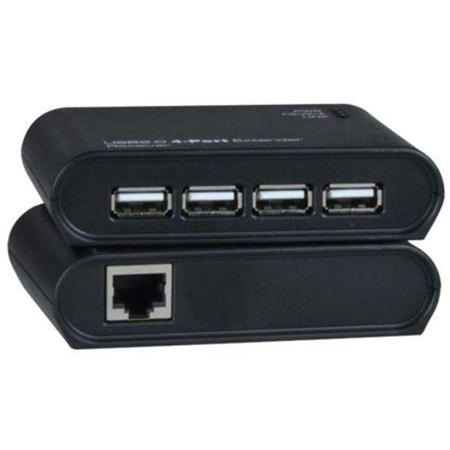

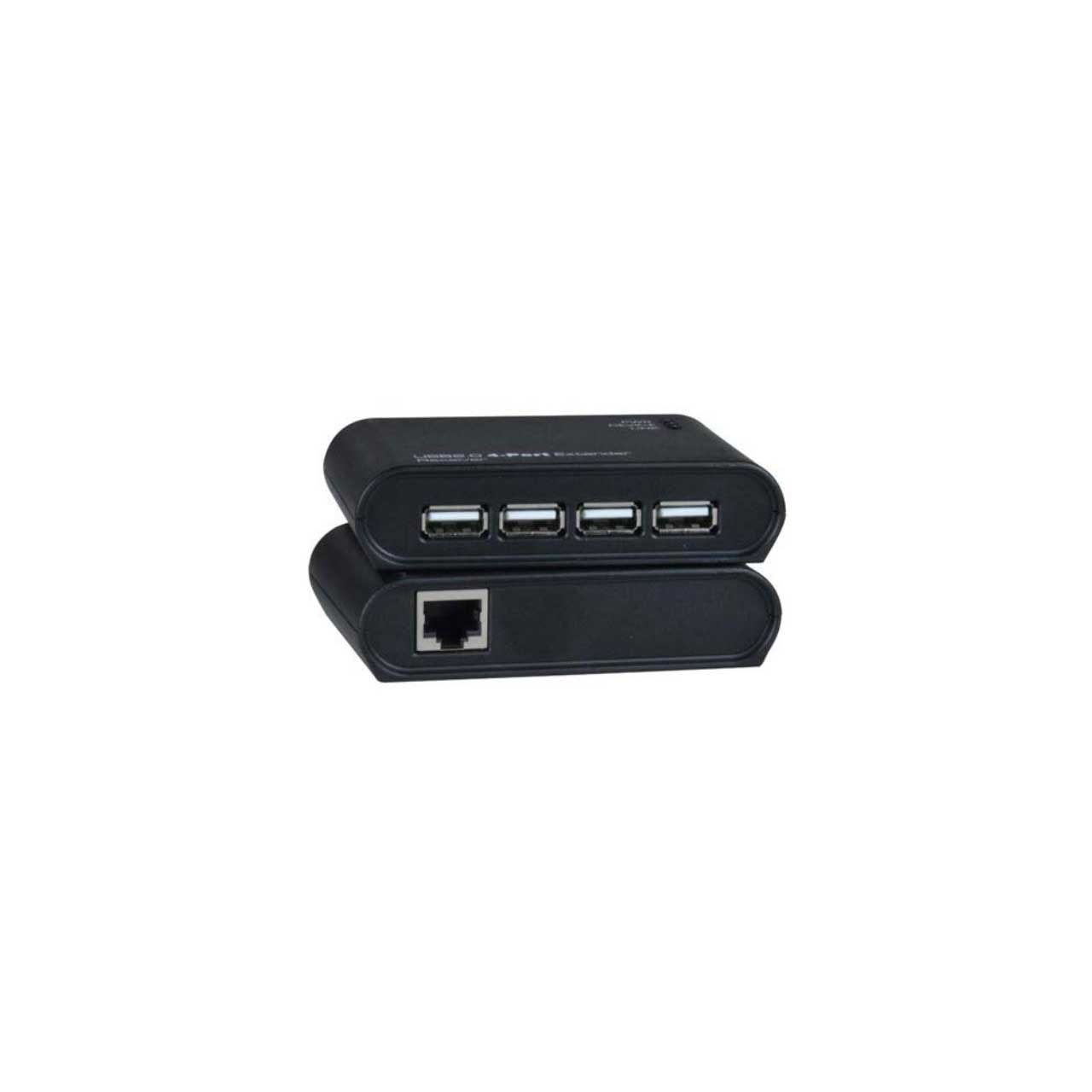

NTI XTENDEX USB2-C5-4LC 4-Port USB 2.0 Extender via CAT5/5e6/7 up to 165 Feet/55m Tx/Rx

ITEM #: NETT-USB2-C5-4LC MFG #: USB2-C5-4LC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$132.00

Our Price:

$125.40

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


USB2-C5-4LC - Overview

Extend four USB devices up to 165 feet (50 meters) using CAT5/5e/6/6a/7 cable!

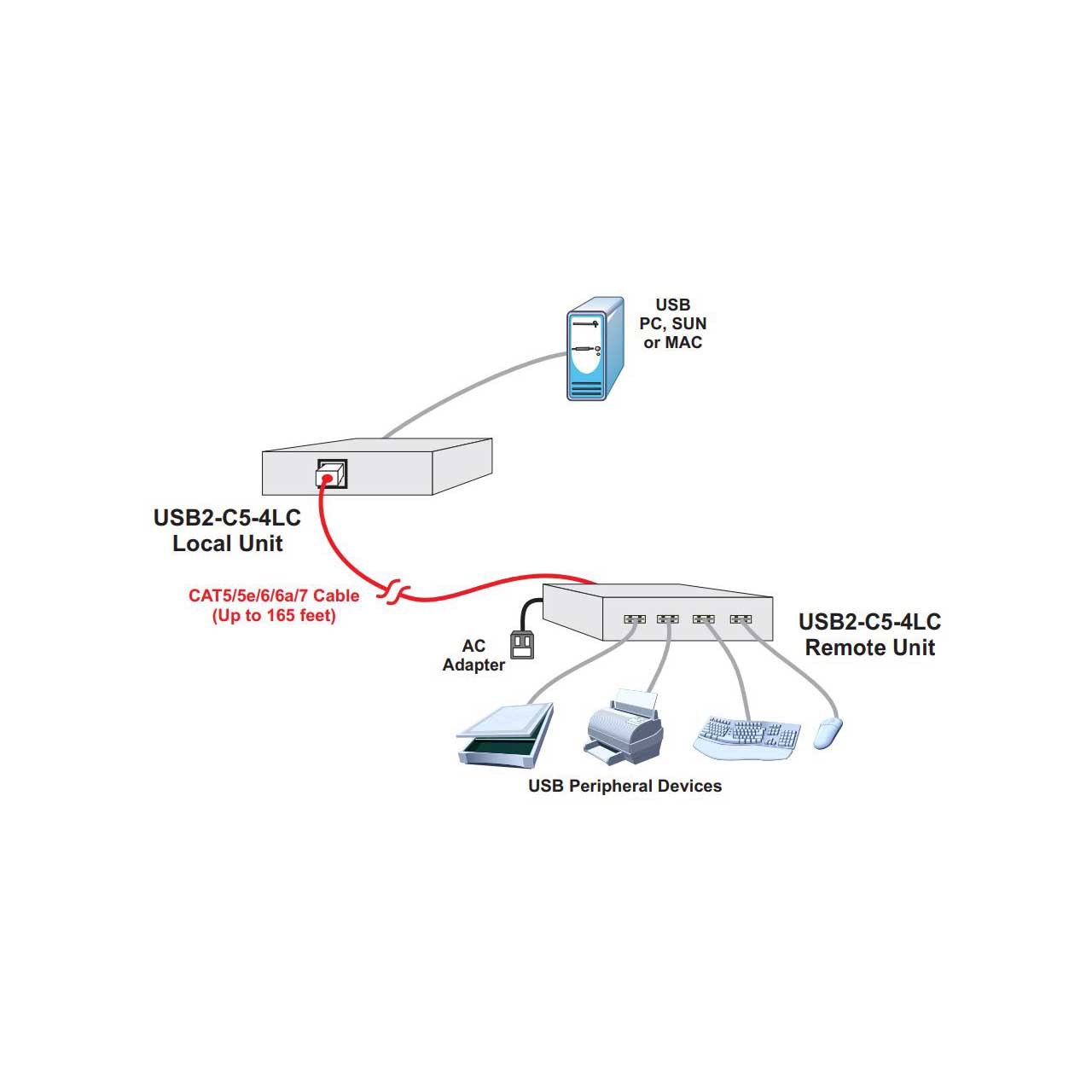

The XTENDEX USB2-C5-4LC Low-Cost 4-Port USB 2.0 Extender extends four USB devices up to165 feet (50 meters) using CAT5/5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices. The local and remote units are interconnected via CAT5/5e/6/6a/7 cable.

  • Features:

    • Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, keyboards, etc.).
    • Extend up to 165 feet (50 meters) via a single CAT5/5e/6/6a/7 cable.
    • Transparent data extension.
    • Compatible with USB computers (PC, SUN, MAC).
    • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
    • Compliant with USB 2.0 specifications.
    • Supports Plug-n-Play specification.
    • No drivers required.

  • Specifications:

    • Local Unit
    • One female USB Type B connector.
    • Must connect directly to a computer; will not work connected to a USB hub.
    • One female RJ45 connector.
    • Supports a USB computer (PC, SUN, MAC).
    • Multiplatform support: Windows XP/7/Vista/8, Mac OS

      Remote Unit
    • Four female USB Type A connectors.
    • One female RJ45 connector.
    • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
    • Supports self-powered and/or bus-powered USB devices.
    • Does not support USB hubs.
    • Compatible with USB touch screen monitors, including HP Compaq L2105tm

      Power
    • Local unit: powered from attached computer.
    • Remote unit: 100 or 240 VAC at 50 or 60 Hz via AC adapter. (included)
    • The combined current consumption of the connected devices cannot exceed 1.5A

    • Environmental:
    • Operating temperature: 32 to 122°F
    • Dimensions: WxDxH: 3.75x2.68x0.92 in.
    • Regulatory Approvals: CE, FCC, RoHS.
    • Max Distance: 165 feet (50 meters) over CAT5/5e/6/6a/7 cable.

      Cables:
    • 0.5-meter male USB Type A to male USB Type B interface cable included, Use CAT5/5e/6/6a/7 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

  • Item Includes:

    • USB Extender (local and remote unit)
    • USB Type A to Type B male-to-male cable
    • User manual
    • US AC adapter

  • Warranty:

    • 2-Years
