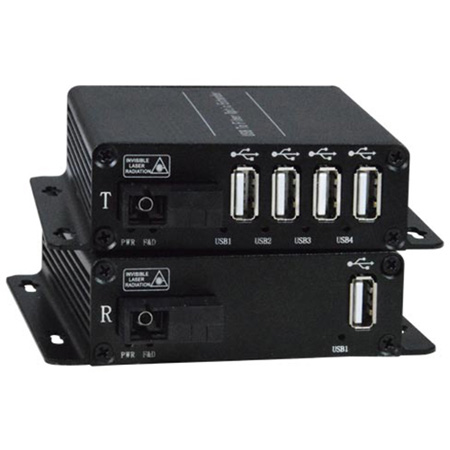

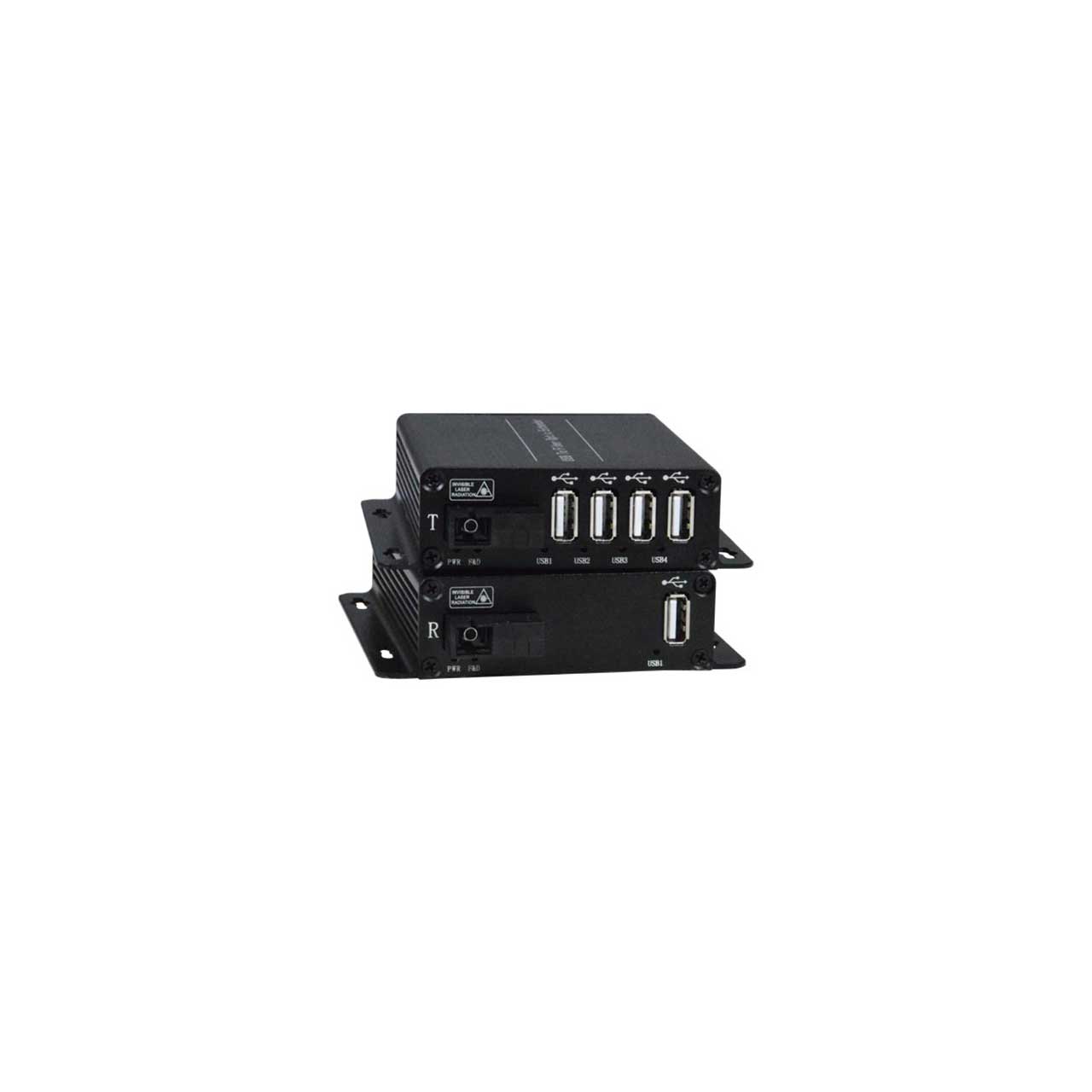

NTI USB2-FOSC-4 Extend Four USB Devices up to 820 Feet Using a Single SC Singlemode or Multimode Fiber Optic Cable

USB2-FOSC-4 - Overview

• Features:

  • Supports fully transparent USB connections - supports all USB computers (PC, SUN and MAC) and their associated peripherals.
  • Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, touch screen monitors, game controllers, flash drives, keyboards, mice, etc.).
  • Signal transmission up to 820 feet (250 meters) via a single SC singlemode or multimode fiber optic cable.
  • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Compliant with USB 2.0 specifications.
  • Each port supports full 500mA current.
  • Supports Plug-n-Play specification.
  • Low RFI/EMI for sensitive applications.
  • No drivers required.
  • Integrated mounting brackets for easy surface/wall mounting.
  • Cables can be installed in conduit prior to extender installation.


• Specifications:

  • Local Unit
  • One female USB Type A connector.
  • One simplex female SC fiber optic port.
  • Supports a USB computer (PC, SUN, MAC).
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Solaris, Linux, FreeBSD, and MAC OS 9/10.

    Remote Unit
  • Four female USB Type A connectors.
  • One simplex female SC fiber optic port.
  • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Supports self-powered and/or bus-powered USB devices.
  • Compatible with USB touch screen monitors.

    Power
  • Local unit: powered from attached computer.
  • Remote unit:85 to 265 VAC at 50 or 60 Hz via AC adapter.
  • Each port supports full 500mA current

    Environmental
  • Operating temperature: -4 to 158°F (-20 to 70°C).
  • Storage temperature: -40 to 185°F (-40 to 85°C).
  • Operating/storage relative humidity: 0 to 95% non-condensing RH.

    Dimensions
  • WxDxH: 4.09x4.09x1.10 in (104x104x28 mm).

    Regulatory Approvals
  • RoHS

    Max Distance
  • 820 feet (250 meters) over a single SC singlemode or multimode fiber optic cable.

    Cables
  • 0.5-meter USB Type A male-to-male interface cable included.
  • Use a simplex SC singlemode/multimode fiber optic cable to extend the receiver from the transmitter up to 820 feet (250 meters).(Cables not included.)
  • Use FIBER-AD-SS-LCFSCM to convert a male simplex LC singlemode connector to a male simplex SC singlemode connector.
  • Use FIBER-AD-SS-STFSCM to convert a male simplex ST singlemode connector to a male simplex SC singlemode connector.


• Item Includes:

  • 1x transmitter unit
  • 1x receiver unit
  • 1x 0.5-meter USB Type A male-to-male cable
  • 1x power supply
  • 1x User manual
