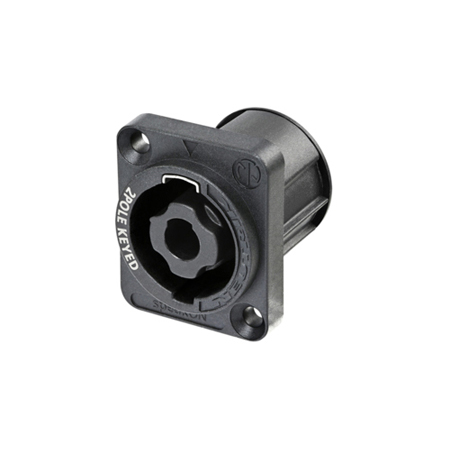

Neutrik NL2MPXX Receptacle speakON XX Series 2 Pole - Tab Terminals for NLFASTON/Soldering - Countersunk Screw Holes

Name: Neutrik NL2MPXX Receptacle speakON XX Series 2 Pole - Tab Terminals for NLFASTON/Soldering - Countersunk Screw Holes
Brand: Neutrik Americas
SKU: NL2MPXX
Price: 2.66 USD
Availability: InStock

ITEM #: NL2MPXX MFG #: NL2MPXX

Neutrik Americas

List Price:

$3.10

Our Price:

$2.66

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NL2MPXX - Overview

The Neutrik NL2MPXX connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Attention: speakON is NOT to be used as an AC mains or power supply connector!

Features:
- IEC 61984 certified > IEC 62368-1 compliant
- Glass reinforced V-0 materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
Specifications:
- Gender: male
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 2.8 kVac
- Insulation resistance: >0.1 GΩ (after dampheat)
- Rated current per contact: 24 A rms continuous (audio rating significantly higher, depending on signal)
- Rated voltage: 250 V ac
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Lifetime: > 5000 mating cycles
- Termination: 3/16" flat tabs (e.g. NLFASTON)
- Locking device: Quick Lock
- Chassis shape: D
- Layout: standard hole position, thru holes
- Contact plating: Ag
- Locking element: Stainless Steel
- Shell: Polyamide (PA 6.6)
- Contacts: Copper Alloy
- Flammability: UL94 V-0
- Temperature range: -30 °C to +80 °C
Item Includes:
- 1x Neutrik NL2MPXX Receptacle speakON XX Series 2 Pole - Tab Terminals for NLFASTON/Soldering - Countersunk Screw Holes
