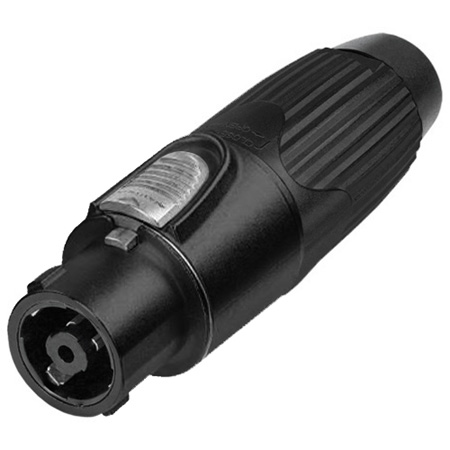

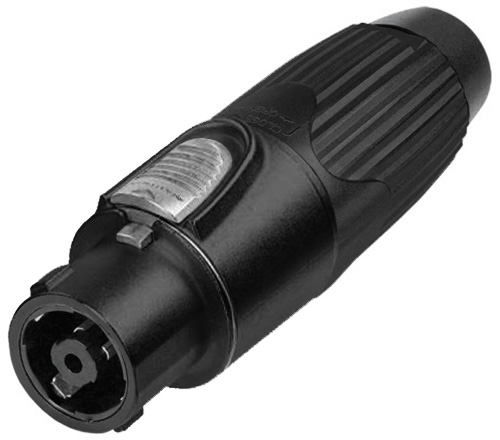

Neutrik NLT8FX-BAG 8-pole Female speakON STX Connector - Black/Chrome

NLT8FX-BAG - Overview

• Features:

  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio signal with 50% duty cycleUses precise "Quick Lock: system
  • Mates with all currently available speakON products


• Specifications:

  • Electrical
  • Contact Resistance: < 2 mΩ (after lifetime)
  • Dielectric Strength: 4 kVdc (peak)
  • Insulation Resistance: > 10 GΩ
  • Rated Current Per Contact: 40 A rms continuous
  • Rated Current Per Contact: 50 A audiosignal, duty cycle 50 %
  • Rated Voltage: 250 V ac
  • Attention: speakON is NOT to be used as an AC mains or power supply connector!

    Mechanical
  • Cable O.D.: 8 - 20 mm
  • Cable Retention: = 220 N (subject to cable O.D. and material)
  • Lifetime: > 5000 mating cycles
  • Wiresize: 6 mm²
  • Wiresize: 10 AWG
  • Wiring: Solder contacts
  • Locking Device: Quick Lock (latch)

    Material
  • Contact plating: 4 &mirco;m Ag
  • Contacts: Spring copper
  • Insert: Polyamide (PA 6 30 % GR)
  • Locking Element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Strain Relief: Polyacetal (POM)

    Environmental
  • Flammability: UL 94 HB
  • Protection Class: IP 50 (mated condition)
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -30 °C to +80 °C


• GTIN:

  7613187003912
