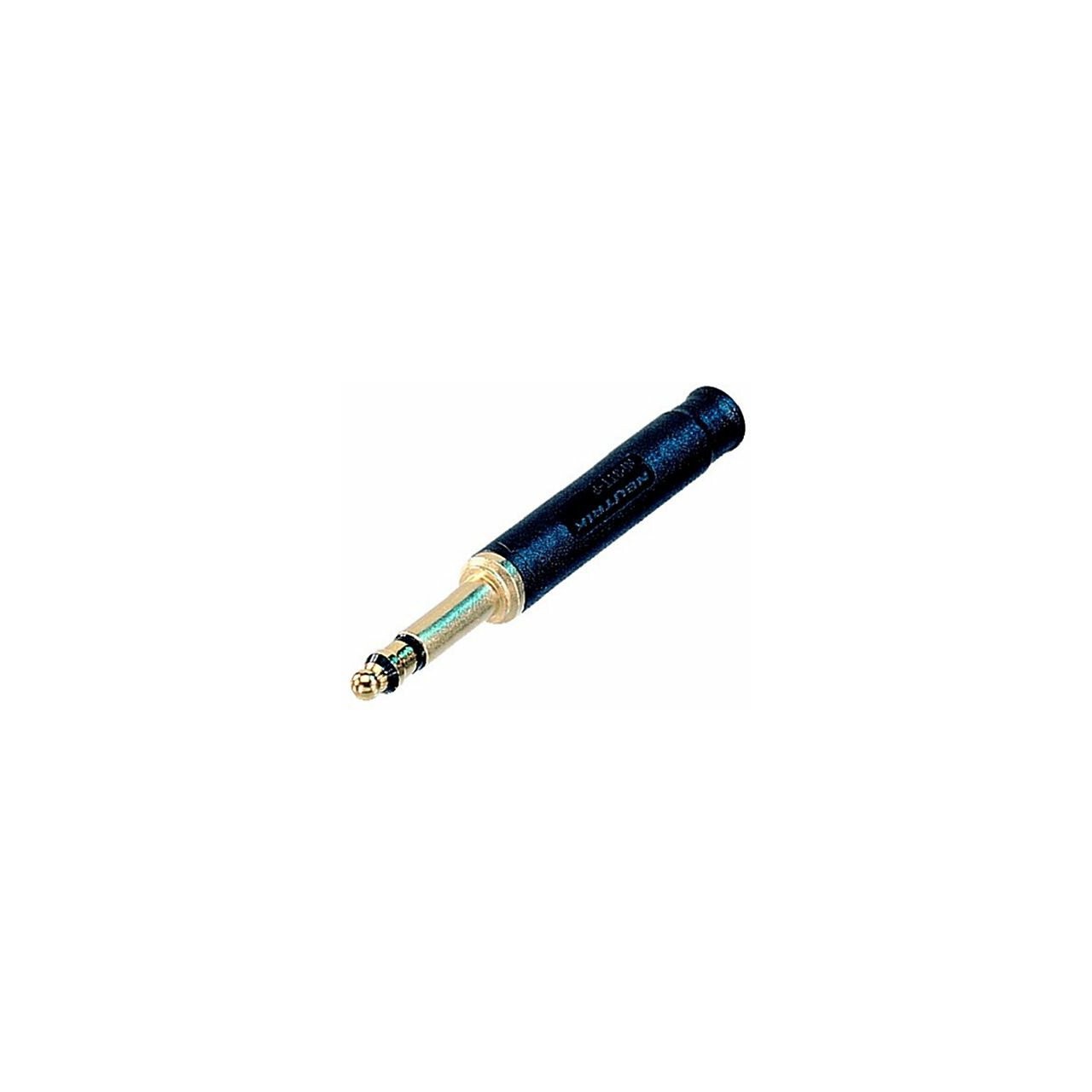

Neutrik NP3TT-P-AU-B 4.4 mm TT Bantam Connector Plug TT - Black Plastic/Gold - 100/Pack

ITEM #: NP3TT-P-B-AU-100 MFG #: NP3TT-P-AU-B 100/PACK

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$885.00

Our Price:

$759.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NP3TT-P-AU-B 100/PACK - Overview

The Neutrik NP3TT-P-AU is a 4.4 mm (0.173") tiny telefone bantam type plug with solder termination for T+R, hex crimp of S with a standard RG58 crimp tool, red plastic housing, and gold contacts. It's ideal for use with TT patch panels.

  • Features:

    • Designed for pro audio applications
    • Robust egonomic design - long-lasting and depenable
    • Colored sleeves available for coding and marking
    • Gold contacts guarantee best conductivity
    • Standard HEX crimp cable clamp for shield termination and cable retention


  • Specifications:

    • Electrical
    • Contact Resistance: Depends on mating connector mΩ
    • Dielectric Strength: 1 kVdc
    • Insulation Resistance: >2GΩ (initial)
    • Rated Current per Contact: depends on mating connector A
    • Rated Voltage: <50 V

      Mechanical
    • Cable O.D.: 4mm - 4.8mm
    • Crimp Size: 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
    • Lifetime: >1000 mating cycles
    • Wiresize: 0,25mm²
    • Wiresize: 24 AWG
    • Wiring: Solder contacts

      Material
    • Bushing: Polyacetal (POM) + PU
    • Contact Plating: 0.2µm Au TRIBOR®
    • Contacts: Bronze (CuSn6) (Tip)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Shell: Brass (CuZn39Pb3)
    • Shell Plating: Polyamide (6 30% GR) (red)

      Environmental
    • Standard Compliance: MIL-P-642/13
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -4°F - 149°F (-20°C - 65°C)


  • Item Includes:

    • 1x Neutrik NP3TT-P-AU-B TT Bantam Connector Plug TT Black Plastic/Gold - 100/Pack
