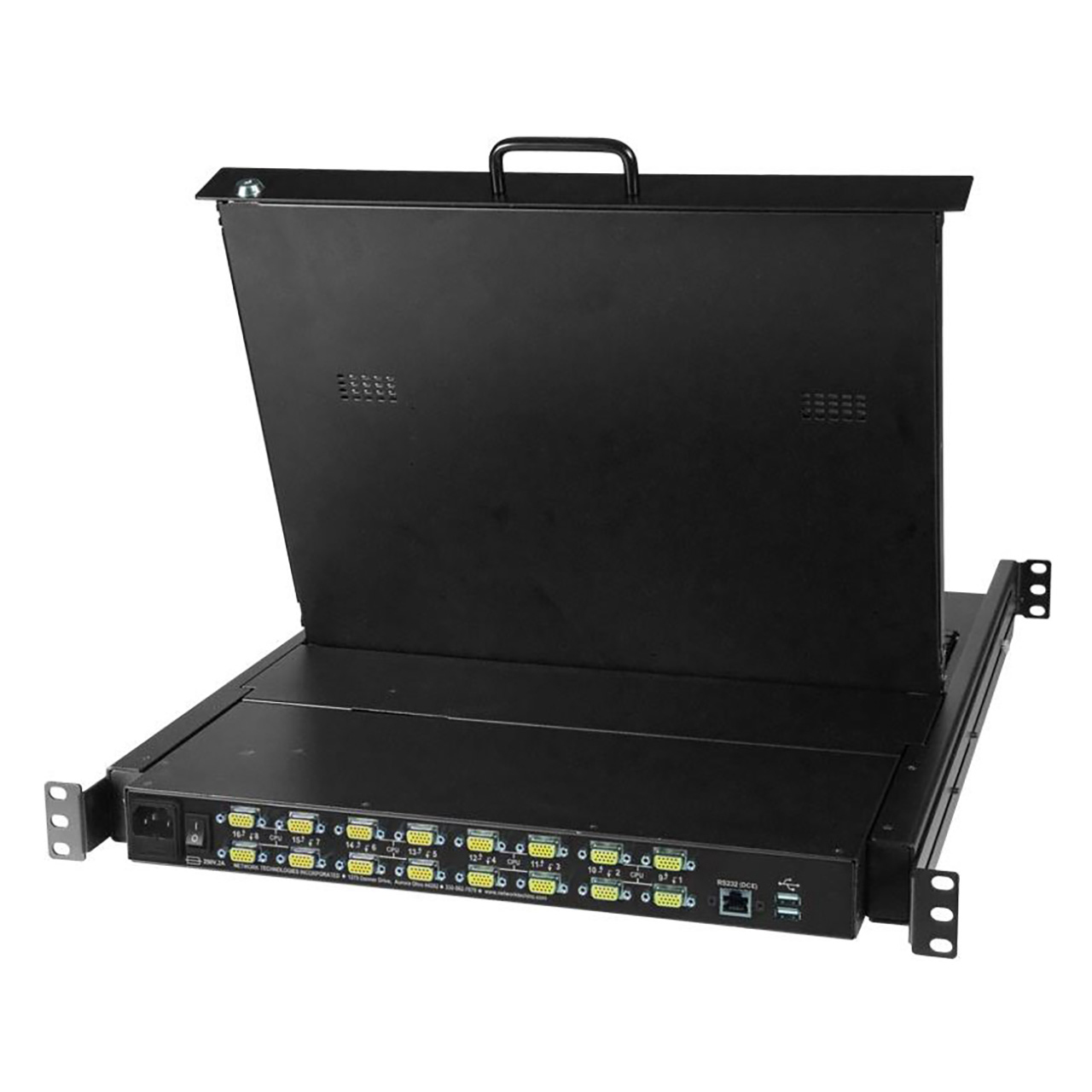

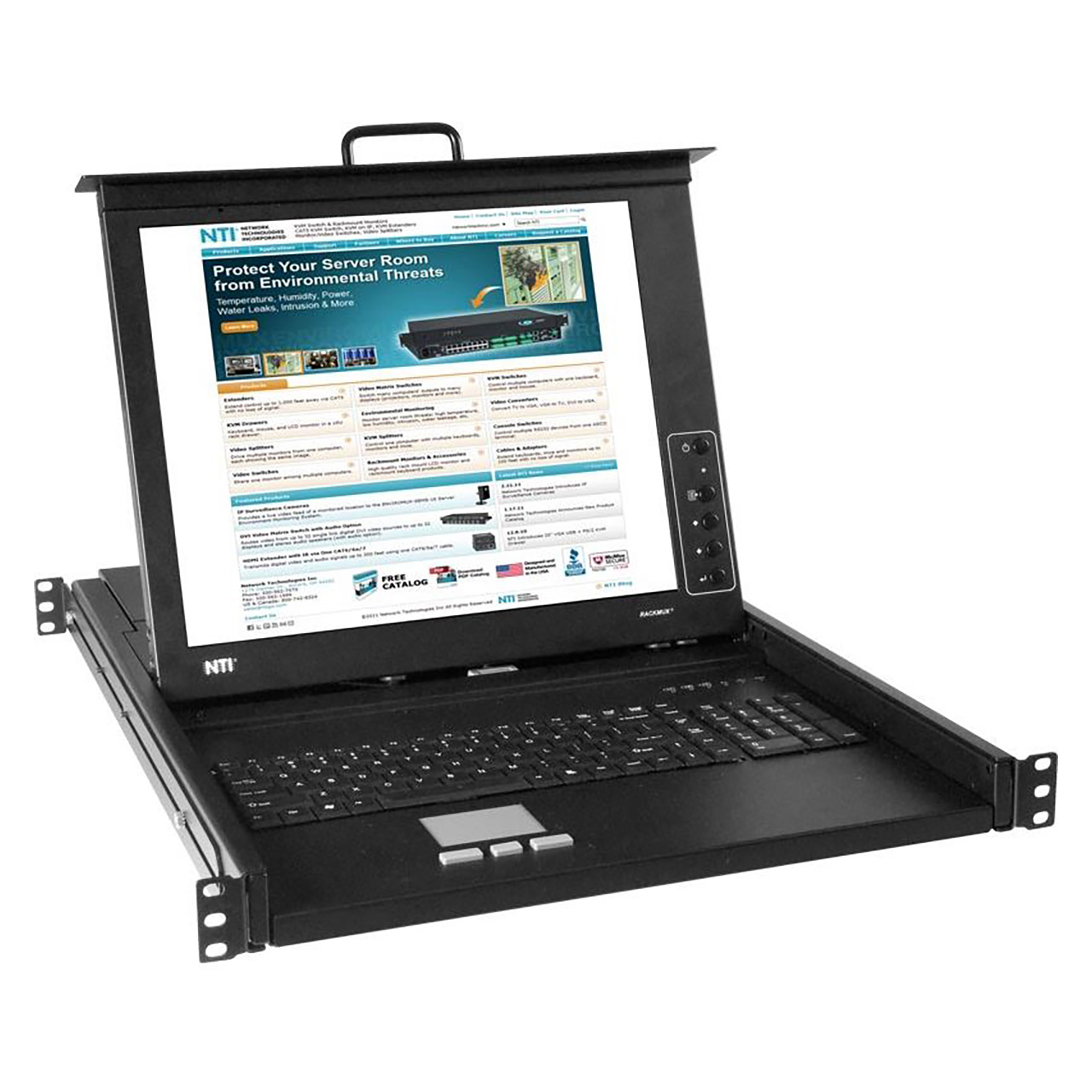

NTI RACKMUX-V17-N USB and PS/2 KVM Drawer with 17-Inch VGA Monitor and Numeric Keypad

RACKMUX-V17-N - Overview

• Features:

  • Forward-folding 17" TFT/LCD VGA monitor
  • 1280x1024 video resolution for 17" monitor
  • Optional high resolution 1920x1200 WUXGA 17.1" monitor available
  • Tilt LCD up and back to adjust to any comfortable viewing angle to 120° for 17" models
  • Control up to 16 USB computers (PC, SUN, and MAC) with VGA video
  • Available with two optional transparent USB ports to connect any two external USB 1.1 (low/full speed) devices, such as a touch screen monitor, interactive white board, or CAC card reader
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut
  • Designed to be a one-person job when installing the drawer
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad
  • Three-button touchpad mouse supports single-finger gestures
  • LCD auto-shutoff in closed position
  • Drawer locks into place when open to prevent it from sliding out of the rack
  • Front quick-release latches for pushing the drawer back into the rack
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control
  • Cabling runs are simplified with NTI's high density KVM switch cables
  • Available with Sunlight Readable monitor (17" models only) - call an NTI Product Consultant for more information
  • Available with optional 24VDC power


• Specifications:

  Monitor
  • Forward-folding 17" Active Matrix TFT LCD flat panel VGA monitor.
  • Resolution: 1280x1024
  • Tilt: Up to 120°
  • Frequency:
    - Horizontal: 31 - 80kHz
    - Vertical: 55 - 76Hz
  • Brightness: 300 nits
  • Contrast Ratio: 500:1
  • Supports DDC1 and DDC2B protocols
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment

    Power
  • 90V - 264V AC at 50 or 60Hz via IEC connector. (Country-specific power supply cable included)
  • AC Input Current: 350mA
  • Power Consumption: 40W, 24V
  • 3-pin terminal block for 24V power source
  • Accepts 18V - 36V DC (24V DC nominal)
  • For installation in a 24V Telecom environment

    Environmental
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Operating and Storage Relative Humidity: 20% - 90%, non-condensing RH

    Dimensions
  • 17" (432mm) Models (WxDxH): 19" x 23.91" x 1.75" (483mm x 607mm x 44mm)
  • Drawer is adjustable to various rack depths from 24" (610mm) to 40" (1,016mm) deep
  • Handle adds an additional 1.5" (38mm) to the depth when monitor is in closed position
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL


• Item Includes:

  • 1x KVM Drawer
  • 1x IEC Power Cord, country-specific (excluded in 24V models)
  • 1x DB9 female to RJ45 female adapter
  • 1x 5ft CAT5 patch cable
  • 1x Single-person installation mounting kit


• Warranty:

  • 2 Year Warranty
