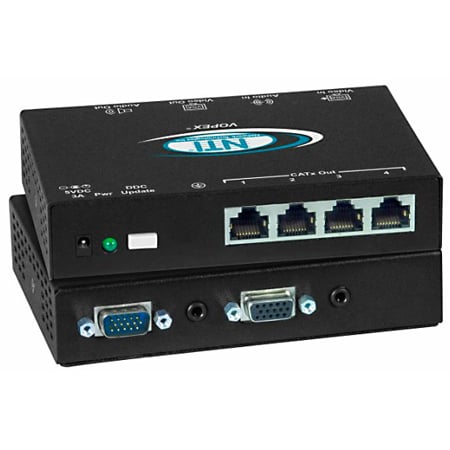

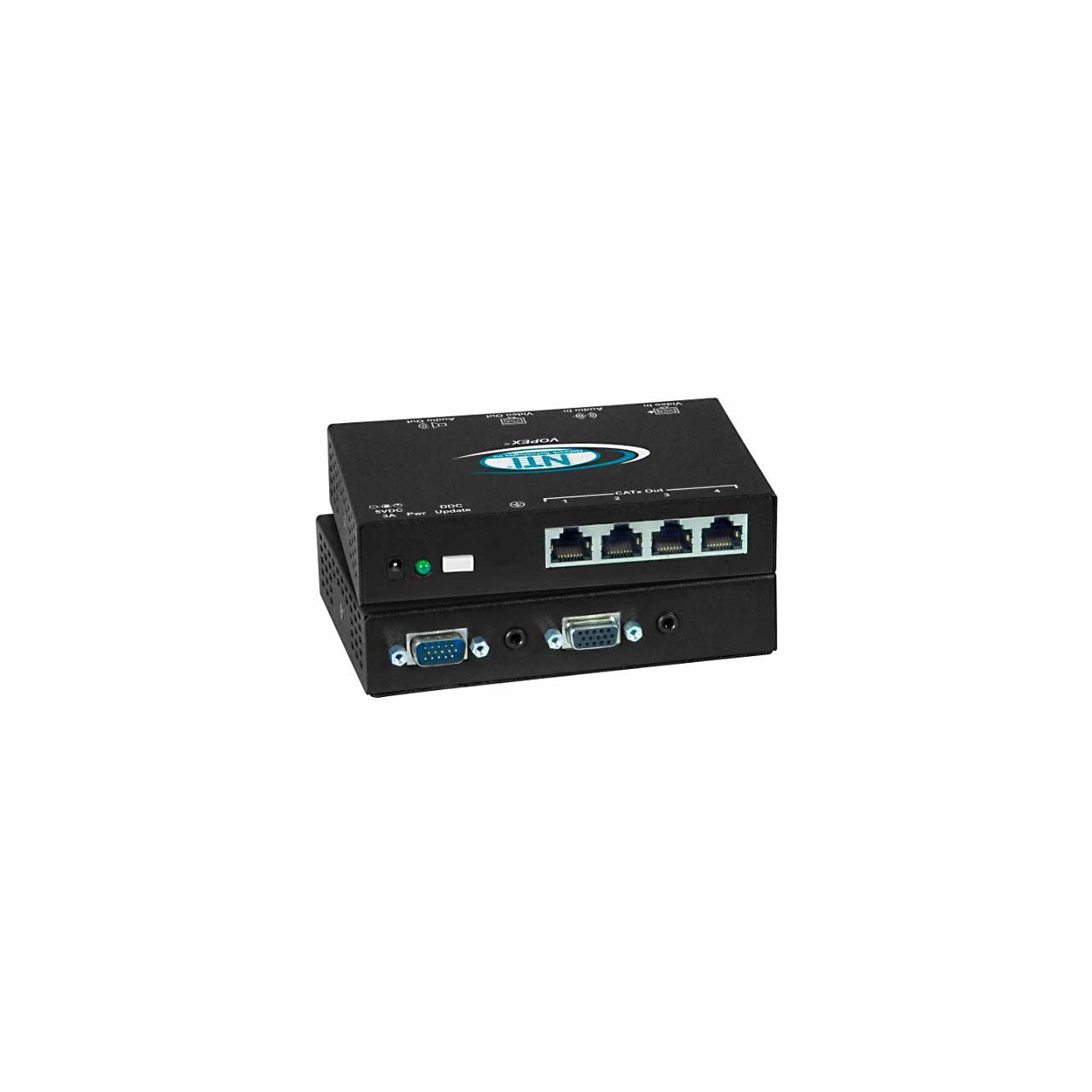

NTI VOPEX-C5VA-4C1000 VGA Splitter/Sender Unit with Audio via CAT5 to 1000 Feet - 4-Port

VOPEX-C5VA-4C1000 - Overview

• Features:

  • Broadcast real-time VGA video and stereo audio to multiple locations.
  • Supports resolutions up to 2048x1536 using NTI's 1,000' remote units and 1920x1440 using NTI's 600' remote units.
  • Easily expandable. Add remote units as you add monitors.
  • A pure hardware solution-no software conflicts.
  • High quality rugged steel construction with durable powder coat finish.
  • Ideal for digital signage, movie theater lobbies, point of purchase displays, conference centers, airports, and other applications that require multiple displays.


• Specifications:

  • Local Unit (Splitter)
  • Video Input: Supports a PC, SUN or MAC with VGA video.
  • Input frequency ranges: Horizontal: 15 kHz to 130 kHz. Vertical: 30 Hz to 150 Hz
  • Input impedance: 75 Ohms.
  • Maximum input levels: 1.45 p-p.
  • Video Output: Female RJ45 connectors for CAT5/5e/6 cable to remote units.
  • Output impedance: 75 Ohms.
  • Maximum output level: 1.45Vp-p
  • Audio: 3.5mm stereo audio jacks.
  • Frequency response: 20 Hz to 20 kHz, ±1 dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output: supports multimedia speakers.
  • Cables: 3-foot VGA cable included. 3-foot audio cable included.
  • Power: 110 to 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
  • Dimensions: 4-port WxDxH (in): 5.13x3.45x1.08, 8-port WxDxH (in): 5.13x3.45x1.68
  • Operating temperature: 32 to 100°F
  • Storage temperature: -22 to 140°F
  • Operating and storage relative humidity: 17 to 90% non-condensing RH.

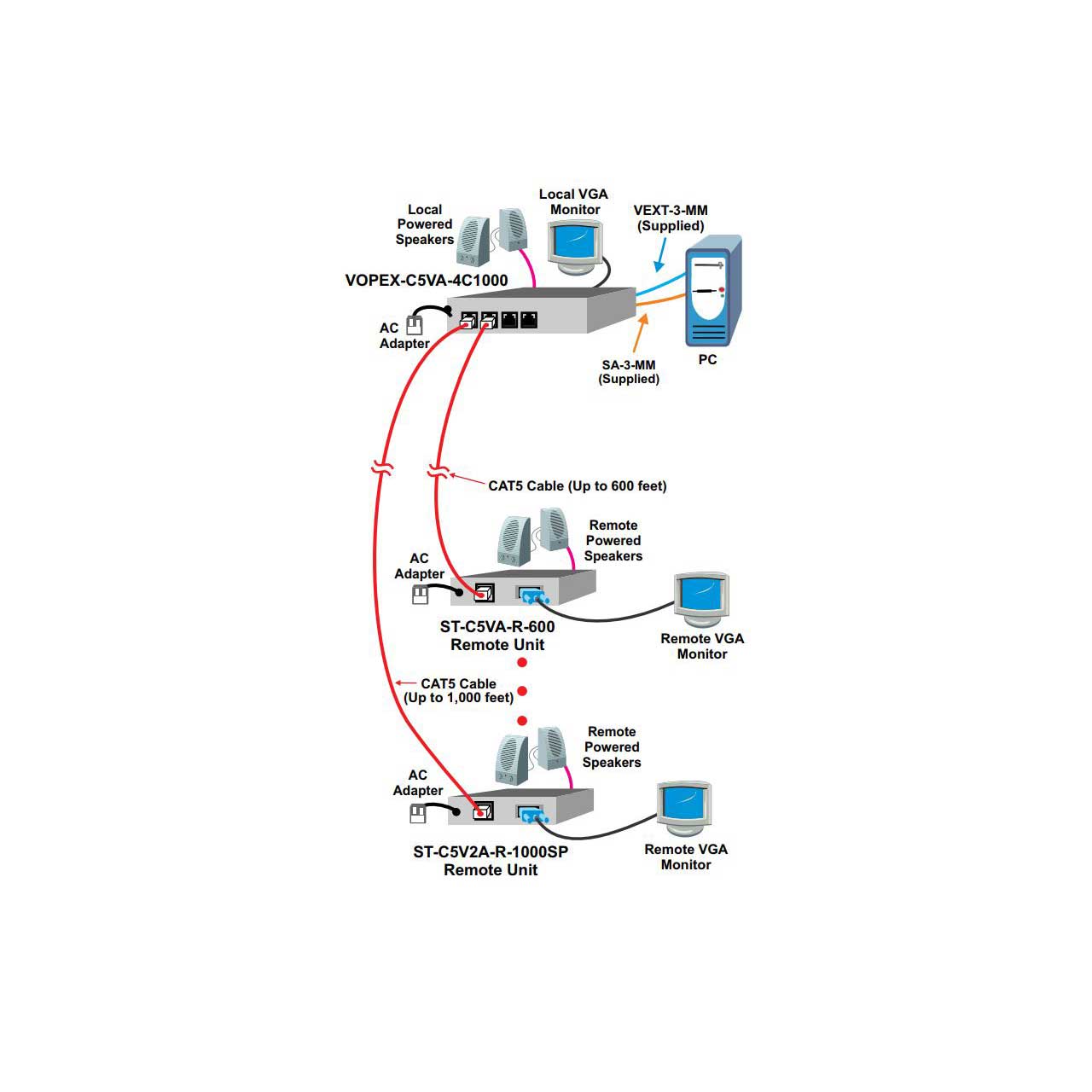

    Remote Unit (Receiver)
  • Video Output: Female 15-pin HD connector.
  • ST-C5V(2A)-R-1000SP: Supports resolutions up to 2048x1536
  • ST-C5V(A)-R-600: Supports resolutions up to 1920x1440
  • Refer to the resolution charts below for resolutions at different lengths.
  • Output impedance: 75 Ohms.
  • Maximum output level for video: 1.45Vp-p.
  • Video quality adjustment:
  • ST-C5V(2A)-R-1000SP: Automatically adjusts the video quality and color skew to compensate for varying lengths of CATx cable.
  • ST-C5V(A)-R-600: Video quality adjustment for different lengths of CATx cable is done manually for the video-only remote, and automatically for audio/video remote.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Line level output: supports multimedia speakers.
  • Maximum output levels: 3.1Vp-p (line level).
  • Power: 110 to 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
  • Dimensions: ST-C5V2A-R-1000SP WxDxH (in): 5.03x3.06x1.08, ST-C5VA-R-600 WxDxH (in): 3.47x3.05x1.04
  • Operating temperature: 32 to 100&F
  • Storage temperature: -22 to 140°F
  • Operating and storage relative humidity: 17 to 90% non-condensing RH.
