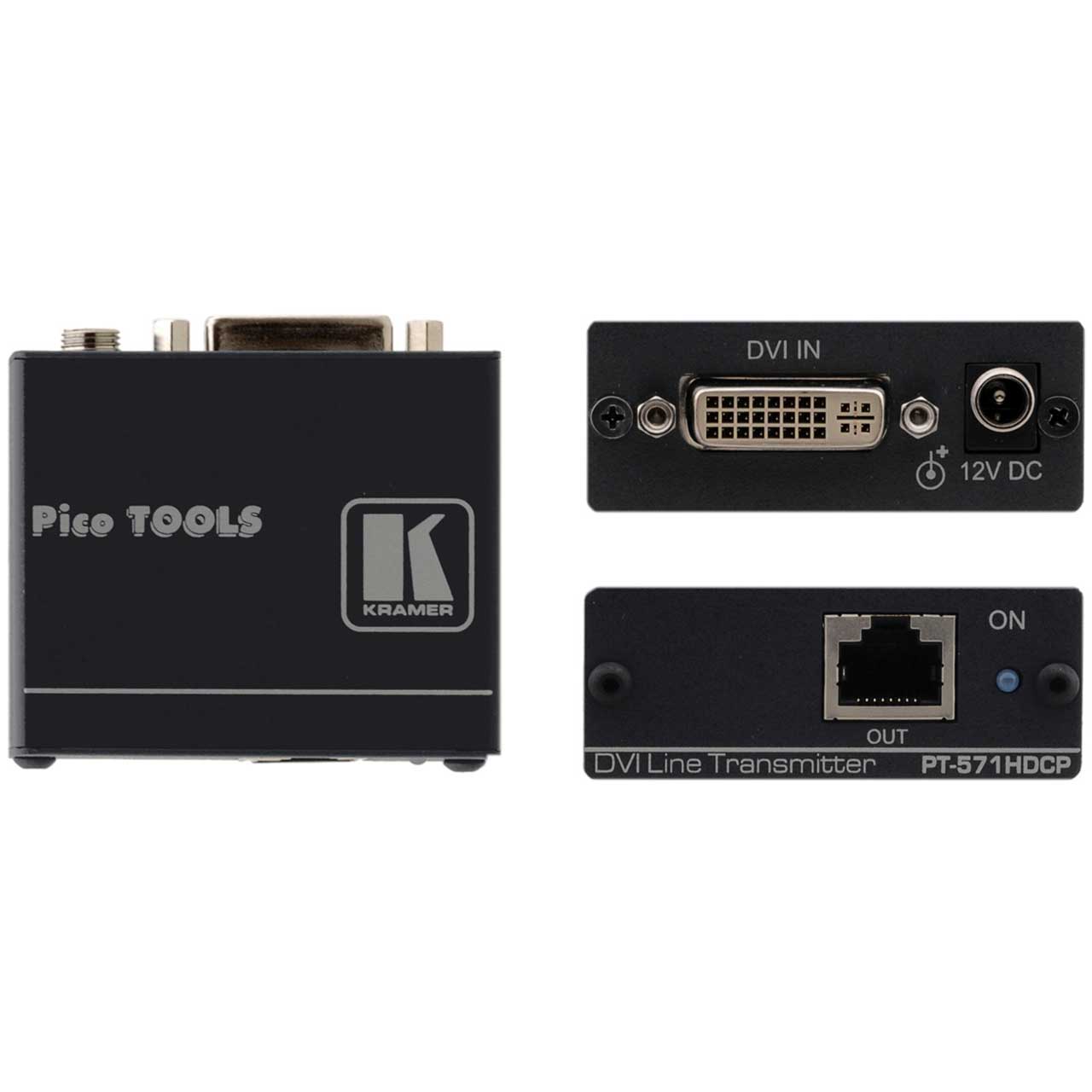

Kramer PT-571HDCP DVI HDCP 2.2 Compact Transmitter over Long-Reach DGKat

PT-571HDCP - Overview

HDTV Compatible and HDCP Compliant

• Features:

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel); WUXGA, 1920x1080p.
  • HDTV Compatible.
  • HDCP Compliant.
  • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
  • Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
  • EDID PassThru - Passes EDID signals between the source and display.
  • Power Connect™System - A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other.
  • Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 1 DVI, 1.2Vpp on a DVI Molex 24-pin female connector


  • OUTPUTS
  • 1 DGKat twisted pair on an RJ-45 connector


  • BANDWIDTH
  • 4.95Gbps (1.65Gbps per graphic channel)
  • WUXGA, 1920x1080p


  • POWER CONSUMPTION
  • 12V DC, 308mA (transmitter and receiver together)


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-49° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • PT-571HDCP Transmitter ONLY
  • Power Supply
  • Mounting Bracket


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063011260
