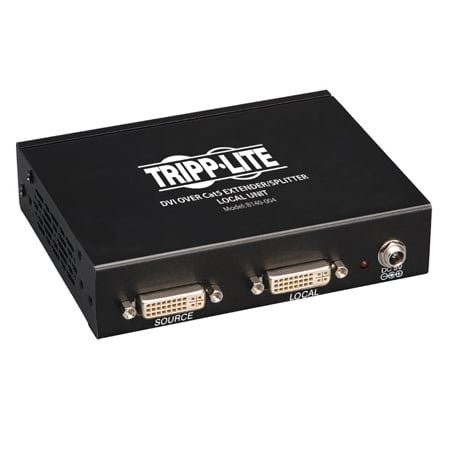

Tripp Lite B140-004 4-Port DVI over Cat5/Cat6 Extender Splitter Video Transmitter 1920x1080 at 60Hz Up to 200 Feet

B140-004 - Overview

• Features:

  • Transmit a DVI-D Single-Link signal to four monitors up to 200 ft. away using a single Cat5e/6 patch cable
  • Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
  • For longer distances - Use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
  • For shorter distances - Use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.
  • Use 24 AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
  • An additional DVI port is provided for the connection of a local monitor. This local DVI port can also be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors (12 remote, 1 local).
  • Further expand the range and number of monitors by using a B140-110 repeater unit
  • Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel)
  • A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft.
  • HDCP compatible
  • Compatible with all operating systems
  • Plug and play; no software or drivers required
  • Mounting hardware is included that allows the unit to be rackmounted, wallmounted or pole mounted. In addition, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB 19" rackmount bracket.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


• Specifications:

  • Optional Mounting Accessory Notes: Up to three B140-004 local units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19in rackmount bracket
  • Unit Dimensions (hwd / in.): 1.125 x 5 x 4
  • Unit Dimensions (hwd / cm): 2.86 x 12.7 x 10.16
  • Included Mounting Accessories: Yes
  • Color: Black
  • Max 1024 x 768 Range (ft): 200
  • Max 480P Range (ft): 200
  • Max 1440 x 900 Range (ft): 150
  • Max 1080i Range (ft): 150
  • Max 1080P Range (ft): 150
  • Max 480i Range (ft): 200
  • Max 640 x 480 Range (ft): 200
  • Max 800 x 600 Range (ft): 200
  • Max 1600 x 1200 Range (ft): 150
  • Max 720P Range (ft): 150
  • Ports: 4
  • Side A - Connector 1: DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)

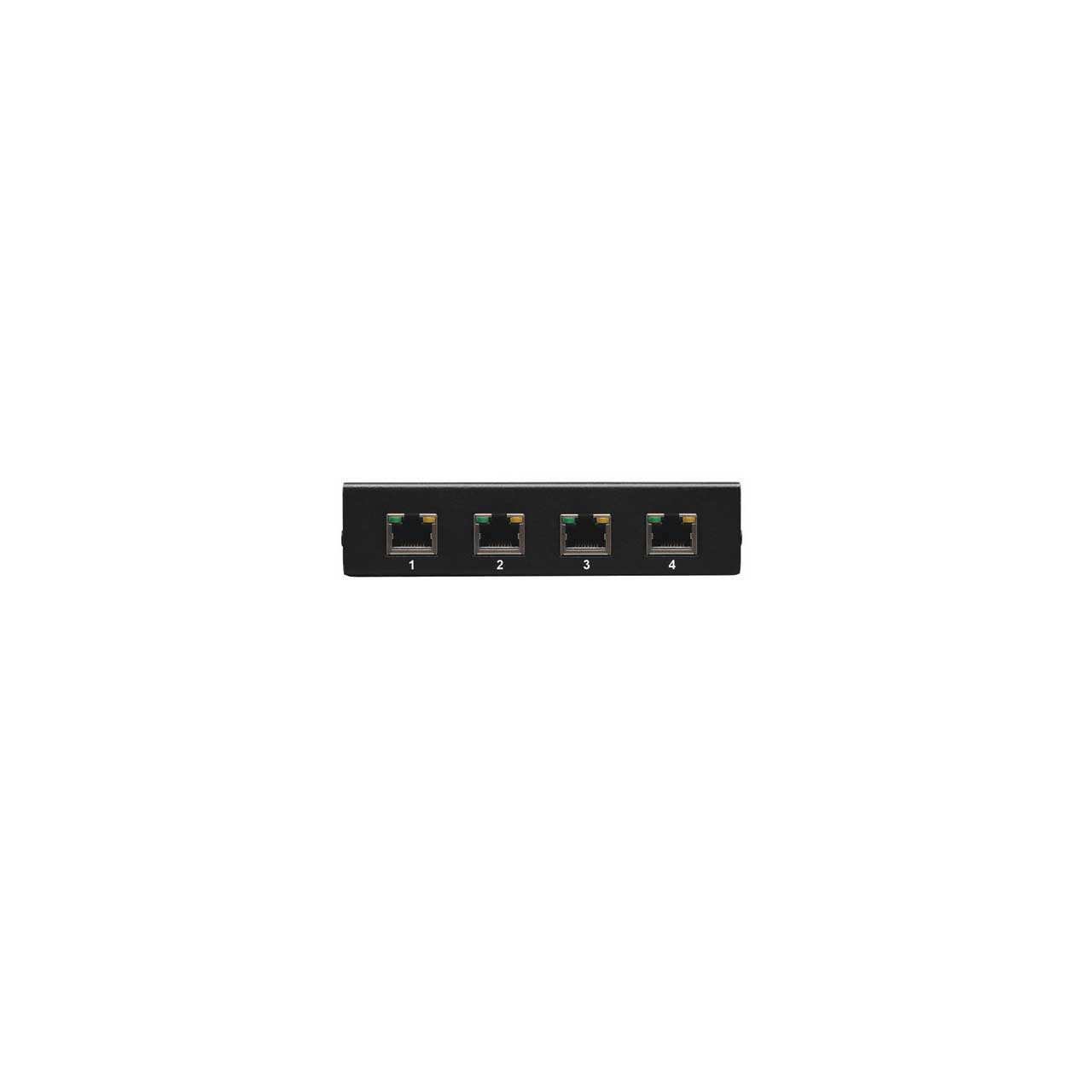

  • Side B - Connector 1: (4) RJ45 (FEMALE)
  • Side B - Connector 2: DVI-I (FEMALE)
  • Product Warranty Period (Worldwide): 1-year limited warranty

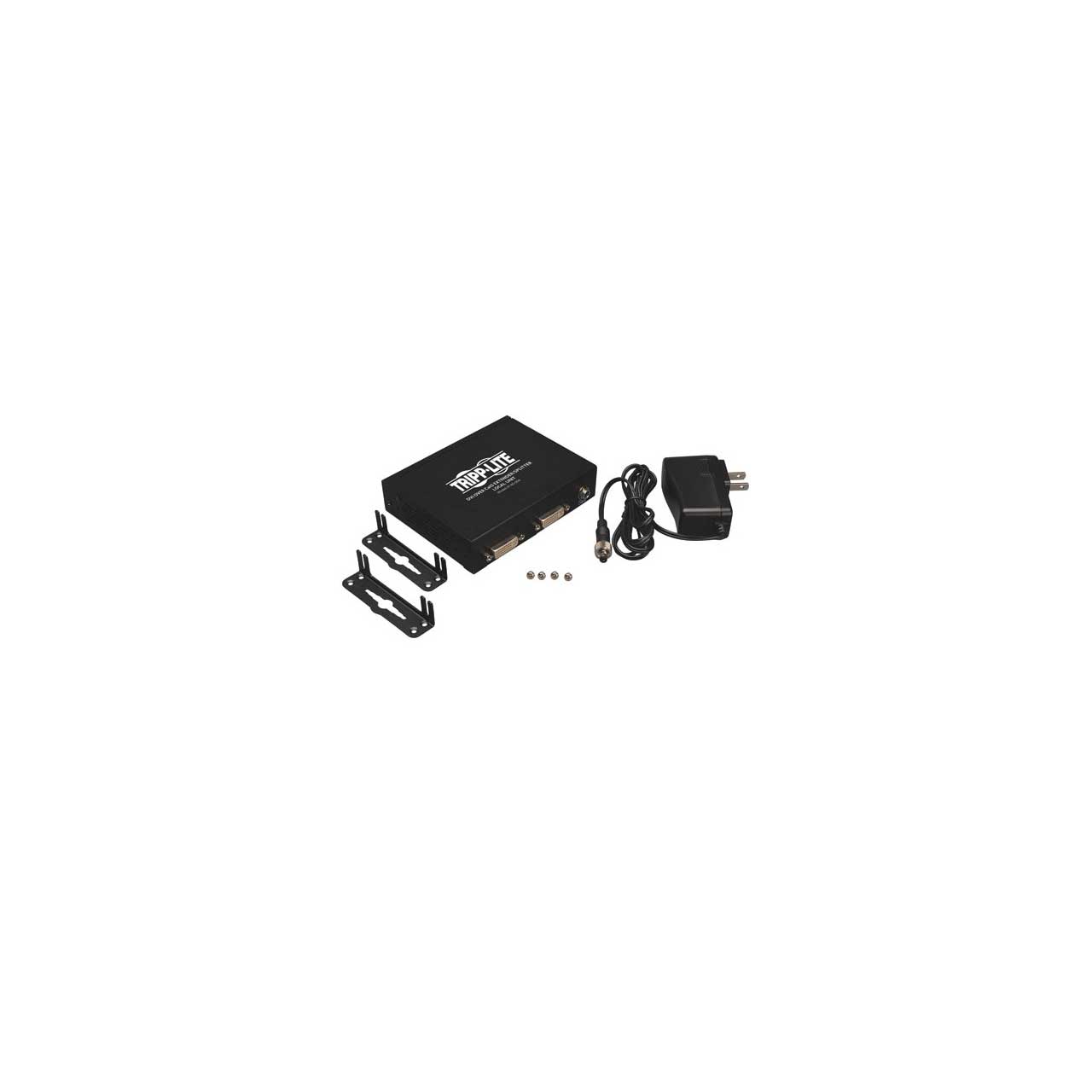

• Item Includes:

  • B140-004 DVI Over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
  • 1 ft. DVI daisychain cable
  • Mounting hardware
  • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual


• Warranty:

  • 1 Year


• GTIN:

  0037332156693
