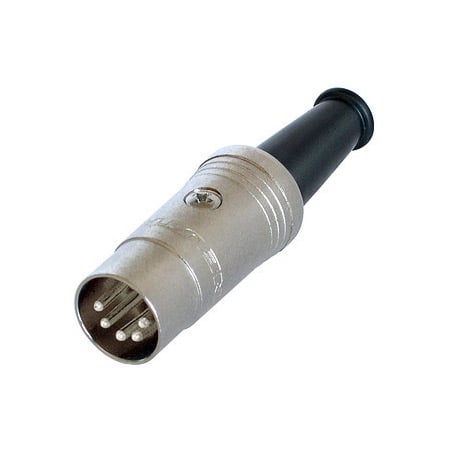

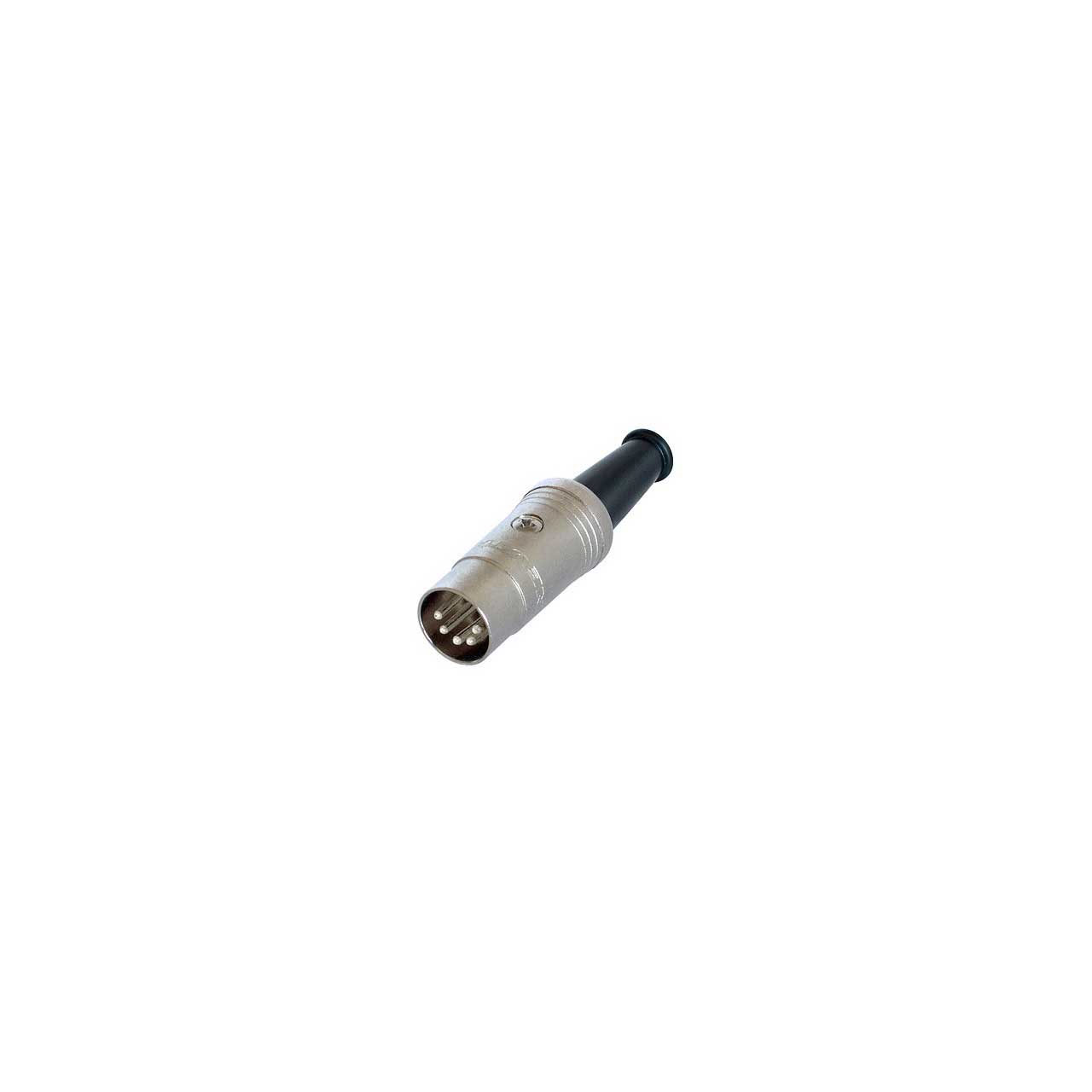

Rean NYS322 DIN Male 5-pole Cable Connector with Silver Plated Contacts

NYS322 - Overview

• Specifications:

  • Electrical
  • Contact Resistance: <10 mΩ
  • Insulation Resistance: >1000 MΩ(Initial)
  • Dielectric Strength: 500V dc
  • Rated Voltage: 50 VAC

    Mechanical
  • Insertion Force: ≤40N
  • Withdrawal Force: >5.5N
  • Lifetime: >1000 Mating Cycles
  • Cable O.D.: < 6.5 mm

    Material
  • Pin: Brass
  • Pin Holder: PA6+30%GF
  • Screw: Steel
  • Cable Clamp: Steel
  • Housing: Zinc
  • Boot: PVC
  • Pin: Silver Plating
  • Screw: Nickel Plating
  • Cable Clamp: Nickel Plating
  • Housing: Nickel Plating


• GTIN:

  7613187015625
