Rean NYS323G 7-Pin Male Din Plug with Gold Contacts

ITEM #: NYS323G MFG #: NYS323G

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$3.45

Our Price:

$2.07

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS323G - Overview

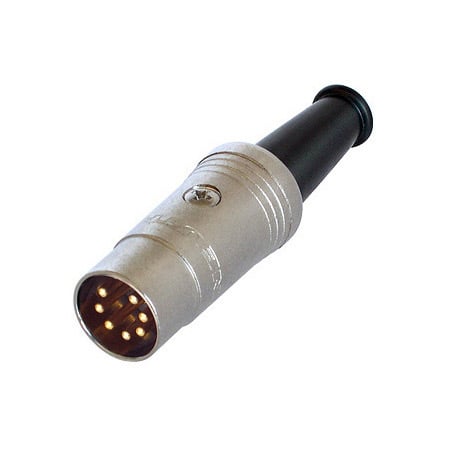

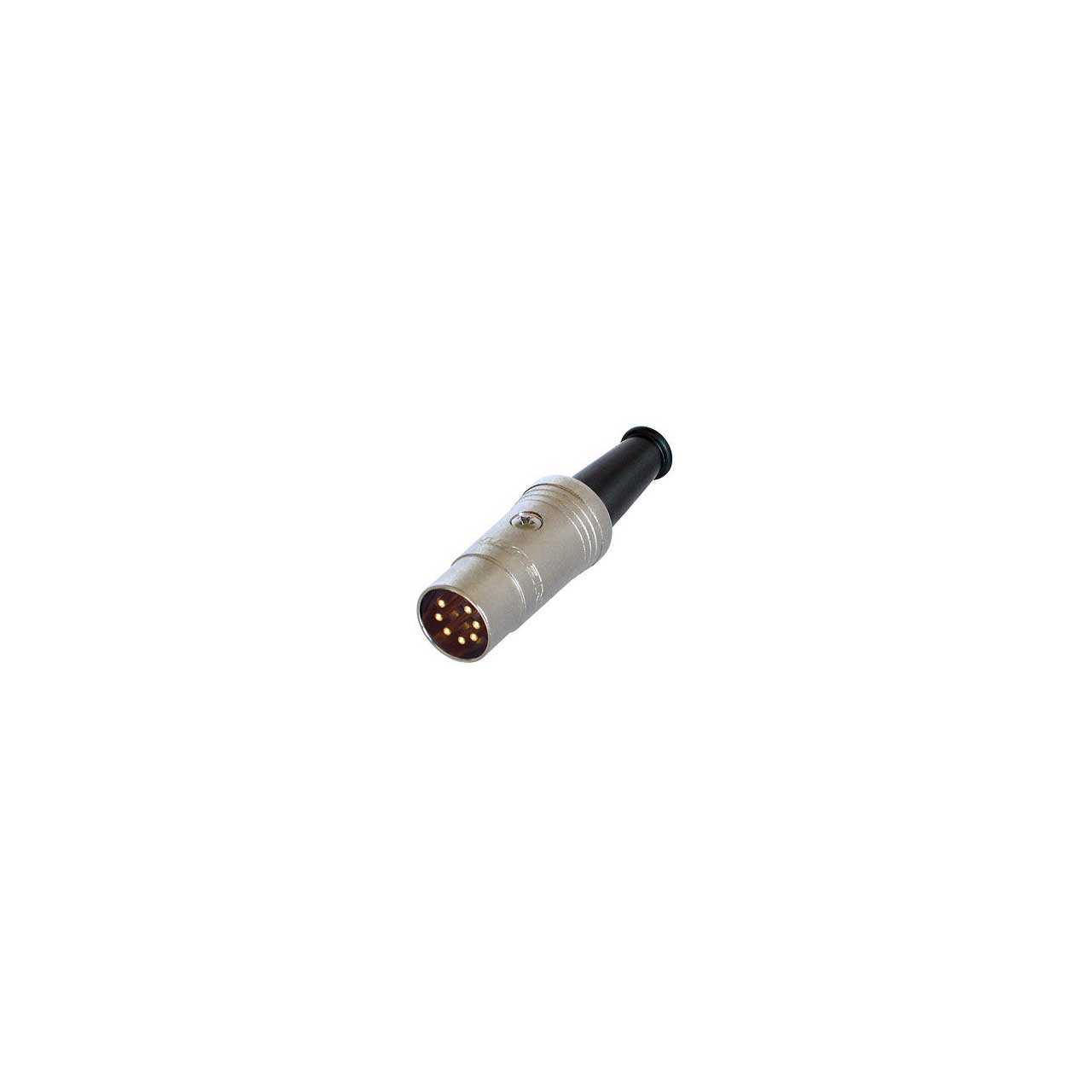

The Rean NYS323G is a 7-Pin Male Din Plug with Gold Contacts.

  • Specifications:

    • Electical
    • Contact Resistance: <10 mΩ
    • Insulation Resistance: >1000 MΩ(Initial)
    • Dielectric Strength: 500V dc
    • Rated Voltage: 50 VAC

      Mechanical
    • Insertion Force: ≤56N
    • Withdrawal Force: >7.5N
    • Lifetime: >1000 Mating Cycles
    • Cable O.D.: < 6.5 mm

      Material
    • Pin: Brass
    • Pin Holder: PA6+30%GF
    • Screw: Steel
    • Cable Clamp: Steel
    • Housing: Zinc
    • Boot: PVC
    • Pin: Silver Plating
    • Screw: Nickel Plating
    • Cable Clamp: Nickel Plating
    • Housing: Nickel Plating
