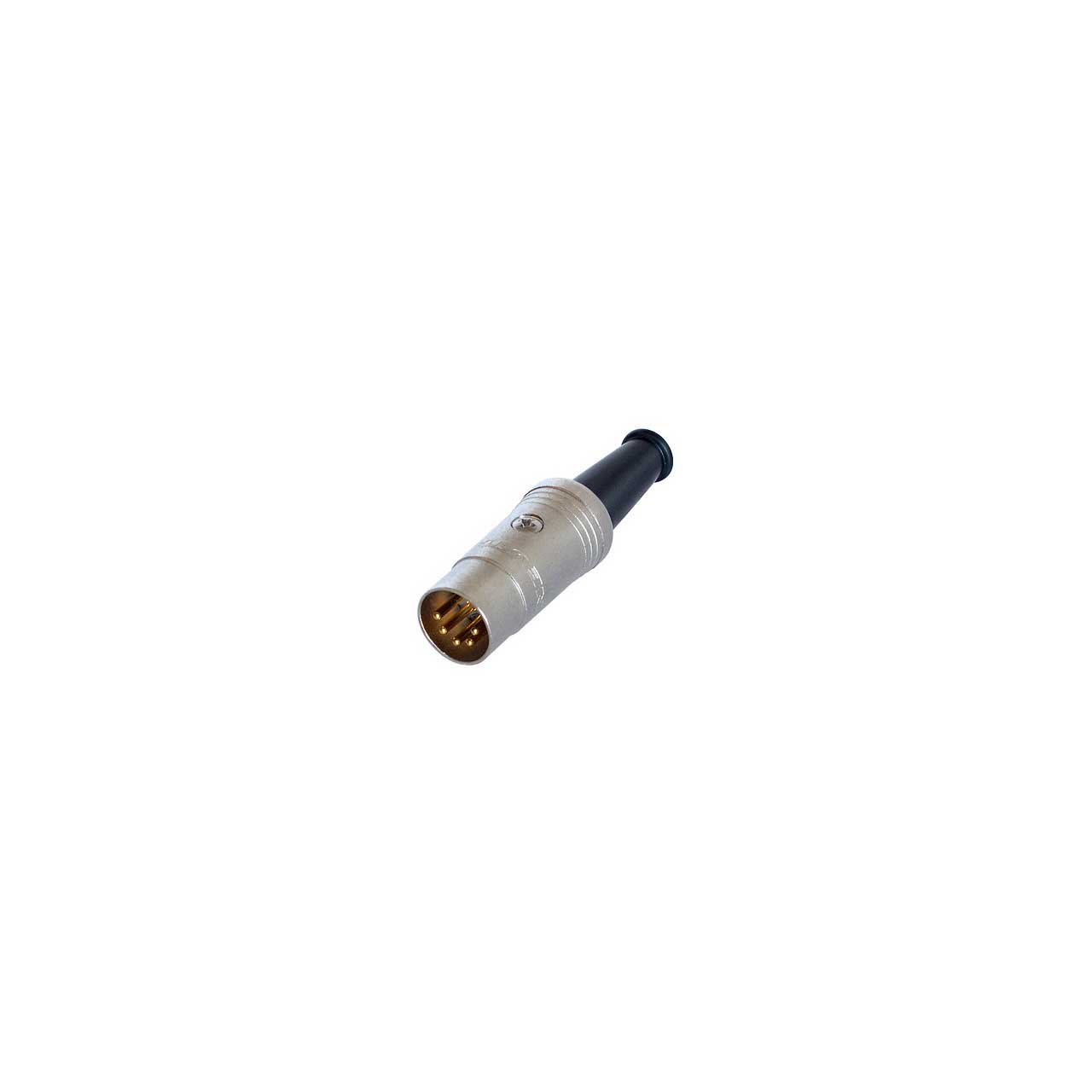

Rean NYS322G Plug - DIN 5 pin male - 180 nickel/gold

ITEM #: NYS-322G MFG #: NYS322G

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$3.25

Our Price:

$1.95

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS322G - Overview

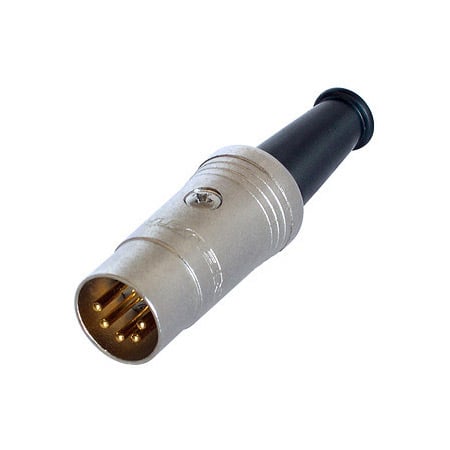

The Rean NYS322G is a DIN 5-Pole Male Cable Connector with Gold Plated Contacts.

  • Specifications:

    • Electrical
    • Contact Resistance: <10 mΩ
    • Insulation Resistance: >1000 MΩ(Initial)
    • Dielectric Strength: 500V dc
    • Rated Voltage: 50 VAC

      Mechanical
    • Insertion Force: ≤40N
    • Withdrawal Force: >5.5N
    • Lifetime: >1000 Mating Cycles
    • Cable O.D.: < 6.5 mm

      Material
    • Pin: Brass
    • Pin Holder: PA6+30%GF
    • Screw: Steel
    • Cable Clamp: Steel
    • Housing: Zinc
    • Boot: PVC
    • Pin: Gold Plating
    • Screw: Nickel Plating
    • Cable Clamp: Nickel Plating
    • Housing: Nickel Plating
