OG-4608-2BXXXXEB - Overview

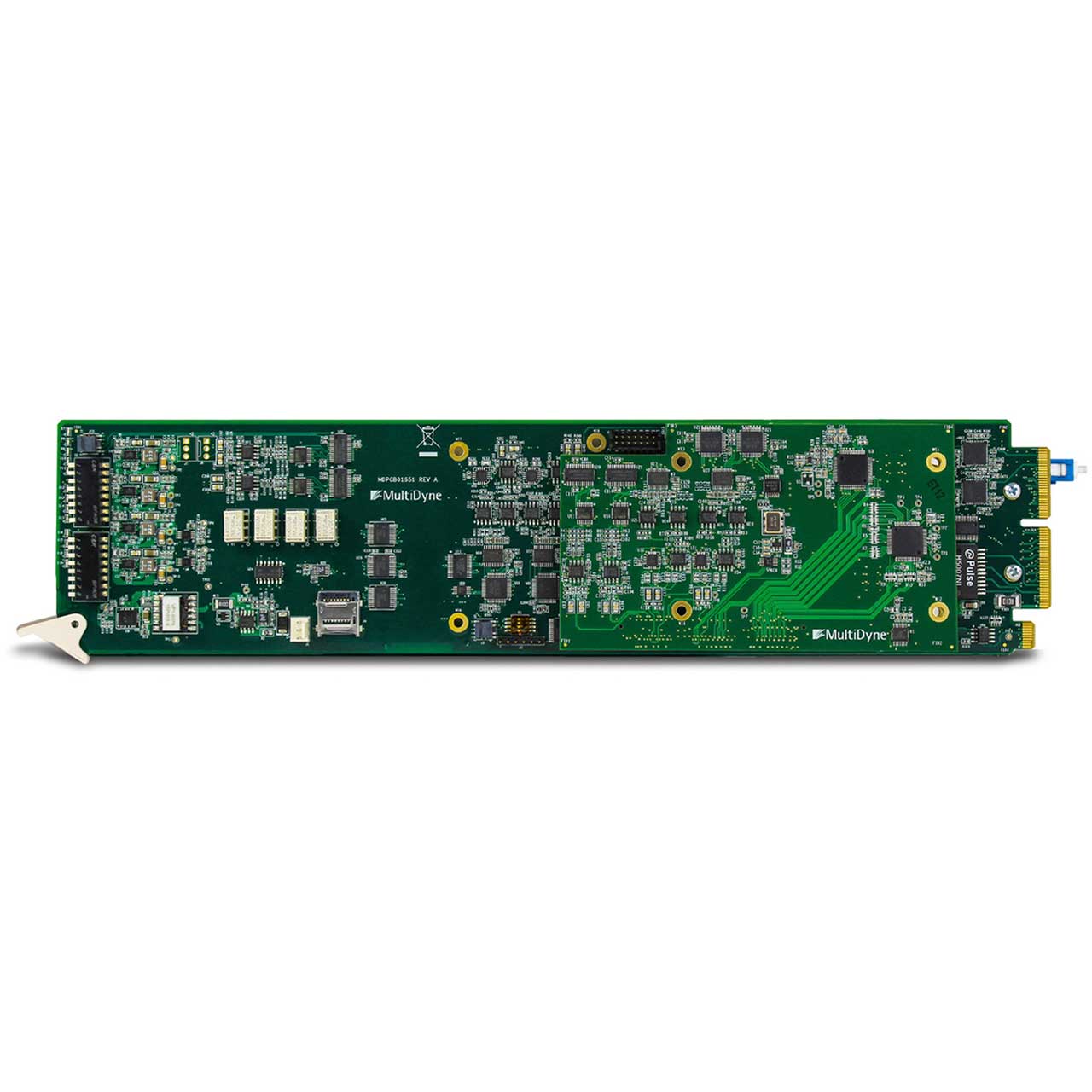

Multidyne OG-4608-2B-XX-XX-EB OG-4608 is a Transceiver Card with 2 Bidirectional 12G-SDI Video & Gigabit Ethernet. The OG-4608-2B-XX-XX-EB has a single-mode fiber operation and REQUIRES R2-4608-2AB-ST rear panel & OGX-FR-x openGear frame.

The OG-4600 series of modules for the openGear platform provides flexibility for all fiber transport needs. Signals are transported uncompressed and unprocessed from maximum signal integrity. Included signals are 12G SDI, audio, data, Ethernet, and reference, all compatible with the industry standard openGear platform offering SNMP management via Dashboard software.

Applications
Studio Links
Signal Trunking
Signal distribution
Campus interconnects
Transmission links
Telco circuits
Outside Broadcast
"B-Unit" interconnects

Please Note: Although these are transceiver units they do act as a Tx/Rx system.OG-4608-2BXXXXEB card is required for the OG-4608-2AXXXXEA card and vice versa. They both share the same rear module.

  • Features:

    • Up to 4 x 12G SDI
    • 8x8 Audio Line/AES
    • Genlock
    • Time Code, GPIO, Data
    • Ethernet


  • Specifications:

    • Digital Video
    • Number of Inputs: 1 to 4 input options available
    • Number of Outputs: 1 to 4 output options available
    • Interface: SMPTE, ST292, ST424, DVB-ASI, ST2081, ST2082
    • Data Rate: 1.5Gbps, 3Gbps, 6Gbps, 12Gbps
    • Input/Output Level: 800mVp-p
    • Input/Output Impedance: 75 Ohms
    • Return Loss: >15 dB up to to 3 GHz
    • Jitter: < 0.2UI
    • Rise/fall Times: < 130ps (HD)
    • Bit-Error Rate: 10e-12

      Video, CVBS
    • Number of Inputs: 1
    • Number of Outputs: 1
    • Type: Analog NTSC, PAL
    • Impedance: 75 Ohms

      Video, Genlock
    • Number of Inputs: 1 (REF1 On OpenGear Frame)
    • Number of Outputs: 1
    • Type: Analog Black Burst (NTSC, PAL), HD Tri-Level
    • Impedance: 75 Ohms

      Audio
    • Number of Input Channels (mono): 4 or 8 input options available
    • Number of Output Channels (mono): 4 or 8 output options available
    • Type: Balanced. Analog Line-Level or AES3, selectable in groups of 2
    • Analog Audio:
      Level: +4dBu nominal, +24dBu max.
      Input Impedance: > 10k Ohms
      Output Impedance: 22 ohms
      S/N: >90db
      Frequency Response: +/-0.1db 20Hz - 20kHz
      Distortion: < 0.05%
    • Digital Audio:
      Sample Rate: Up to 96kHz
      Bit Depth: Up to 24 bits

      Serial Data
    • Number of Channels: 3
    • Type: RS232, RS422
    • Data Rate: DC - 1Mbps

      Ethernet
    • Number of Channels: 1
    • Data Rate: 10/100/1000 Base-T

      Timecode
    • Number of Inputs: 1
    • Number of Outputs: 1
    • Inputs: Unbalanced, 15Vp-p max
    • Outputs: Unbalanced, 3Vp-p

      Tally/GPIO
    • Number of GPI Inputs: 3
    • Number of Tally Inputs: 1
    • Number of GPI Outputs: 3
    • Number of Tally Outputs: 1
    • Inputs: Short to GND or TTL Low to Activate
    • Outputs: Relay Contact Closure (30V, 2A max)

      Optical
    • Operating Wavelengths: 1471-1611nm
    • Tx Laser Output Power: 0dBm (Class 1 Laser)
    • Receiver Sensitivity: -14dBm
    • Fiber Compatibility: Single-mode
    • Optical Connector Types: SC, ST, LC

      Environmental
    • OpenGear Form Factor (HxLxW): 3.025 x 12.75" x 3 slots
    • Storage Temperature: 32° to 122°F (0° to 50°C)
    • Humidity: 0 to 95% RH, non-condensing
    • Power Consumption: 12.5 Watts
