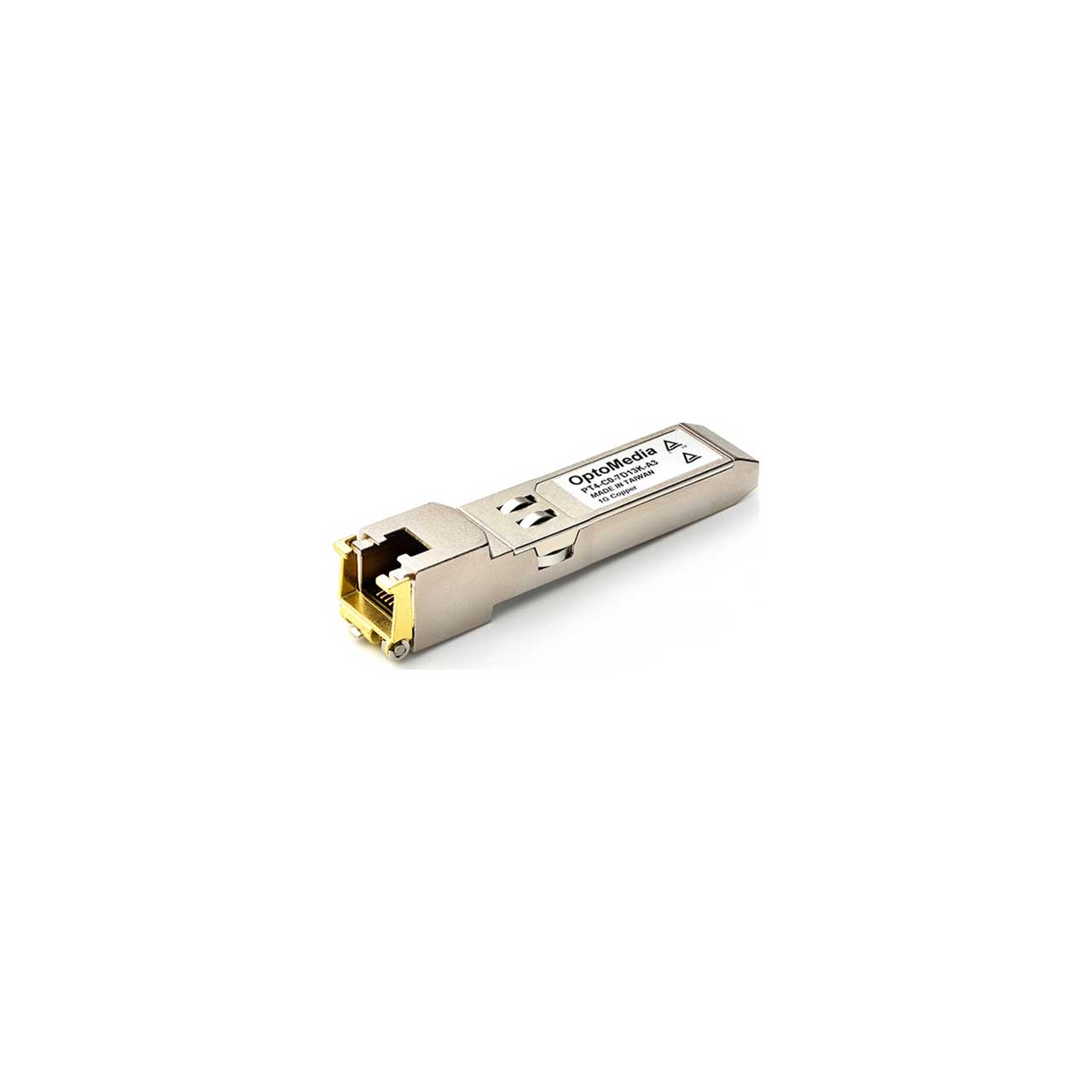

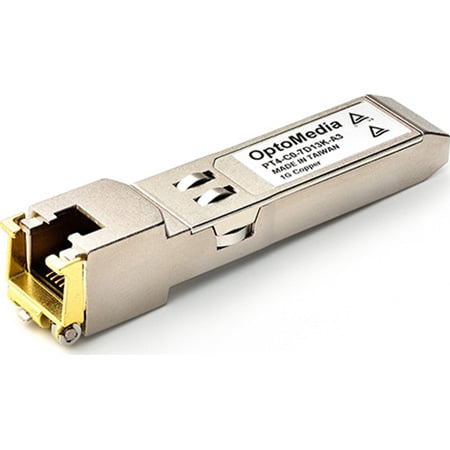

OMC Tech PT4-C0-7D13K-A4 1G Copper SFP with 10/100/1000Mbps - SerDes Interface Support - C-temp 0 to 70C

Name: OMC Tech PT4-C0-7D13K-A4 1G Copper SFP with 10/100/1000Mbps - SerDes Interface Support - C-temp 0 to 70C
Brand: OMC Tech
SKU: OMC-PT4C07D13KA4
Price: 99.00 USD
Availability: PreSale

ITEM #: OMC-PT4C07D13KA4 MFG #: PT4-C0-7D13K-A4

OMC Tech

Our Price:

$99.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PT4-C0-7D13K-A4 - Overview

The OMC Tech PT4-C0-7D13K-A4 supports SGMII with 10/100/1000 Mbps and SerDes with 1000Mbps only, the 1000BASE-T copper small from pluggable (SFP) transceiver is based on the SFP multi source agreement (MSA). The PT4-C0-7D13K-A4 supports both RX_LOS pin for link indication and 1000BASE-X auto-negotiation.

It also supports DDM (Temperature and Voltage) to monitor module via I2C. The transceiver is RoHS compliant and the distance at 1.25Gp/s is up to 100m.

Features:
- Low Power Dissipation: 1.1w (Maximum)
- Access to Physical Layer IC via 2-wire Serial Bus
- Temperature range :
- PT4-C0-7D13K-A3 0°C to +70°C
- PT4-C0-7D13L-A3 -40°C to +85°C
- Metal enclosure, low EMI
- Compact RJ-45 connector assembly
- 10/100/1000BASE-T IEEE 802.3 compliant
- Support A0 write protection and RX_LOS
- Support Energy Efficient Ethernet (EEE)-IEEE 802.3az-2010 compliant and Green Ethernet
- Synchronous Ethernet (SyncE) clock recovery and Precise timing Protocol (PTP) time stamping, which is based on IEEE1588 version 2 and iEEE802.1AS
- Wake on LAN (WOL) event detection
- Compliant to Hi-POT test AC1500V/DC2250V
Specifications:
- C-Temp(Operating temp): 0~70°C
- Data Input differential Voltage: VD,TX 250 - 1200 mV (Internally AC coupled and terminated to 100 Ohm differential load.)
- Differential Input Impedance: ZTX 80 min, 100 typ, 120 max ohm
- Transmitter Disable Input-High: VDish 2.0 - Vcc+ 0.3V
- Transmitter Disable Input-Low: VDISL 0 - 0.8V
Item Includes:
- 1x OMC Tech PT4-C0-7D13K-A4 1G Copper SFP with 10/100/1000Mbps - SerDes Interface Support - C-temp 0 to 70C
Warranty:
- 1 year
