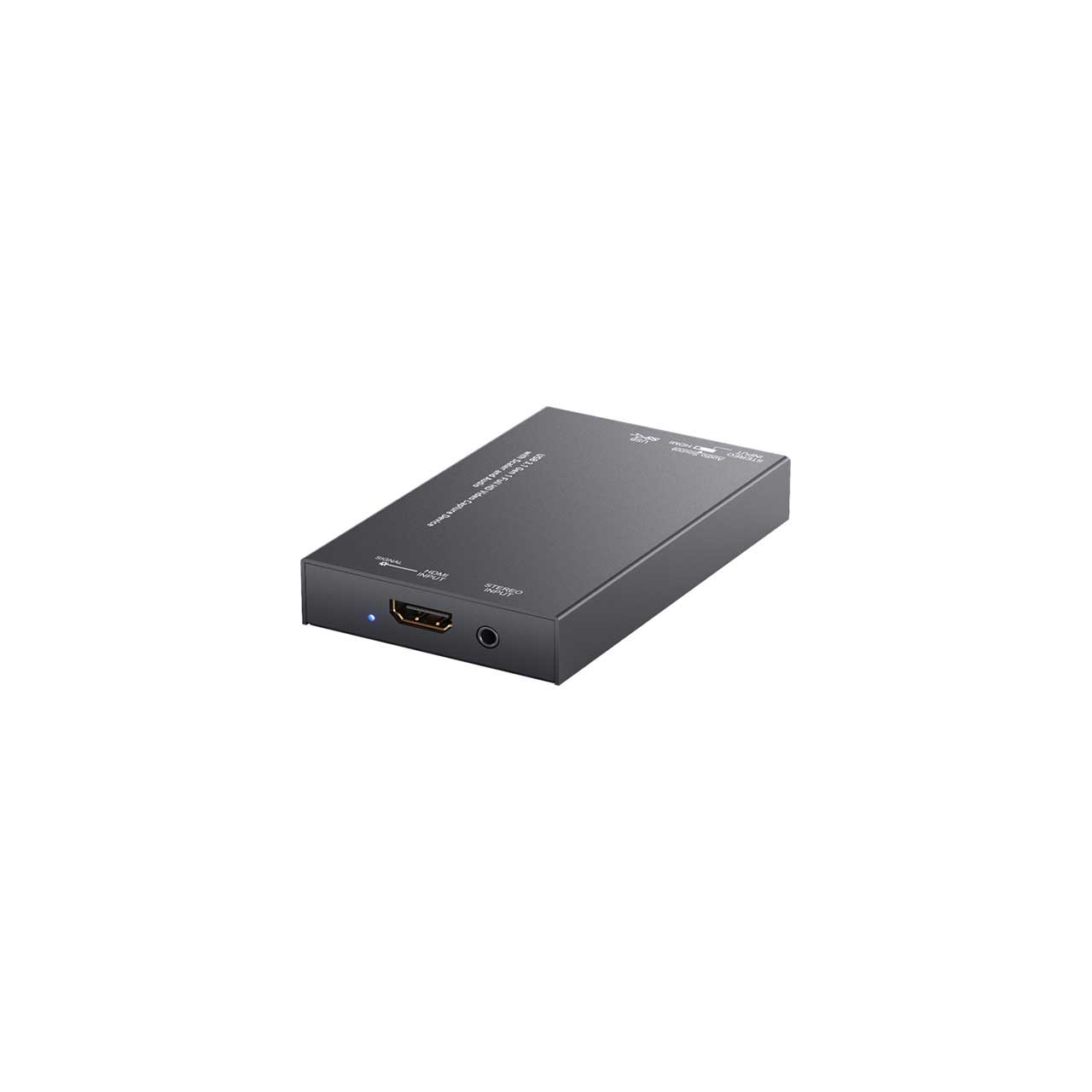

OMC Tech VCHU301 HDMI to USB 3.1 Video Capture Device with Scaler & Audio Embedding

ITEM #: OMC-VCHU301 MFG #: VCHU301

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
OMC Tech
Free Shipping with $49 Minimum Order

Our Price:

$199.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VCHU301 - Overview

The OMC Tech VCHU301 USB 3.1 Gen 1 Full HD Video Capture Device with Scaler and Audio provides a professional way to capture HDMI video signals. It adopts USB 3.1 Gen 1 (USB 3.0) interface, which can realize high-speed transmission. Users can capture Full HD (1080p60) video by this capture device. Besides, VCHU301 can capture and display original uncompressed HDMI video with more realistic color rendition. VCHU301 also uses large-volume image buffer technology, which effectively avoids the video tearing. The high sampling rate and high sampling accuracy assure images with high sharpness, rich details, and fewer color edges.

  • Features:

    • Video Capture Device for Live streaming, Video Conferencing, and Distant learning
    • Supports HDMI output resolution scaler with audio embedding
    • HDMI video and audio streams over USB 3.1 Gen 1
    • Supports input and output video resolution up to 1080 60Hz
    • Streams from HDMI sources directly to YouTube, Twitch, Facebook Live, Zoom, Skype, Facetime, GoToMeeting, Teams, or Webex.
    • Auto-detection on video format to ensure plug-n-play w/o drivers
    • Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
    • Compatible with most 3rd party software, such as OBS Studio and AMCap


  • Specifications:

    • Technical
    • Role of usage: Video Capture Device
    • Input Video bandwidth: 150MHz
    • Output Video bandwidth: Up to 350MBps (USB)
    • Video support: Up to 1080p60
    • Audio Input: HDMI Embedded Audio & Stereo audio Input
    • Audio Format: 2 Channel, 44.1 and 48KHz sample rate, up to 16bit PCM
    • Recording Mode: Software Compression
    • Recording Video Format: YUY2 (USB3.1 Gen 1), MJPG (USB2.0/3.1 Gen 1)
    • ESD protection: Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge]
    • PCB stack-up: 6-layer board [impedance control - differential 100O; single 50O]
    • Firmware update: Feasible via USB Port
    • Input: 1x HDMI + 1x 3.5mm
    • Output: 1x USB
    • HDMI connector: Type A [19-pin female]
    • USB connector: USB 3.1 Type A (SuperSpeed USB)
    • Software compatibility (not complete list): OBS Studio (Windows, Linux), AM Cap (Windows), Pot player (Windows), Skype (Windows, OS X), Hangout (Windows), TeamViewer (Windows)
    • OS Support: Windows 7 /8.1 /10, Mac and Linux OS

      Mechanical
    • Housing: Metal enclosure
    • Dimensions: [L x W x H] Model: 102 x 62 x 17mm [4" x 2.4" x 0.6"]
    • Package: 140 x 113 x 24mm [5.5" x 4.4" x 0.9"]
    • Carton: 405 x 275 x 255mm [1'3" x 10.8" x 10"]
    • Power supply: Via USB
    • Power consumption: 3 Watts [max]
    • Operation temperature: 0~40°C [32~104°F]
    • Storage temperature: -20~60°C [-4~140°F]
    • Relative humidity: 20~90% RH [no condensation]
