AVMATRIX UC2018 SDI and HDMI to USB 3.1 Video Capture 1080p60

ITEM #: LIL-UC2018 MFG #: UC2018

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AVMATRIX
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$219.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

UC2018 - Overview

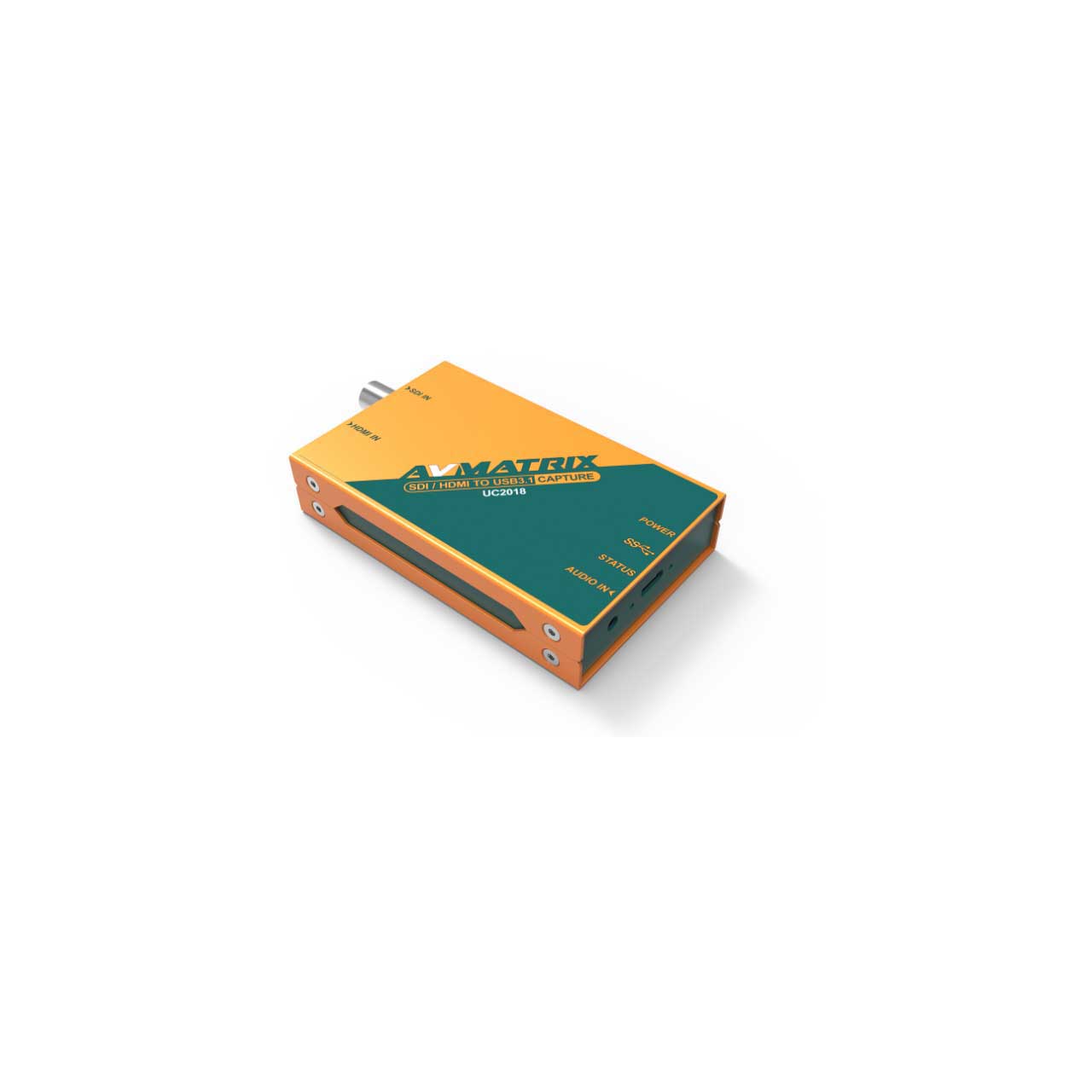

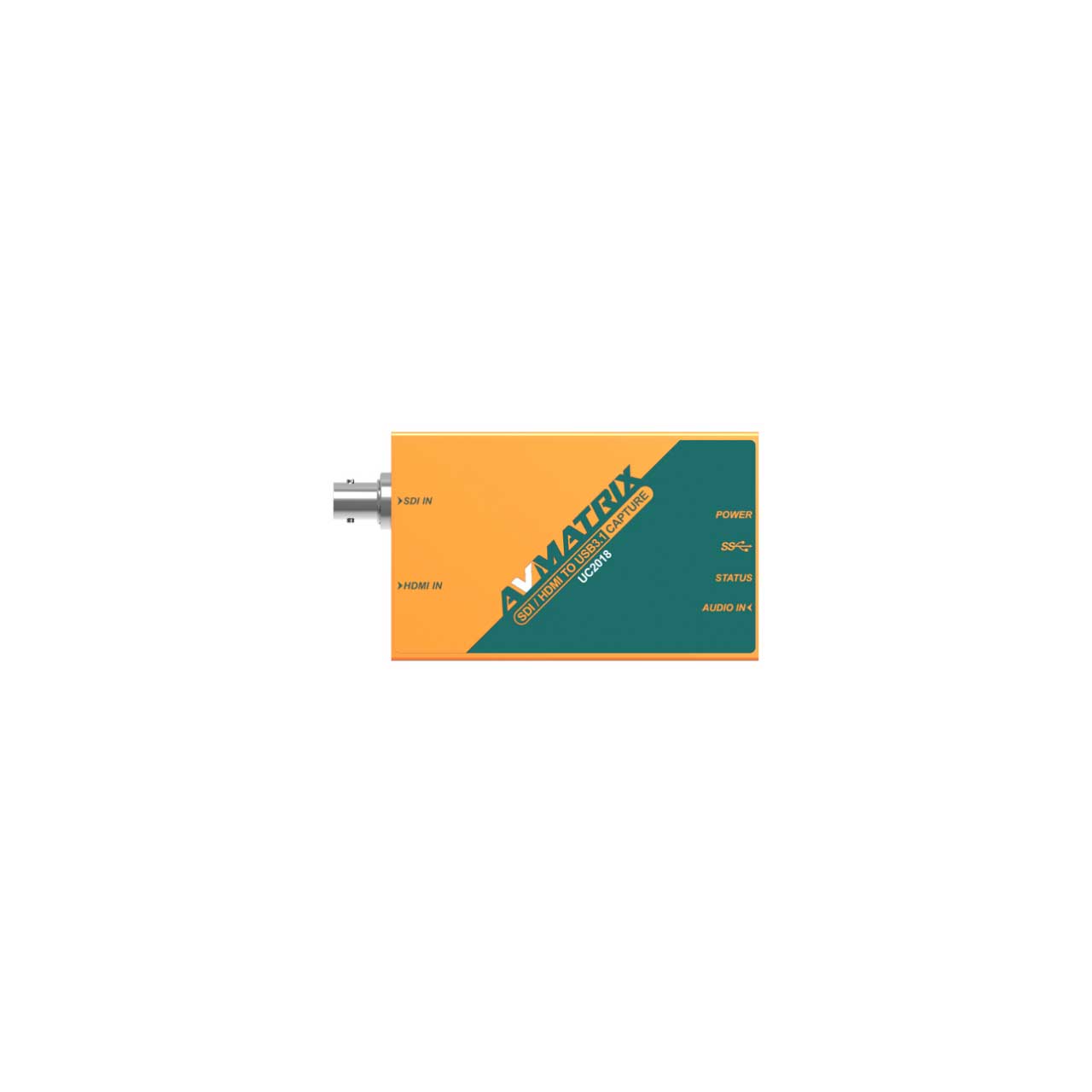

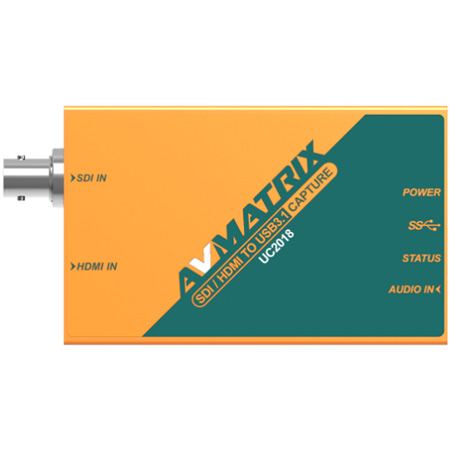

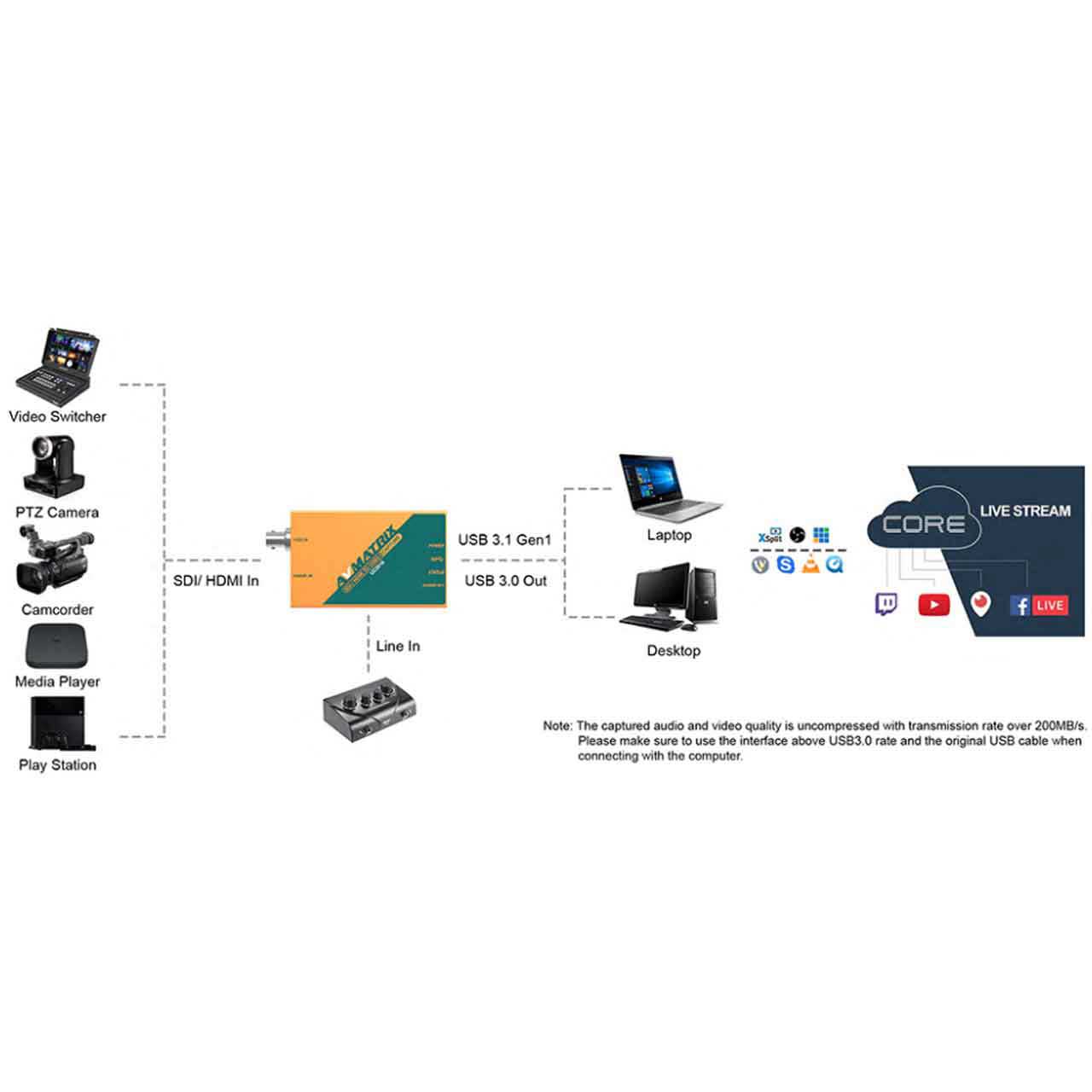

The AVMATRIX UC2018 is an SDI/HDMI to USB 3.1 video capture device. The US2018 will automatically detect the input video formats. Powered by USB with input and output video signals up to 1080p60.

  • Features:

    • Plug-and-Play, driver free & power free
    • HDMI or SDI in, and USB 3.1 Gen1(USB3.0) out
    • Automatic input signal detection, up to 1080p60
    • Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
    • Comply with UVC video capture and YUY2 video output
    • Comply with UAC audio out from SDI/HDMI embedded audio or line in
    • Compatible with Windows, Linux, macOS
    • Compatible with OBS, ZOOM, Teams & Twitch, etc.


  • Specifications:

    • Connection

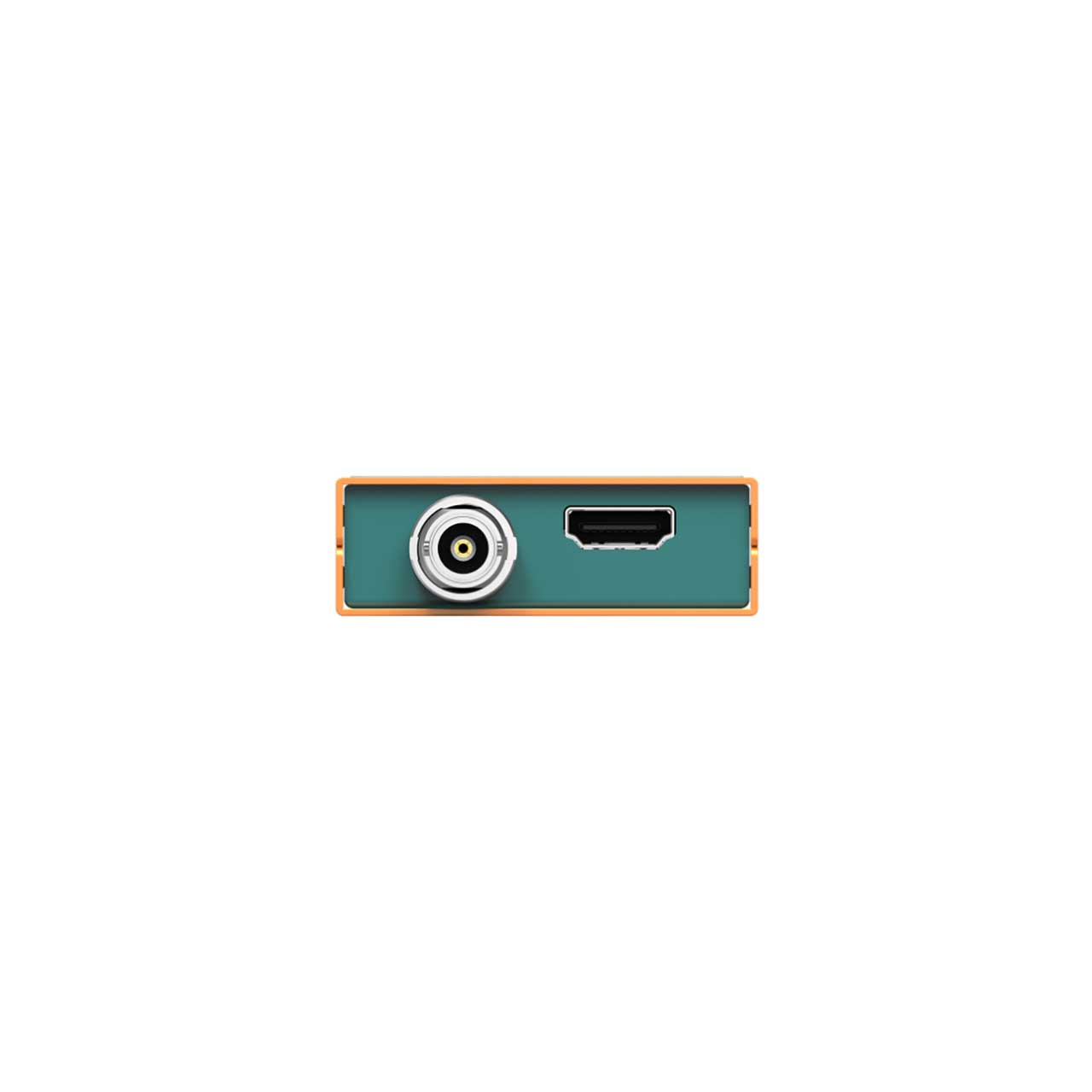

    • Input Interface:
      - 1x HDMI 1.4a
      - 1x SD/HD/3G-SDI
      - 1x 3.5mm stereo audio (line in)

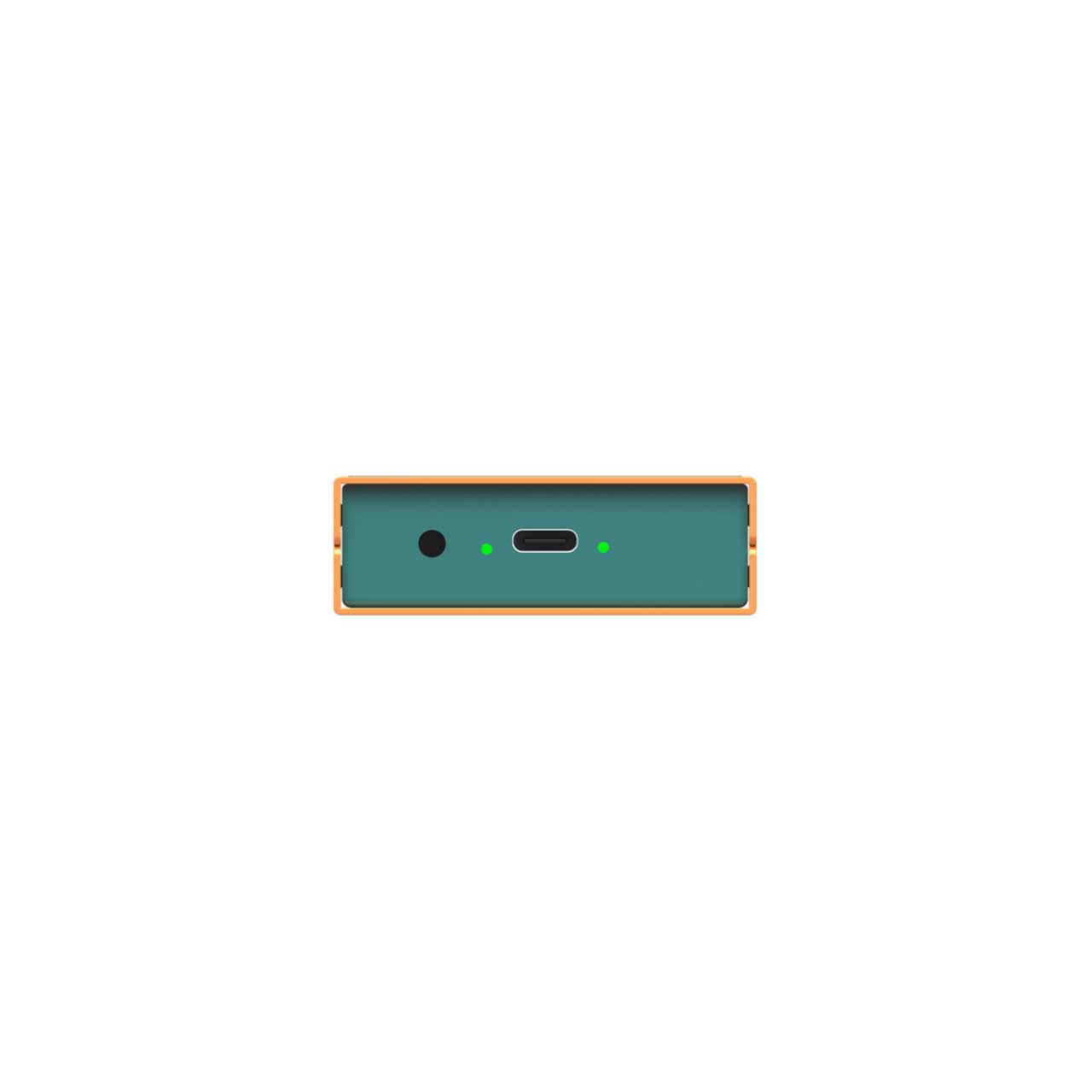

    • Output Interface: 1x USB-C 3.1 GEN1(up to 200MB/s)

      Format
    • SDI Input Format:
      - 1080p 60/59.94/50/30/29.97/25/24/23.98
      - 1080PsF 30/29.97/25/24/23.98
      - 1080i 50/59.94/60
      - 720p 60/59.94/50/30/29.97/25/24/23.98
      - 625i 50/525i 59.94
    • HDMI Input:
      - 1080p 60/59.94/50/30/29.97/25/24/23.98
      - 1080i 50/59.94/60
      - 720p 60/59.94/50/30/29.97/25/24/23.98
      - 576p 50/576i50, 480i 59.94/60
      - 480p 59.94/60
    • USB Output Format: 1920x1200, 19201080, 1680x1050 1600x1200, 1440x900, 1368x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 1024x576, 960x540, 856x480, 768x576, 720x576, 720x840, 640x480, 640x360
    • Video & Audio Capture: UVC (USB Video Class) & UAC (USB Audio Class) Standard
    • Audio Codec: 2-Channel - 16 bit PCM, 48kHz, 1536kbps
    • Video Color Space

      Others
    • Supported OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and above), macOS (10.8 & above)
    • Software Compatibility: OBS (Windows), Skype, ZOOM, Teams Google Meet, Youtube Live, QuickTime Player, FaceTime, Wirecast, CAMTASIA, Ecamm.Live, Twitch.TV, etc.
    • Compatible SDK: DirectShow (Windows), DirectSound (Windows)
    • Dimensions: 3.62" x 2.28" x 0.74" (92mm x 58mm x 19mm)
    • Weight:0.66lbs (300g)
    • Power Consumption: 3.5W
    • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
    • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
    • Relative Humidity: 20% to 90% RH, non-condensing


  • Item Includes:

    • 1x USB 3.0 A-C Cable


  • GTIN:

    6971118000234
