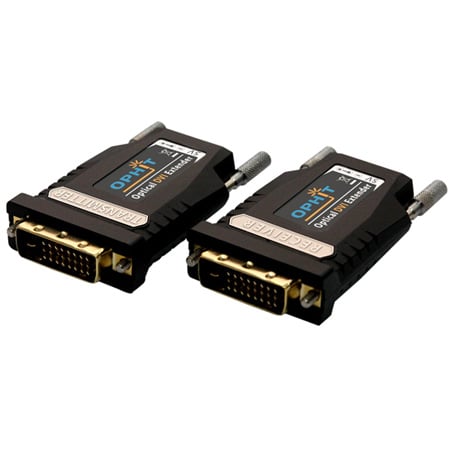

Ophit DSP-M 1 Channel DVI Fiber Optic Extender - Transmitter & Receiver w/ Power Adapter - up to 300 Meters (1000 Feet)

DSP-M - Overview

• Features:

  • High speed and long distance transmission by 1 channel SC type multi-mode optical fiber
  • Supports resolution up to HDTV / 1080P, PC / WUXGA (1920 x 1200)
  • TMDS video signal and EDID data is transmitted over optical fiber
  • HDCP compliant
  • Uses slim and light Aluminum case
  • EMC & Safety: CE, FCC, UL


• Specifications:

  • Connector (transmitter): DVI-D (male), SC connector (female)
  • Connector (receiver): DVI-D (male), SC connector (female)
  • Optic fiber: 1ch / Multi-mode
  • Pixel Clock: 225MHz (single link)

    Supporting Resolution & Distance:
  • - WUXGA (1920 x 1200) @ 60Hz / 300M (1,000ft)
  • - 1080p (1920 x 1080) @ 60Hz / 300M (1,000ft)


  • Power Consumption (transmitter): 1.3W (max)
  • Power Consumption (receiver): 1.1W (max)
  • Power Supply (transmitter): Optional
  • Power Supply (receiver): 100~240V DC 5V, 2A
  • Dimensions: 0.62 inch x 0.9 inch x 0.9 inch (40W x 60D x 14H (mm))
  • Operating Temperature range: 0°C ~ 50°C
  • Storage Temperature range: -20°C ~ 70°C


• Item Includes:

  • Transmitter, Receiver
  • 1 Power Adapter (for receiver)
  • User's manual
