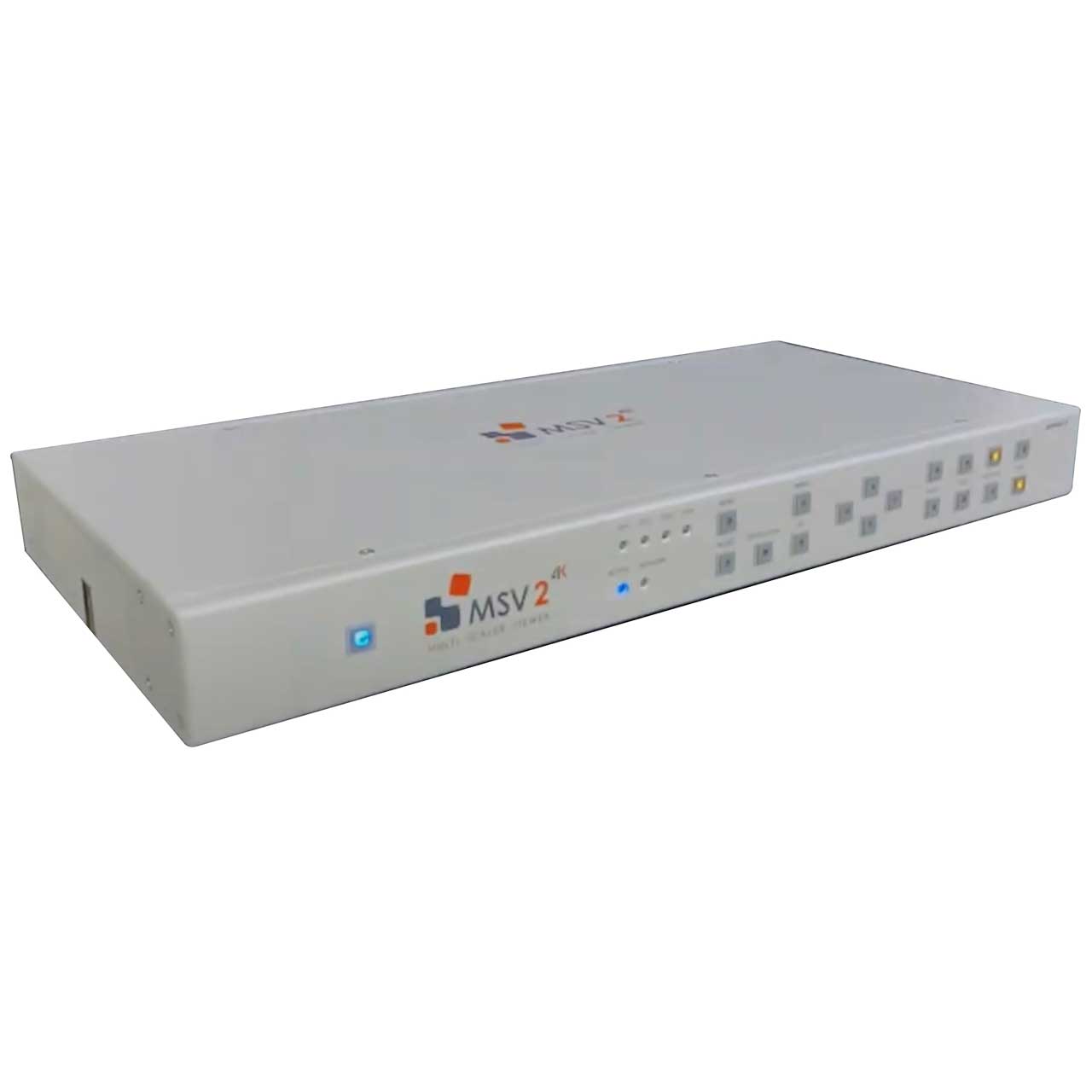

Ophit MSV2 4 Channel 4K HDMI2.0 / DisplayPort 1.2a Multi Scaler Viewer with Presets or Custom Layouts - White

ITEM #: OPHI-MSV2 MFG #: MSV2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Ophit
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$4,990.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MSV2 - Overview

The Most Advanced 4-input Multiviewer on the market in its price range!

The Ophit 4K HDMI / DisplayPort(DP) Multi Scaler Viewer (Model: MSV2) is an advanced video processor for multimedia presentations. It is a video signal processing device that can one output of 4 input video signals to one video display device and provides 4 screen output modes.

4 channel Inputs of MSV2 have 2 HDMI ports and 2 selectable ports (HDMI or DisplayPort), the user can select the input video the DisplayPort 1.2a or HDMI 2.0 Basically, it supports various output resolutions including up / down scale and supports seamless channel change.

  • Features:

    • Input : HDMI x 2
    • HDMI / DP x 2 (selectable)
    • Output : HDMI x 1
    • Full range of input and output format (Up to 4K@60Hz)
    • 4 Preset modes and 4 User modes
    • HDMI 2.0, DisplayPort 1.2a Compliant
    • Supports DisplayPort 1, 2, 4 lanes
    • Supports HDMI 1.4 / 2.0
    • Compliant with HDMI 2.0, data rate up to 6Gbps
    • HDCP 1.4 / 2.2 Compliant
    • User control : Web, RS232, OSD
    • 1U Rack type


  • Specifications:

    • Input: HDMI /DisplayPort x 4port (User Selection): 1 x HDMI (Up to 4096x2160@60hz); 1 x DisplayPort (Up to 4096x2160@60hz)
    • Output: HDMI x 1port; 1x HDMI (Up to 4096x2160@60hz)

      Video Resolution
    • All SD, HD and other resolution up to
    • 4K / 60Hz, RGB and 4:4:4 8bit
    • 4K / 60Hz, 4:2:2 10bit(HDR), 4K / 60Hz, 4:2:0 10bit (HDR)

      Control Interface
    • 1 x RS-232 (Up to 115.2k baud rate)
    • Front Button (Power, Window Mode Select)

    • Compliance: HDMI 2.0, DisplayPort 1.2, HDCP 2.2
    • Size W x D x H: 17.1 inch x 1.73 inch x 8.38 inch (436(W) x 44(D) x 213(H) mm)

    • 12V DC external power
    • 1U rack mountable type


  • Item Includes:

    • 1x Ophit MSV2 BLACK 4K HDMI 2.0 / DisplayPort 1.2a Multi Scaler Viewer
    • 1x Power Adapter
    • 1x Power Cord
    • 1x User's manual
