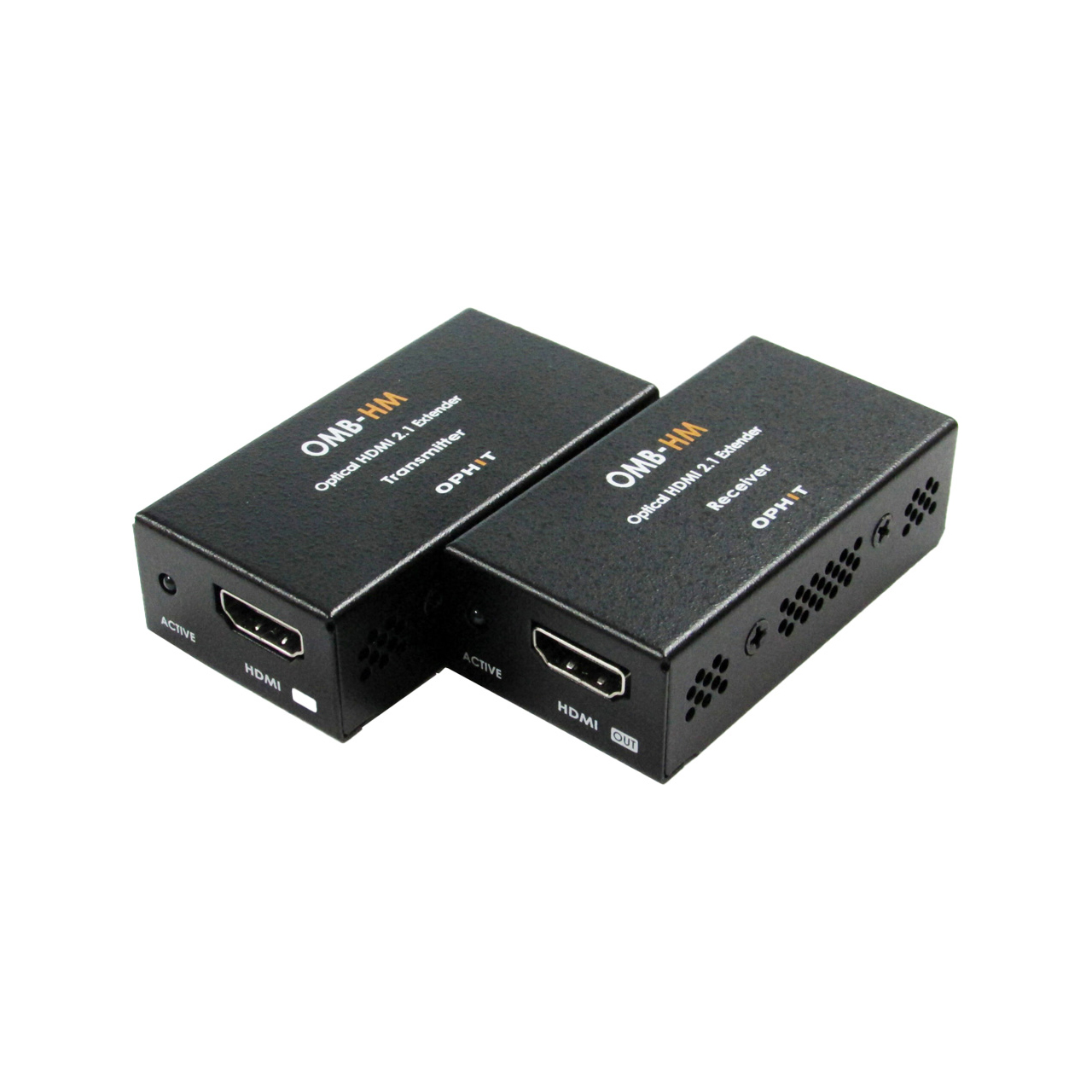

Ophit OMB-HM 8K Optical HDMI 2.1 Standalone Module with Multi-fiber Push On (MPO) Connector for use with OPM38CMP Cables

Name: Ophit OMB-HM 8K Optical HDMI 2.1 Standalone Module with Multi-fiber Push On (MPO) Connector for use with OPM38CMP Cables
Brand: Ophit
SKU: OPHI-OMB-HM
Price: 900.00 USD
Availability: InStock

ITEM #: OPHI-OMB-HM MFG #: OMB-HM

Ophit

List Price:

$1,350.00

Our Price:

$900.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

OMB-HM - Overview

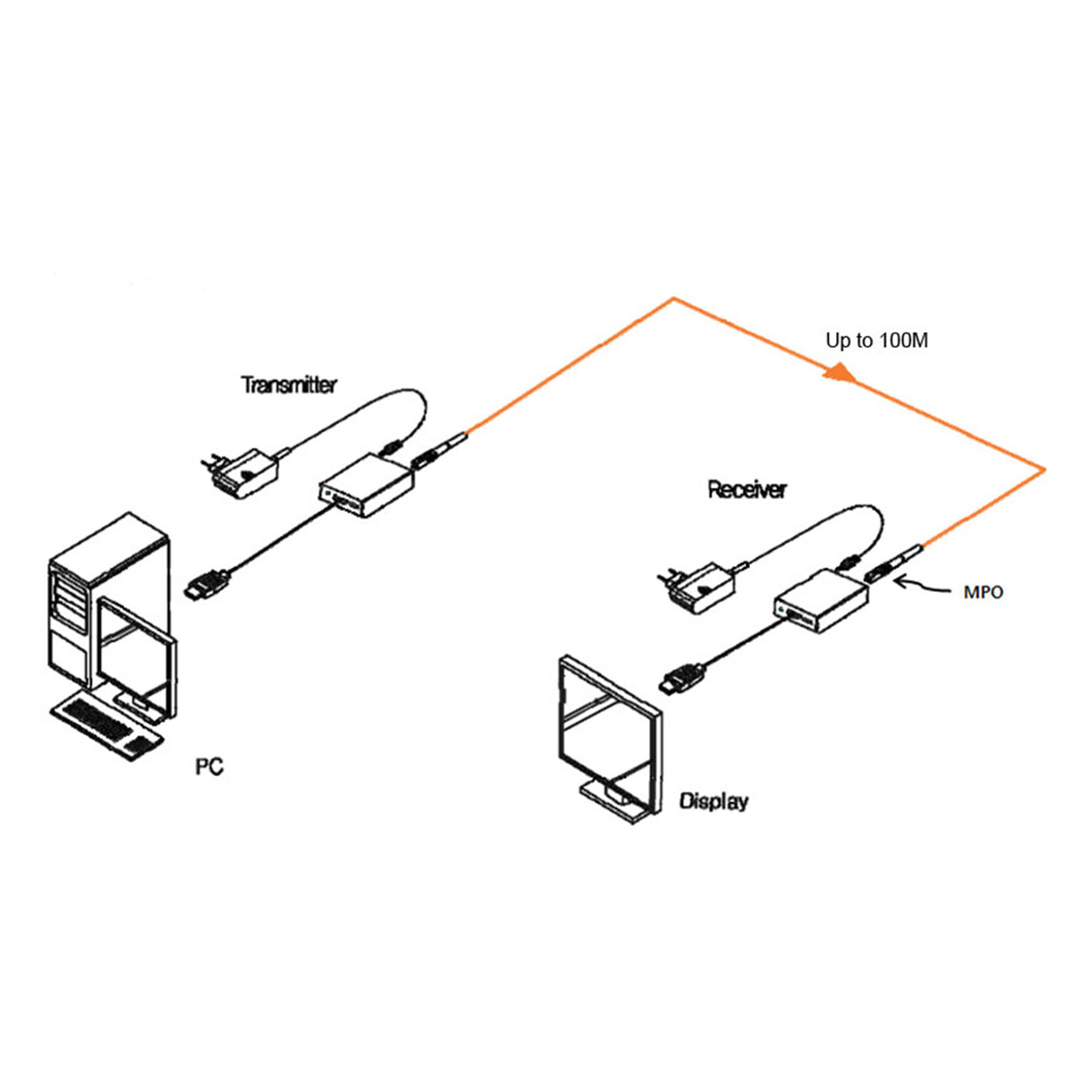

OPHIT OMB-HM is an HDMI 2.1 MPO type optical fiber extender that complies with HDMI 2.1 standard and supports real 4K/8K UHD (4096x2160, 7680x4320) resolution. It can transmit high-quality 4K/8K resolution up to 100 meters (328ft). This compact-size extender offers simple plug-and-play installation and electromagnetic interference (EMI) protection improves reliability and secures the connection between the source and device. Recommended to use OPM38CMP cables.

Features:
- Compatible with HDMI standard v2.1
- Supports OM3 (or OM4) fiber with MPO type connector
- CEC control, EDID, and HDCP
- EMI & Safety: CE, FCC
- 19RM-003 rack mount available
- Optical Source: VCSEL laser
- O/E Converter: PIN Photo Diode
- Using fiber: 8-core (or 12-core), MPO fiber cable (50/125um, OM3, Polarity type A)
Specifications:
- Input and Output Signal: HDMI v2.1 Standard
- Video Bandwidth: 48.0Gbps
- Dimensions (WxDxH): 2.7" x 0.83" x 1.44" (69mm x 21.1mm x 36.8mm)
- Optical Source: VCSEL laser
- Connector: HDMI 19 Pin (Female)/MPO
- Applied Fiber: 8-core (or 12-core), MPO Fiber Cable (50/125um, OM3, Polarity type A)
- Maximum Supporting Resolution: 4K/8K UHD (up to 7680x4320 @60Hz)
- Transmission Distance: 100m (330ft)
- External Power: 5V/2A (1.35ø DC JACK)
- Transmitter Power Consumption: 0.75W (Typ)
- Receiver Power Consumption: 0.95W (Typ)
- Operating Temperature Range: 32°F - 122°F (0°C - 50°C)
- Storage Temperature Range: -4°F - 158°F (-20°C - 70°C)
Item Includes:
- 1x Ophit OMB-HM 8K Optical HDMI Standalone Module with Multi-fiber Push-On (MPO) Connector
