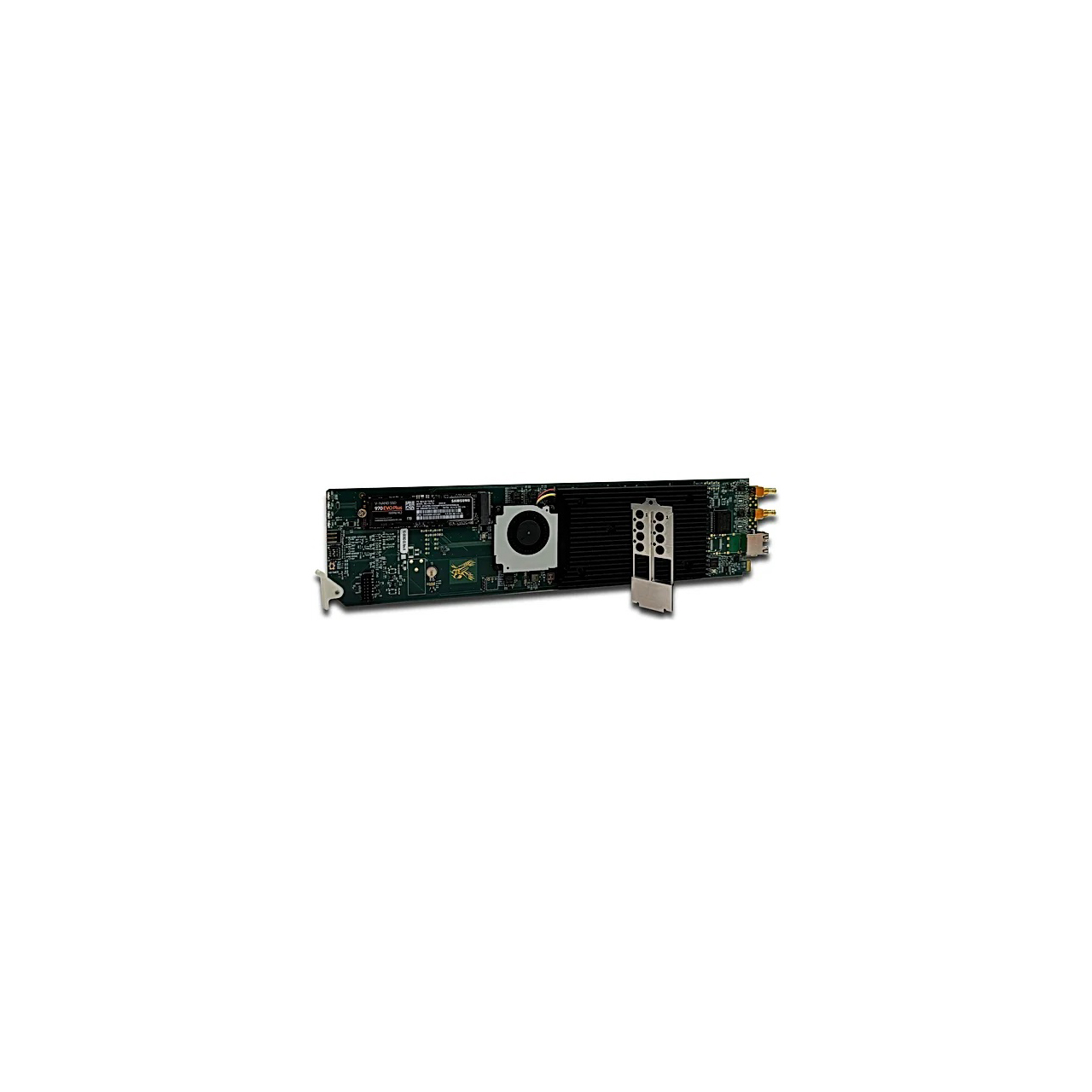

Osprey TALON OG-12G-2D Dual Channel 4K30 openGear Decoder - 2x 6G-SDI - TAA Compliant

95-00532 - Overview

• Specifications:

  • Video Outputs: 2x 3G-SDI
  • Audio Outputs: Embedded 8Ch for each input (4 stereo pairs)
  • Genlock: Blackburst, Tri-Level
  • Color: Up to 10bit 4:2:2, REC 709
  • Streaming Transports: UDP, RTP, SRT™
  • Video Processing: None - Output Matches Input Stream
  • Video Compression: H.264 (AVC), H.265 (HEVC)
  • Audio Compression: AAC-LC
  • Audio Input Sample Rate: 48kHz
  • Audio Bitrate: 64kbps to 512kbps
  • Density: up to 20 Encoders per 2U Frame (OG3 and OGx)
  • Operating Temperature: -20°C to 60°C
  • Power: 12V/13W max

    I/O Connections:
  • HD-BNC for SDI
  • Ethernet #1 - RJ45
  • Ethernet #2 - openGear Frame
  • Genlock - openGear Frame

    Video Formats:
  • 480p29.97, 576p25
  • 720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60


• Item Includes:

  • 1x Decoder
  • 1x Rear IO Module


• Software Features:

  • Enhanced security features
  • Remote firmware upgrade from web
  • Network time protocol
  • JSON REST API for software integration
  • Password protected
  • Embedded CEA-708 closed caption support
  • SMPTE 2038 support
  • Customizable notice and consent banner
  • Secure HTTPS (SSL) web based management
  • Open VPN Client
  • Whitelist/Firewall for Management IP Access
  • In-band KLV support
