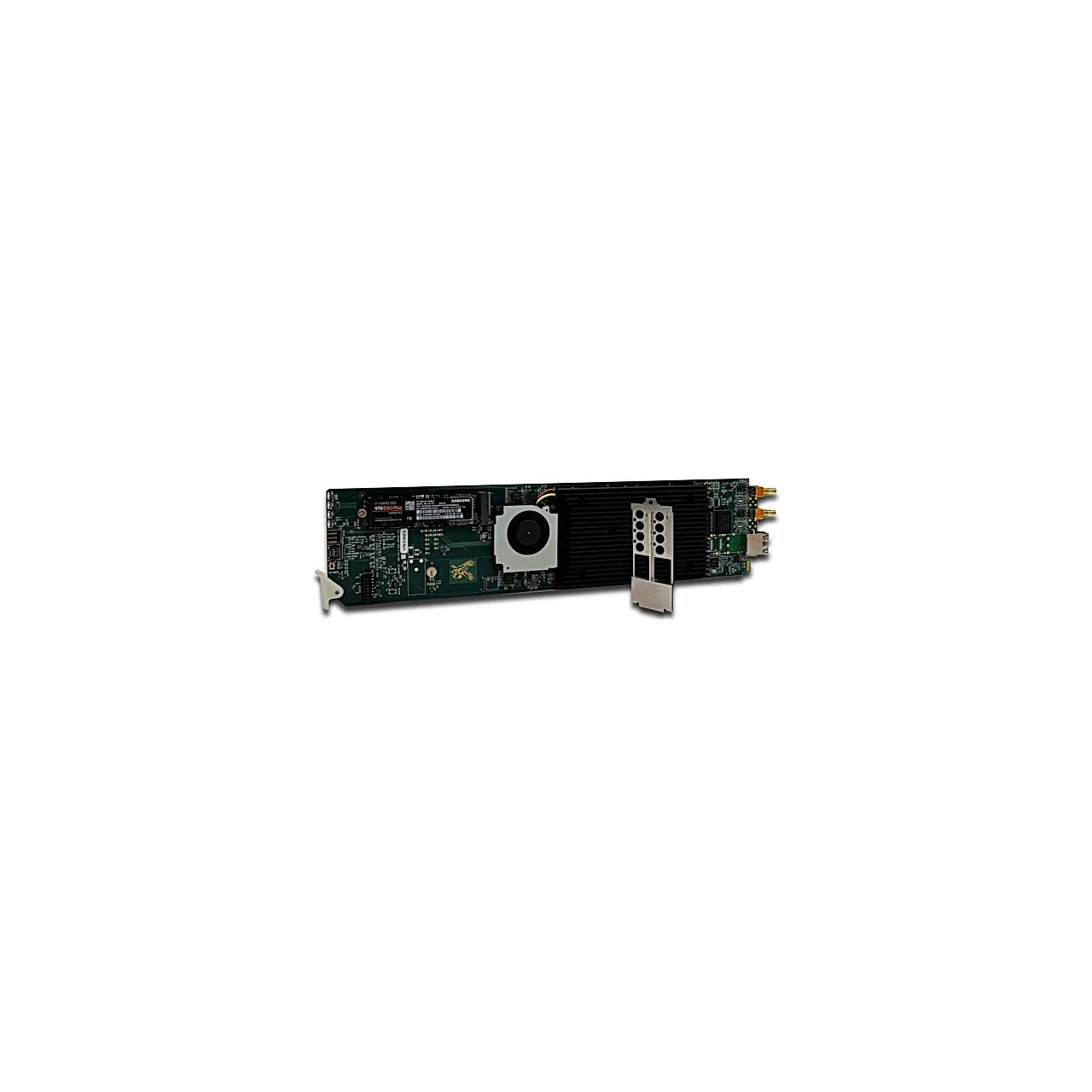

Osprey TALON OG-3G-4E Quad Channel 1080p60 openGear Encoder - 4x 3G-SDI - TAA Compliant

95-00528 - Overview

• Specifications:

  • Video Inputs: 4x 3G-SDI
  • Audio Inputs: Embedded SDI 16Ch for each input (8 stereo pairs)
  • Color: Up to 10bit 4:2:2, REC 2020, REC 709, HDR (HLG)
  • Streaming Transports: RTMP(S), UDP, RTP, RTSP, Zixi™, SRT™
  • Video Processing: Upscale/Downscale, Frame Rate Conversion, Deinterlacing
  • Video Compression: H.264 (AVC), H.265 (HEVC)
  • Encoding Controls: Bitrate up to 100Mbps, VBR & CBR
  • Audio Compression: AAC-LC; OPUS Audio for UDP, RTP, SRT, Zixi
  • Audio Input Sample Rate: 44.1kHz, 48kHz
  • Audio Bitrate: 64kbps to 512kbps
  • Density: up to 20 Encoders per 2U Frame (OG3 and OGx)
  • Operating Temperature: -20°C to 60°C
  • Power: 12V/13W max

    I/O Connections:
  • HD-BNC for SDI
  • Ethernet #1 - RJ45
  • Ethernet #2 - openGear Frame

    Video Formats:
  • 480i29.97, 576i25
  • 720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1080i50, 59.94, 60


• Item Includes:

  • 1x Encoder
  • 1x Rear IO Module


• Software Features:

  • Enhanced security features
  • Remote firmware upgrade from web
  • Network time protocol
  • JSON REST API for software integration
  • Password protected
  • Embedded CEA-708 closed caption support
  • SMPTE 2038 support
  • Customizable notice and consent banner
  • Secure HTTPS (SSL) web based management
  • Open VPN Client
  • Whitelist/Firewall for Management IP Access
  • KLV support for in-band SDI and out-of-band RTP IP
  • Embedded Timecode from SDI to Transport Stream (SMPTE12M-2)
  • SCTE104 from SDI Embedded as SCTE35 in transport stream
