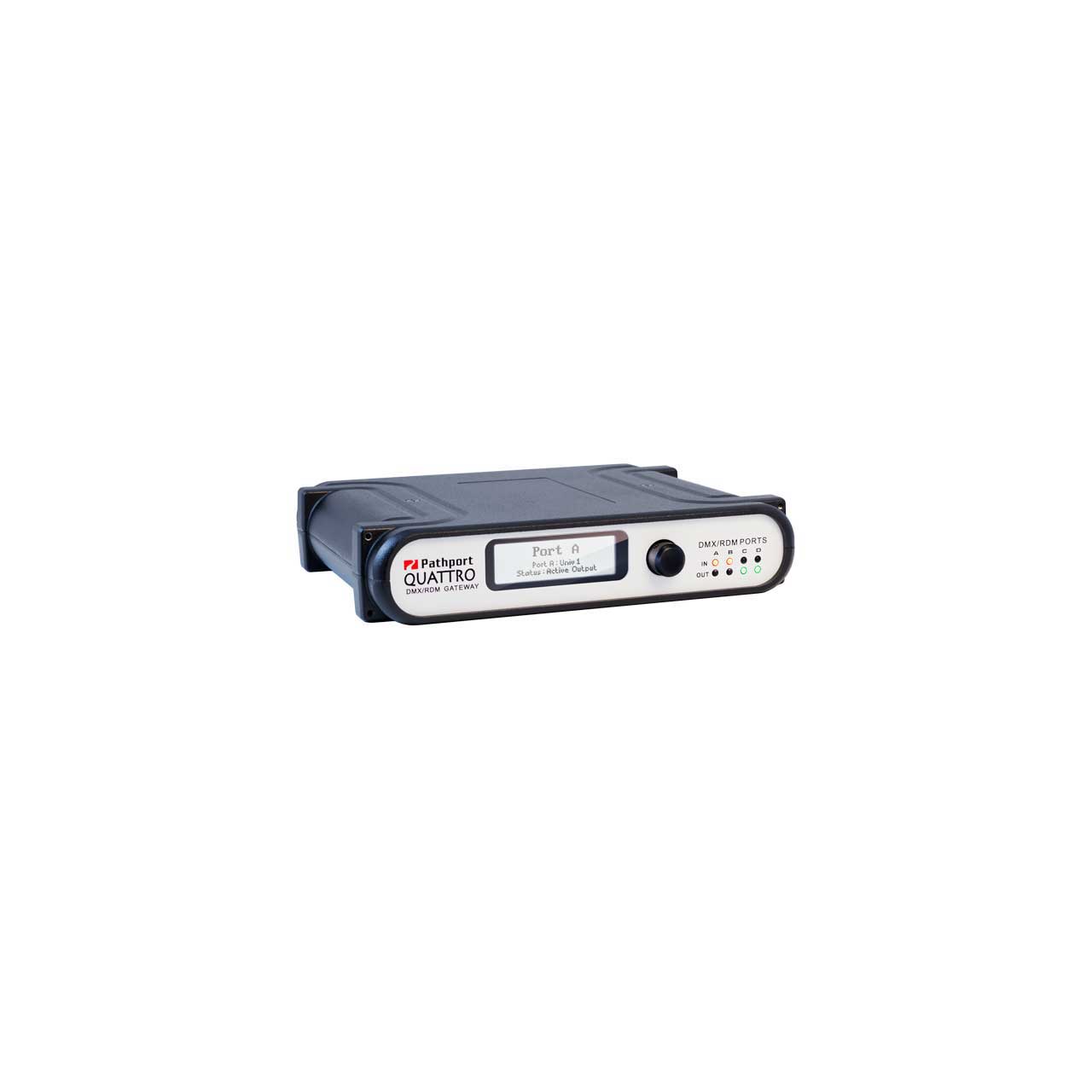

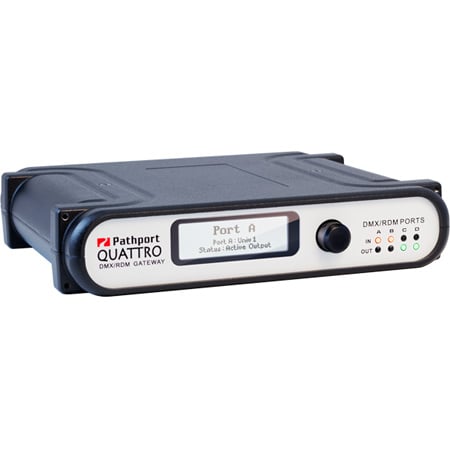

Pathway Connectivity PWPP RM P4 XLR5F REAR Pathport Rack-mount 4-Ports XLR 5-Pin Female Rear Panel Connectors

ITEM #: P6321 MFG #: PWPP RM P4 XLR5F REAR

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,500.00

Our Price:

$1,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PWPP RM P4 XLR5F REAR - Overview

Power-over-Ethernet operation makes the Pathway Connectivity P6321 Pathport QUATTRO ideal for truss-mounted locations, while silent, fanless operation allows it to be placed immediately next to the lighting console, no matter where the console must be located. The encoder knob/LCD screen interface provides front panel access to all common configuration parameters. Most users won't need a computer for configuration.

  • Features:

    • Four DMX512 ports, individually configurable
    • 10/100Mb Ethernet port
    • Front panel UI supports configuration of IP settings, port direction, basic patching and more
    • Route DMX on either a universe or channel-by-channel basis
    • Map up to eight sources to each output channel, with merge and/or priority options user-set for each source
    • Acts as E1.20 RDM proxy controller, when used with freely downloadable Pathscape software
    • DMX output speed and signal loss behavior user-selectable
    • Compact size - two gateways may fit side-by-side in 1RU of space
    • Rackmount ears included
    • Operates on Poe (Power over Ethernet) or auxiliary 24-48VDC power supply (accessory)
    • Supports the following Ethernet protocols: E1.31 streaming ACN (sACN), Art-Net, Pathport Protocol, Shownet

  • Specifications:

    • General
    • Class 2 Power-over-Ethernet device - 8W maximum
    • Auxiliary input voltage 24-48VDC
    • Operating Conditions: -10 to +50°C, 5-95% relative humidity, non-condensing

  • Item Includes:

    • 1x Pathway P6321 Pathport Quattro 4-port Gateway with Rear XLR5F
    • 1x Rackmount ears


PWPP RM P4 XLR5F REAR - Required Accessories
