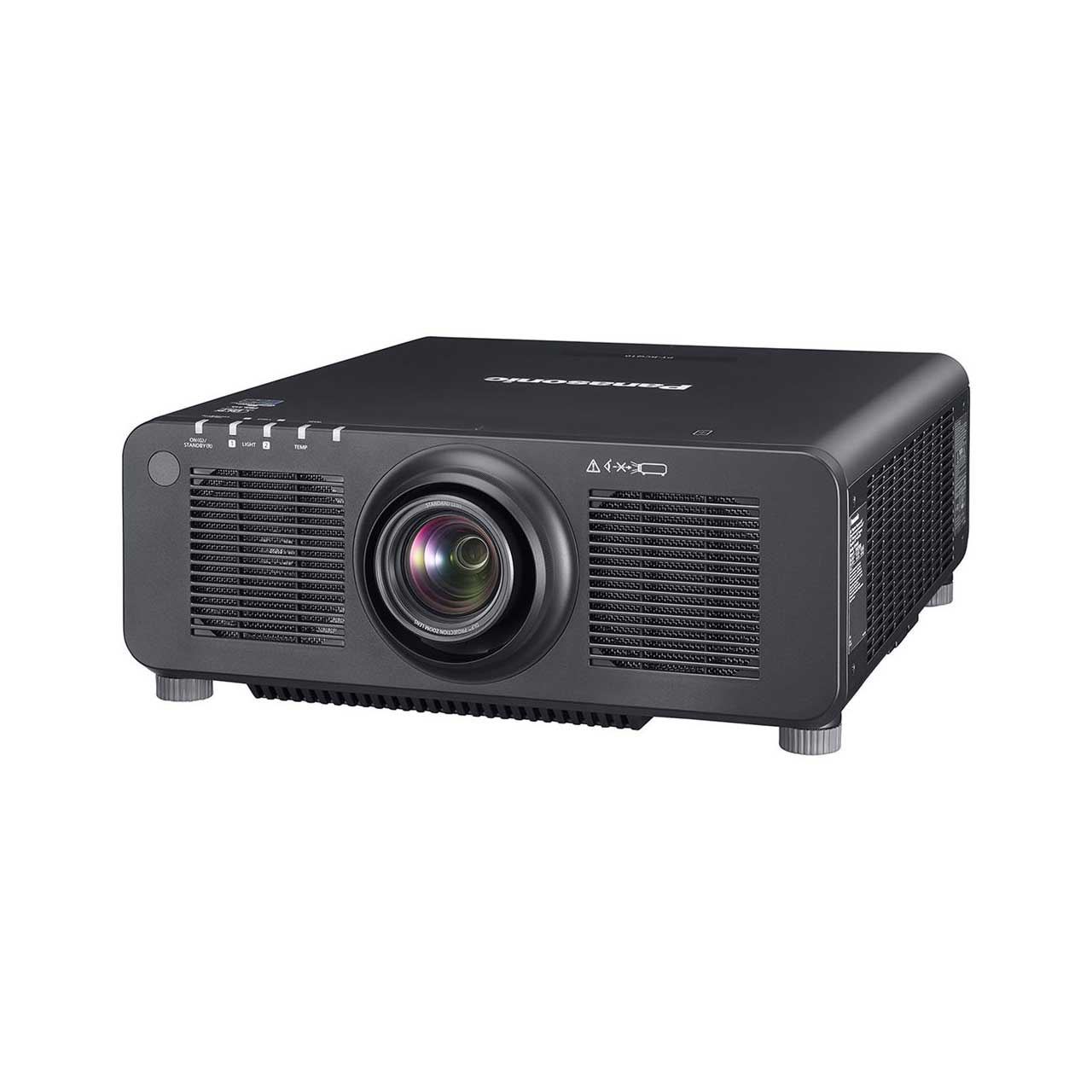

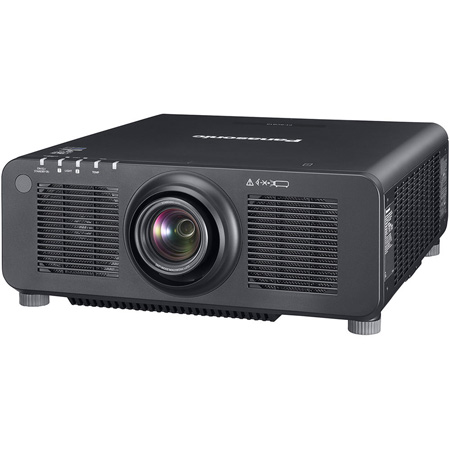

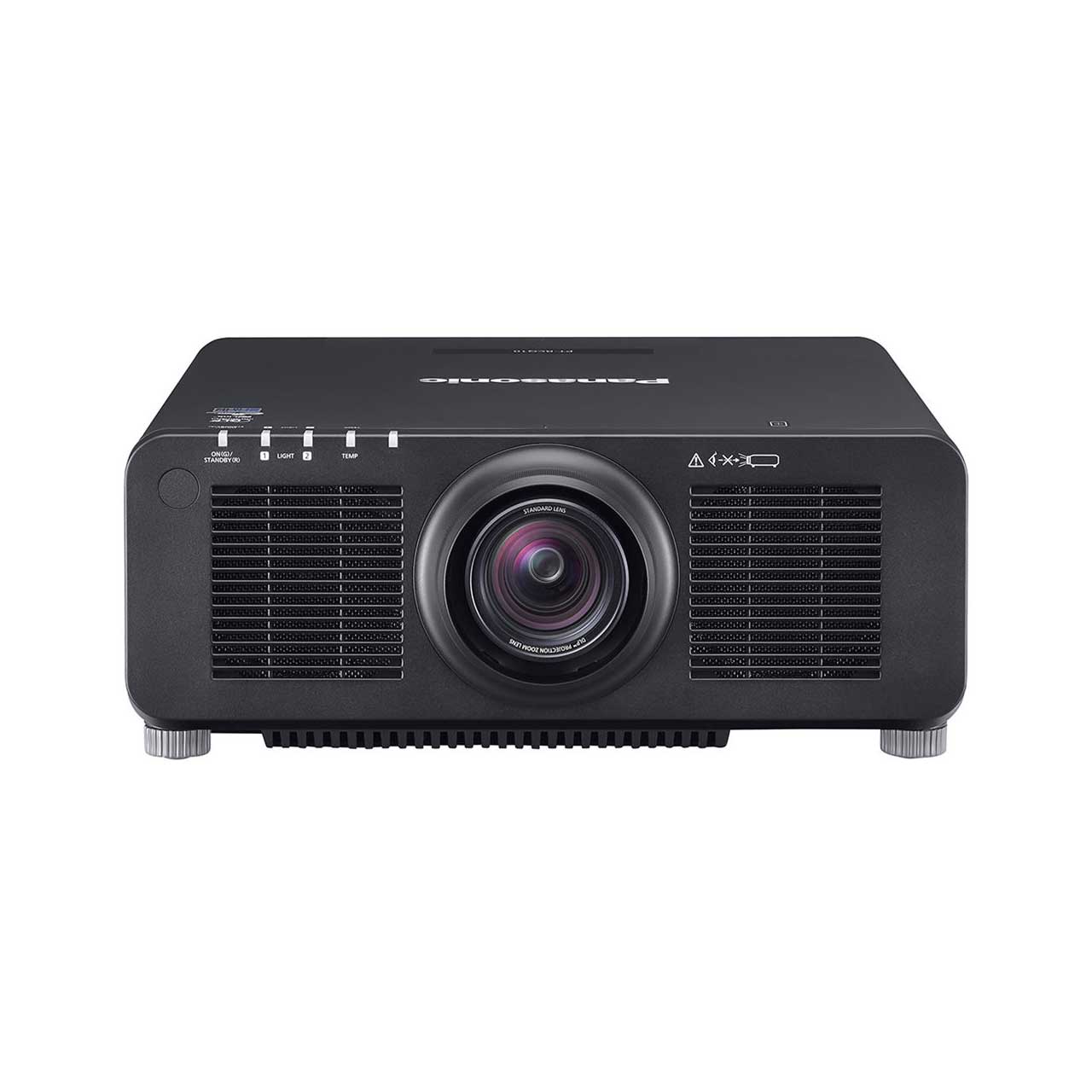

Panasonic PT-RCQ10BU 10000 Lumen 1DLP WUXGA Laser Projector with Lens - 1920 x 1200 - Black

PT-RCQ10BU - Overview

• Features:

  • 10,000 ANSI lumens. 10,500 center lumens
  • Excellent Reliability with Dust-Resistant Lasers
  • Rich Color Harmonizer achieves accurate and vibrant color reproduction
  • Smooth Pixel Drive uses 1-axis pixel-wobbling to realize extra-high resolution
  • Optional SLOT NX interface boards
  • Wireless capable with the optional AJ-WM50P wireless module
  • System Daylight View 3
  • Separate LAN/DIGITAL LINK Terminals
  • Data Cloning Function
  • Unique Contrast Sync and Shutter Sync Function
  • Quick Start/Quick Off Mode
  • Multi Monitoring & Control
  • Software and Early Warning Software
  • Multi-Unit Brightness and Color Control
  • Seamlessly Blended Screens with Multi-Screen Support System


• Specifications:

  • Projector type: 1-Chip DLP projector

    DLP chip:
  • Panel size: 17.0 mm (0.67 in) diagonal, 16:10 aspect ratio
  • Display method: DLP chip x 1, DLP projection system
  • Number of pixels: 2,3042,304,000 (1920 x 1200) pixels
  • Light source: Laser diodes
  • Light output: 10,000 lm / 10,500 lm (Center)
  • Time until light output declines to 50 %: 20,000 hours (NORMAL) / 24,000 hours (ECO)
  • Resolution: 4,608,000 pixels / 2715 x 1697 dots * With Smooth Pixel Drive: ON.
  • Contrast ratio: 10,000:1 (Full On/Full Off) * With [Dynamic Contrast] set to [3].
  • Center-to-corner zone ratio: 90 %
  • Lens: PT-RCQ80: Powered zoom (throw ratio 1.71-2.41:1)

    Terminals:
  • SDI In: BNC x 1: 3G/HD-SDI input
  • HDMI In: HDMI 19-pin x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input)
  • DVI-D In: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
  • Multi Projector Sync In: BNC x 1
  • Multi Projector Sync Out: BNC x 1
  • Serial In: D-sub 9-pin (female) x 1 for external control (RS-232C compliant): D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  • Serial Out: D-sub 9-pin (male) x 1 for link control: D-sub 9-pin (male) x 1 for link control
  • Remote 1 In: M3 x 1 for wired remote control
  • Remote 1 Out: MM3 x 1 for link control (for wired remote control)
  • Remote 2 In: D-sub 9-pin (female) x 1 for external control (parallel)
  • LAN: RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compliant with PJLink (Class 2), Art-Net
  • Digital Link: RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT compliant), 100Base-TX, compatible with Art-Net, PJLink (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input
  • USB: USB Connector (Type A) x 1 for Cloning/Wireless Module (output 5 V/500 mA)
  • Expansion Slot: Open slot for SLOT NX compatible interface board
  • Power supply: AC 100-240 V, 50/60 Hz
  • Power consumption: 1,100 W
  • Cabinet materials: Molded plastic
  • Operation noise: 43 dB (Normal)/40 dB (Quiet 1)/38 dB (Quiet 2)
  • Weight: Approx. 23.4 kg (51.6 lbs) (without lens)
  • Operating environment: Operating temperature: 0-45 °C (32-113 °F)*8 *9, operating humidity: 10-80 % (no condensation)


• Item Includes:

  • 1x Panasonic PT-RCQ10BU 10000 Lumen 1DLP WUXGA Laser Projector with Lens - 1920 x 1200 - Black


• GTIN:

  0885170373501
