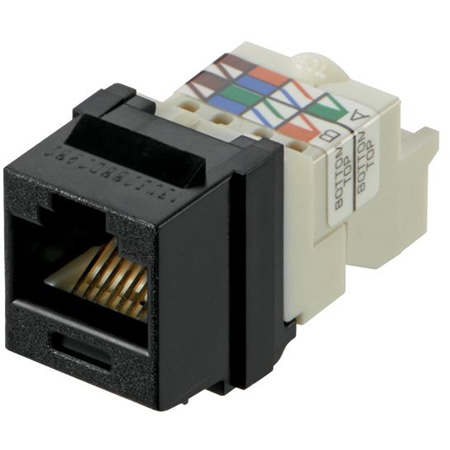

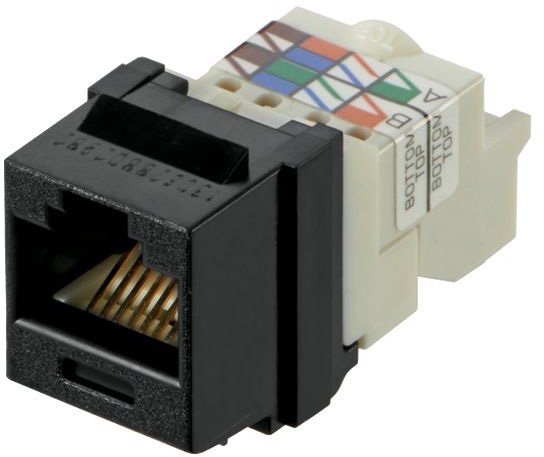

Panduit NK6TMBL NetKey Cat 6 UTP Jack Module TP Style - Black

ITEM #: PAND-NK6TMBL MFG #: NK6TMBL

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PAND-NK6TMBL

NK6TMBL - Overview

The Panduit NK6TMBL NetKey® Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is black.

  • Specifications:

    • Termination: TP style termination
    • Product Type: Jack Module
    • Performance Level: Category 6
    • Connector Type: Jack Module
    • Termination Style: TP Style
    • Body Material: ABS/Polycarbonate
    • Contact Material: Plated Phosphor Bronze
    • Module Type: Keystone
    • Wiring Scheme: T568A/T568B
    • Shield Type: Unshielded (UTP)
    • Sub Brand: NetKeyr
    • Maximum Operating Temperature (°C): 65
    • Maximum Operating Temperature (°F): 149
    • Minimum Operating Temperature (°C): -10
    • Minimum Operating Temperature (°F): 14
    • Maximum Storage Temperature (°C): 70
    • Maximum Storage Temperature (°F): 158
    • Color: Black
    • Standards Met: Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
    • Overall Depth (In.): 1.43
    • Overall Depth (mm): 36.3
    • Overall Height (In.): 0.76
    • Overall Height (mm): 19.3
    • Overall Length (In.): 1.43
    • Overall Length (mm): 36.3
    • Overall Width (In.): 0.58
    • Overall Width (mm): 14.7
