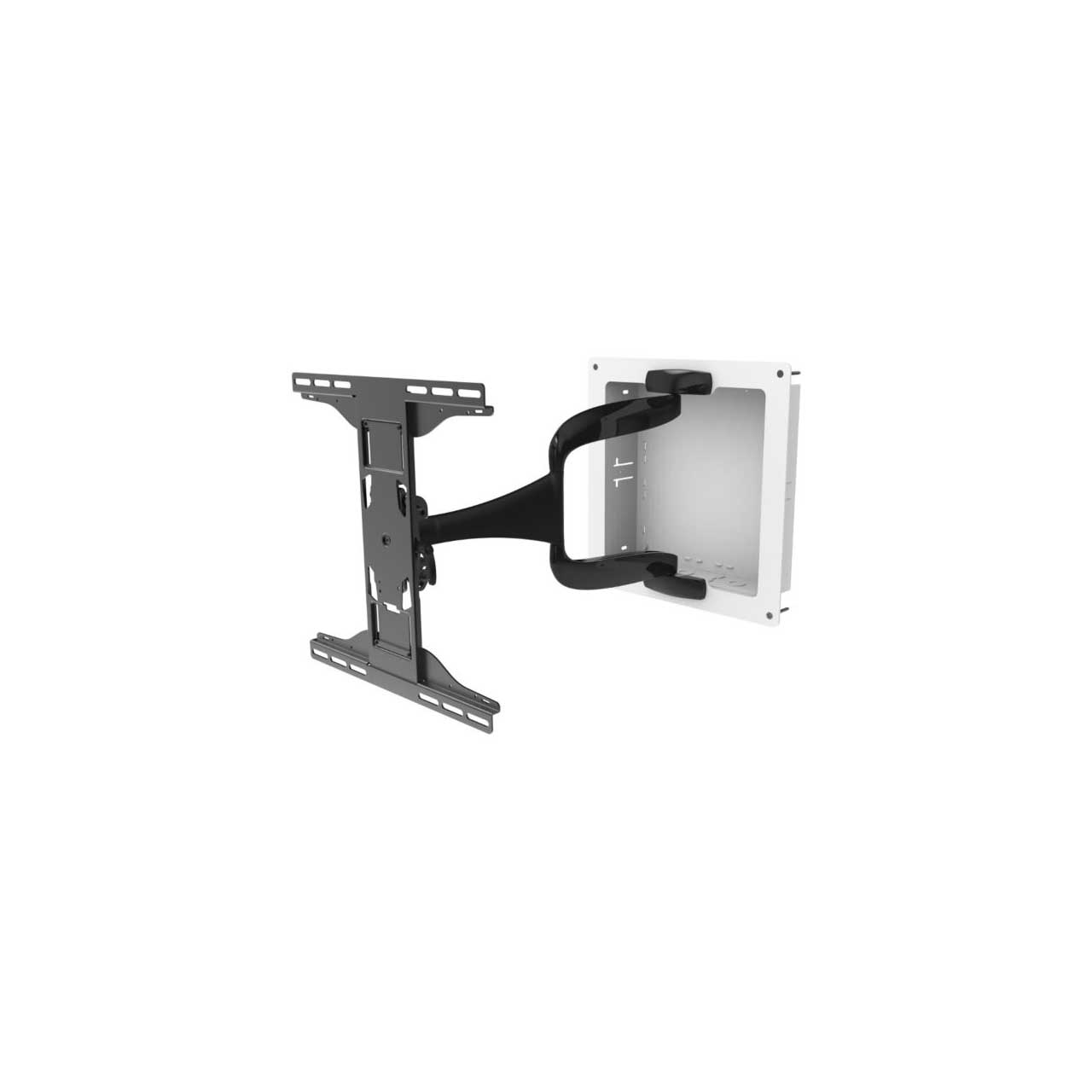

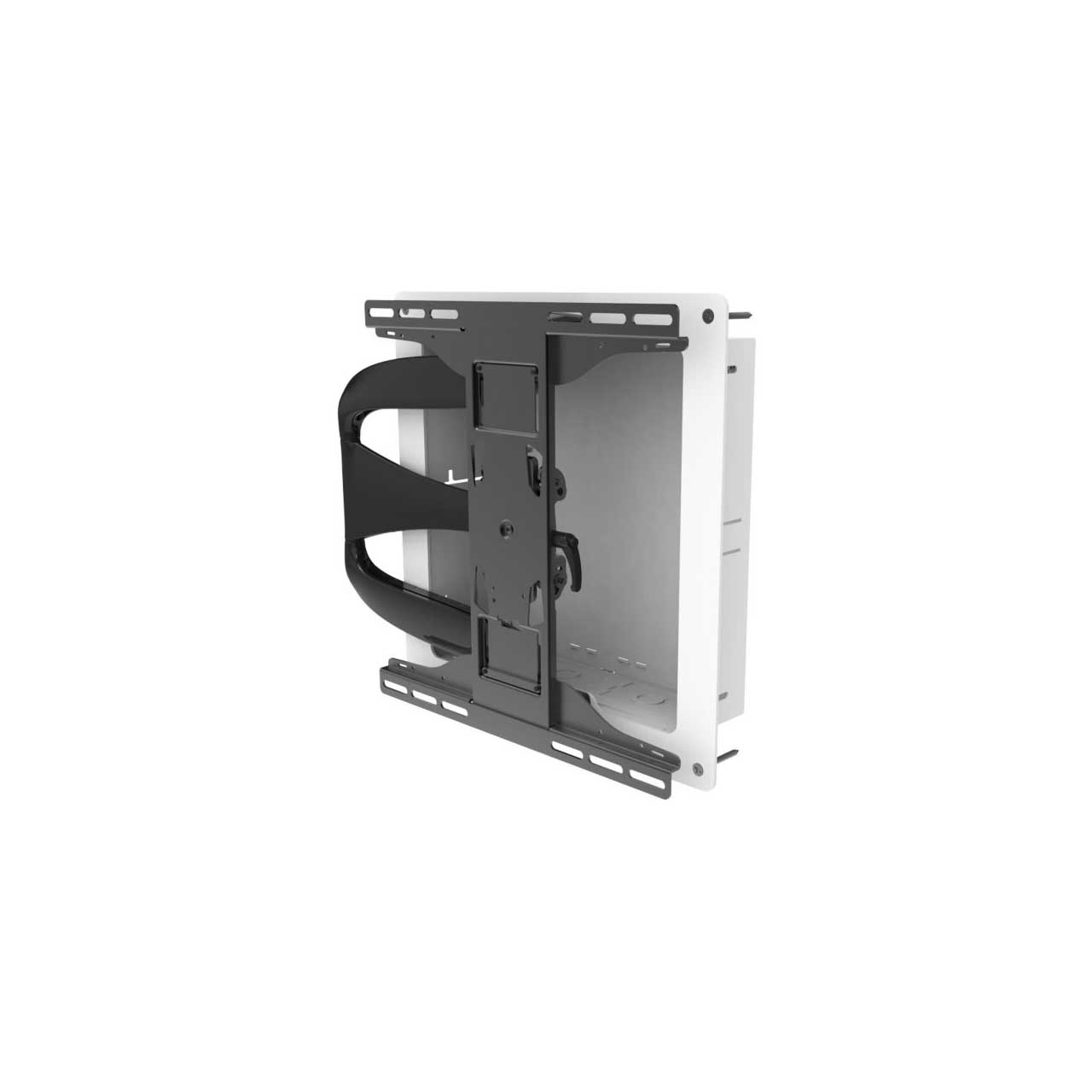

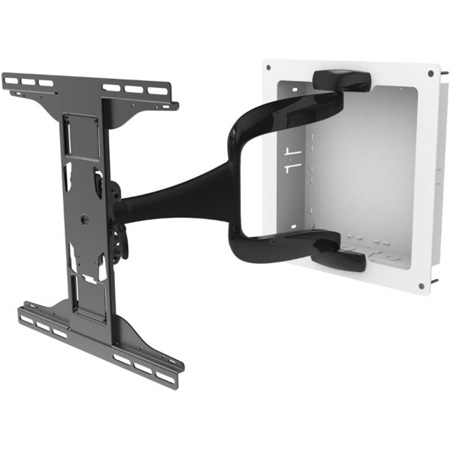

Peerless IM747PU DesignerSeries Articulating Mount with In-Wall Box FOR 37 to 65-inch Ultra-Thin Displays

IM747PU - Overview

• Features:

  • Includes Articulating Mount with 400 x 400mm VESA® adapters
  • Up to ±90° of side-to-side swivel
  • Added ±5° of roll for post-installation display leveling without the use of tools
  • Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
  • Landscape or portrait mounting options increases display versatility
  • Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
  • Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit
  • Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
  • Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
  • Knock-outs provide the ability to mount up to four single gang outlets; Compatible with RACO 420 gang box or equivalent
  • Integrated cable tie locations


• Specifications:

  • Minimum to Maximum Screen Size: 37" to 65"
  • Weight Capacity: 80lb (36.3kg)
  • Color: Other
  • Finish: High Gloss
  • Distance from Ceiling: N/A
  • Distance from Wall: 2.0" (50mm)
  • Mounting Pattern: 600 x 400mm (23.62 x 15.75")
  • Roll: ±5
  • Security Features: Non-Security Hardware
  • Swivel Yaw: ±90
  • Tilt: +15/-5
  • Product Dimensions: 24.37 x 17.75 x 1.94-25.03" (619 x 451 x 49-636mm)
  • Shipping Weight: 41lb (18.6kg)
  • Ship Dimensions: 26 x 10 x 26" (660.4 x 254.0 x 660.4mm)
