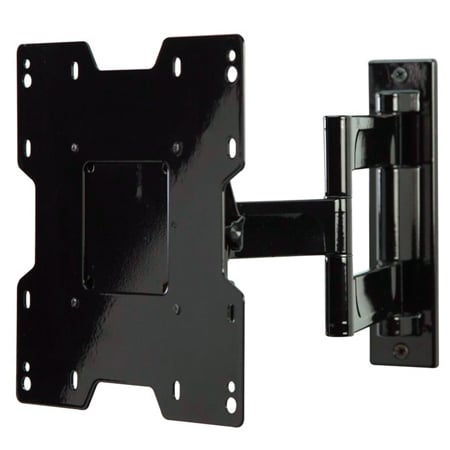

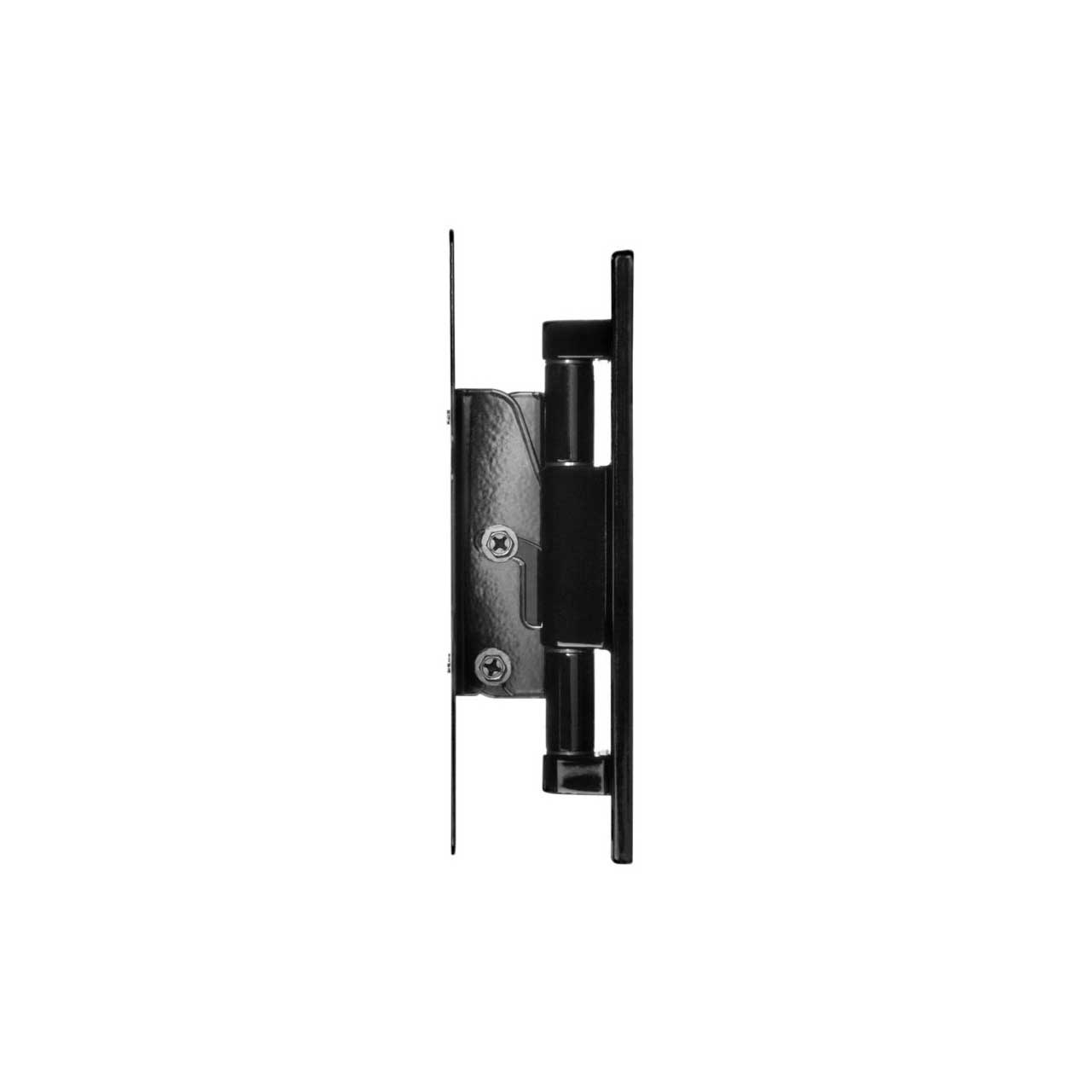

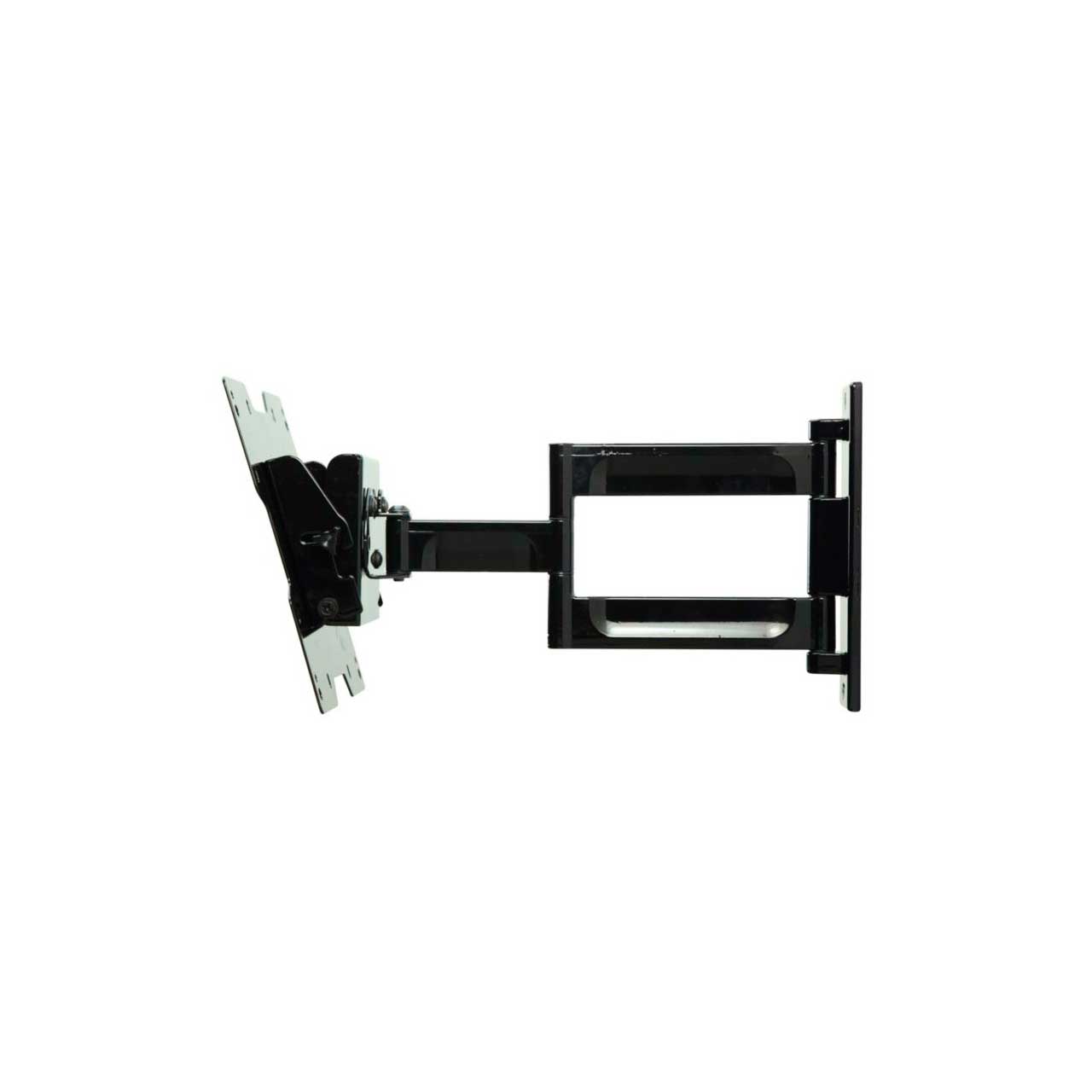

Peerless-AV Paramount PA740 Articulating Wall Arm For 22-43 Inch LCD Screens - Black

PER-PA740 - Overview

• Features:

  • Accommodates 100 x 100, 200 x 100, or 200 x 200mm VESA® mounting patterns
  • Extends 14.91" (379mm) from the wall
  • Retracts 2.80" (71mm) to save space
  • +15/-5° of tilt for optimal viewing angles
  • ±5° of roll for post installation display leveling
  • Up to ±90° of pivot
  • Design is UL listed and tested to four times stated load capacity
  • Hook-and-HangT, one-person display installation
  • Lock the display at any angle with the ratcheting handle
  • Integrated cable management protects, contains and conceals cables for a clean, professional installation
  • Mounts to wood stud, concrete, cinder or breeze block


• Specifications:

  • Minimum to Maximum Screen Size: 22" to 43"
  • VESA Pattern: 100 x 100, 200 x 100, 200 x 200
  • Mounting Pattern: 100 x 100, 200 x 100, 200 X 200mm ( 3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87")
  • Weight Capacity: 80lb (36.0kg)
  • Color: Black
  • Finish: High Gloss
  • Security Features: Non-Security Hardware| Tilt
  • Swivel Yaw: +90 / -90
  • Roll: +5 / -5

    Distance from Wall
  • 3.27 - 15.37" (83 - 390mm)

    Product Dimensions
  • 9.42 x 9.35 x 3.27 - 15.37" (239 x 237 x 83 - 390mm)

    Package Specifications
  • Shipping Weight: 7.45lb (2.67Kg)
  • Ship Dimensions: 10.63 x 3.23 x 11.77" (270.0 x 82.0 x 299.0mm)


• GTIN:

  0735029256090
