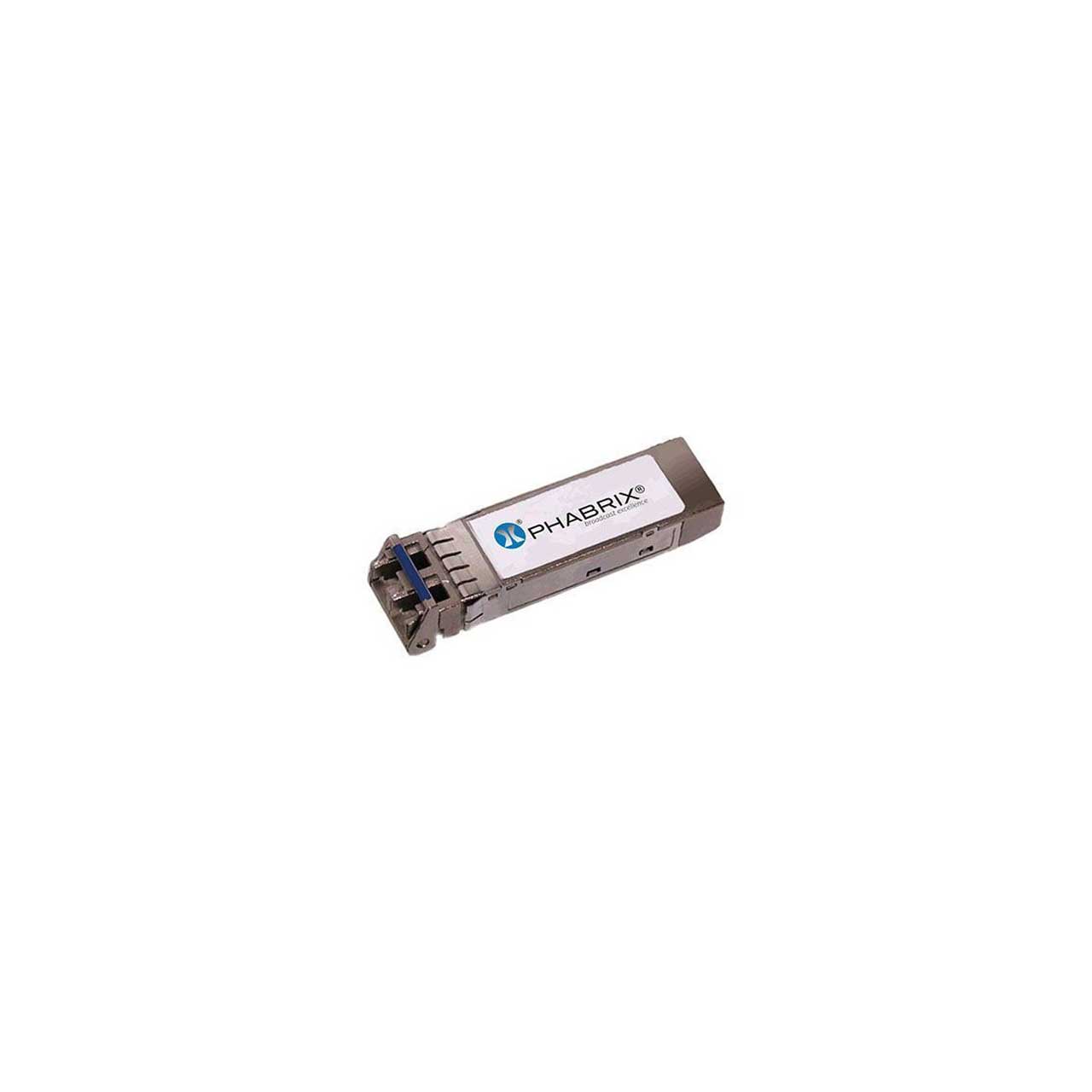

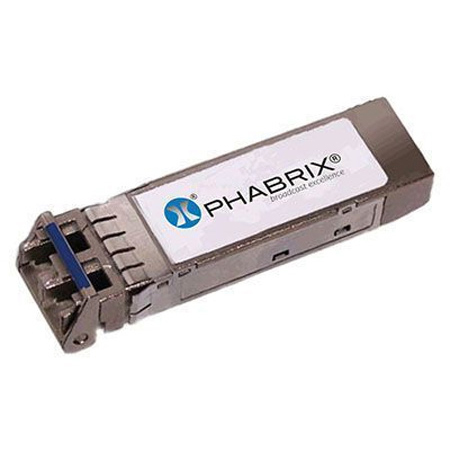

Phabrix PHSFP-RT30-1310 Optical Transceiver Module (Phabrix SX TAG option)

ITEM #: PHSFP-RT30-1310 MFG #: PHSFP-RT30-1310

Primary Image
Phabrix
Free Shipping with $49 Minimum Order

Our Price:

$459.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

PHSFP-RT30-1310 - Overview

This optical transceiver SFP module is an option for the PHABRIX Rx PHRXM-AG or PHRXM-AGE modules and the PHABRIX SxTAG.

The PHSFP-RT30-1310 is an optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006. It has been specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates.

It contains a single 1310nm transmitter and a single receiver designed to provide error-free transmission of signals from 50Mb/s to 3Gb/s over single mode fibre (9/125).

PHSFP-RT30-1310 optical transeceiver supports SD-SDI, HD-SDI and 3G-SDI to allow both input and output. (3G option required to enable 3G-SDI)

Fiber connection is 2 channel LC Singlemode

  • Features:

    • Excellent optical recieive performance
    • Transmitter 1310nm and Receiver 1260-1620nm
    • Exceeds SMPTE 297-2006 specifications
    • Error-free reception of signals from 50Mbps to 3Gbps
    • Hot pluggable
    • Selectable from Rx interface
    • RoHS compliant
    • 56.5mm x 13.4mm x 8.6mm SFP Package


  • Specifications:

    • Suppot 3G-SDI, HD-SDI, SD-SDI
    • Number of optical inputs 1
    • Number of optical outputs 1
    • 3Gb/s Pathological Receive Sensitivity (dBm) -23
    • Typical Ave. Optical Output Power (dBm) -
    • Reciever Optical Wavelength (nm) 1260-1620
    • Transmitter Optical Wavelength (nm) 1310
    • Data Rate (Mb/s) 50-3000
    • Temp range (C) 0 to +70
    • Typical distance @ 3Gb/s-SDI (km) -*
    • Package Non-MSA VideoSFP
    • Module 56.5mm x 13.4mm x 8.6mm


  • Warranty:

    • 2 Years
