PureLink HOF III TX/RX HDTools UHD HDMI 2.0/4K60 4:4:4/HDCP 2.2/IR/RS-232 over 1 LC Fiber Transmitter/Receiver Set

Name: PureLink HOF III TX/RX HDTools UHD HDMI 2.0/4K60 4:4:4/HDCP 2.2/IR/RS-232 over 1 LC Fiber Transmitter/Receiver Set
Brand: PureLink
SKU: PLK-HOFIII-TXRX
Price: 1409.99 USD
Availability: PreSale

ITEM #: PLK-HOFIII-TXRX MFG #: HOF III TX/RX

PureLink

Options:

Options

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,409.99

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

HOF III TX/RX - Overview

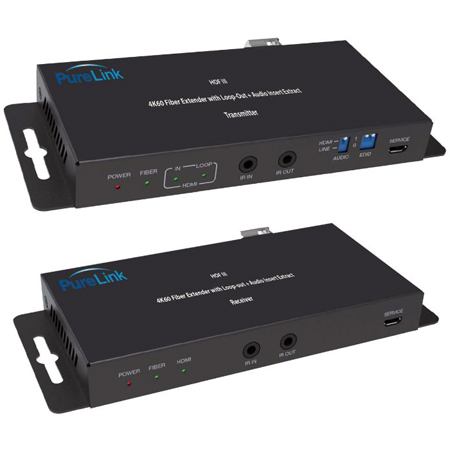

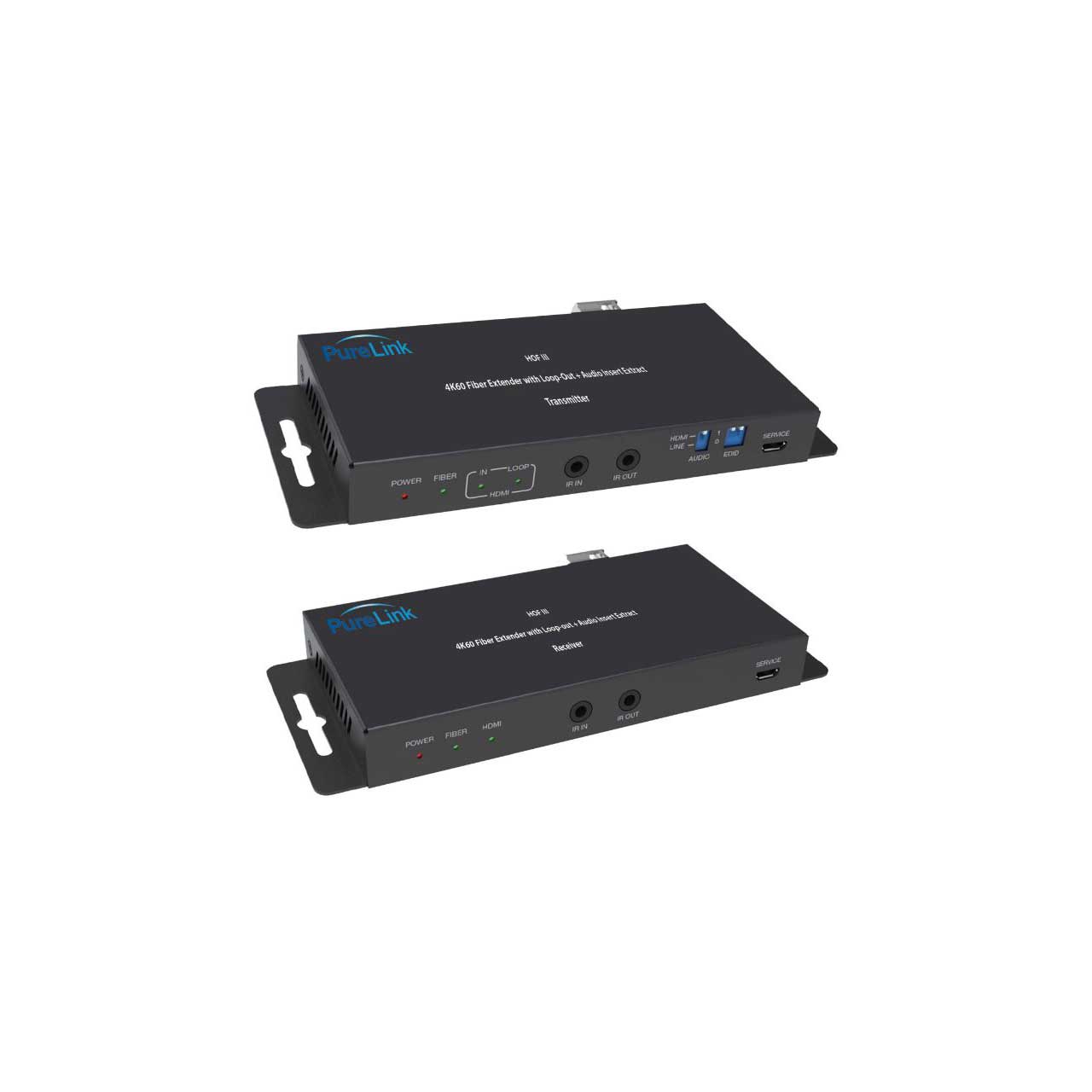

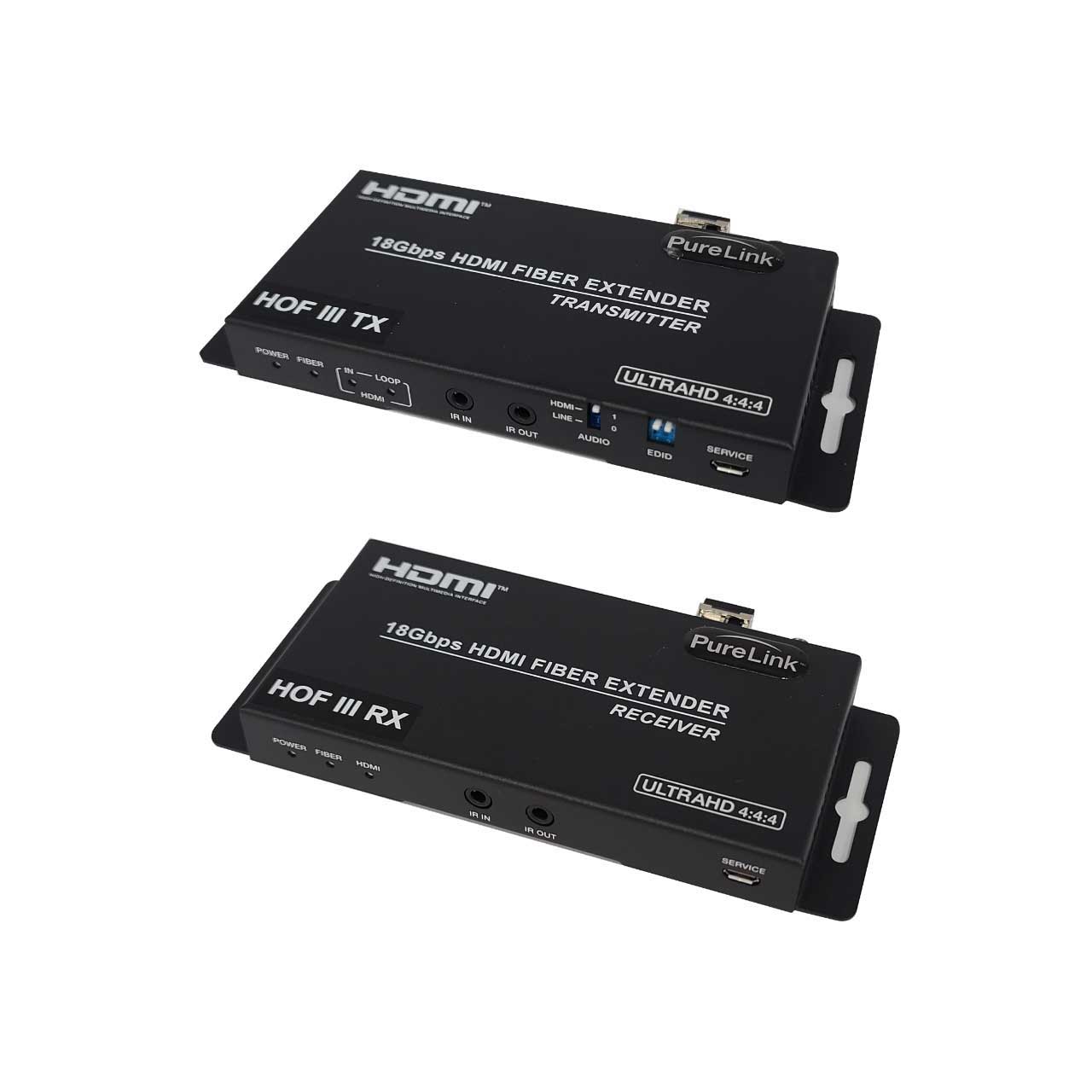

The PureLink HOF III offers a powerful solution for long-distance distribution of 4K60 video, audio, and control signals over fiber. Ultra HD/4K, HDMI 2.0 (18G), RS-232, Bi-Directional IR, Loop-Out (Tx), Audio Extract/Insert, & EDID Management are all supported via Fiber SFP+ 1LC (Simplex): Up to 33000 feet/10 km over single-mode fiber cable (modules included).

Features:
- Supports Loop-Out (Tx), Audio Extract/Insert, Bi-Directional IR, RS-232, & EDID Management
- Supports distances up to 10km (~33,000ft)
- 4K60 4:4:4 / 18Gbps / HDCP 2.2
- Features Dolby Digital/PLUS/EX/True HD, DTS/EX/96/24/High Res/HD Master Audio, & DSD
- Supports 3D & HDR
Specifications:
- Supported Distance: up to 10km (~33,000ft) over single-mode simplex LC fiber cable
- Supported Resolutions: up to 4K2K@60 4:4:4
- Compliance: HDMI 2.0b, HDCP 2.2, & DVI 1.0
- Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
- Color Depth: 8-bit 10-bit 12-bit, HDR
- Supported HDMI Audio Formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- RS-232 Baud Rate: 4800-115200bps
- ESD Protection: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
- Power Consumption: TX: 3.85W (Max), RX: 2.7W (Max)
- Power Supply: Input: AC 100 - 240V 50/60Hz
- Power Supply Output: Output: DC 5V/1A
- Operating Temperature: 32° ~ 104°F (0° - 40°C)
- Storage Temperature: -4° - 140°F (-20° ~ -60°C)
- Relative Humidity: 20 ~ 90% non-condensing
- HDMI/DP/VGA VERSION: HDMI 2.0b

  Connections

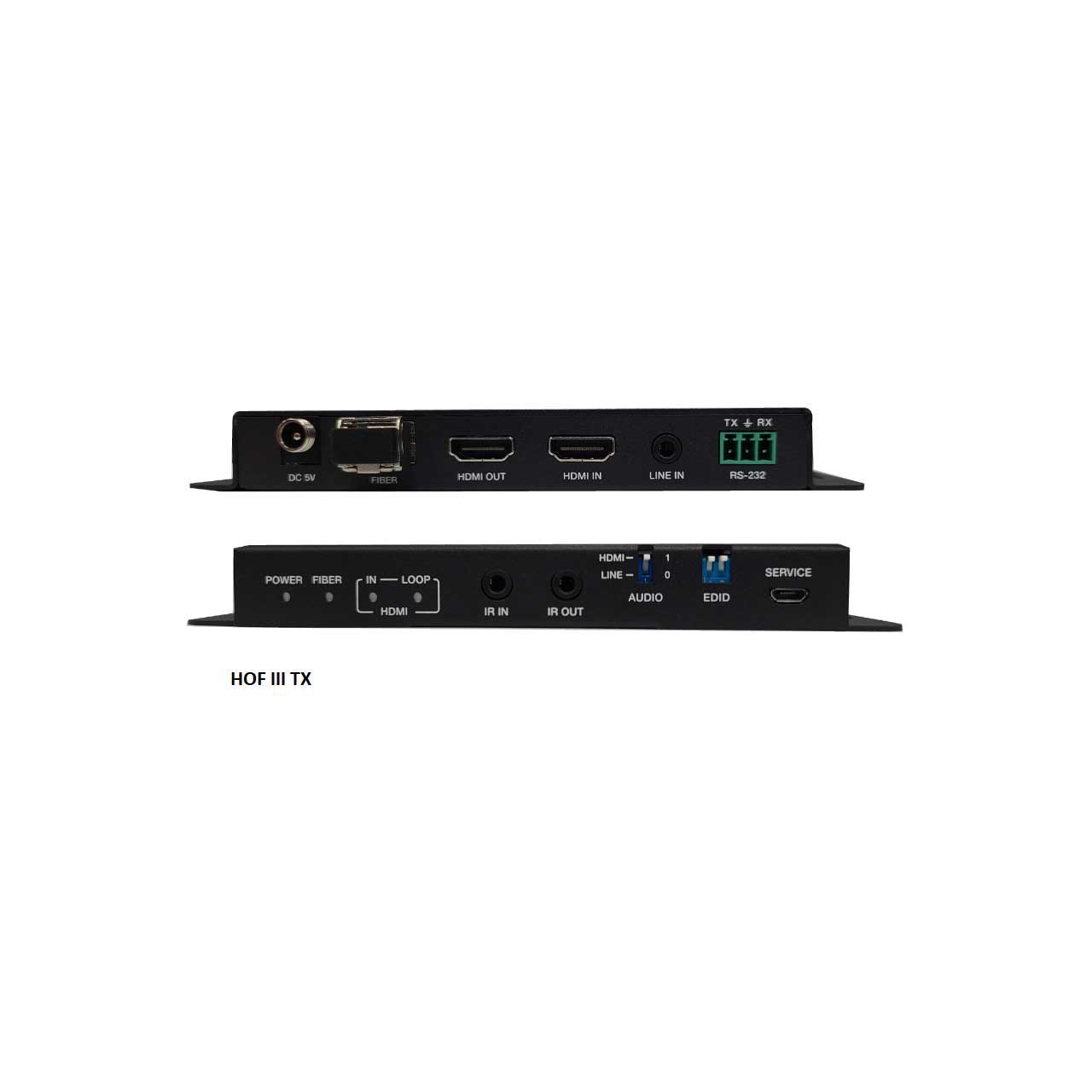

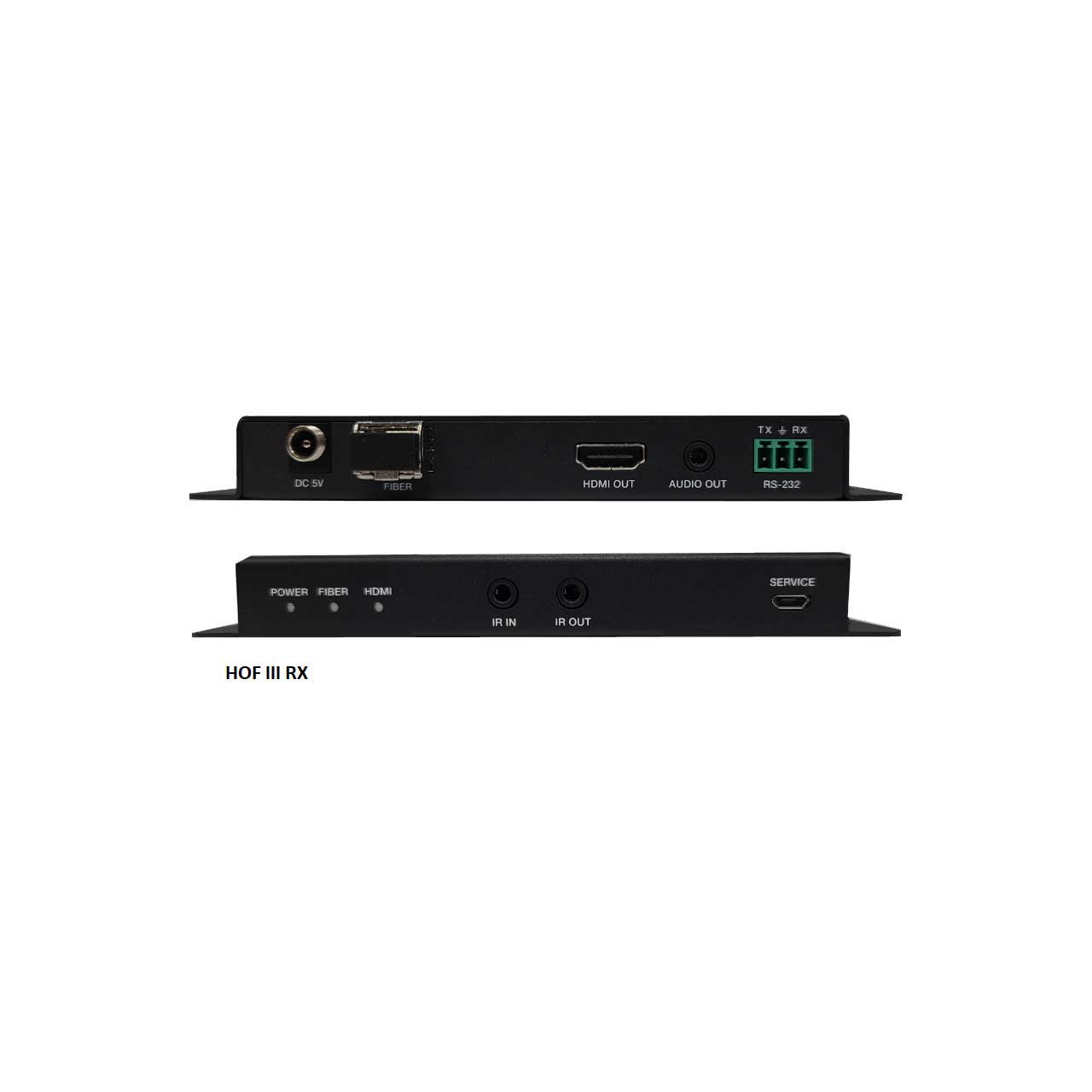

- Input Type(s): TX: 1 x HDMI IN [Type A 19-pin female] RX: 1x Optical Fiber IN [LC Female]
- Output Type(s): TX: 1x HDMI OUT, Optical Fiber OUT RX: 1x HDMI Out [Type a 19-pin Female]
- Audio Input Type(s): TX: 1 x LINE IN [3.5mm Stereo Mini-jack]
- Audio Output Type(s): RX: 1x Audio Out [3.5mm Stereo Mini-jack]
- Control Ports: 2 x IR IN [3.5mm Stereo Mini-jack], 2x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 IN & OUT [3.81mm Phoenix connector]

  Enclosure
- Product Dimensions: TX/RX: 134mm x 68mm x 18mm
- Product Weight: TX: 280g, RX: 278g
Item Includes:
- 1x PureLink HOF III TX/RX HDTools UHD HDMI 2.0/4K60 4:4:4/HDCP 2.2/IR/RS-232 over 1 Fiber Transmitter/Receiver Set
- Fiber Modules
- Power Supply
Warranty:
- Limited Warranty (3-Years)
