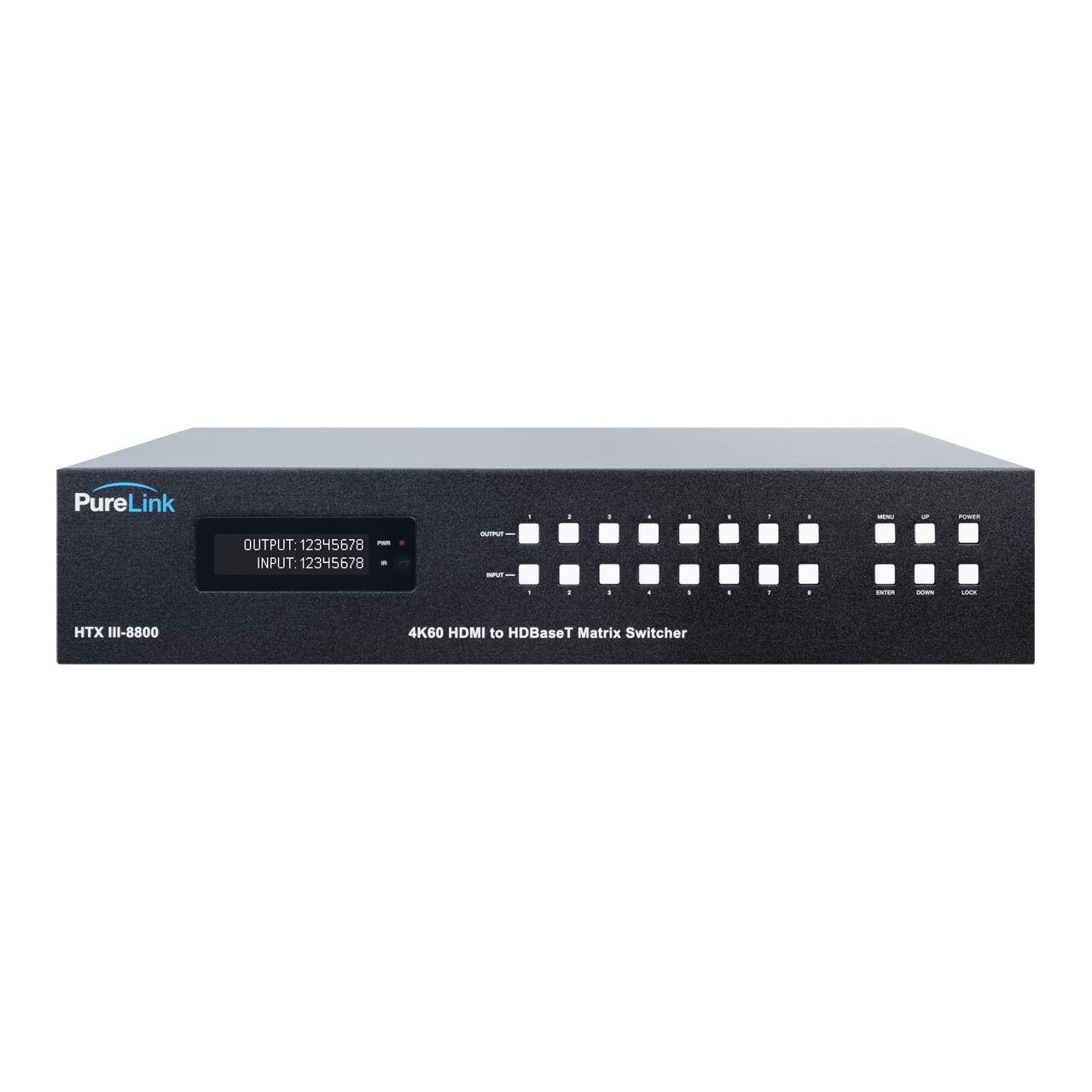

PureLink HTX-III-8800 HDTools 8x8 UHD 4K60 4:4:4 HDMI 2.0b HDCP 2.2 to HDBaseT Matrix Switcher with Audio De-embed

HTX-III-8800 - Overview

• Features:

  • DMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, HDR, HDR 10+
  • (8) HDMI inputs, (8) HDBase outputs with mirrored HDMI outputs
  • Supports resolutions up to 4K@60HZ (4:4:4) HDR on all HDMI ports
  • Supports distances up to 492 ft. (150 m) via CATx
  • Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and
  • DTS-HD Master Audio)
  • CEC control of peripherals
  • 24V PoC on all HDBaseT ports
  • Control via on-panel Buttons, IR, Web GUI, and RS-232, LAN via API
  • Crestron and QSC modules available
  • EDID Management: 22 selectable EDID, 2 User Defined, 16 readable (from HDMI or HDBaseT output connections)


• Specifications:

  • Hardware
  • Input Signal Type(s): HDMI
  • Output Signal Type(s): HDBaseT, HDMI

    Performance
  • Supported Resolutions: up to 4K@50/60Hz (4:4:4)
  • Supported Audio Formats: PCM 2.0, 32K/44.1K/48K/88.2K/96K/192K,16/20/24bit
  • Compliance: HDMI 2.0/1.4, HDCP 2.2
  • Data Transfer Rate: 18 Gbps
  • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 8-bit 10-bit 12-bit
  • Supported HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • RS-232: Yes
  • IR Extension: Yes
  • LAN: Yes
  • Control Options: Front panel; web UI
  • Power Consumption: 85 Watts (max)
  • Power Supply: 100-240VAC 50/60Hz
  • Power Injection for CATx Extenders: Enabled on all HDBaseT outputs
  • Operating Temperature: 32° ~ 104 F
  • Storage Temperature: -4° ~ 140° F
  • Relative Humidity: 20 ~ 90% non-condensing
  • MTBF: 50,000 hours

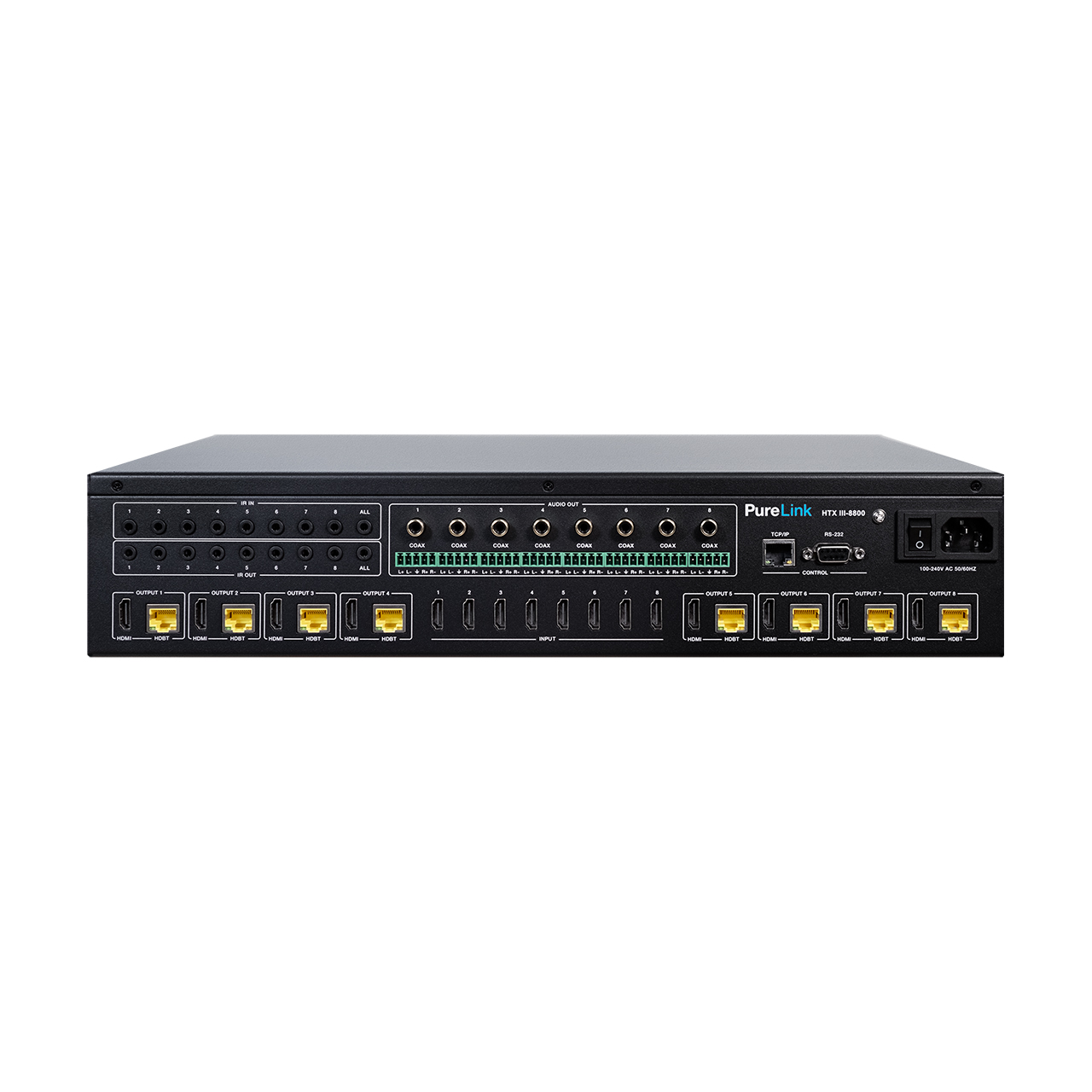

    Connections
  • Input Type(s): (8) HDMI Type A [19-pin female], (8) IR In [3.5mm Stereo mini-jack], (1) Ethernet [RJ45], (1) RS-232 [DB9]
  • Output Type(s): (8) HDMI Type A [19-pin female], (8) IR Out [3.5mm Stereo mini-jack], (8) L/R Audio Out [mini phoenix], (8) HDBaseT Out [RJ45]

    Resolution and Distances
  • 4K60 CAT6a: 492ft / 150M
  • Resolution / Cable length - 4K60: HDMI IN / OUT 16ft / 5M
  • Resolution / Cable length - 4K30: HDMI IN / OUT 32ft / 10M
  • Resolution / Cable length - 1080P60: HDMI IN / OUT 50ft / 15M

    Enclosure
  • Enclosure Type: All metal, black powder coat finish
  • Product Dimensions: 19" x 14.7" x 3.49"
  • Product Weight: 14.77 lbs.


• Item Includes:

  • 1x HTX III 8800 4K60 Matrix Switch
  • 1x IEC power cable
  • 1x DB9M to DB9F RS232 controls cable
  • 1x IR remote control
  • 2x Rack ear adapters
  • 1x 3 pin mini phoenix connector
  • 9x IR Receiver cables
  • 9x IR Transmitter cables


• Warranty:

  • Limited Warranty (3-Years)
