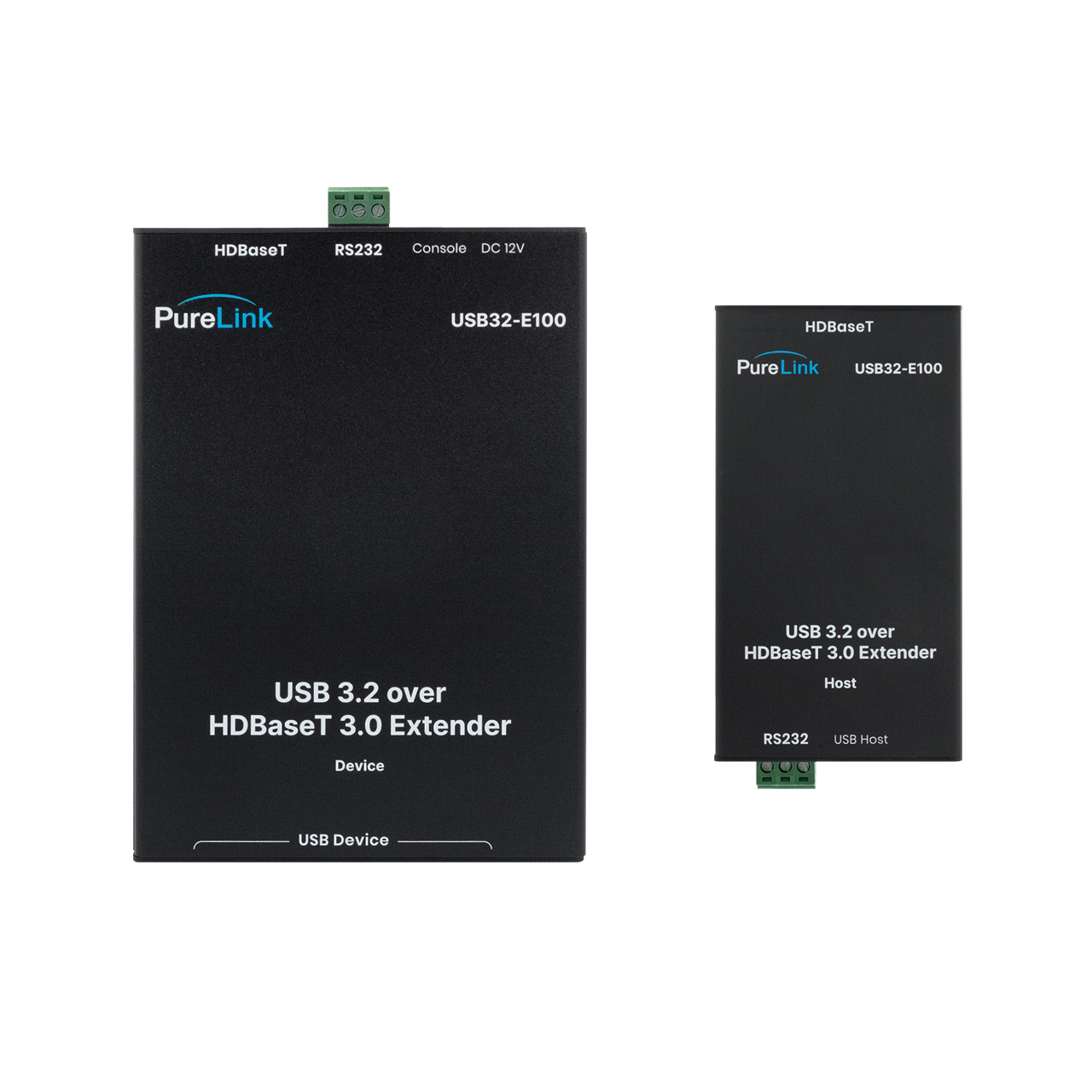

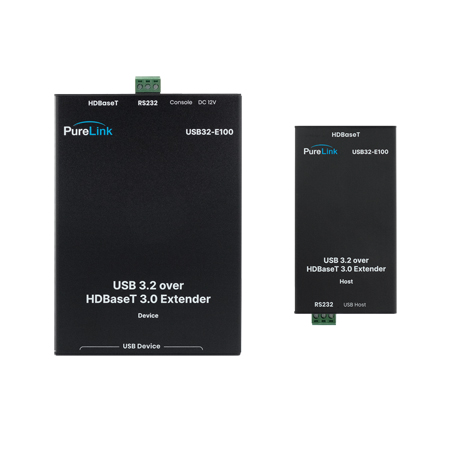

PureLink USB32-E100 HDTools 328 Foot/100m Meter USB 3.2 over CAT6a Transmitter/Receiver Kit - TAA Compliant

Name: PureLink USB32-E100 HDTools 328 Foot/100m Meter USB 3.2 over CAT6a Transmitter/Receiver Kit - TAA Compliant
Brand: PureLink
SKU: PLK-USB32-E100
Price: 1849.99 USD
Availability: InStock

ITEM #: PLK-USB32-E100 MFG #: USB32-E100

PureLink

Our Price:

$1,849.99

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

USB32-E100 - Overview

PureLink's USB32-E100 USB-C 3.2 Gen 1 provides up to 100 meters of reliable extension. Adding the USB32-E100 could not be simpler, connect the TX and RX with CAT6a cable or better, apply power to the TX, add your USB devices, and that's it! The USB32-E100 is a perfect extension solution for USB cameras, touch panels, as well as desktops, laptops, and more. TAA Compliant.

Features:
- USB-C to USB-C, or USB-C to USB-A
- 100 Meter over CAT6
- USB 3.2 Gen 1 (5 Gbit/s)
- Extends:
  - USB2.0 and USB 1.1
  - RS-232
- TAA Compliant
- Plug and Play
- Optional Rack Mount (USB32-E100-RACK)
Specifications:
- Inputs: 4x USB TYPE A
- Outputs: 1x USB TYPE A
- Connector Type(s):
  - USB2.0 (480Mbps)
  - USB1.1 (12Mpbs, 1.5Mbps)

  Performance
- Distance:
- USB2.0:
  - 50M [164ft] @ CAT5e
  - 70M [230ft] @ CAT6
- USB1.1:
  - 100M [328ft]
- Compliance: TX/RX: TAA, CE, FCC, ROHS power adapter UL listed
- Power Adapter: DC 5V, 1500mA 100-240 VAC 50/60Hz power adapter included [US PLUG]
- Power Supply: 100-240VAC 50/60Hz
- Operating Temperature: 32° ~ 120° F (0° to 55° C)
- Relative Humidity: UP TO 95%
- MTBF: 50,000 hours
- Diagnostics: Power, Data Transfer, No Link, No Power Indications

  Enclosure
- Product Dimensions:
  - TX: 3.43 x 4.84 x 1.26" ( 60 x 70 x 27mm)
  - RX: 1.96 x 3.66 x 1.26" (25.4 x 25.4 x 240mm)
- Product Weight:
  - TX: .57lb (115g)
  - RX: 0.12 lbs (55g)
Warranty:
- Limited Lifetime
GTIN:
0817705025814
