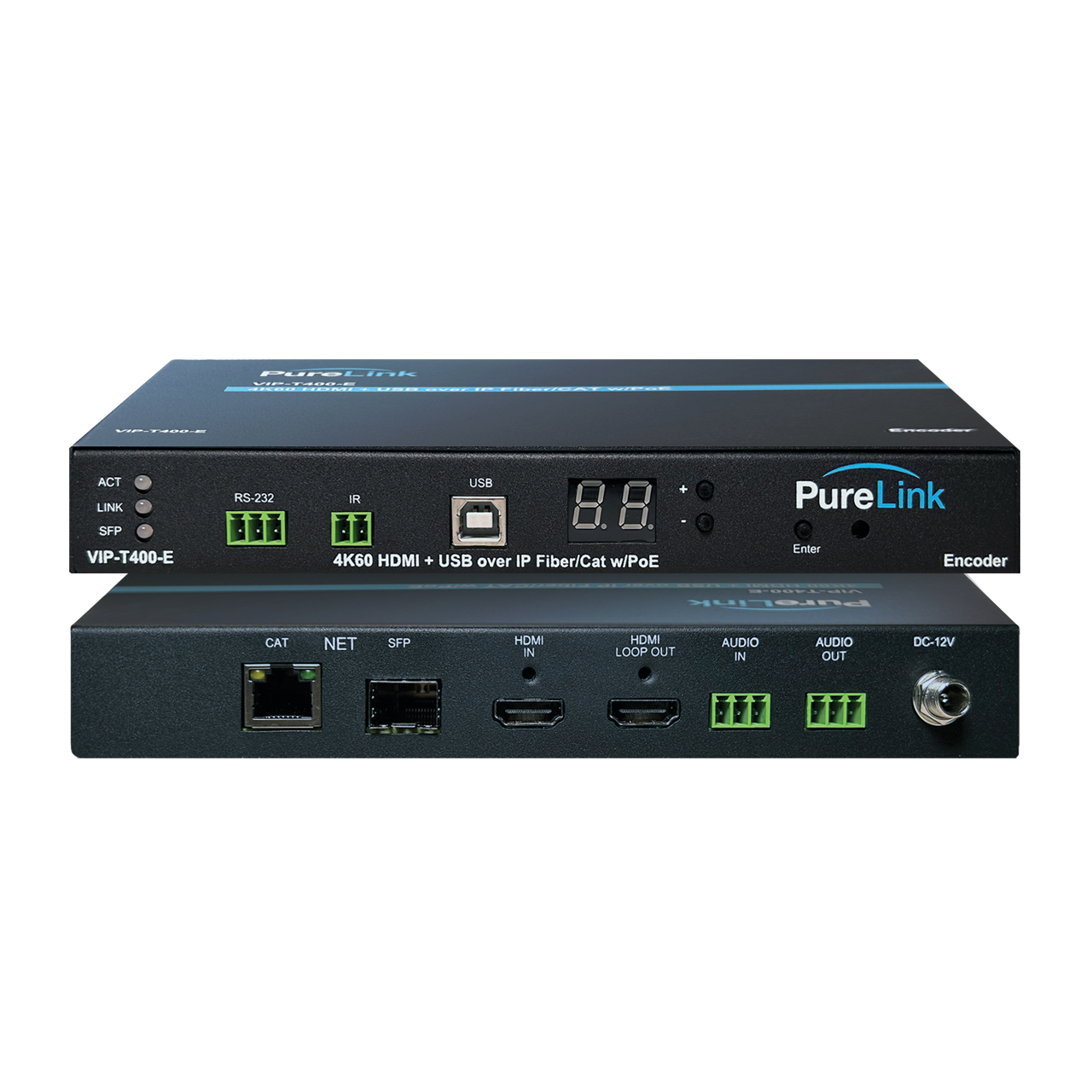

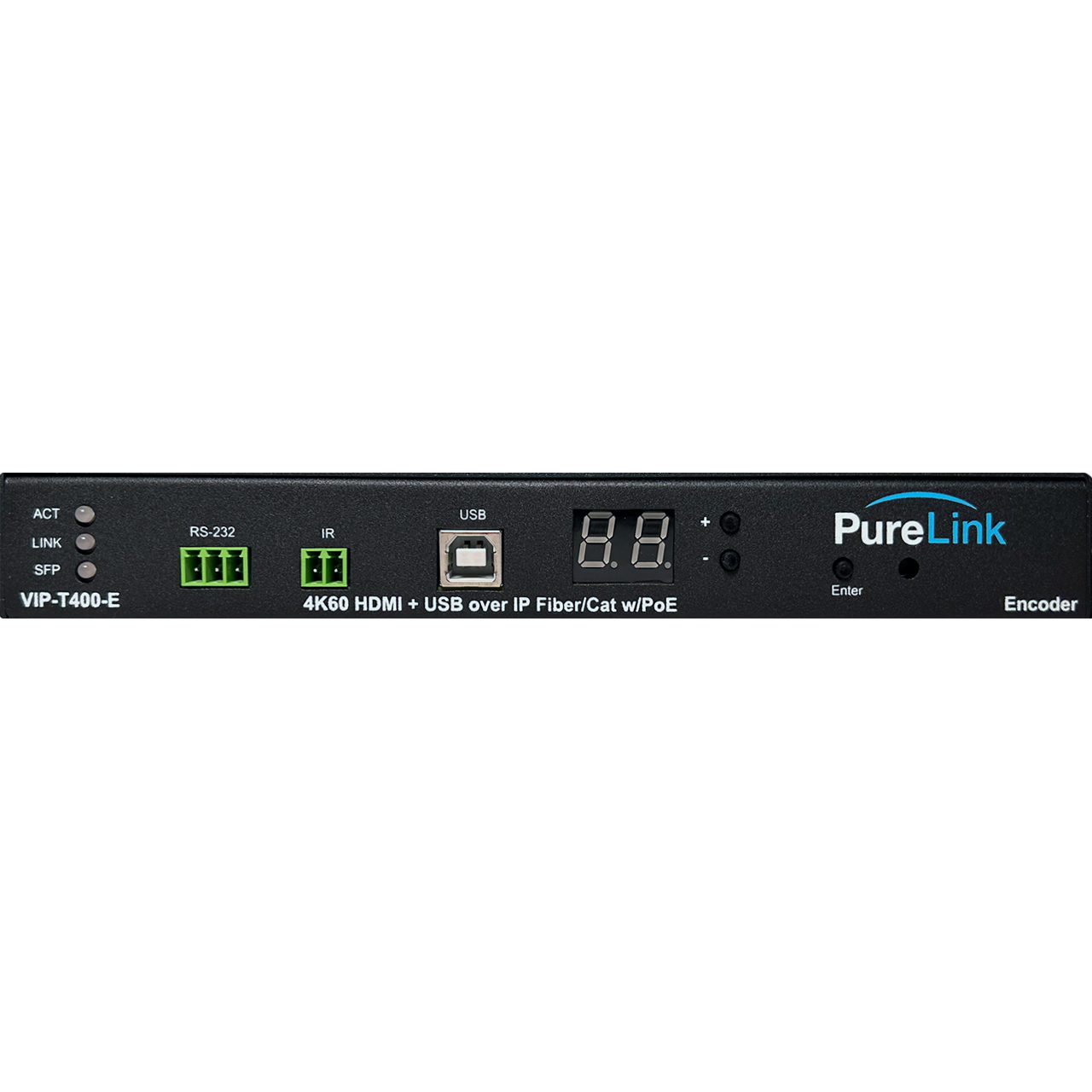

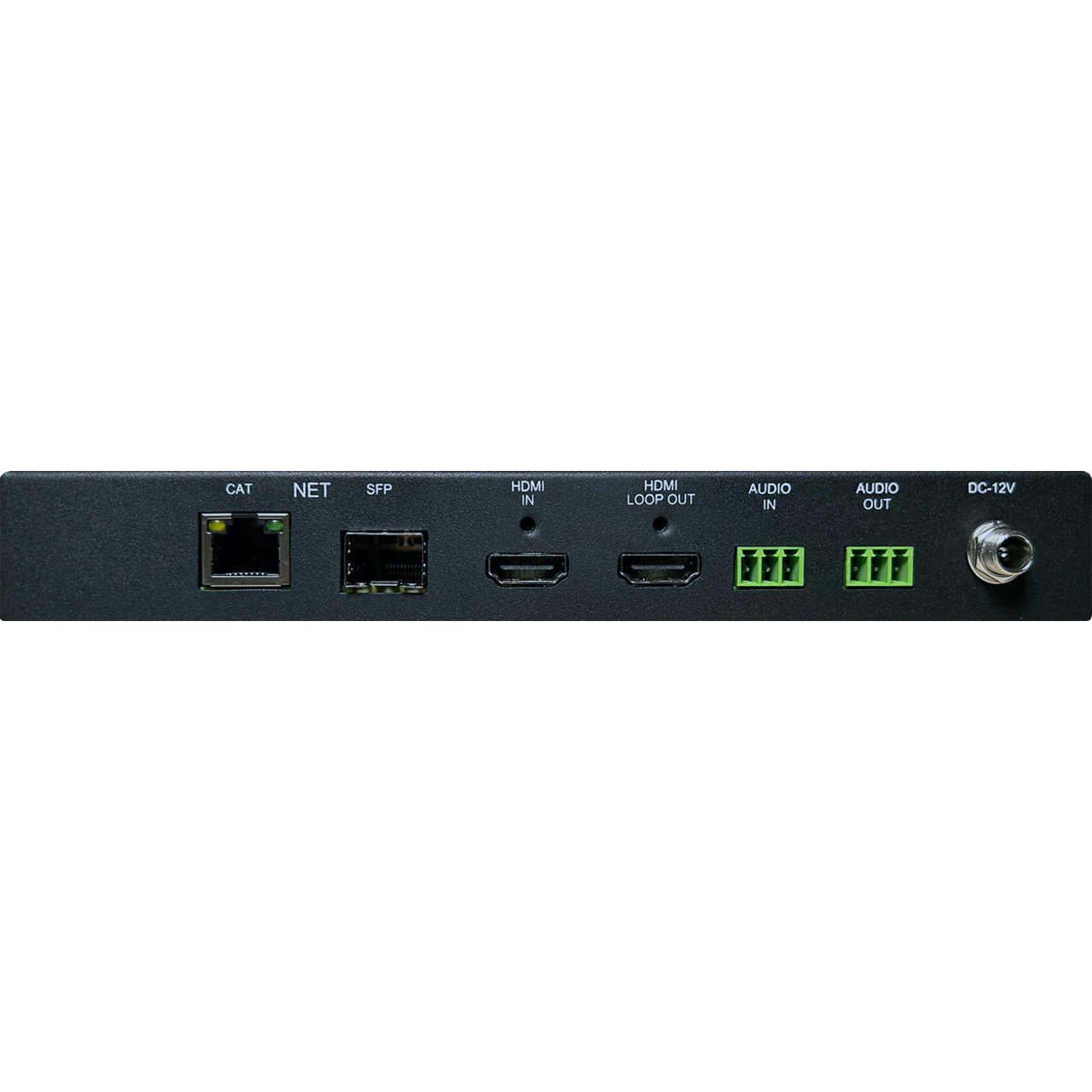

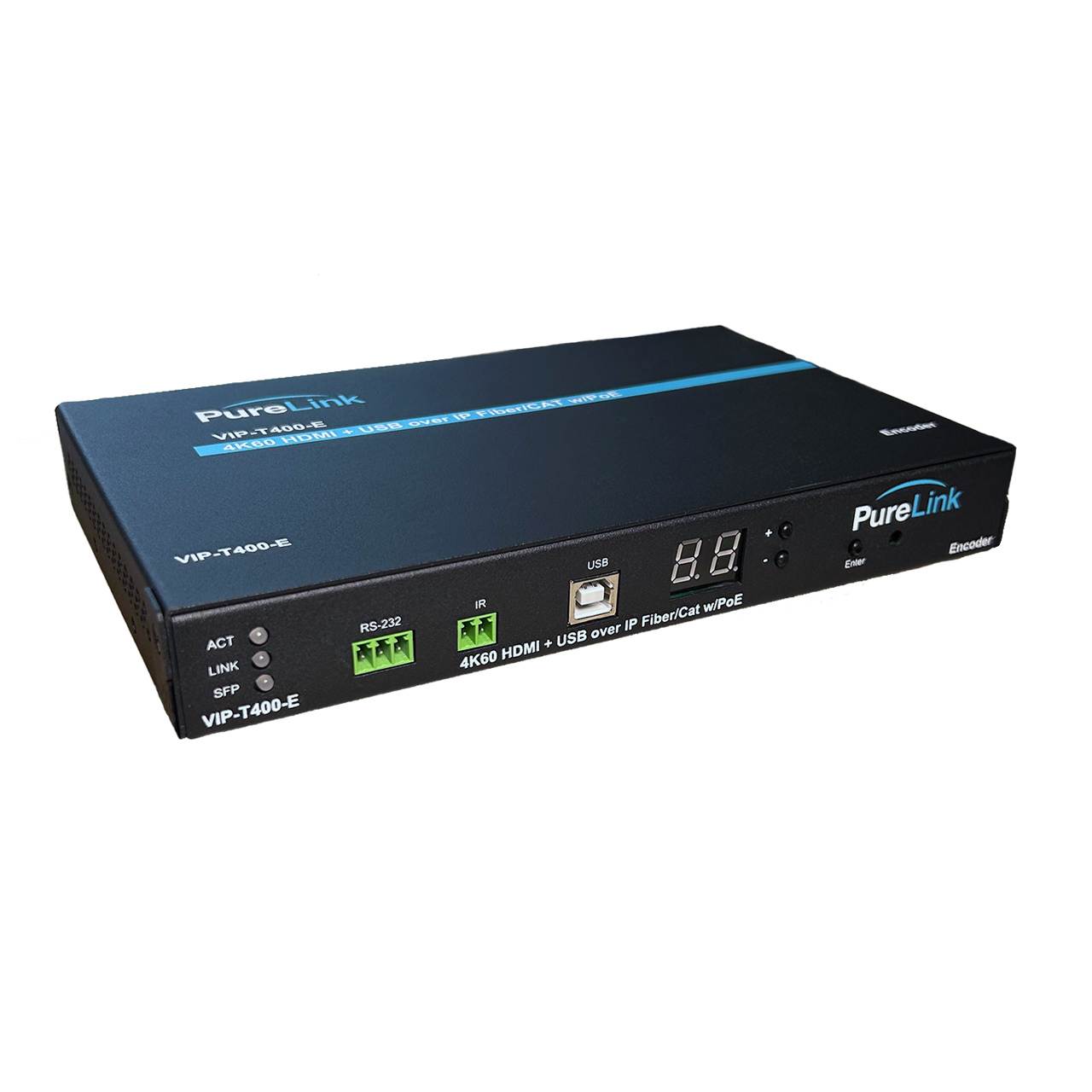

Purelink VIP-T400-E 4K60 HDMI and USB/KM CAT and Fiber AV over IP Encoder - TAA Compliant

Name: Purelink VIP-T400-E 4K60 HDMI and USB/KM CAT and Fiber AV over IP Encoder - TAA Compliant
Brand: PureLink
SKU: PLK-VIP-T400-E
Price: 1429.99 USD
Availability: PreSale

ITEM #: PLK-VIP-T400-E MFG #: PLK-VIP-T400-E

PureLink

Our Price:

$1,429.99

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PLK-VIP-T400-E - Overview

The Purelink VIP-T400-E 4K HDMI & USB/KM CAT and Fiber AV over IP Encoder provides UltraHD/4K60 4:4:4 HDR video, audio, RS-232, IR, and USB 1.1, 2.0, and USB camera signal transport over IP networks. The VIP-T400 can be used as a point-to-point extension system supporting distances up to 120 meters over CAT6a, and up to 2 kilometers over SFP Single Mode Fiber, and is also compatible with MultiMode SFP for shorter distances. The VIP-T400 is designed to handle multiple signals types for applications that require reliable distribution, switching, matrixing, and layered matrix switching. The VIP-T400 supports audio insertion and extraction. Multiple control options are available including the VIP-T400's own rich API, PureLink's VPX IP Video Management Software, and QSC plugin. Providing complete and reliable AV over IP extension, the VIP-T400 is the ideal solution for your application. The VIP-T400 is TAA compliant, making it perfect for Government and Military applications and critical viewing 24/7/365 installations.

Features:
- 4K60 4:4:4 HDR
- Ultra-low latency (<17mS)
- Data rate 300 Mbps typical; 50-850 Mbps range, variable
- Fiber or CAT transport - 1G port
- Extend signals up to 120 meters over CAT6, 240 meters using a network switch, and up to 2km with SFP fiber single mode
- HDCP 2.2 compliant
- USB 1.1 and 2.0 including USB camera support
- Comprehensive diagnostics via API - device discovery, signal data, and EDID
- Supports instant switching (same resolutions)
- Multiple control interfaces - built-in web interface, front panel buttons, VPX Management Software, QSC modules, and 3rd party control development via API
- Built-in video wall processing (up to 8x8)
- Built-in scaler on the receiver (decoder)
- Image rotation; 90, 180 degrees
- IR and RS232 extension
- TCP/IP to RS232
- HDMI loop-out on TX (encoder)
- Powered by included AC power adapter, or via PoE 802.3af (8.5W)
- Supports Dolby, DTS, and LPCM audio and more
- Matrix switching systems up to 999 sources and 65K displays
Specifications:
- Performance
- Supported Distance: 120M CAT6a, up to 2km using SFP Single Mode
- Supported Resolutions: Up to 4K UHD 4:4:4 @ 60HZ
- Compliance: HDCP 2.2
- Video Input Format: HDMI 2.0
- Video Output Format: HDMI 2.0
- Supported Audio Formats: 5.1 Ch, 7.1 Ch LPCM, 5.1 Ch Dolby Pro Logic, DTS, 7.1 Ch Dolby TrueHD, Dolby Atmos DTS:X
- IR Receiver (Internal): 3-Pin Mini-Phoenix
- Power Consumption: 8.5 Watts
- Power Supply: DC 12V 1500mA
- RS-232: Extension, and access via TCP/IP
- IR Extension: Bidirectional
- PoE (Power OVer Ethernet): 802.3af
- HDR Support: Yes
- Data Rate: 50-850 Mbps, 300 Mbps typical

  Connections
- Outputs: 1x HDMI
- Control Ports: RS232 - 3 pin mini phoenix, Relay (2) 2 pi mini phoenix, Digital OIO (2) - mini phoenix
- Audio Input Types: Analog Stereo - 3 pin mini Phoenix
- Audio Output Types: Analog Stereo - 3 pin mini phoenix, SPDIF (ARC)
- IR Receiver(Internal): 3 pin mini-phoenix

  Software
- VPX Software Suite: Compatible
- OS Compatibility: QSC Modules available
Item Includes:
- 1x VIP-T400-E Transmitter/Encoder
- 1x 12 VDC Power Adapter

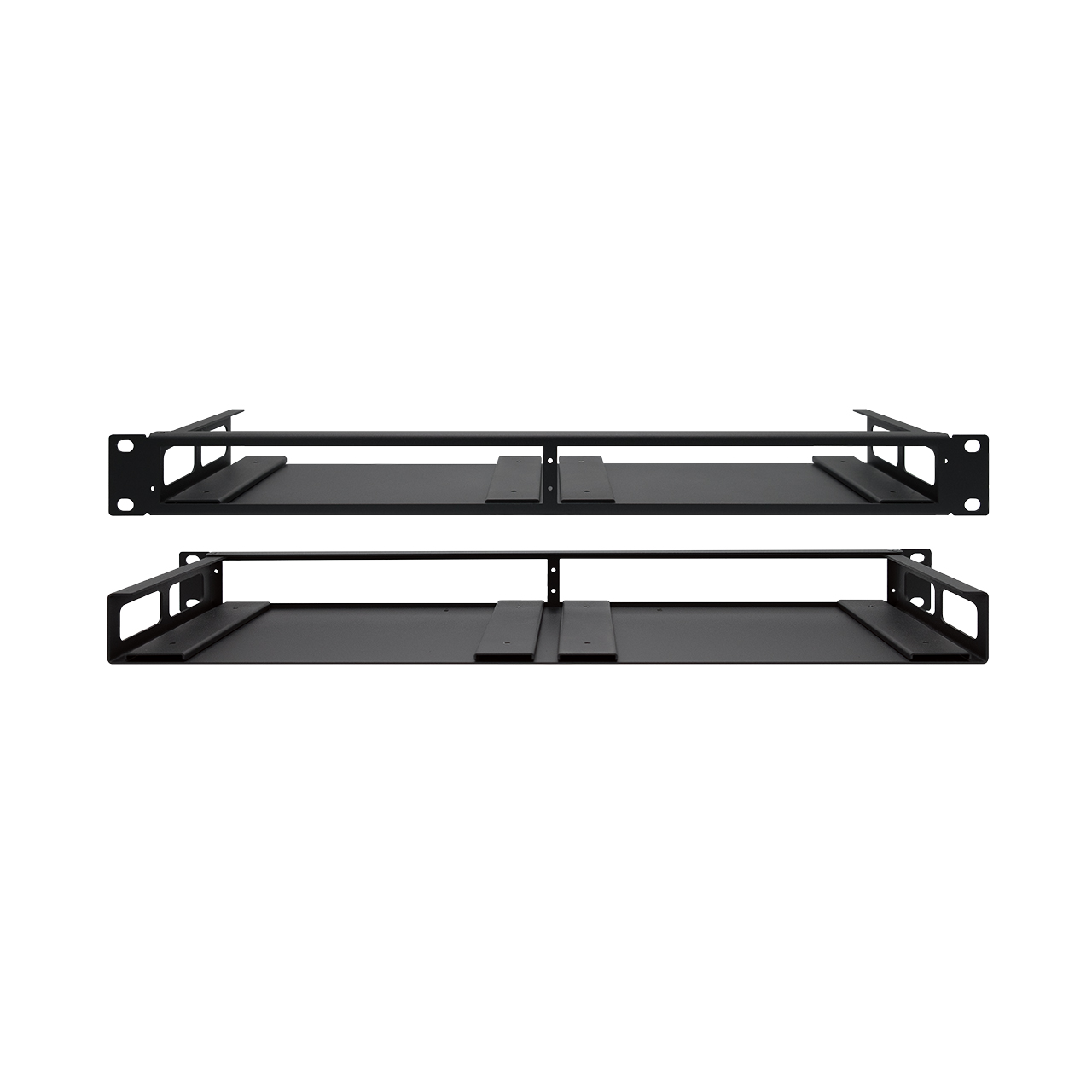

- 1x Mounting Brackets
Warranty:
- 3-Year Warranty
