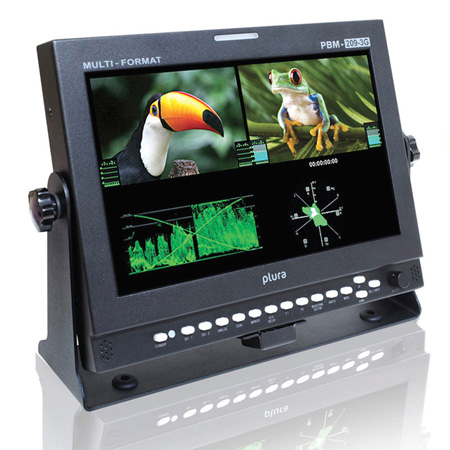

Plura PBM-209-3G 9 Inch 3G Broadcast Monitor (800x480) Class A-3Gb/s Ready

ITEM #: PLUR-PBM-209-3G MFG #: PBM-209-3G

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Plura Broadcast, Inc.
Free Shipping with $49 Minimum Order

List Price:

$2,310.00

Our Price:

$2,194.50

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

PBM-209-3G - Overview

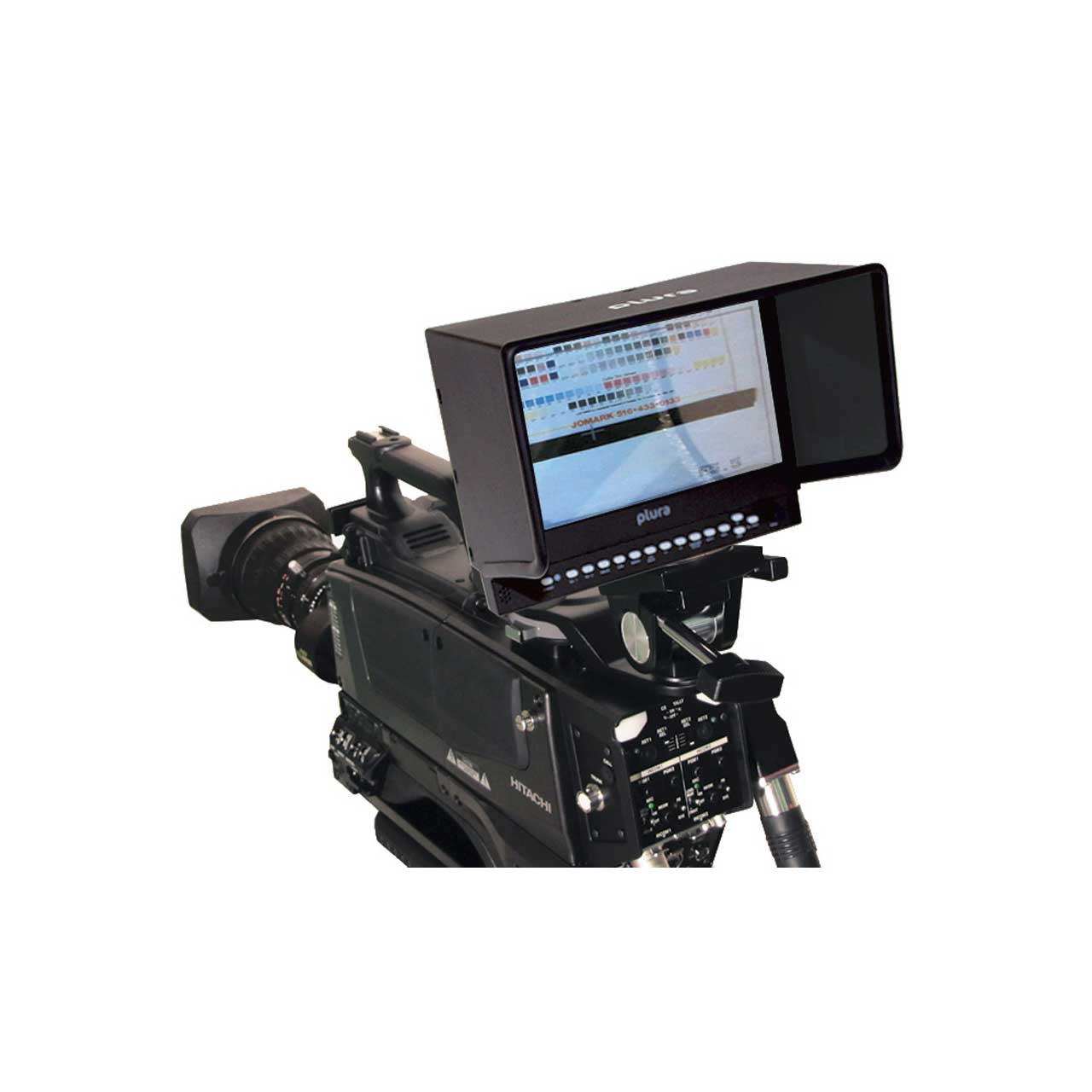

The Plura PBM-209-3G, 9" Portable monitor consists of high quality portable LCD panel, specifically designed for multiple video server inputs program & preview monitoring, camera output & return feed side by side and multiple camera preview wall monitoring. PBM-3G series designed for every possible broadcast mobile environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards.

The standard calibration feature enables gamma, color temperature and white luminance level adjustments to meet all Broadcast standards. The PBM-3G is compatible with Plura (ICAC) calibration tool and provides 10 bit look up table (LUT) (1024 steps of grayscale).

  • Features:

    • 3Gb/s ready - 1080/60P
    • 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
    • Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
    • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
    • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
    • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
    • Closed Caption (608/708) - North American Market
    • Teletext 801 & Subtitle OP-47 - Australia & NZ Market
    • Cutting edge De-interlacing and Scaling Technology
    • Fast Response Time for high motion video
    • RGB 10 Bit Digital Signal Processing
    • 178° Viewing Angle Display
    • Internal Monitor Display (IMD)
    • Underscan/ Overscan/ Normal / Zoom
    • Pixel to Pixel Mode, Tally, DC Operation
    • False Color and Peaking Filter / Focus Assist
    • Video Range Test with adjustable Y & C values
    • Display LTC & DVITC time code with line select
    • Internal Pattern Generator and Wall Control System
    • Built In Stereo Speaker , 16 CH Audio Metering Display
    • Analog & Embedded Audio Input, Digital Audio Decoding
    • Color Temperature - User, VAR, Adjustable (11000K TO 3200K)
    • Various and User defined Markers Display, Safe Area in HD & SD
    • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
    • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
    • Display Advanced Waveform & Vector Scope simultaneously with line select
    • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
    • OPTIONS: Battery Mount, Carry Case, Rack mount & Sunvisor

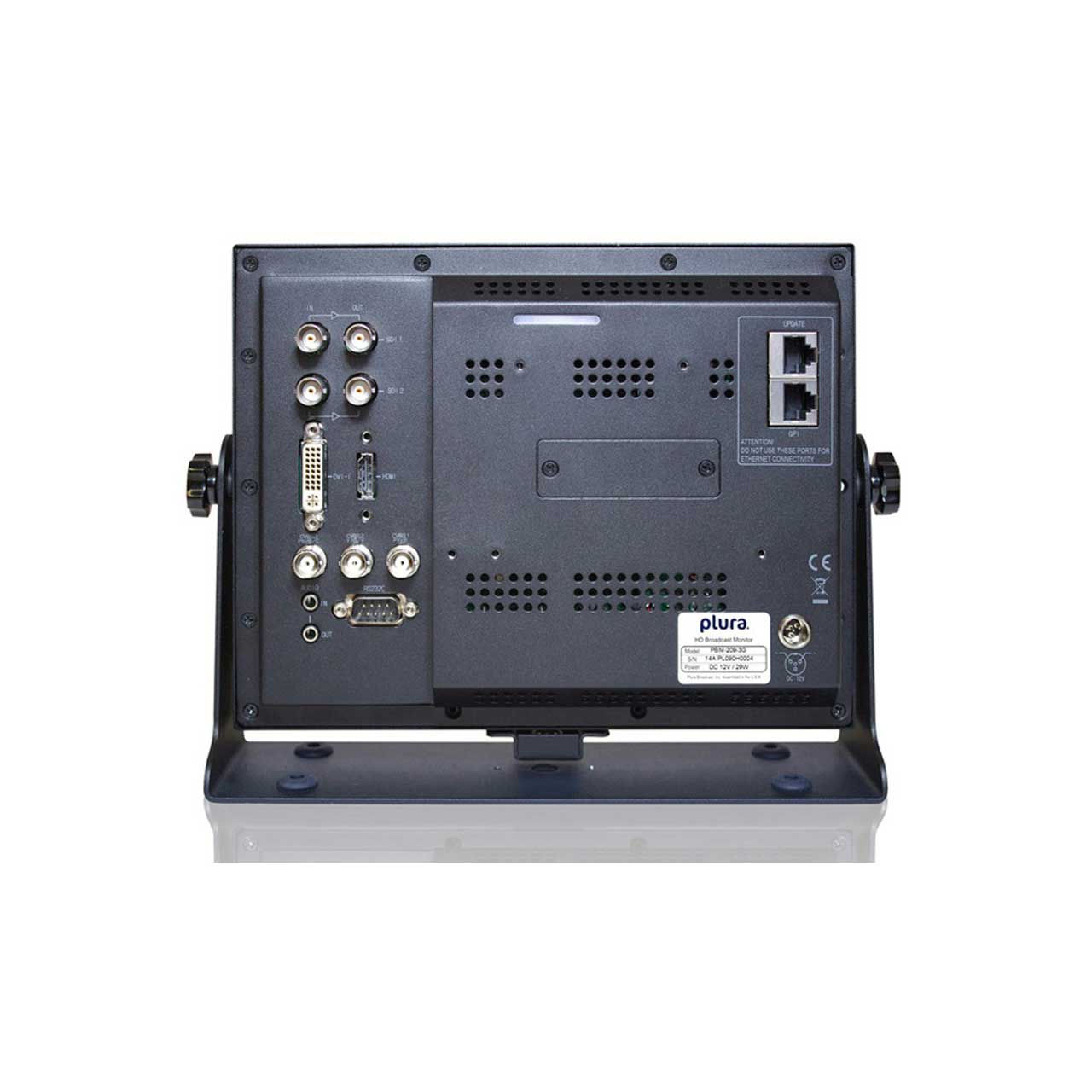

  • Specifications:

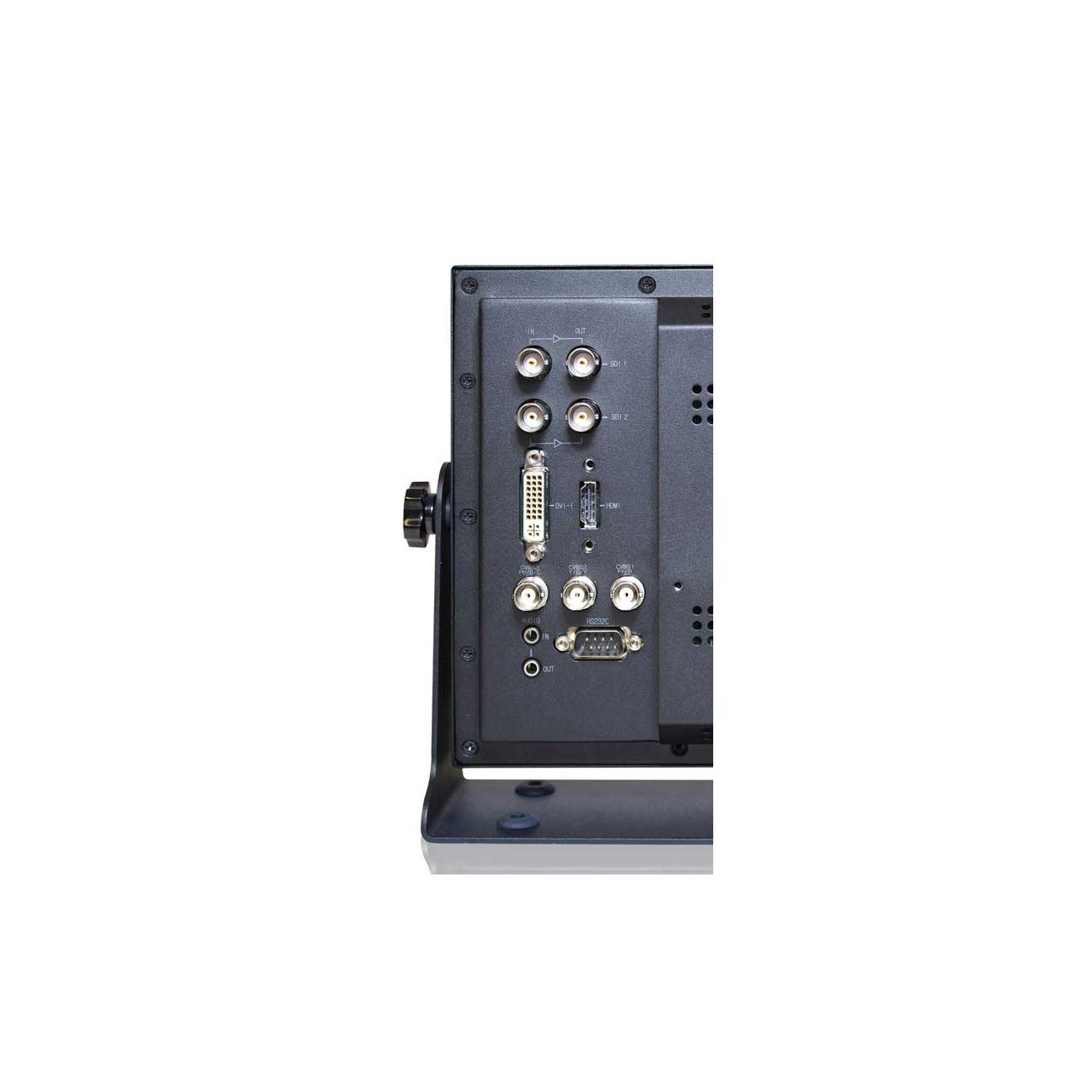

    • Input SD-SDI Input 2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack
    • Analog Input 3EA, Composite, Component(YPbPr/RGB), BNC Jack
    • S-VIDEO Input 1EA,YC(S-Video)
    • DVI/VGA Input 1EA, DVI-I, 24pin, Female
    • HDMI 1EA, HDMI, 19pin Female
    • Output SDI Output 2EA, BNC, Active Through Output
    • Analog loop Output NA
    • Analog Input Level Composite 1.0Vpp (With sync)
    • YC (S-Video) 1.0Vpp (Y With sync), 0.286Vpp (C)
    • Component 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
    • RGB 1.0Vpp (G With sync), 0.7Vpp (R/B)
    • DVI - (Analog PC) H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
    • Maximum Resolution : UXGA at 60Hz,
    • Maximum Pixel Rate : 162MHz - Separate Sync Support
    • Digital Input Format SMPTE-428.1M 2048x1080P(24/25)
    • SMPTE-425M(3G) 1920x1080P(50/60)
    • SMPTE-260M 1920x1035i(60/59.94)
    • SMPTE-274M 1920x1080i (50/59.94/60)
    • 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
    • SMPTE-372M Dual Link HD-SDI YPbPr(4:2:2) : 1080P(50/59.94/60)
    • Dual Link HD-SDI YpbPr/RGB(4:4:4)
    • 1080P(30/29.97/25/24/23.98)
    • 1080i(29.97/25/24/23.98)
    • 720P(60/59.94/50)
    • SMPTE-296M 1280x720P (50/59.94/60)
    • SMPTE-125M 480i(59.94)
    • ITU-R BT.601 576i(50)
    • Component 640 X 480 up to 1920 X 1080p
    • HDMI
    • DVI-I Digital H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
    • Maximum Resolution : UXGA at 60Hz ,
    • Maximum Pixel Rate : 162MHz
    • Audio Input Input Line Analog Stereo (RCA Jack)
    • SDI Audio Input Embedded HD/SD-SDI Audio
    • Audio Output Speaker Output Internal Speaker (Stereo) 2W+2W
    • Output Line 1EA, L/R, Stereo pin jack
    • Ear-phone Output 1EA, L/R Stereo, 3.5mm pin jack
    • Output Signal Input Line & De-embedded Audio, 1~ 16CH
    • I/O Port GPI RJ-45 pin (Programmable General Purpose Input)
    • RS422/485 RJ-45 8 pin for upgrade
    • Upgrade Port D-sub 9 pin female for upgrade
    • RS232 D-sub 9 pin female I/P for wall control
    • LCD Size LCD 9" - IPS
    • Aspect Ratio 15 : 9
    • Resolutions 800 x 480
    • Display Area 196.8 x 118.08 (mm)
    • Display Color 16.7 M colors
    • Brightness Max 600 cd/m2
    • Contrast Ratio 600 : 1 (Typical)
    • Response Time Tr=7.5ms / Tf=7.5ms
    • Viewing Angle Horizontal: 178(Typ.), Vertical 178(Typ.)
