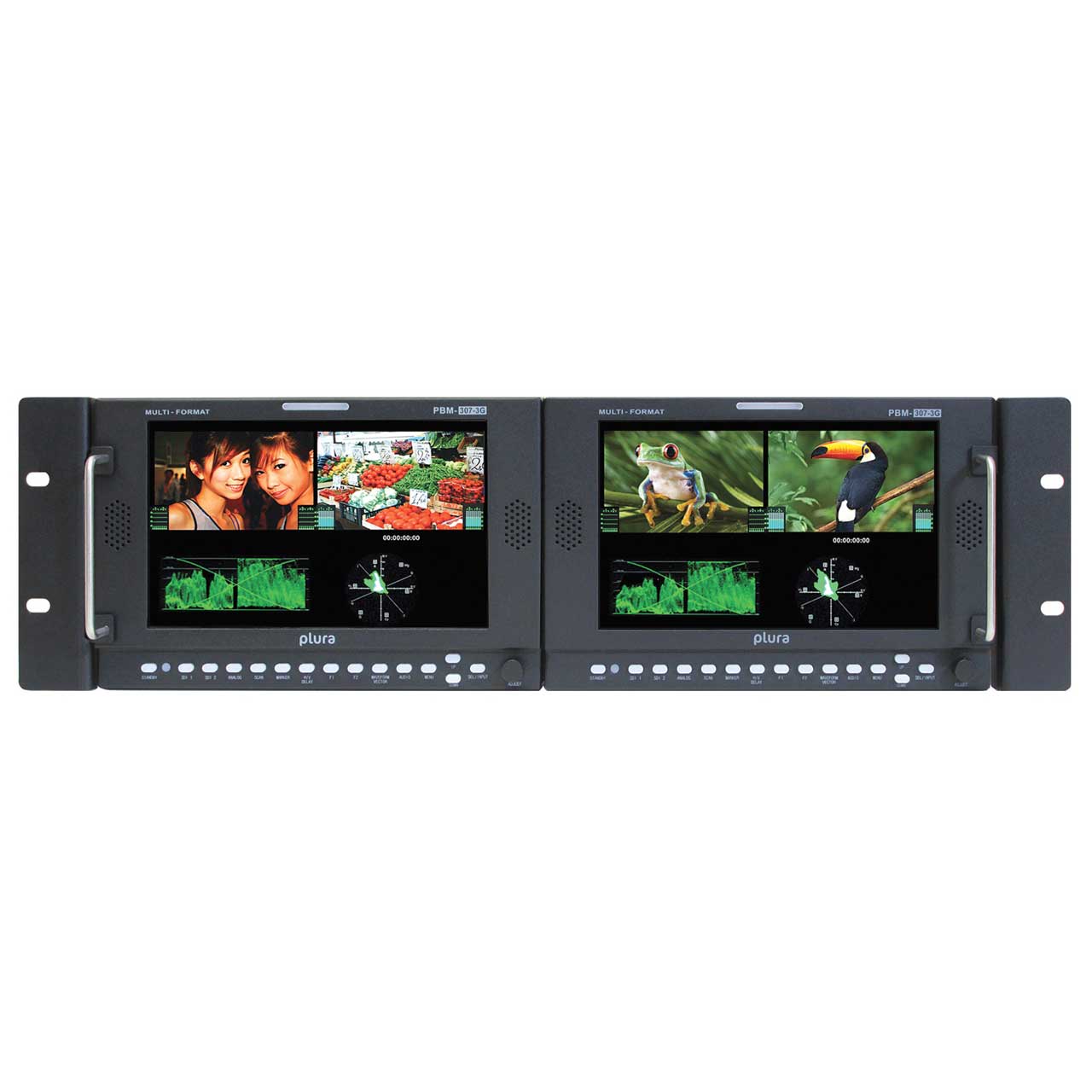

Plura PBM-307DRK-3G Dual 7-Inch 3G Quadruple Input Rackmount Video Monitor

PBM-307DRK-3G - Overview

• Features:

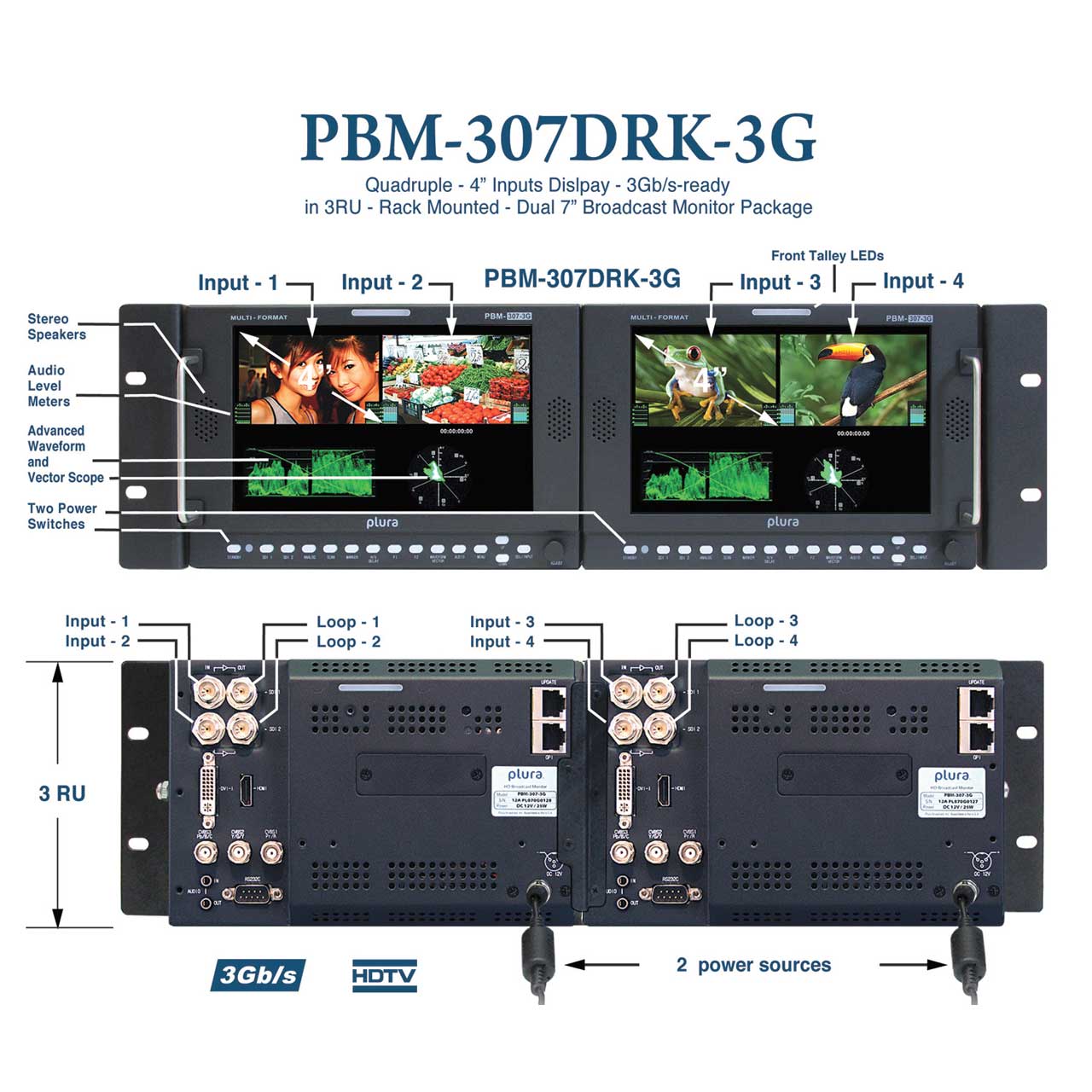

  • 4 x Inputs with 4 x active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
  • 4 images with 2 waveform/vector display & 16 CH audio metering for each input
  • Display 2, 3 or 4 images
  • 4 x speakers
  • Waveform & Vector display & Line select
  • VPID Display (Video Payload Identification)
  • 2 sepearte power sources i.e redundancy if one unit is down you still have other videos running
  • Other inputs include:
  • 2 x (RGB/YUV), 2 x Y/C, 6 x Composite, 2 x (UXGA, DVI(DHCP)) & 2 x HDMI(DHCP)
  • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
  • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
  • Closed Caption (608/708) - North American Market
  • Teletext 801 & Subtitle OP-47 - Australia & NZ Market
  • Cutting edge De-interlacing and Scaling Technology
  • Fast Response Time for high motion video
  • RGB 10 Bit Digital Signal Processing
  • 178° Viewing Angle Display
  • Internal Monitor Display (IMD)
  • Underscan/ Overscan/ Normal / Zoom
  • Pixel to Pixel Mode, Tally, DC Operation
  • False Color and Peaking Filter / Focus Assist
  • Video Range Test with adjustable Y & C values
  • Display LTC & DVITC time code with line select
  • Internal Pattern Generator and Wall Control System
  • Analog & Embedded Audio Input, Digital Audio Decoding
  • Color Temperature - User, VAR, Adjustable (11000K TO 3200K)
  • Various and User defined Markers Display, Safe Area in HD & SD
  • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
  • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
  • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control


• Specifications:

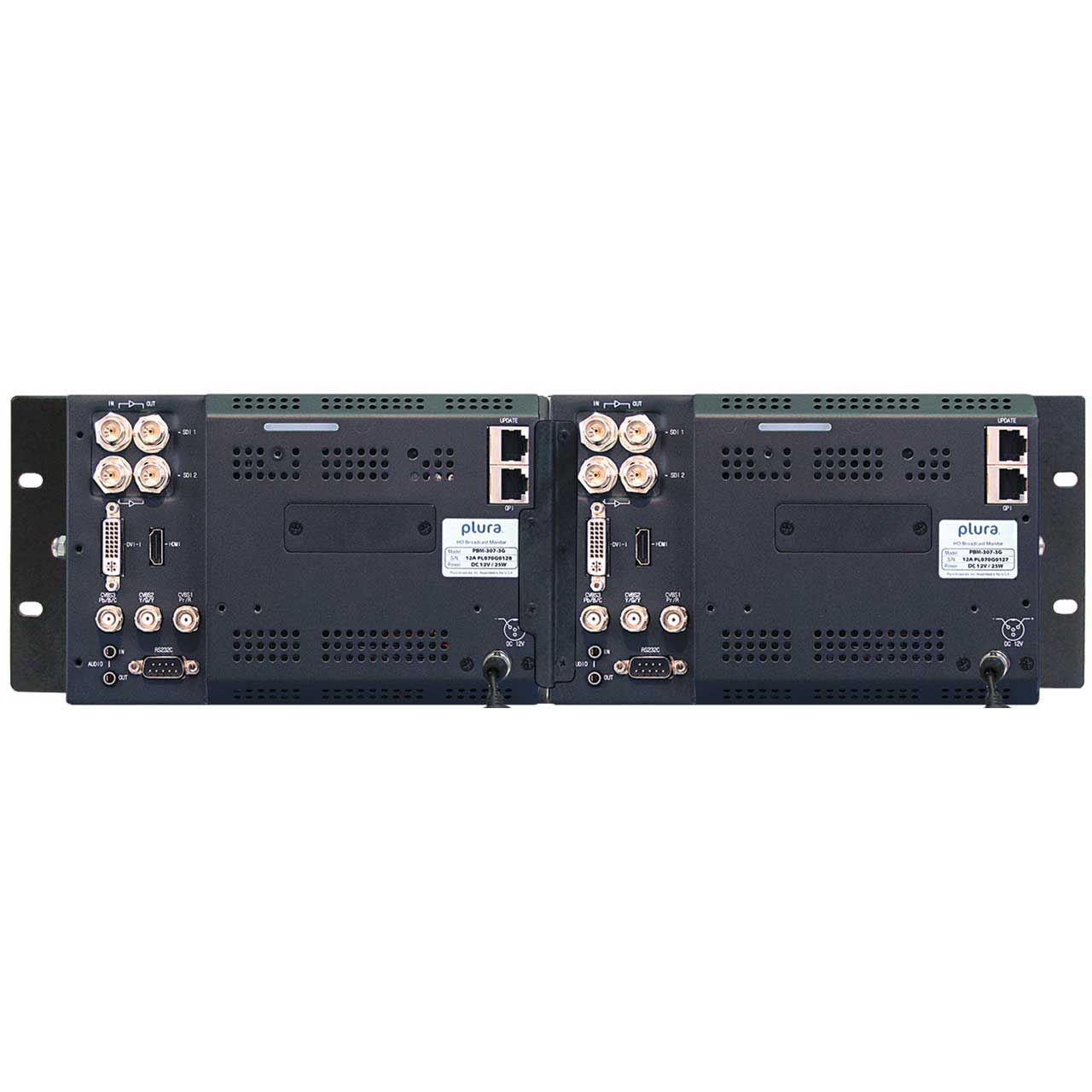

  • SD-SDI Input: 4EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack
  • Analog Input: 6EA, Composite, Component(YPbPr/RGB), BNC Jack
  • S-VIDEO Input: 2EA,YC(S-Video)
  • DVI/VGA Input: 2EA, DVI-I, 24pin, Female
  • HDMI: 2EA, HDMI, 19pin Female
  • SDI Output: 2EA, BNC, Active Through Output
  • Analog loop Output: NA
  • Analog Input Level: Composite: 1.0Vpp (With sync)
  • Analog Input Level: YC (S-Video): 1.0Vpp (Y With sync), 0.286Vpp (C)
  • Analog Input Level: Component: 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
  • Analog Input Level: RGB: 1.0Vpp (G With sync), 0.7Vpp (R/B)
  • Analog Input Level: DVI - (Analog PC): H Frequency Range: 22~82KHz, V Frequency Range: 55~90Hz, Maximum Resolution: UXGA at 60Hz, Maximum Pixel Rate: 162MHz - Separate Sync Support
  • Digital Input Format: SMPTE-428.1M: 2048x1080P(24/25)
  • Digital Input Format: SMPTE-425M(3G): 1920x1080P(50/60)
  • Digital Input Format: SMPTE-260M: 1920x1035i(60/59.94)
  • Digital Input Format: SMPTE-274M: 1920x1080i (50/59.94/60), 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
  • Digital Input Format: SMPTE-372M: Dual Link HD-SDI YPbPr(4:2:2): 1080P(50/59.94/60), Dual Link HD-SDI YpbPr/RGB(4:4:4), 1080P(30/29.97/25/24/23.98), 1080i(29.97/25/24/23.98), 720P(60/59.94/50)
  • Digital Input Format: SMPTE-296M: 1280x720P (50/59.94/60)
  • Digital Input Format: SMPTE-125M: 480i(59.94)
  • Digital Input Format: ITU-R BT.601: 576i(50)
  • Digital Input Format: Component: 640 X 480 up to 1920 X 1080p
  • Digital Input Format: HDMI/ DVI-I Digital: H Frequency Range: 22~82KHz, V Frequency Range: 55~90Hz, Maximum Resolution: UXGA at 60Hz , Maximum Pixel Rate: 162MHz
  • Audio Input: Input Line: Analog Stereo (RCA Jack)
  • SDI Audio Input: Embedded HD/SD-SDI Audio
  • Audio Output: Speaker Output: 2 x Internal Speaker (Stereo) 2W+2W
  • Audio Output Line: 2EA, L/R, Stereo pin jack
  • Audio Output: Ear-phone Output: 2EA, L/R Stereo, 3.5mm pin jack
  • Audio Output: Output Signal: Input Line & De-embedded Audio, 1~ 16CH
  • I/O Port: GPI: RJ-45 pin (Programmable General Purpose Input)
  • I/O Port: RS422/485: RJ-45 8 pin for upgrade
  • I/O Port: Upgrade Port: D-sub 9 pin female for upgrade
  • I/O Port: RS232: D-sub 9 pin female I/P for wall control
  • LCD: Size: Dual 7"
  • LCD: Aspect Ratio: 16: 9
  • LCD: Resolutions: 2 x (1024 x 600)
  • LCD: Display Area: 2 x (153.6 x 91) (mm)
  • LCD: Display Color: 16.7 M colors
  • LCD: Brightness: Max 400 cd/m2
  • LCD: Contrast Ratio: 900: 1 (Typical)
  • LCD: Response Time: Tr=7.5ms / Tf=7.5ms
  • LCD: Viewing Angle: Horizontal: 178(Typ.), Vertical 178(Typ.)
  • Power Requirement: DC 12V/ 5A
  • Power Consumption: 0.5-1A (12W)
  • Working Temperature: -30 Degrees C ~ 40 Degrees C (-22F ~ 104 Degrees F)
  • Working Humidity: 10%RH ~ 85%RH (Non Condensed)
  • Storage Temperature: -30 Degrees C ~ 60 Degrees C (-22 Degrees F ~ 140 Degrees F)
  • Storage Humidity: 10%RH ~ 85%RH (Non Condensed)
  • Weight (w/o Stand & Packaging): 3.175 Kg - 7.0 Lbs
  • Dimension (W*H*D) w/o Box & Stand: 482.6 x 146.05 x 52.07 mm / 19 x 5.75 x 2.05 Inch
  • Packing Dimension (WxHxD): 551.18 x 436.88 x 220.98 mm / 21.7 x 17.2 x 8.7 Inch
  • Accessory: 2 x (Power Adapters & Power Cords)
  • Option: Battery Mount
