Plura TC60 LTC /VITC Reader Box for Real Time Synchronisation of a PC RS232 RS422 & USB Interface

ITEM #: PLUR-TC60 MFG #: TC60

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Plura Broadcast, Inc.
Free Shipping with $49 Minimum Order

List Price:

$2,749.00

Our Price:

$2,474.10

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

TC60 - Overview

The Plura TC60 combines the features of the former TC60RLV and TC60CLS in a single device.

The TC60 is equipped with built-in LTC and VITC readers, enabling the conversion of Time Code into serial data protocols. That way, the Time Code information can accurately be transferred to a PC.

When reading LTC and VITC, time, user and statusbits are simultaneusly being processed. The frame rate (24, 25, 30, 30DF) gets automatically identified and selected.

The interface can be either serial RS232, serial RS422 or USB. Baud rates are selectable from 4800 to 38400 baud.

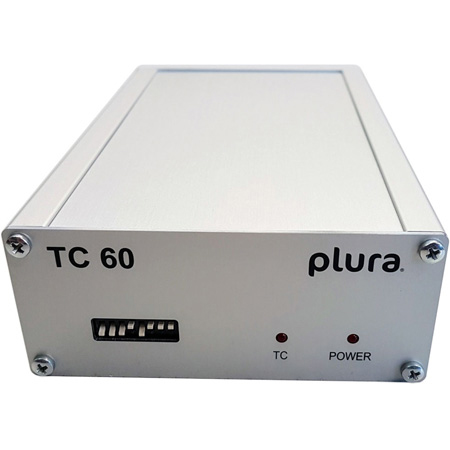

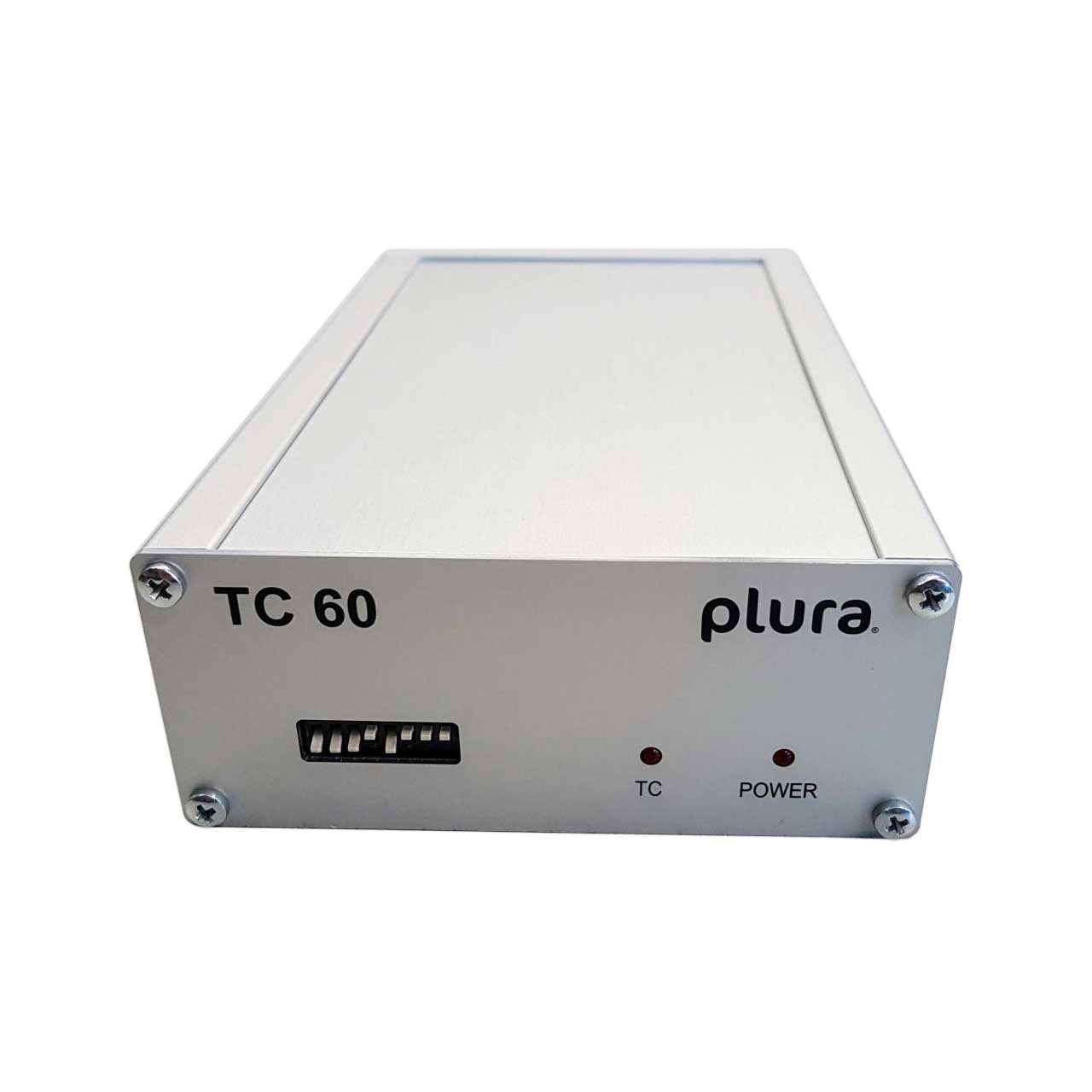

Different protocols are selectable by DIP switches:
1. time telegram "VCS"
2. "Meinberg" standard protocol
3. DCF77 telegram

Please note: The TC60 is powered via USB or by an optional external 24VDC Power Supply the PLUR-EPSX (XLR female).

  • Features:

    • The TC 60 CLS Series is equipped with built-in LTC readers, enabling the conversion of Time Code into serial data protocols.
    • The Time Code information can accurately be transferred to a PC.
    • When reading LTC; time, user and statusbits are simultaneusly being processed.
    • The frame rate (24, 25, 30, 30DF) is automatically identified and selected.


  • Specifications:

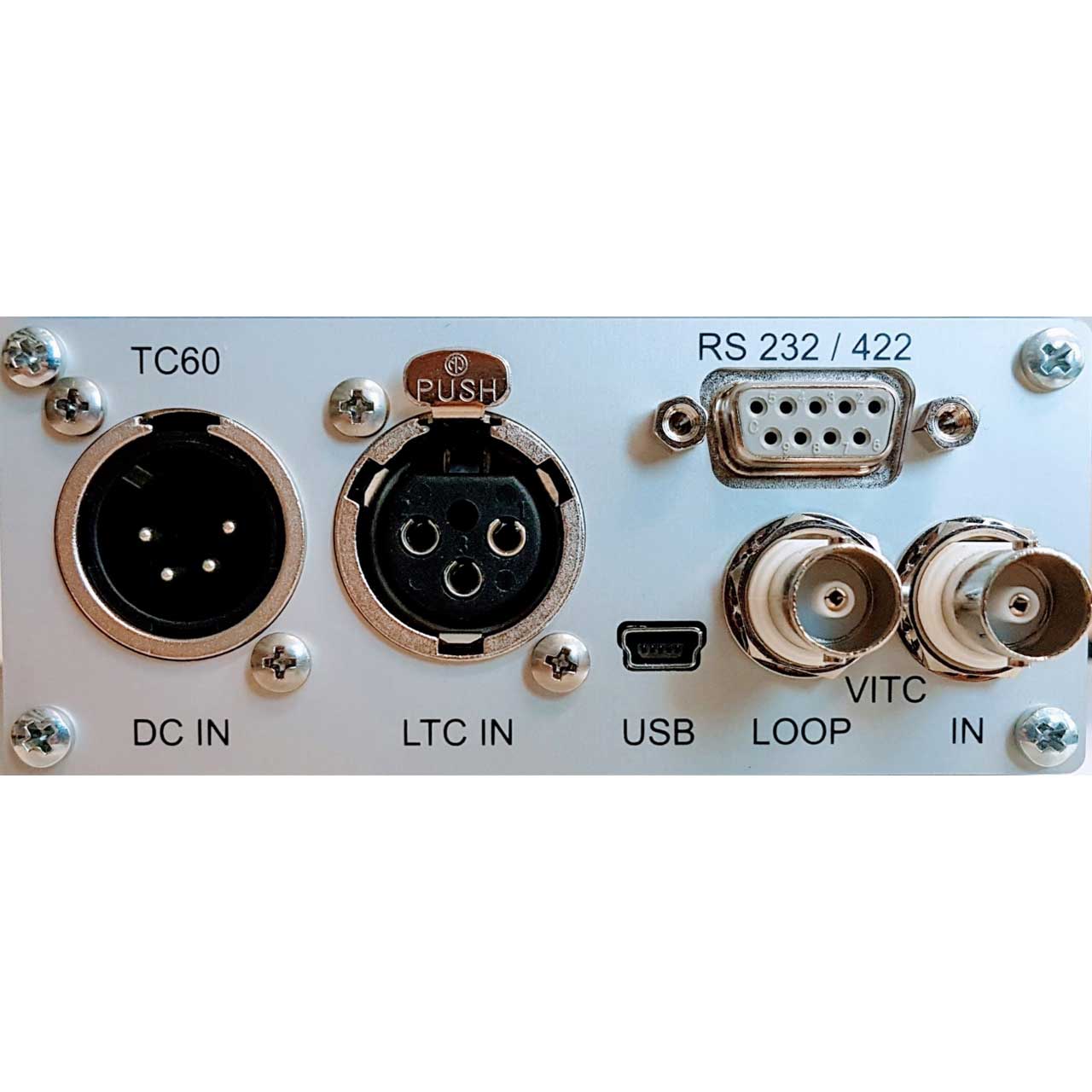

    • Interface: RS232, RS422, USB
    • Reader: LTC, VITC
    • Baudrate: 4.800 to 38.400 baud
    • Reading Range VITC: Whole blanking interval, still picture to 5 times play speed
    • Reading Range LTC: 0 - 62 fps
    • LTC Connector: XLR female
    • LTC Input Impedance: 47 kΩ
    • DC In: Mini USB: 5 V DC, XLR 4-pin: 9 - 30 V DC
    • Current: 100 mA
    • Operating Temperature: 5°C - 40°C
    • Relative Humidity of Air: 33% - 85%
    • LTC Input Level: 50 mVpp - 5 Vpp
    • Dimensions: 104 x 43,5 x 160 mm, 4.0 x 1.7 x 6.3 inches
    • Weight: 0.49 kg
