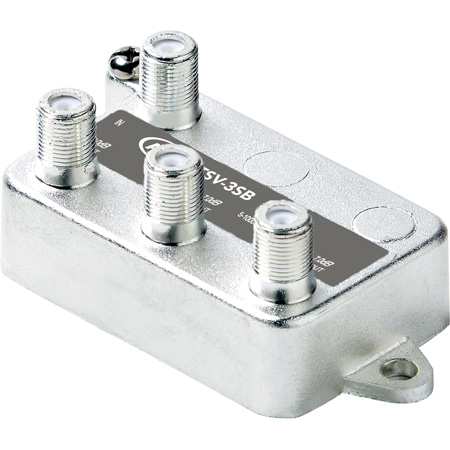

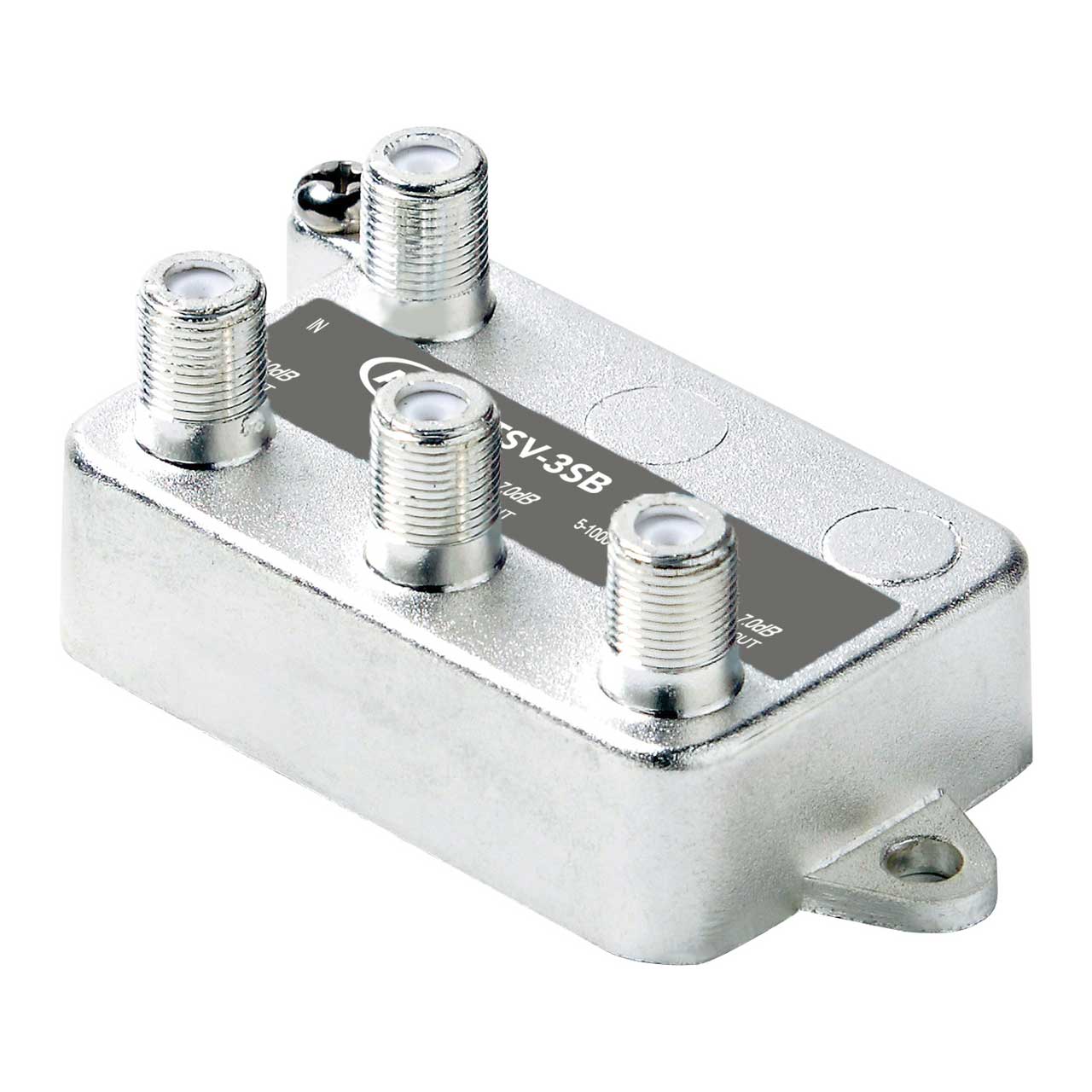

ATX Networks TSV-3SB 3-Port Vertical Port Splitter Soldered Back

TSV-3SB - Overview

• Features:

  • Broadband 5~1000MHz frequency range
  • Vertical port design allows close mounting in lock boxes for easy access of cable connections
  • 1-inch centered 1/2 Inch long precision machined F-connector threads ensure improved port-to-connector interface and accommodate external security devices
  • TSV-SB series feature a solder-sealed back cover plate, providing maximum EMI-RFI shielding >-130dB and eliminating signal ingress to guarantee distortion-free pictures
  • Silver-coated zinc-alloy diecast housing ensures excellent ground bonding and long corrosion-free service life in indoor/outdoor applications
  • Capacitor coupling circuitry at all ports provides effective DC voltage blocking
  • Hig-retention seizing pins provide improved connectivity to connector center lead
