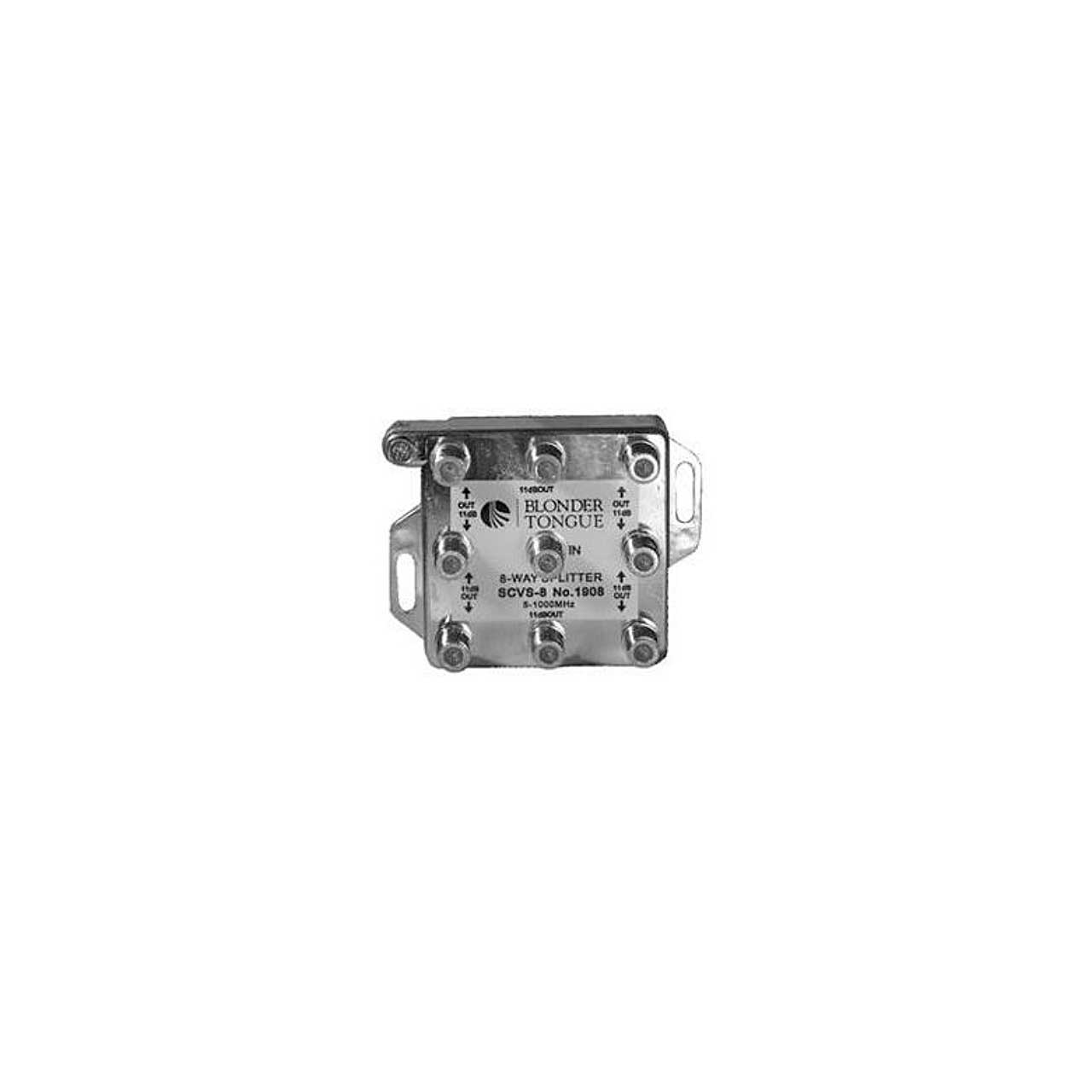

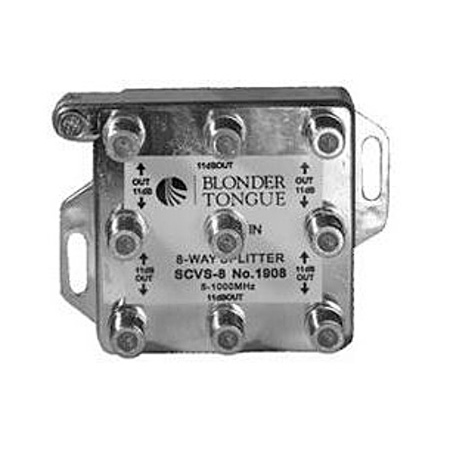

Blonder Tongue 8-Way Splitter

SCVS-8 - Overview

• Features:

  • Superior Performance to 1000 MHz
  • 2,3,4, 6 (SCVS Only) and 8 Way Models
  • Die Cast Housing
  • RFI Shielding 120 dB
  • Built- in Ground Block


• Specifications:

  • Number of Outputs: 8
  • Frequency Range (MHz): 5-1000
  • Splitter Loss (dB) (max)
  • 5-500 MHz10.5
  • 500-860 MHz11.5
  • 860-1000MHz12
  • Input Return Loss (dB) (min)
  • 5-40 MHz:16
  • 40-500 MHz: 20
  • 500-860 MHz: 20
  • 860-1000 MHz:16
  • Isolation Between Outputs (dB) (min)
  • 5-40 MHz: 22
  • 40-500 MHz: 25
  • 500-860 MHz: 25
  • 860-1000 MHz: 21
