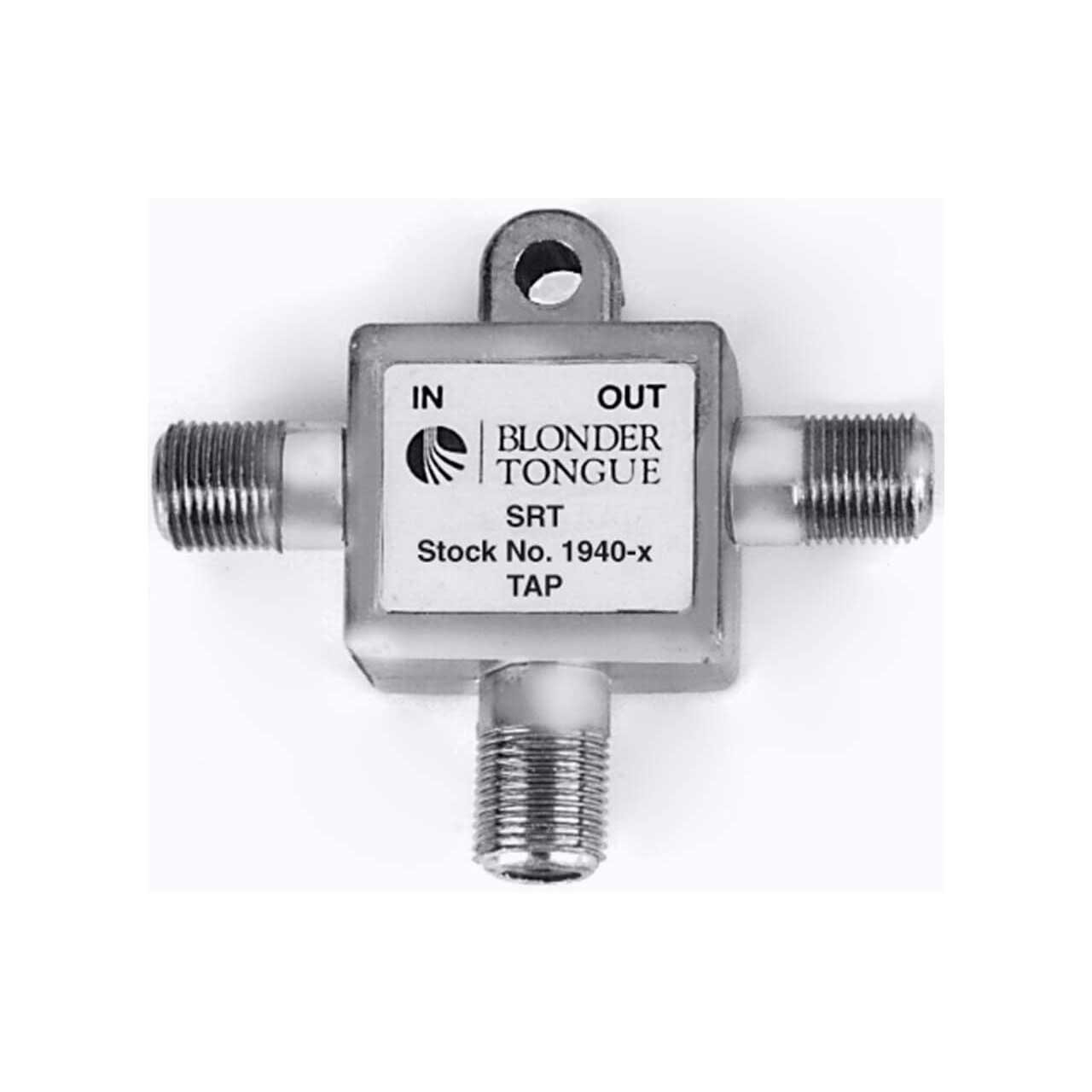

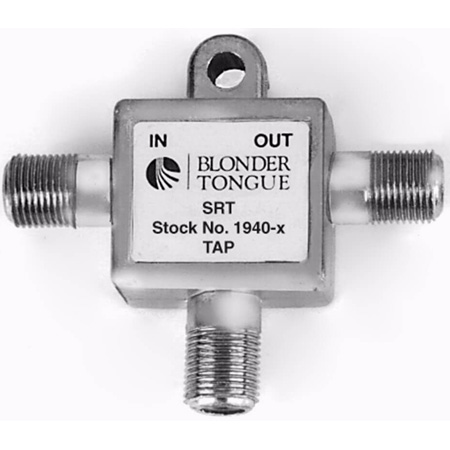

Blonder Tongue SRT Directional Tap - 1 Output 5-1000MHz - T Style - 4dB

ITEM #: BT-SRT-4 MFG #: 1940 DB4

Primary Image
Blonder Tongue
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$3.00

Quantity Pricing

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1940 DB4 - Overview

The SRT-4 is a one-way directional tap with a range of 5-1000 MHz. It is formatted in a T Style.

  • Features:

    • 1 GHz Bandwidth
    • 1 Port Directional Couplers - "L" Style (SCW), "T" Style (SRT)
    • 120 dB RFI Shielding
    • Die Cast Housing


  • Specifications:

    • SRT/SCW Tap Value (dB)
    • Thru-line Loss (dB)
    • 5-900MHz: 4.0
    • 900-1000MHz: 4.5

      Input Return Loss (dB)
    • 5-400MHz: 15
    • 400-900MHz: 12

      Tap Down Loss (±1.0dB): 4

      Isolation Out-to-Tap (dB)
    • 5-400MHz: 20
    • 400-1000MHz: 18


  • Item Includes:

    • 1x Blonder Tongue SRT Directional Tap - 1 Output 5-1000MHz - T Style - 4dB
