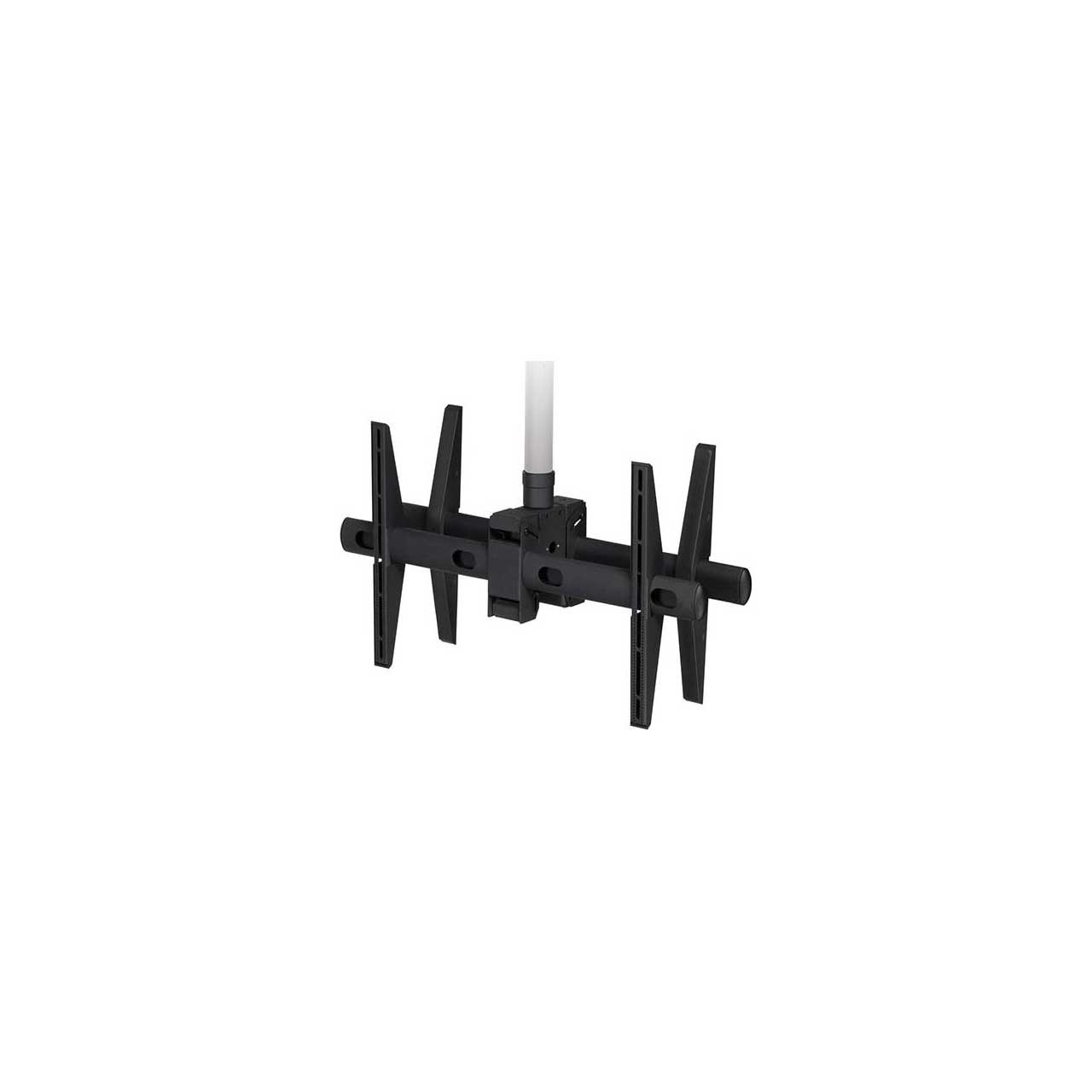

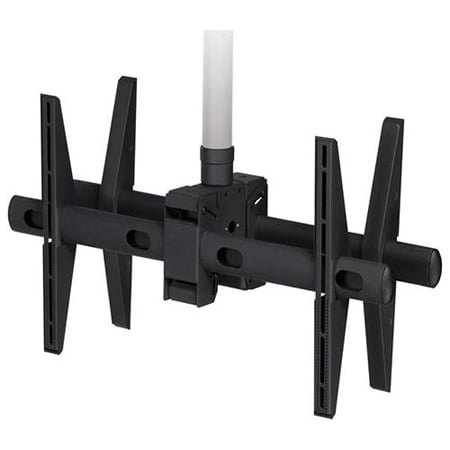

The Premier Mounts ECM-3763D is a back-to-back ceiling mount made to hold dual flat panel displays that each weigh up to 175lb. This combines for a total weight capacity of 350lbs. Using a 2" NPT pipe (not included) or a height-adjustable pipe adapter the ECM-3763D can sit at a variety of lengths depending on the application.
Overhead displays should have a clean and organized look, that's why we engineered the ECM-3763D to have integrated cable management channels so avoid loose wires and power cords. In addition, the center support features mounting points to receive J-Box for power or A/V (not included).
The speed of installation is important, especially when working from a ladder or scissor lift, that's why the ECM-3763D does not have adapters and is ready to mount straight out of the box. In addition, some applications will require mini PC or digital media players to run content, so we have optional brackets to support these as well.
A ceiling plate and a 2" extension pipe are required and must be ordered separately.
This configuration requires the ECM-S and ECM-S2 assemblies
Brackets available for media players
