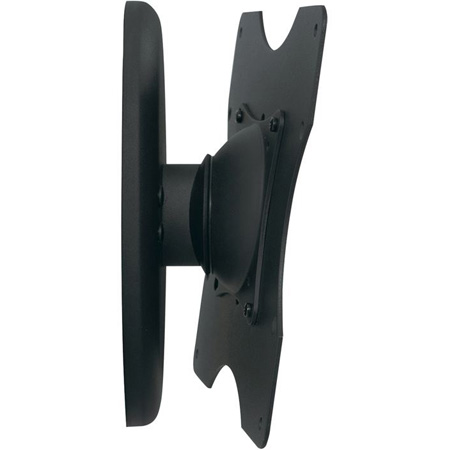

Premier Mounts PTM-B Single Stud Tilt & Pivot Flate Panel Mount - Up to 50 lbs - Black

ITEM #: PMTS-PTM-B MFG #: PTM-B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Premier Mounts
Free Shipping with $49 Minimum Order

List Price:

$108.00

Our Price:

$75.60

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.
  • This item is not returnable. See Terms & Conditions for details.
Report Lower PriceLarge Quantity Quote

PTM-B - Overview

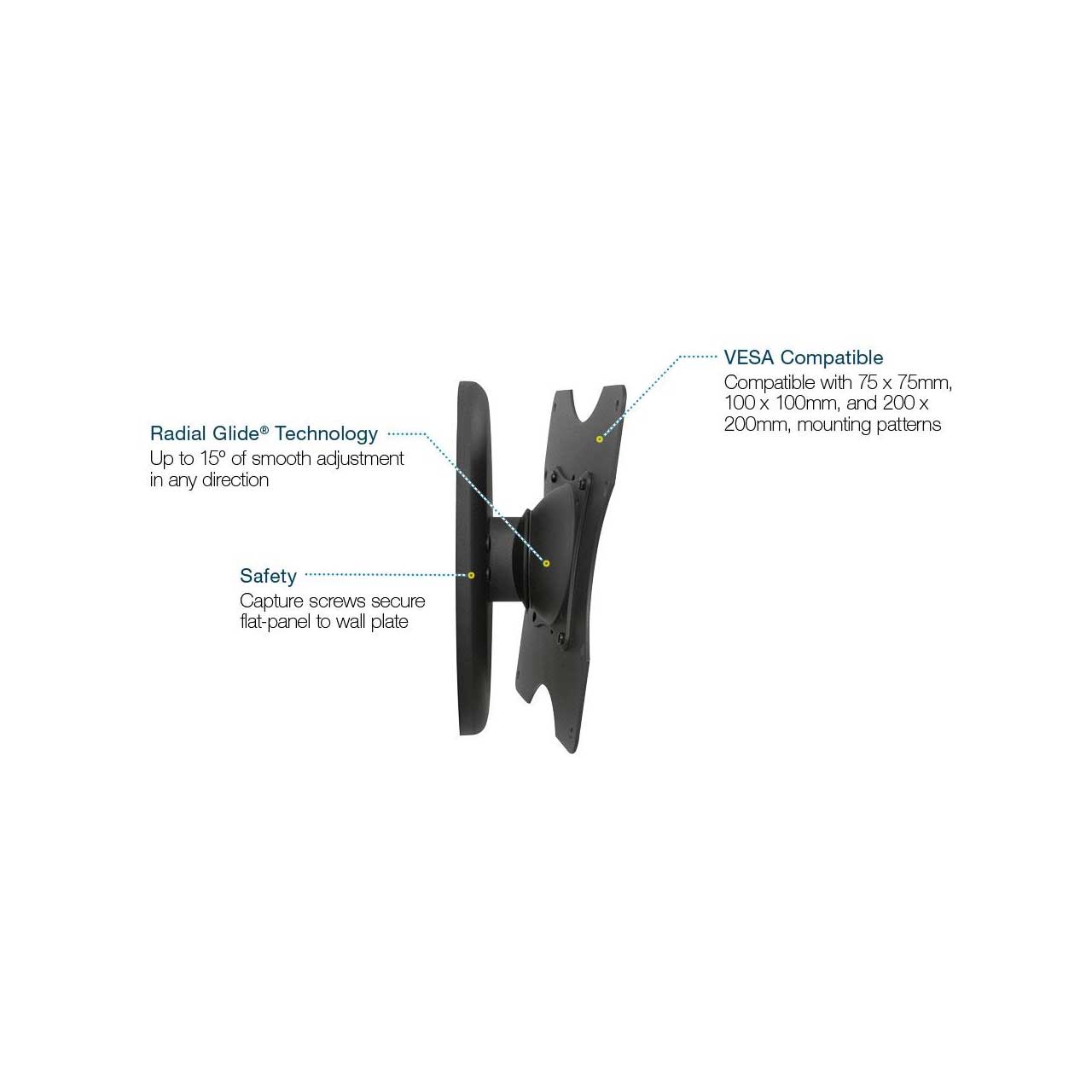

The PTM-B Single Stud Tilt and Pivot Mount holds flat panel displays up to 50 lb. The wall mount offers 15° of smooth adjustment with Radial GlideT and comes with cable routing holes to route cables directly into the wall for a clean appearance. OSHPD approved and UL listed, it is also available in silver (PTM).

  • Specifications:

    • Shipping Weight: 6.4 lb. | 2.90 kg
    • Weight Capacity per Mount: 50 lb. | 22.68 kg
    • Number of Mounts: 1
    • Total Weight Capacity: 50 lb. | 22.68 kg
    • Width: 8.88 in. | 225.55 mm
    • Height: 9.5 in. | 241.30 mm
    • Depth: 2.84 in. | 72.14 mm
    • Mounting Pattern Type: Fixed
    • Mounting Pattern: 75 x 75 (Min) , 100 x 100 , 200 x 100 , 200 x 200 (Max) mm
    • Typical Display Sizes: 10.00 in. & up
    • Tilt: +15.00° / -15.00°
    • Rotation: 360°
    • Pitch: +15.00°/ -15.00°
    • Shipping Box DIM Sizes: 9.3 in. (wide) x 2.8 in. (high) x 10 in. (deep) | 236.22 mm x 71.12 mm x 254 mm
    • UPC: 829973101114


  • GTIN:

    0829973101114
