The Postium OBM-U248K incorporates 4 x 12G SDI input and Loopout(x4), HDMI 2.0 input. The OBM-U248K accepts up to 7680x4320 / 60 / 59.94. / 50p signals. The OBM-U248K provides the function to display the HDR(High Dynamic Range) footage, and supports a wide color gamut conforming to DCI-P3. The OBM-U248K offers the professional performance, including excellent quality black performance, accurate color reproduction, which make these monitors ideal for 8K/4K live production, versatile monitoring and field production applications. In addition, the OBM-U248K supports the integrated 3D LUT, Waveform, Vector Scope and full feature set. Advanced 3D LUT Tetrahedral Interpolation algorithm has been applied to the OBM-248K. The accuracy of the color reproduction is better than 33x33x33 grid 3D LUT with cubic interpolation.
Display Functions
Wide Color Space Support including DCI-P3 and ITU-R BT.2020 is controlled with an advanced 3D LUT (Look Up Table) to reproduce various color spaces accurately with smooth, artifact-free grayscale steps. Available color gamuts are DCI-P3, ITU-R BT.2020, ITU-R BT.709, SMPTE-C, EBU, and Native.
Versatile 4K/QFHD Input Capability

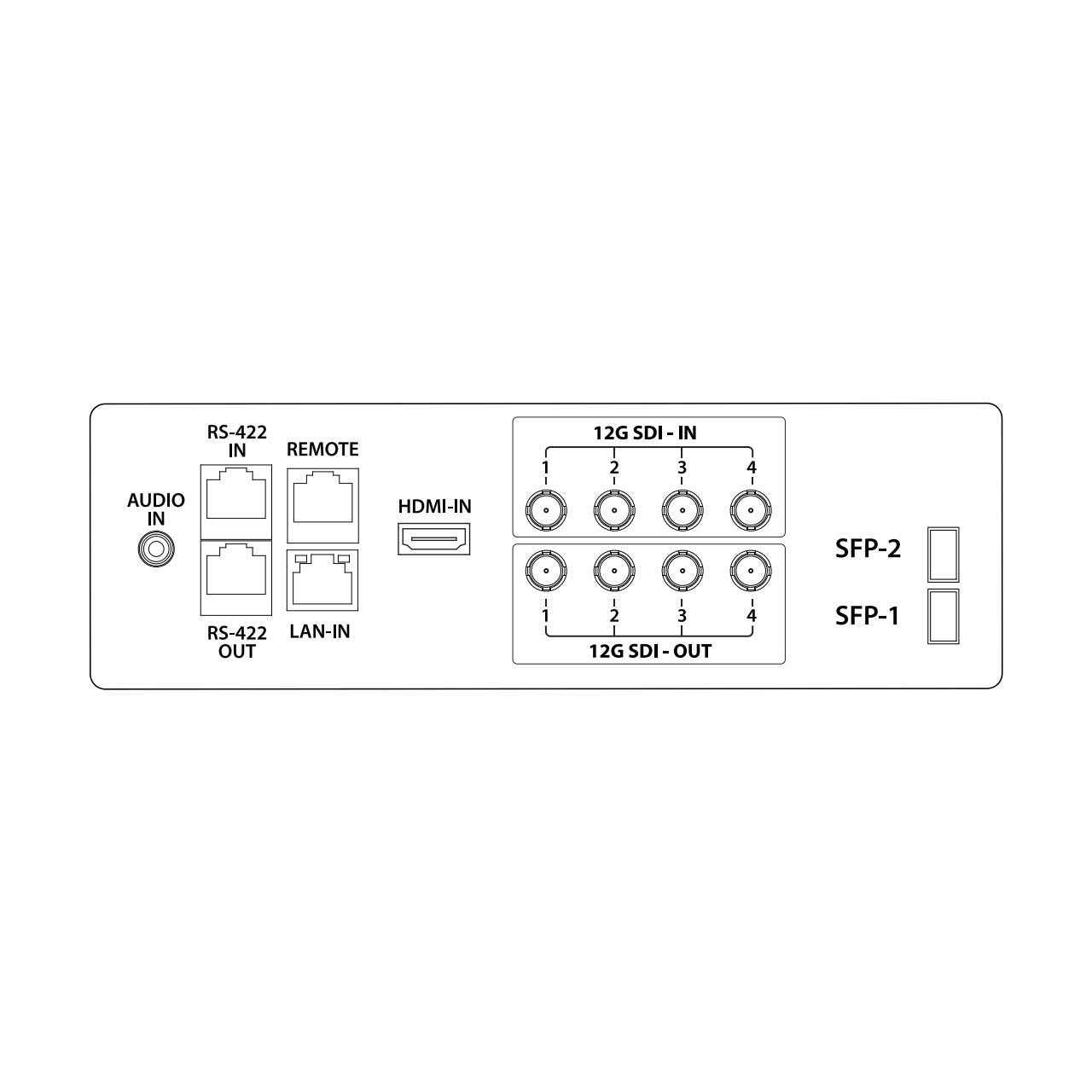

The OBM-U 8K/4K series is equipped with standard 12G-SDI input interface(x4) and support 4K/8K Quad Link 2-sample inter-leave signals and 4K Quad Link Square Division signals.
The OBM-U 8K/4K Series can accept up to 7680x4320/23.98,24,25,29.97,30,50,59.94,60p and 8192x4320/23.98, 24, 25, 29.97, 30, 50, 59.94, 60p.

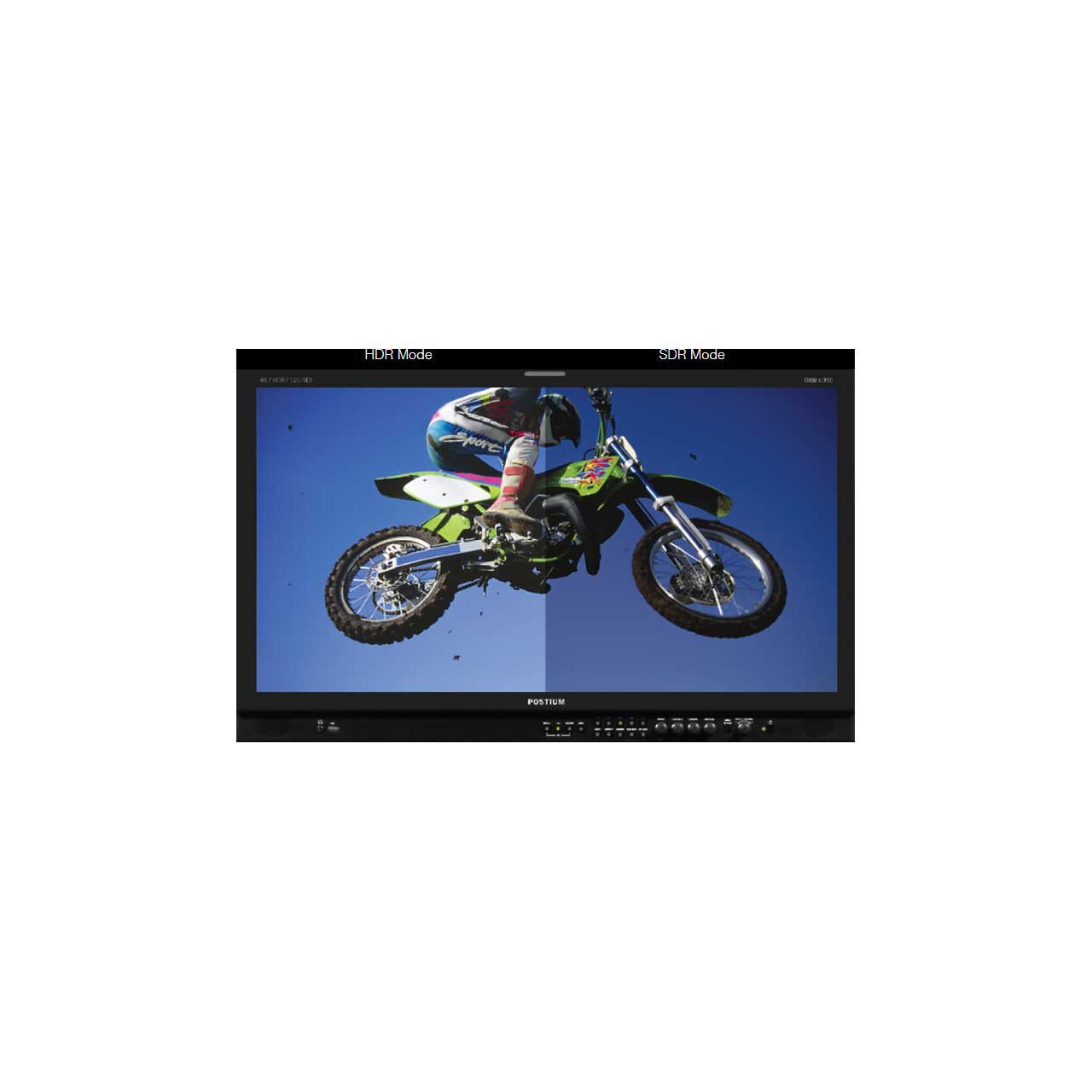

High Dynamic Range(HDR) Display Function
The OBM U 8K/4K series provides the function to display the High Dynamic Range footage.
Postium HDR function allows users to view both highlights and shadow detail of scenes at the same time, thus resulting in more natural and realistic images.
The OBM U 8K/4K series supports PQ EOTF (SMPTE ST 2084), Hybrid Log Gamma and S-Log3.
