PreSonus StudioLive Series III Concert Pack - Includes 32 Channel Series III Mixer/NSB 16.8 Stagebox/EarMix 16/SW5E

STUDIOLIVE III CONCERT PACK - Overview

• Specifications:

  • Microphone Preamplifier
  • Input Type: XLR Female, balanced
  • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  • Input Impedance: 1 kΩ
  • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
  • Gain Control Range (±1 dB): 0 dB to +60 dB
  • Maximum Input Level (unity gain): +12 dBu
  • Phantom Power (±2 VDC): 48 VDC, switchable per channel

    Line Inputs
  • Type: ¼" TRS Female, balanced; RCA Female, unbalanced (stereo pair)
  • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  • Input Impedance: 10 kΩ
  • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Maximum Input Level: +18 dBu (Line); +12 dBu, ±0.5 dBu (Tape)

    Outputs
  • Type: XLR Male, balanced; ¼" TRS Female, balanced; RCA Female, unbalanced (stereo pair)
  • Maximum Output Level: +24 dBu, ±0.5 dBu (XLR); +18 dBu, ±0.5 dBu (Line, Tape)
  • Output Impedance: 100Ω

    Headphone Output
  • Type: ¼" TRS Female, active stereo
  • Maximum Output: 100 mW/ch. @ 60Ω load
  • Frequency Response: 20 Hz - 20 kHz (±0.5 dB)
  • THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
  • S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

    System Crosstalk/Clock
  • Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
  • Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
  • Jitter: <20 ps RMS (20 Hz - 20 kHz)
  • Jitter Attenuation: >60 dB (1 ns in, 1 ps out)

    Digital Audio and Control
  • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • USB Recording Port: USB 2.0, Type-B
  • Bluetooth Input: 4.1, stereo
  • AES/EBU Output: XLR Male
  • Network Control Port: RJ-45
  • AVB Audio Network Port: Ethercon
  • Internal Processing: 32-bit, Floating point
  • Sampling Rate: 48 kHz (44.1 kHz coming soon)
  • A/D/A Bit Depth: 24
  • Reference Level for 0 dBFS: +18 dBu
  • Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

    Physical
  • Connector: IEC
  • Input-Voltage Range: 90 to 230 VAC (±10%)
  • Power Requirements (continuous): 85W
  • Recommended Ambient Operating Temperature: 32°F to 104°F

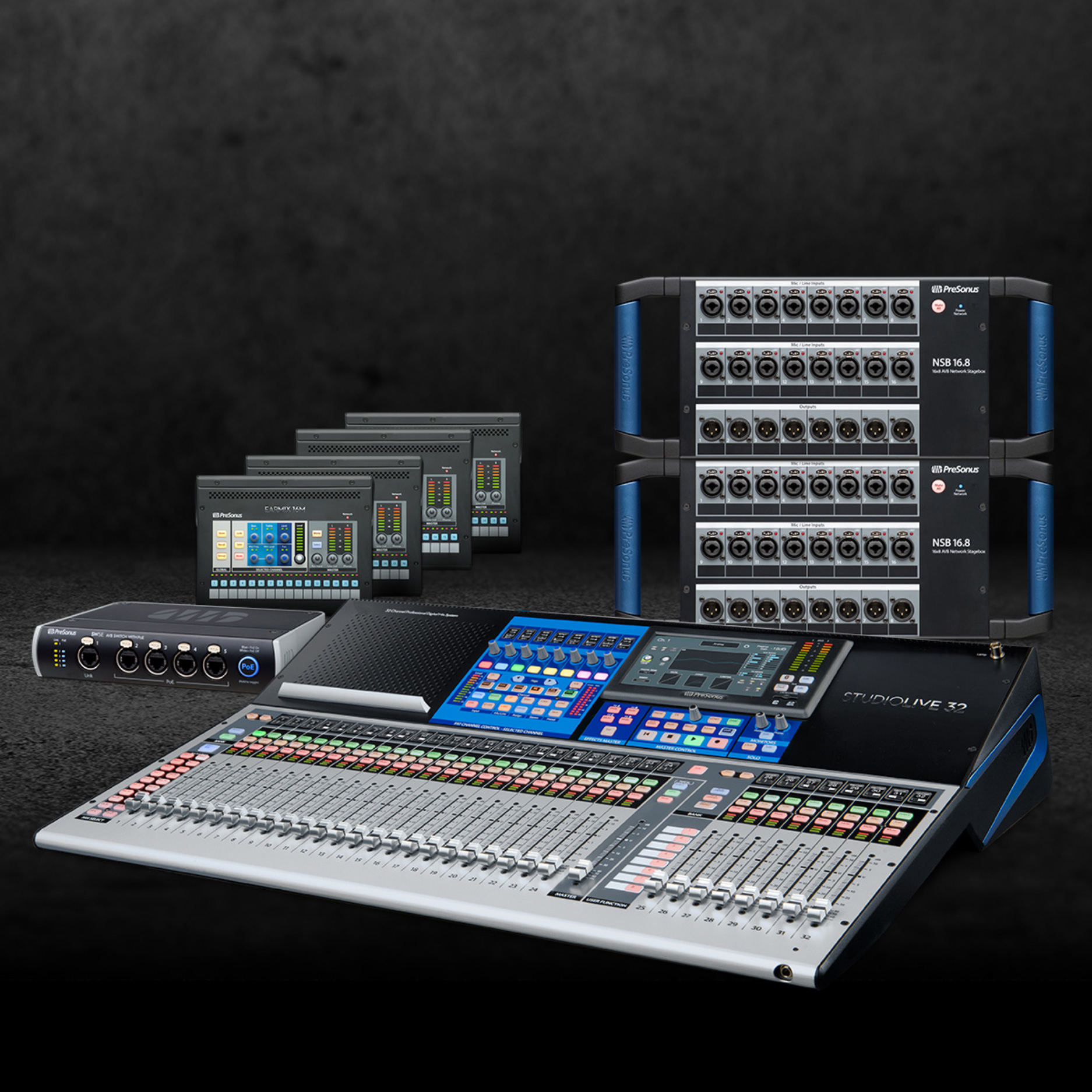

• Item Includes:

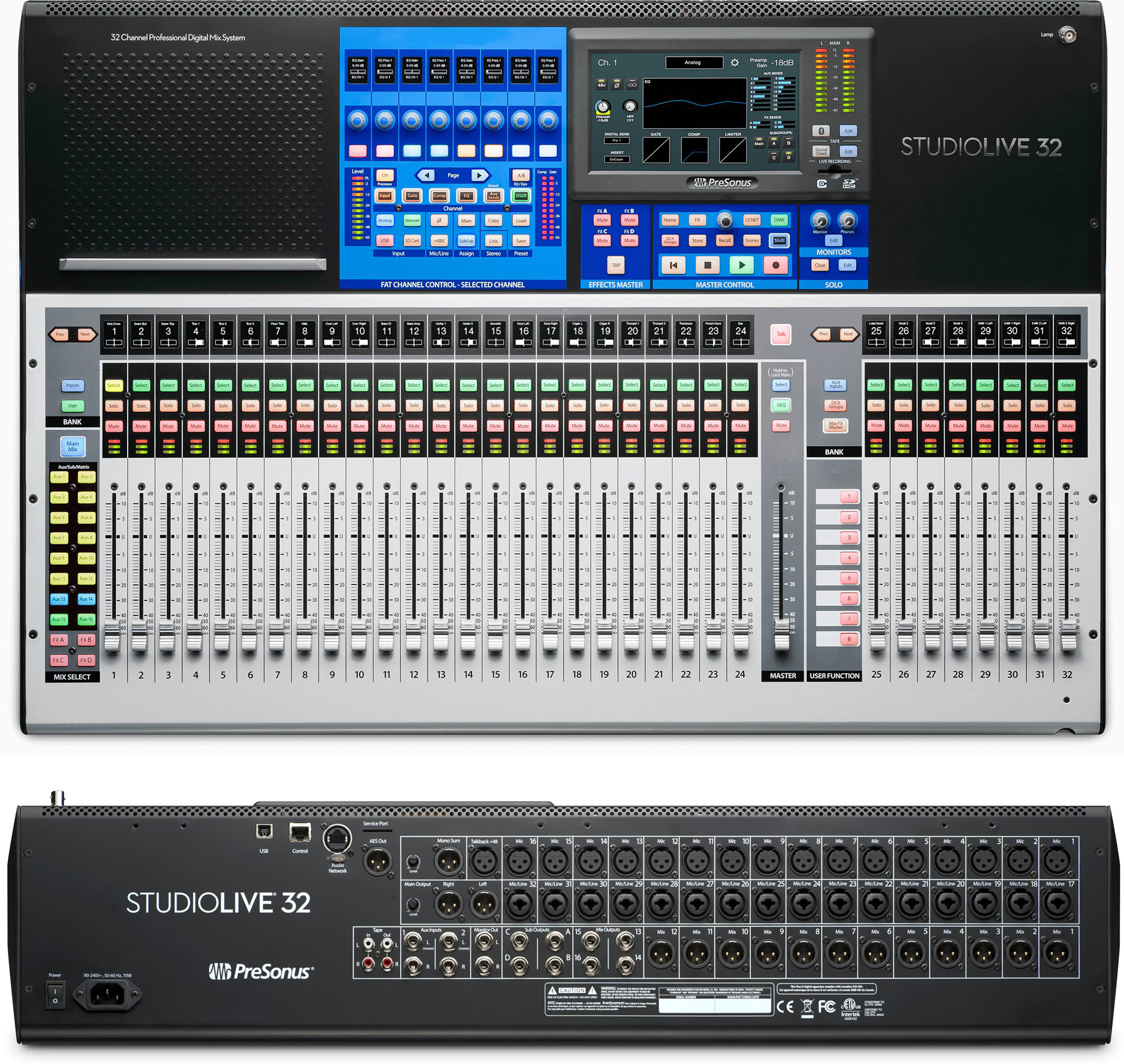

  • (x1) StudioLive 32 Series III 32-Channel Digital Mixer with touch-sensitive moving faders & 32 remote XMAX preamps

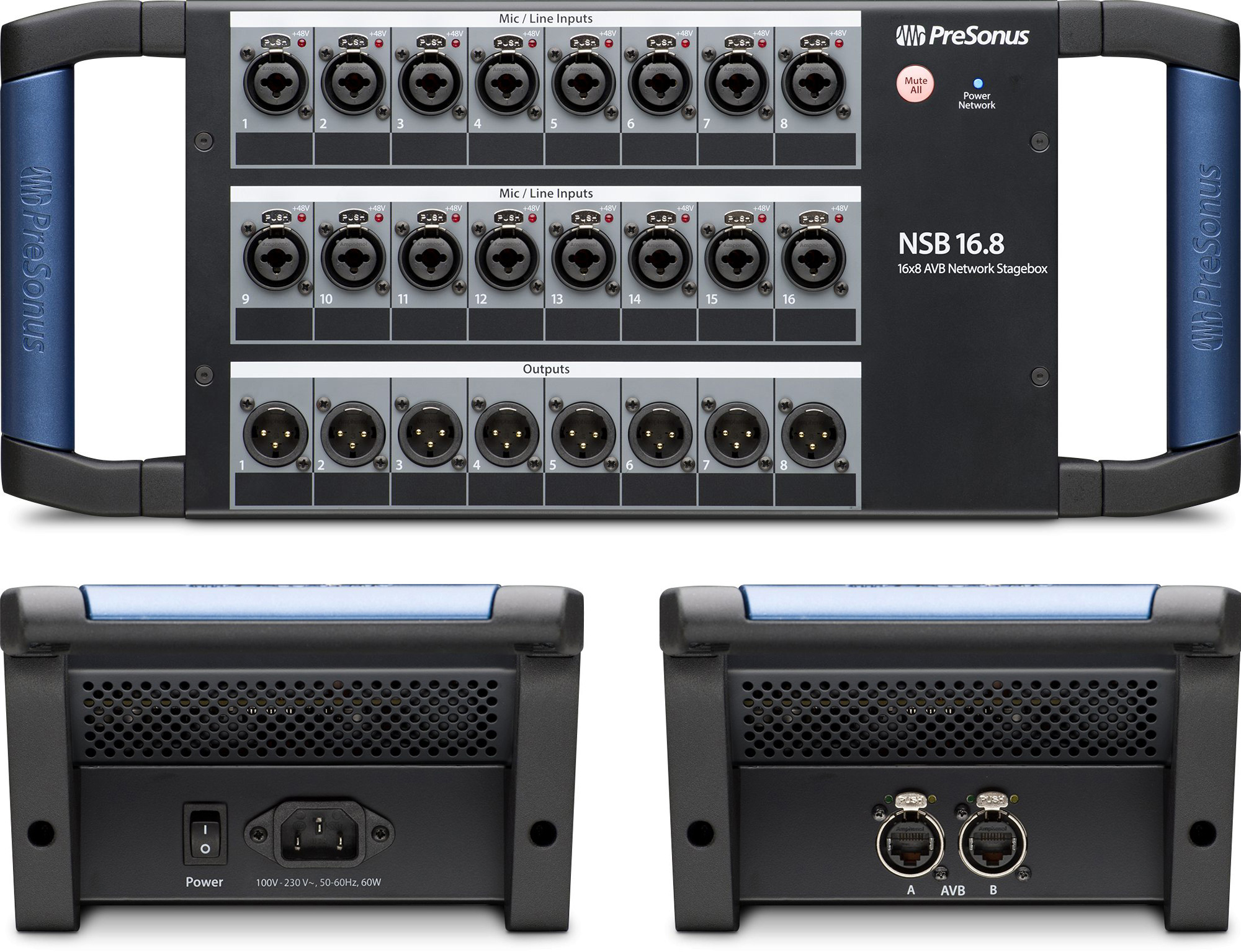

  • (x2) NSB 16.8 16x8 AVB Stageboxes

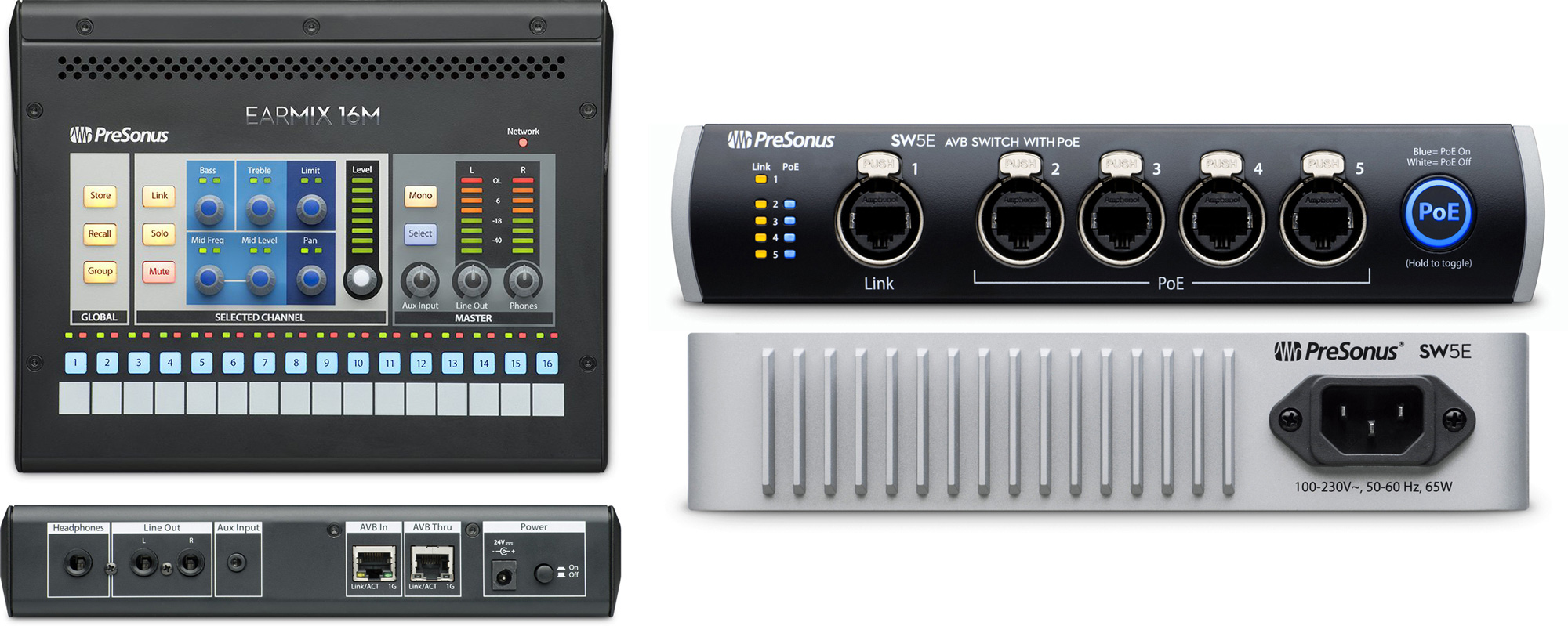

  • (x4) EarMix 16M 16-Channel AVB Networked Personal Monitor Mixers
  • (x1) SW5E 5-Port AVB Switch with PoE


• GTIN:

  0673454004919
