PTZOptics PT12X-LINK-4K-GY Link 4K 12x Auto-Tracking PTZ Camera Featuring Dante AV-H - USB 2.0/HDMI 2.0/3G-SDI - White

PT12X-LINK-4K-WH - Overview

• Features:

  • 72.5° (12X) horizontal field of view
  • High performance in low light scenarios with Wide Dynamic Range
  • Ultra HD 3840x2160p resolutions up to 60 FPS
  • 3D noise reduction with our latest low noise CMOS sensor
  • Serial (RS232 & RS485) & IP control (LAN/WAN)
  • H.264, H.265, & MJPEG video compression when IP streaming
  • USB 2.0, HDMI 2.0 / 3G-SDI (HDMI & SDI are not simultaneous)
  • PoE+ (Power over Ethernet) or 12VDC power supply
  • Beamforming microphone
  • AI Video based auto tracking
  • Dante AV-H™ (Limited to 1080p60)
  • Built in tally light
  • Photobooth capable


• Specifications:

  • Image Sensor & Lens
  • Video Sensor: Sony 1/2.5 inch, CMOS
  • Lens Zoom: (12X) f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
  • Resolution and Frame Rate: HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50,280x720p-60/59.94, SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
  • Field of View: H 6.9° ~ 72.5° / V 3.9° ~ 44.8°
  • Min Lux: 0.5 Lux @ (F1.8, AGC ON)
  • Shutter: 1/30s ~ 1/10000s

    Pan / Tilt Movement
  • Pan Movement: ±170°
  • Pan Speed: -1.7° ~ 100°/s
  • Tilt Movement: -30° ~ +90°
  • Tilt Speed: 1.7° ~ 69.9°
  • Presets: 255 Presets
  • Preset Accuracy: 0.1°
  • Image Flip Mirror and Freeze: Supported

    Electrical Index
  • Power Supply: DC 12V / PoE+ (802.3at)
  • Current Consumption: 2A (Max)

    Physical Specifications
  • Material: Aluminum, Plastic
  • Dimensions (W x D x H) : 5.57" W x 6.65" D x 7.91" H
  • Weight: 3.25 lbs
  • Working Environment: Indoor
  • Operating Temperature: 14°F ~ 104°F
  • Storage Temperature: -40°F ~ 140°F

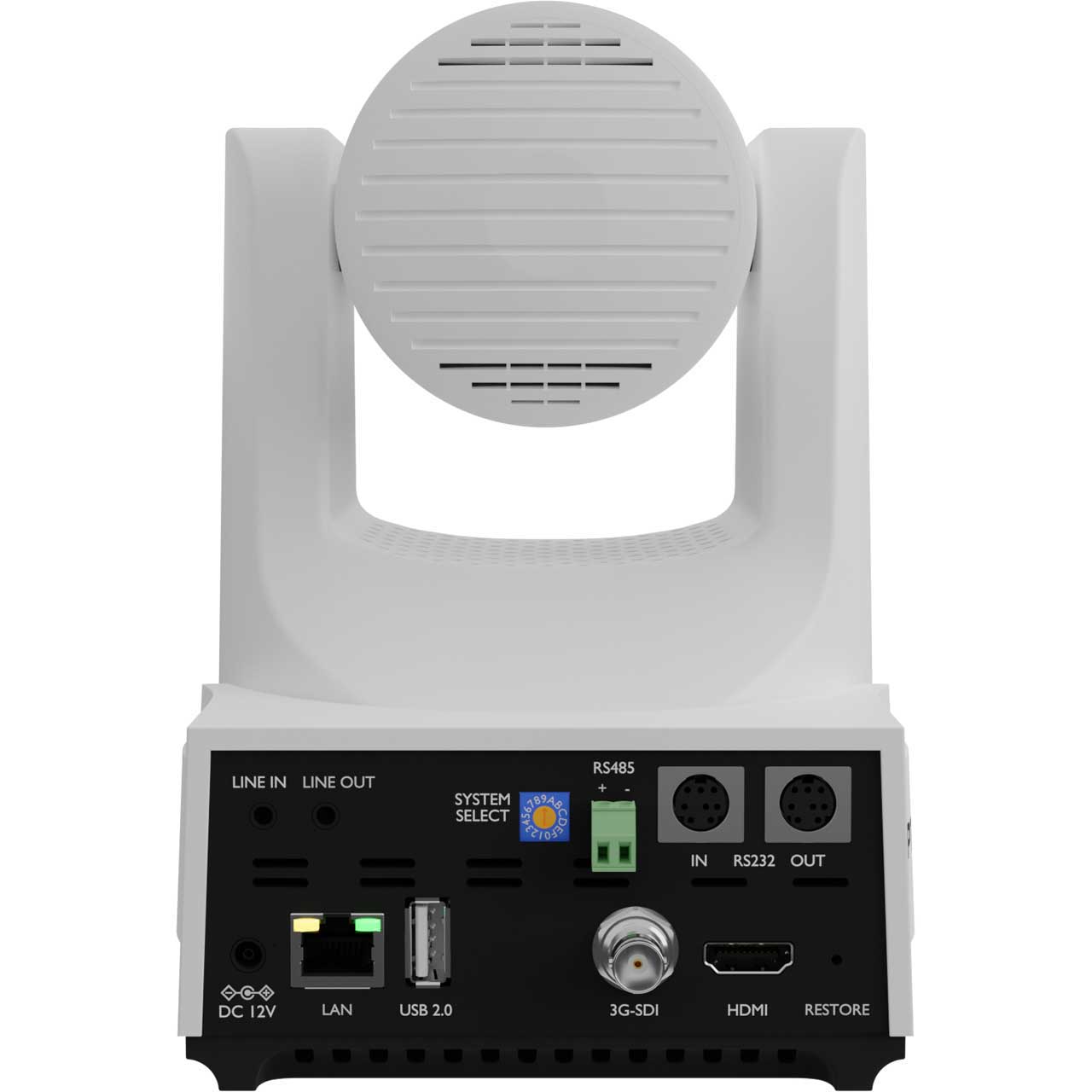

  • Rear Board Connectors
  • HD Video Output: 1x RJ45: 10/100/1000M Adaptive Ethernet Port, 1x HDMI: version 2.0, 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M, standard, 1x USB 2.0 type A
  • LINE IN: Interface 1x 3.5mm Line level Input
  • Communication Interface: 1x 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m,
  • Protocol: VISCA / Pelco-D / Pelco-P: 1x 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P: 1x 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m Protocol: VISCA / Pelco-D / Pelco-P
  • IR: 4x IR Addresses, Max distance 30ft / 9m
  • Power Jack: JEITA type (DC IN 12V)


• Item Includes:

  • 1x LINK 4K 12X Camera - White
  • 1x AC Power Supply
  • 1x USB A-A Cable
  • 1x RS232C Cable
  • 1x Quick Start Guide
  • 1x IR Remote
  • 2x AA Batteries


• Warranty:

  • 5-year
