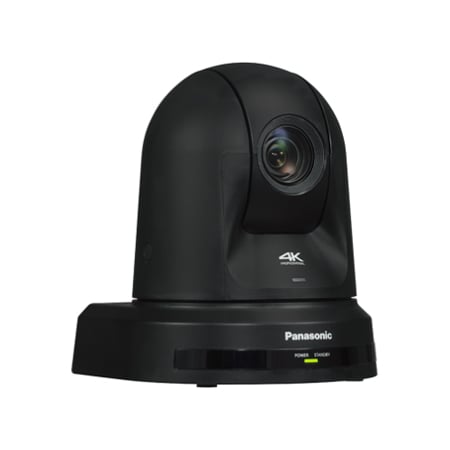

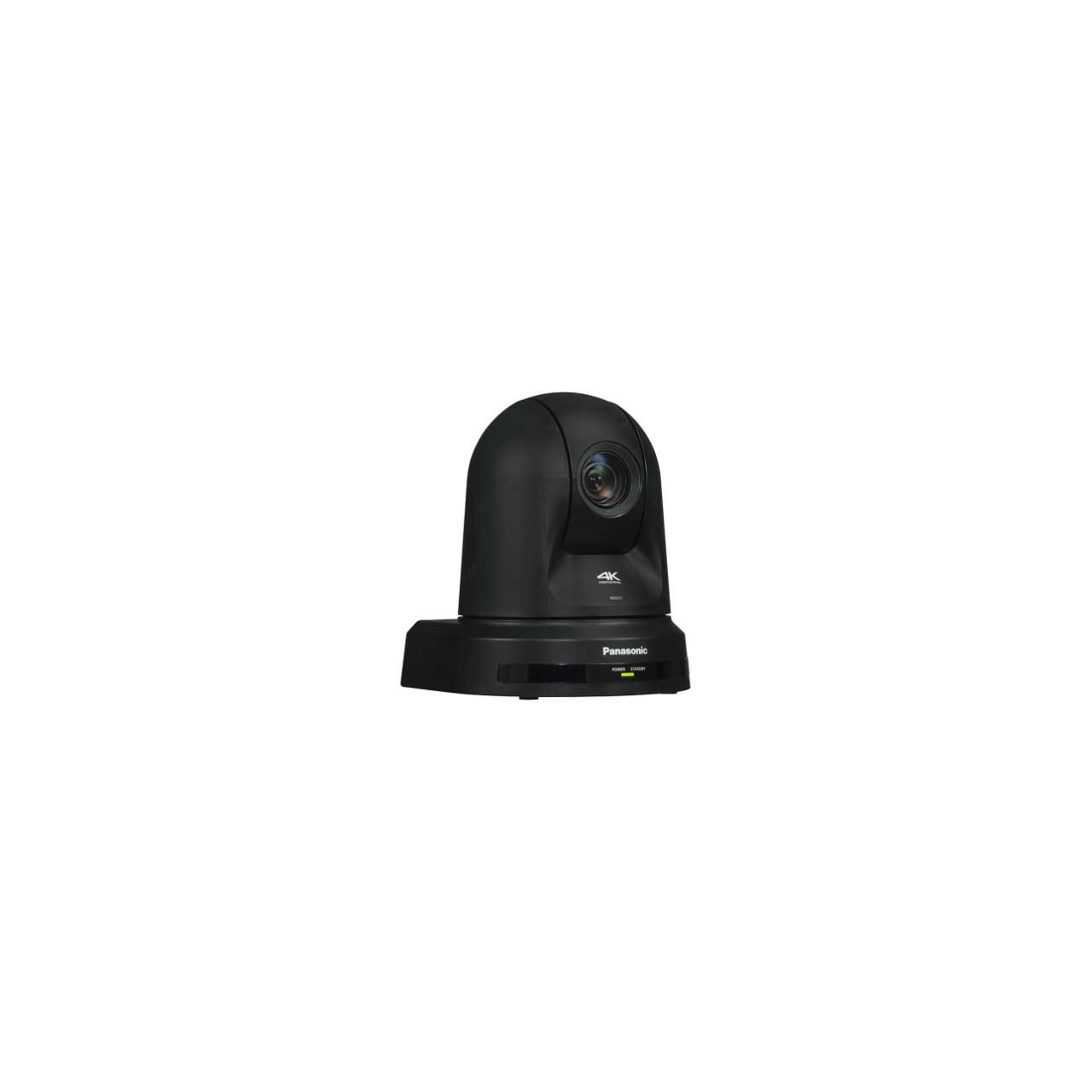

Panasonic AW-UE50 Motorized Optical 24x Zoom 4K PTZ Camera - Black

AW-UE50KPJ - Overview

• Features:

  • Provides a stable hybrid environment for connecting online and offline
  • 4K resolution, wide angle and high-magnification zoom for delivering "the ambience of hall."
  • Auto Tracking Software for reliable following and capturing of the speaker.
  • Secure and stable streaming protocol for reduced risk of communication trouble.
  • Smooth playback of high-quality videos.
  • Unit size and quietness for flexible use at any video shooting sites
  • Compact dome-shape design blends in with the surroundings. Light weight and small size give added flexibility in camera installation.
  • Quiet operating sound allows the use of the camera in any situations.
  • Image stabilizer ensures stable video shooting.
  • Excellent system flexibility to achieve smart wiring and smooth operation
  • Easy installation and operation even for inexperienced staff or small staff.
  • Single PC or controller can manage and control multiple cameras.
  • Use as a USB camera.
  • Can upload video directly to live streaming service.


• Specifications:

  • Comprehensive
  • Power Requirements: 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
  • PoE+: IEEE802.3at compliant : DC42 to 57 V (Camera Input) (Software authentication (LLDP) is supported)
  • Current Consumption: 1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)
  • Ambient Operating Temperature: 0° to 40°C (32° to 104°F)
  • Allowable Humidity Ranges: 20 % to 90 % (no condensation)
  • Storage Temperature: -20° to 50°C (-4° to 122°F)
  • Mass: Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)
  • Approx. 2.05 kg (4.52 lbs) (including ceiling mounting bracket)
  • Dimensions (WxHxD): 160 x 192.1 x 166mm (6.2 x 7.5 x 6.5")
  • (Excluding protrusions, cable cover, ceiling mounting bracket)
  • Finish:
    AW-UE50W/AW-UE40W: White
    AW-UE50K/AW-UE40K: Black
  • Compatible Controllers: AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1,2, AK-HRP1005*1,2, AK-HRP1015*2, AK-HRP250*2

    Camera part
  • Image Sensors: 1/2.5-type 4K MOS x1
  • Effective Pixels: 8,490,000 pixel
  • Lens:
  • Motorized Optical 24x zoom, F1.8 to F4.0
    [f=4.12 mm (5/32") to 98.9 mm (3-29/32");
    35 mm (1-3/8") equivalent: 25.0 mm (31/32") to 600.0 mm (23-5/8")]
  • Zoom:
  • Optical zoom: 24x
    i.Zoom UHD 28x, FHD 36x
    Digital extender zoom: 1.4x, 2x
  • Conversion Lens: Not supported
  • Angle of View Range:
    Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
    Vertical angle of view: 46.0° (wide) to 1.9° (tele)
    Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
  • Optical Filter: Not equipped
  • Focus: Switching between auto and manual
  • Focus Distance: Entire zooming range: 1200 mm (3.9 ft)
  • Wide end: 100 mm (0.33 ft)
  • Color Separation Optical System: 1MOS
  • Minimum Illumination: 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
  • Horizontal Resolution: UHD: 1,500 Typ (Center area)
  • FHD: 1,000 Typ (Center area)
  • Gain Selection: Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
  • Frame Mix: Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
  • Electronic Shutter Speed:
    59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
  • Synchro Scan:
    59.94p/59.94i: 60.0 Hz to 7200 Hz
    29.97p: 30.0 Hz to 7200 Hz
    23.98p/24p: 24.0 Hz to 7200 Hz
    50p/50i: 50.0 Hz to 7200 Hz
    25p: 25.0 Hz to 7200 Hz
  • Gamma: HD / Normal / Cinema1 / Cinema2 / Still Like
  • White Balance:
    ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)
    AWB: AWB-A / AWB-B
    VAR (selectable between 2000 K and 15000 K by designating a value)
  • Chroma Amount Variability: OFF, -99 % to 99 %
  • Scene File: Full Auto, Scene1, Scene2, Scene3


• GTIN:

  0885170388253
