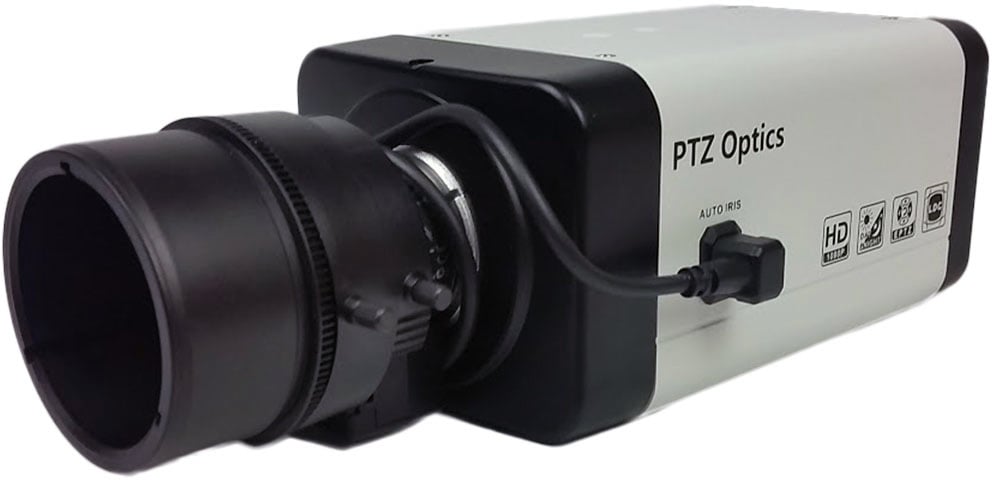

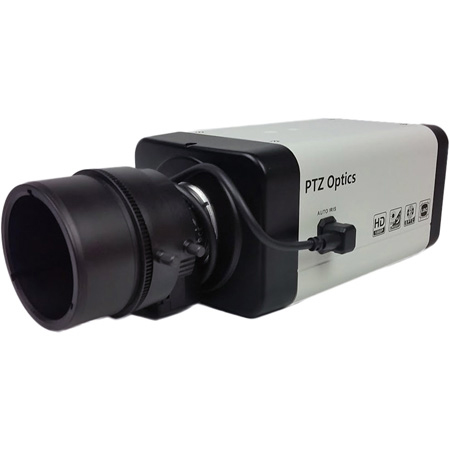

PTZOptics Variable Lens 1080p HD-SDI IP Network Box Camera with 2.8-12mm Lens - White - US Style Power

PTVL-ZCAM - Overview

• Features:

  • Panasonic 1/2.7 inch HD CMOS Sensor
  • 3G-SDI High Definition Video Output
  • H.264, H.265 & MJPEG IP Streaming Output (dual stream)
  • High performance in low illumination situations
  • Full 1920x1080p HD Resolutions up to 60 frames per second
  • 2D and 3D noise reduction with our latest "low noise CMOS sensor"
  • Wide Dynamic Range
  • Menu controls on back of camera
  • RS485 and IP remote camera control

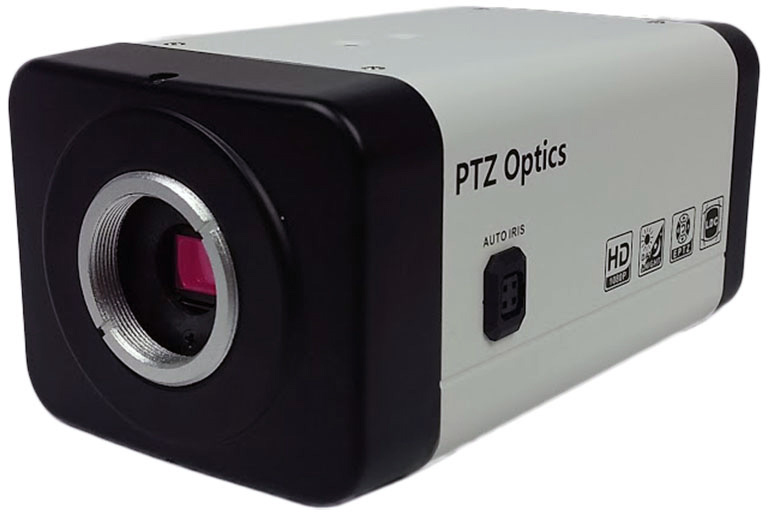

  • C/CS Type Lens Mount
  • Standard 1/4-20 female thread for camera mounting (top + bottom)
  • PoE (Power over Ethernet) or 12VDC


• Specifications:

  • Camera & Lens
  • Video CMOS Sensor 1/2.7 inch CMOS, 2.07 Mega Pixels
  • Frame Rate 1080p 60/50/30/25, 1080i 60/50, 30/25; 720p 60/50 30/25
  • Included Lens: F 2.8mm ~ 12mm, F1.4
  • Incl. Lens Zoom: 4X Optical Zoom
  • Inc. Lens Field of View: 122°
  • Min Lux: .05 Lux (F1.8, AGC ON)
  • Shutter Speed: 1/30s - 1/10000s
  • SNR ≤55dB
  • Vertical Flip & Mirror Supported
  • Inc. Lens Hor. Angle of View 28° (tele) - 122° (wide)
  • Working Environment Indoor

    Electrical Index
  • Power Supply: 12W - 1A
  • Input Voltage: 12V DC (10.8 - 13.0V DC)

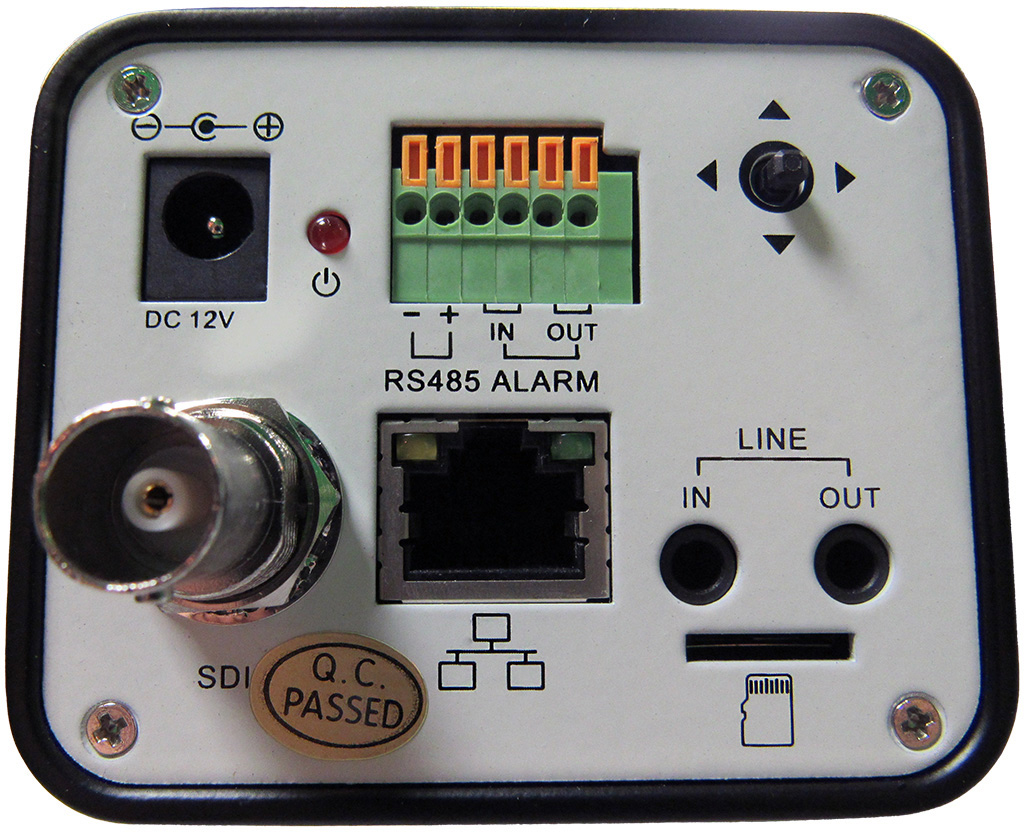

    Rear Board Connectors
  • Video Output Interface 3G-SDI, RJ45 IP Network
  • Communication Interface RS485 VISCA, Pelco-D, Pelco-P
  • Power Supply Interface JEITA type Power Adapter (DC IN 12V)

    Physical Specs
  • Dimensions: 2.8"W x 5.94"D x 2.4"H
  • Weight: 0.82 lbs. (1.1 lbs. w/ lens)
  • Box Dimensions: 6.25"W x 8.25"D x 4.6"H
  • Box Weight: 1.6 lbs


• Item Includes:

  • Box Camera
  • 4X Wide Angle Zoom Lens
  • Power Adapter
  • User Manual


• Warranty:

  • 5 Years


• GTIN:

  0737993157694
