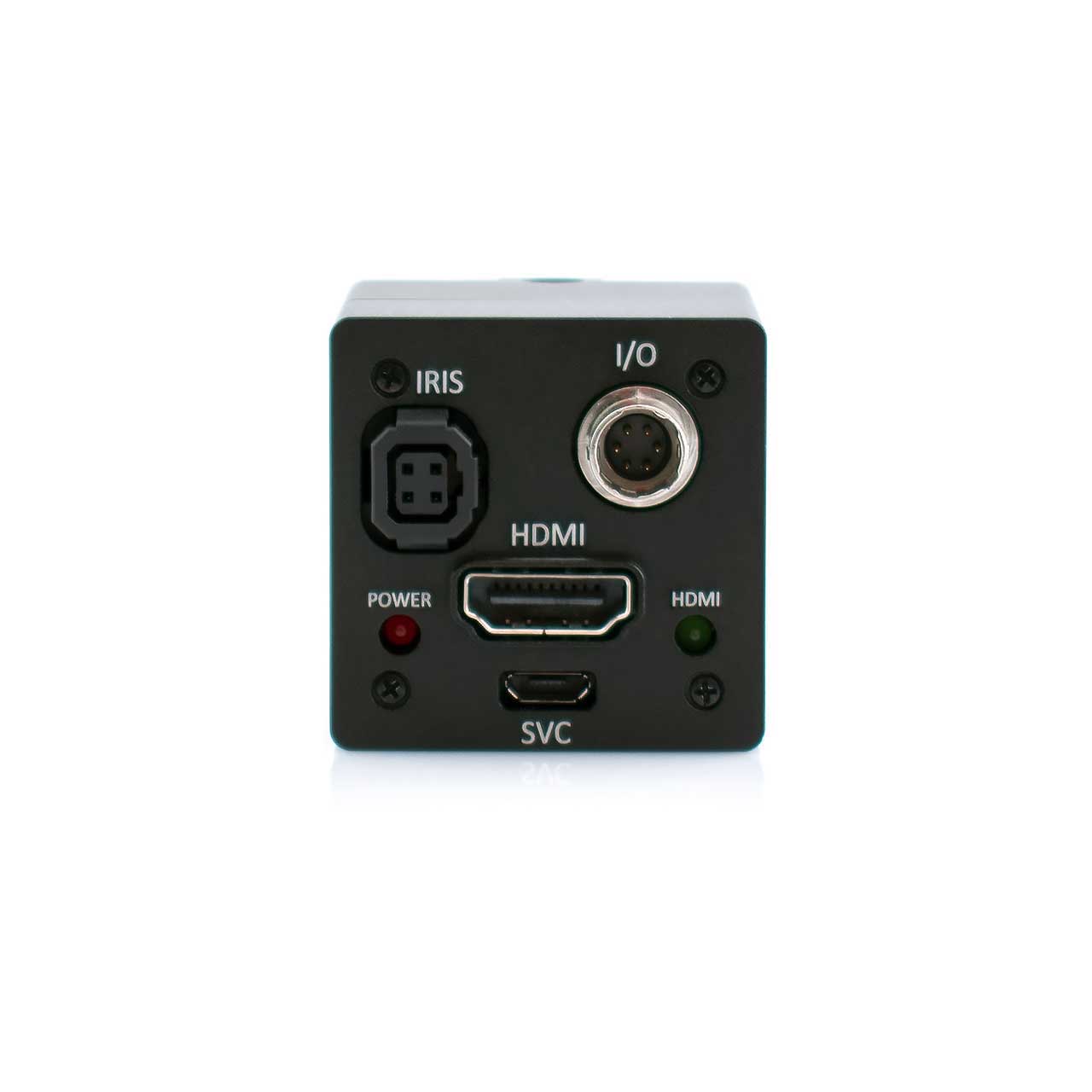

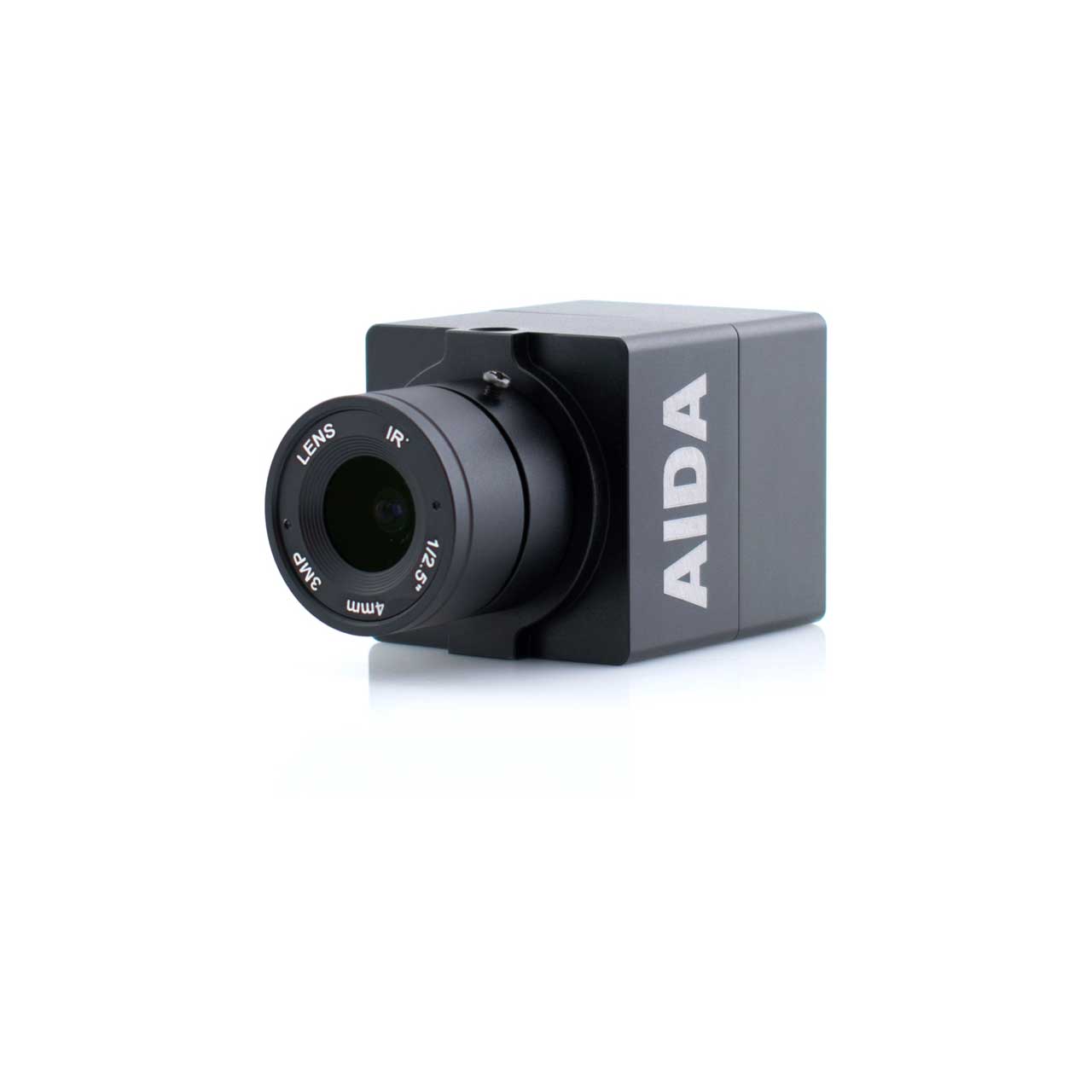

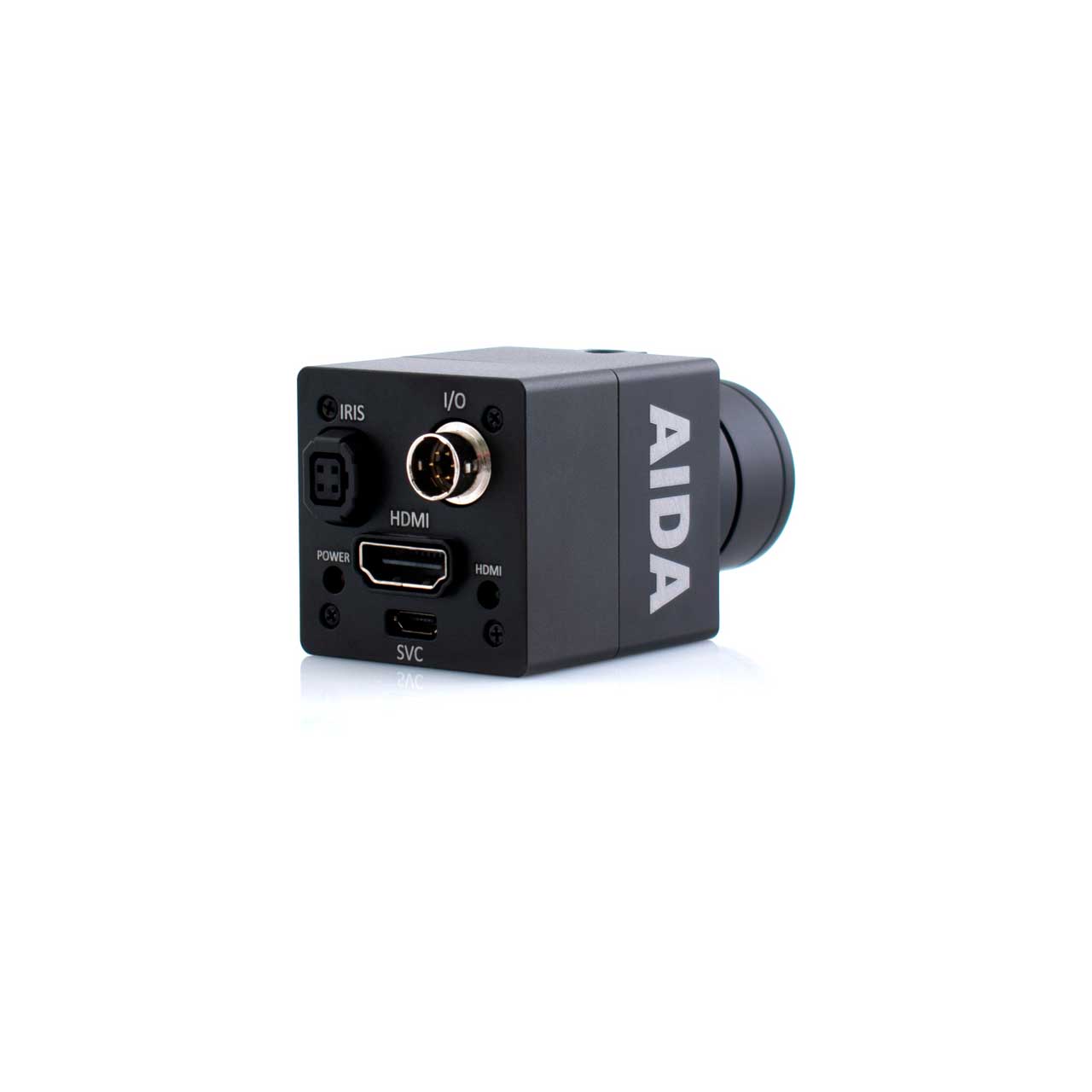

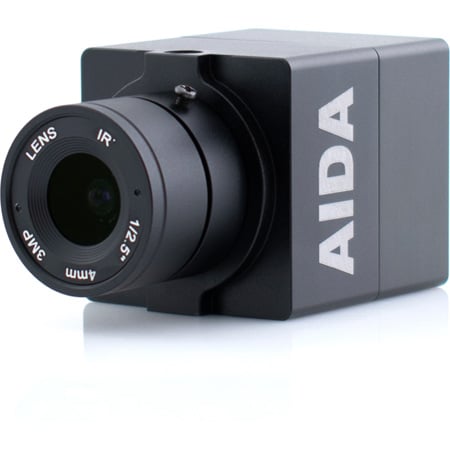

AIDA Imaging AIDA-HD-100A FHD HDMI POV Camera (Multi HD Format) with TRS Stereo Audio Input

AIDA-HD-100A - Overview

• Features:

  • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
  • Advanced digital image processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
  • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
  • HDMI seamless video performance.
  • Black Level Set-up provides the better color transition from digital to analog.
  • Auto White Balance and shutter speed provides the optimized performance in a variety of situations.
  • Interchangeable lens design makes it compatible with auto-iris CS and C mount lenses.
  • Built-in OSD controls for customizable image settings.
  • Versatile, compact, and rugged design.
  • With TRS Stereo Audio Input for embedded audio over HDMI.


• Specifications:

  • Video
  • Image Sensor: 1/3 inch Progressive CMOS
  • Sensor Size: Diagonal 7.2mm
  • Effective Pixels: Horizontal: 1920, Vertical: 1080
  • Pixel Size: 2.75 µm x 2.75 µm
  • Resolution: 1080p & 1080i: 1920 x 1080, 720p & 720i: 1280 x 720
  • Resolution/Rate: 1080 60p/59.94p/50p/30p/29.97p/25p/24p, 1080 60i/59.94i/50i, 720 60p/59.94p/50p
  • Output: HDMI 1.3a
  • Color Space: 4:2:2 (YCbCr) 10bit
  • Min. Illumination: 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
  • White Balance: Auto & Manual (9,000 K - 11,000 K)

    Lens
  • Lens: C/CS Mount (Default 4mm HD Lens)

    Audio
  • Input: 3.5mm TRS Stereo Mic-in & Line in over I/O Cable
  • Sample Rate: 16/24/32 Bits

    Physical
  • Camera Control: RS-485 VISCA, OSD Button
  • Operation Temp: 32° F - 104° F
  • Dimension: 39mm x 39mm x 50.50mm / 1.53" x 1.53" x 1.99" (With default 4mm Lens)
  • Weight: 180g / 0.39lbs (With default 4mm Lens)
  • Power: 6W at 12VDC (+9 - +15VDC)


• GTIN:

  0682863380149
