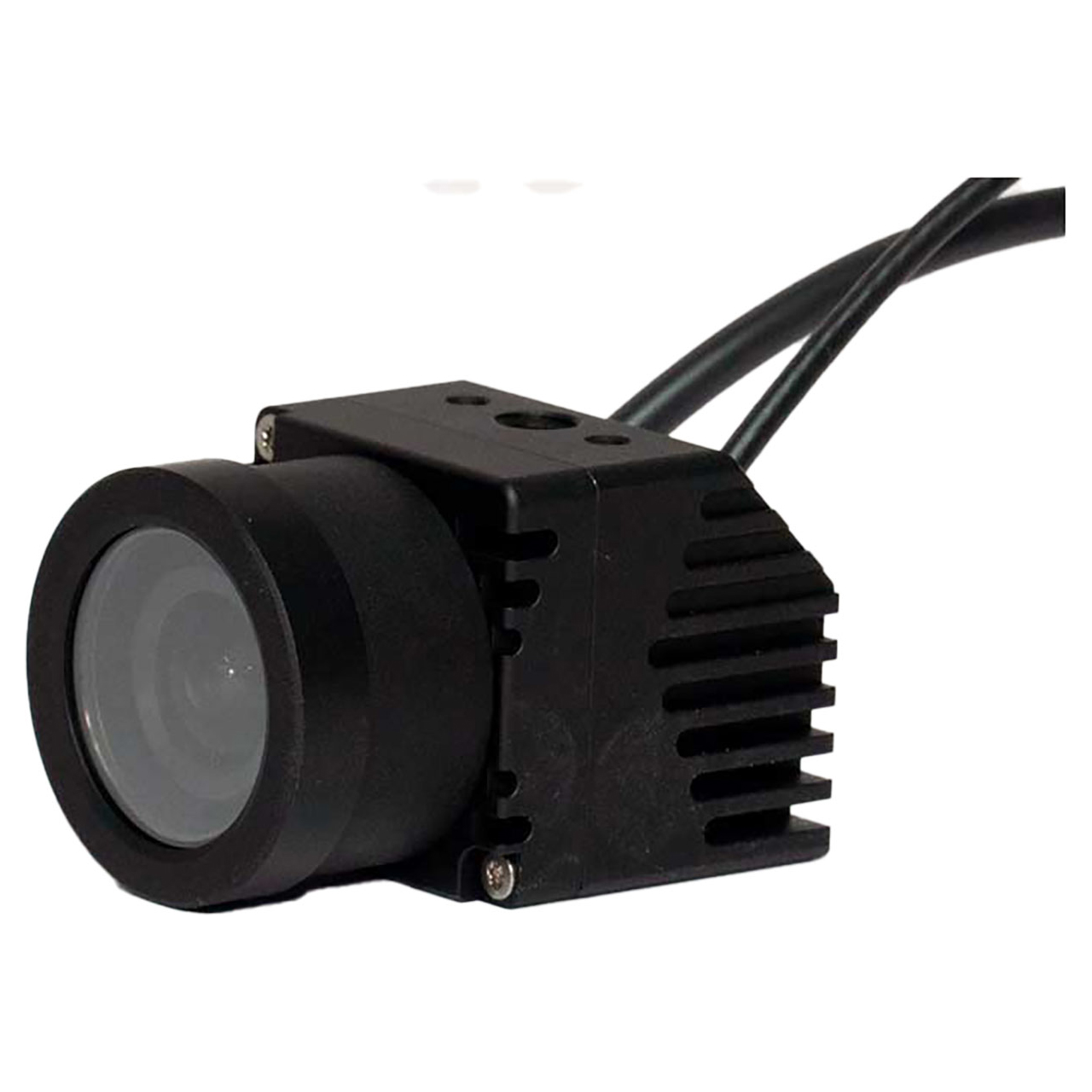

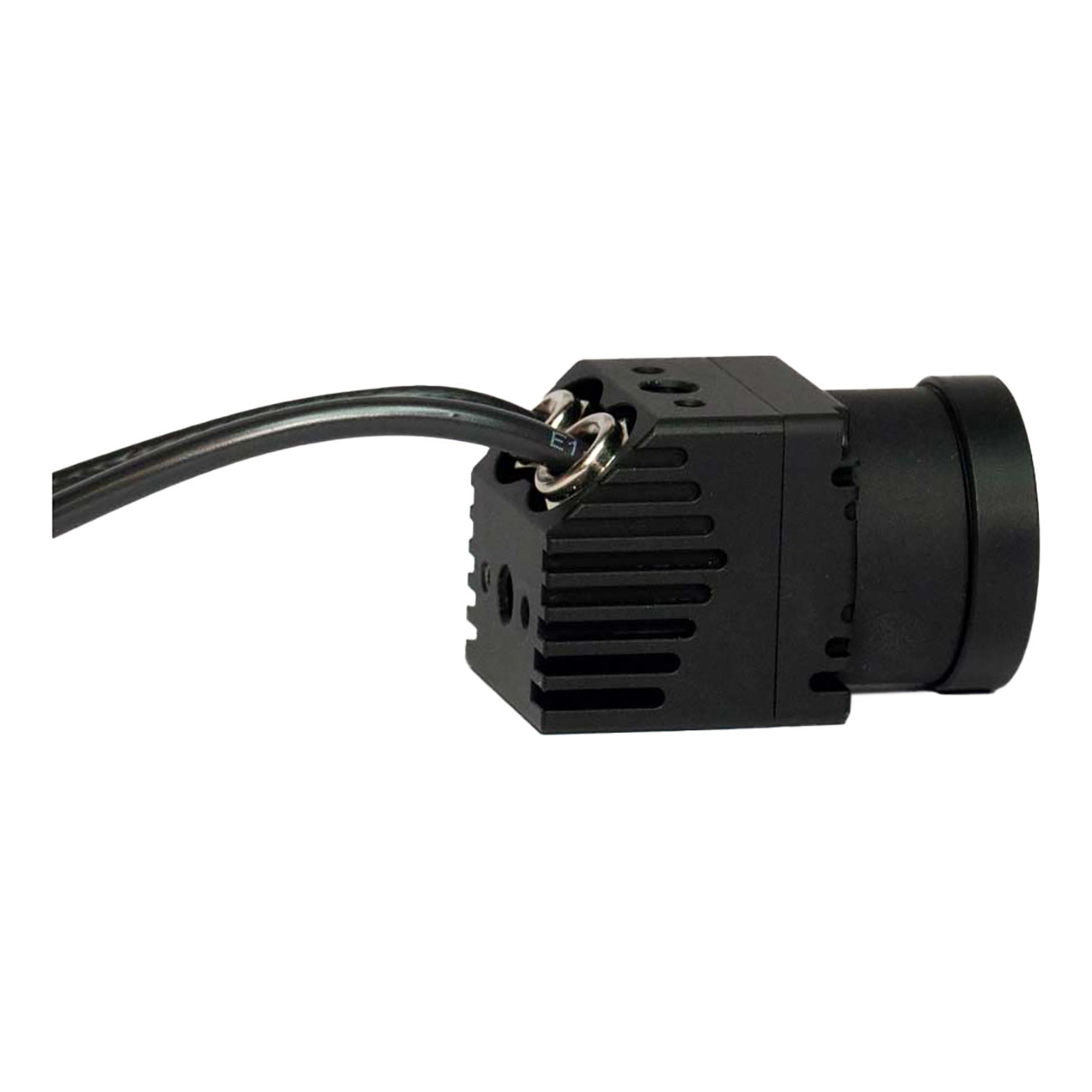

Dream Chip 001-00019 Atom One Mini IP67 Waterproof Full HD Rolling Shutter Camera with S-Mount 3.4mm Lens and RS485

001-00019-01 - Overview

• Features:

  • Low Latency (<100 ohms/microseconds)
  • Defect Pixel Correction (auto/manual)
  • Black Level, White Level, Master Black
  • White Balance / Auto White Balance
  • Flare Compensation
  • Lens Shading Correction
  • High Quality Color Interpolation (debayer)
  • Color Matrix / Color Correction
  • Color Temperature Settings / Profiles
  • Multi-Matrix Color Correction (12/24/32 Angles)
  • RGB LUT Programmable
  • Knee Function
  • Denoise Filter
  • Detail Filter
  • Color Post Processing (lumi, contr, sat, hue)
  • SDI Range Adjustable (black/white)
  • Mirror/Flip
  • Image Statistics (white balance, exposure)
  • Auto Exposure / Auto Gain


• Specifications:

  • Overview
  • Resolution: Full HD 1920 x 1080
  • Mount: S Mount (M12)
  • Size: 32mm x 32mm x 51mm
  • Weight: 0.25 lbs
  • Mount Points: 3x 1/4inch, 5x M3
  • Microphone: Mono Mic

    Sensor
  • Type: 1 / 2.5inch
  • Pixel Size: 3.24um
  • Diameter: 7.2mm
  • Filter: IR Cut / No Filter
  • Shutter Type: Rolling
  • Dynamic: 10 bit / 57 dB
  • Sensitivity ISO: Analog 30 - 675 / Digital 3200
  • Sensitivity 2000 Lx 50Hz: F2.4
  • Maximum FOV (H): 85° @ 3.4mm Lens

    Electric
  • SDI Output: 1x HD-BNC / 3G SDI
  • Control: RS485
  • Genlock: No
  • Embedded Time Code: Yes
  • Voltage Range: 5V-36V
  • Power: 3.4watt 270mA@12V
  • Power Supply: 6V-36V
  • Cooling: Passive

    Camera Features
  • Color Control Unit: Yes
  • 4K to 2K down-scale with oversampling: No
  • Independent LUT: Yes

    Video Formats
  • 10 bitYUV422: Yes
  • RAW: No
  • 1920x1080 Full HD Framerates: 23.98, 24, 25, 29.97, 30, 50, 50.94, 60, 50i, 59.94i, 60i
  • 3840x2160 UHD: No
  • 4096x2160 4K Framerates: No
