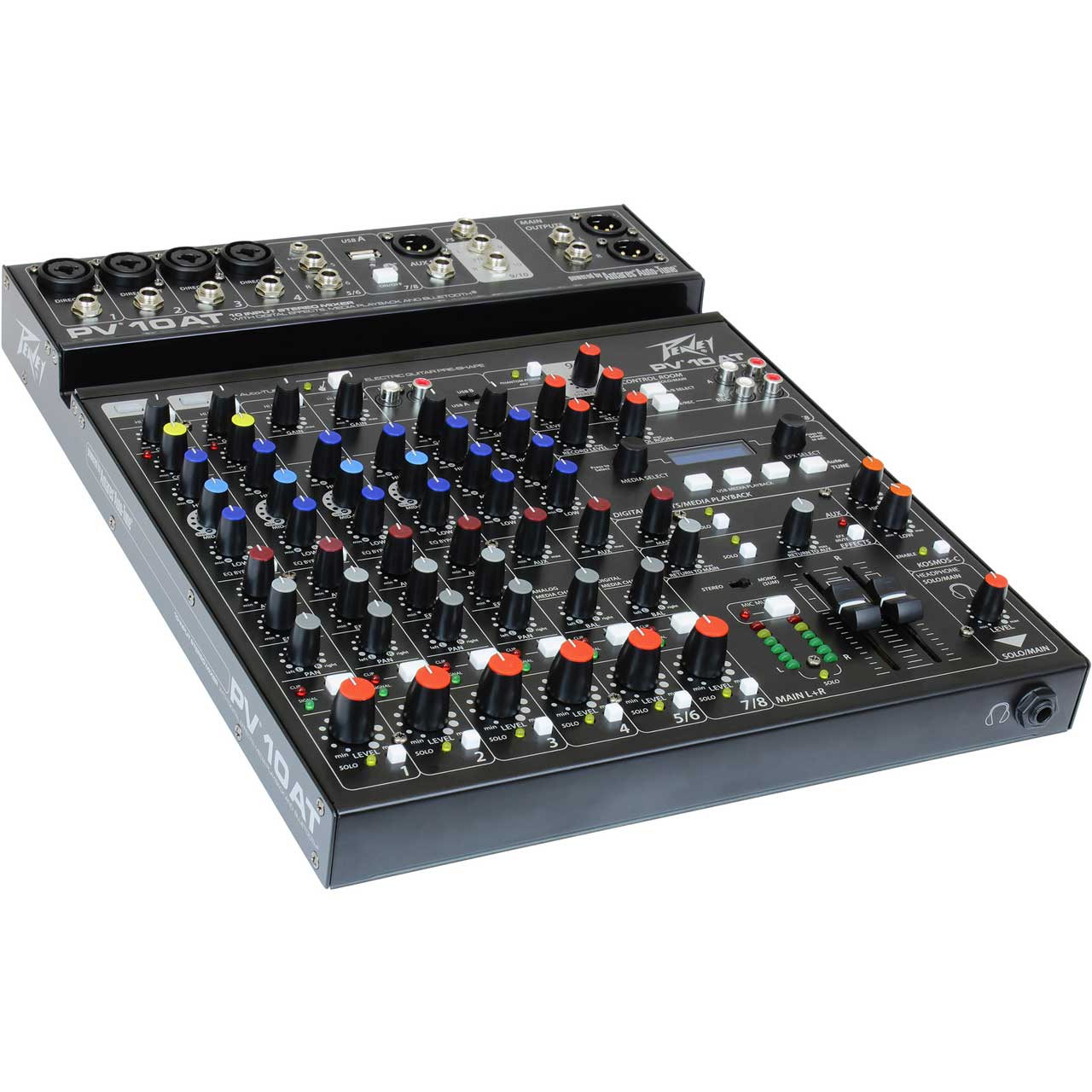

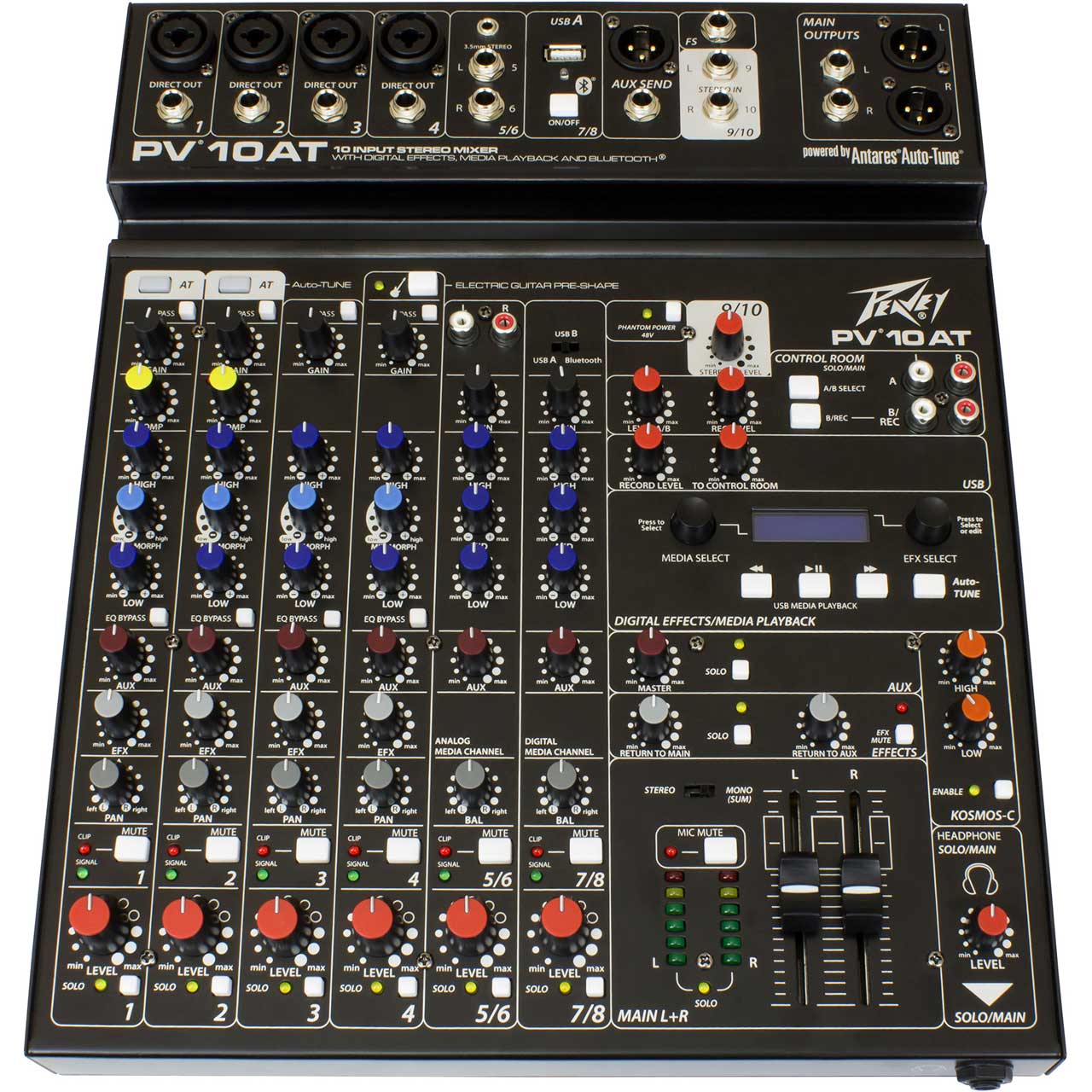

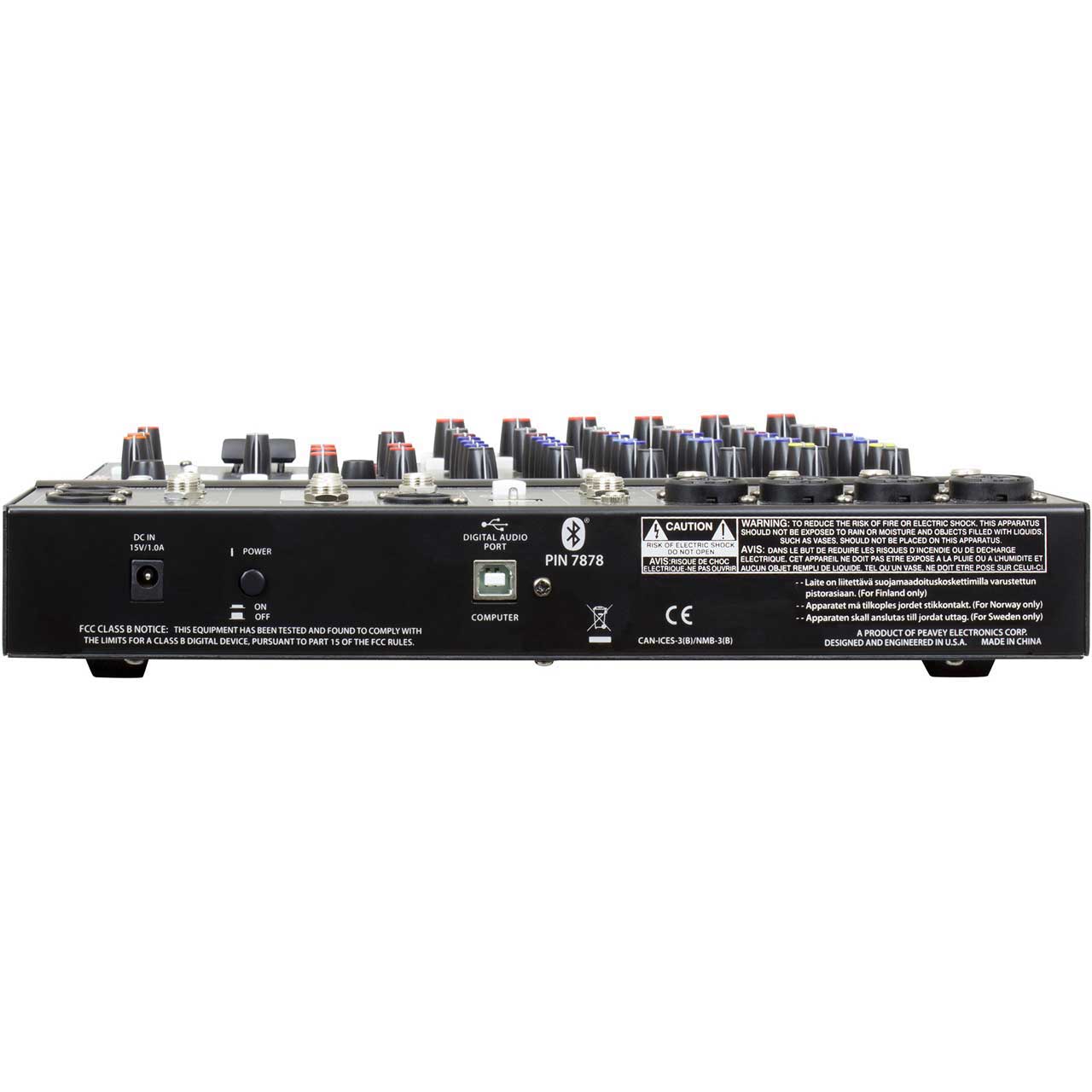

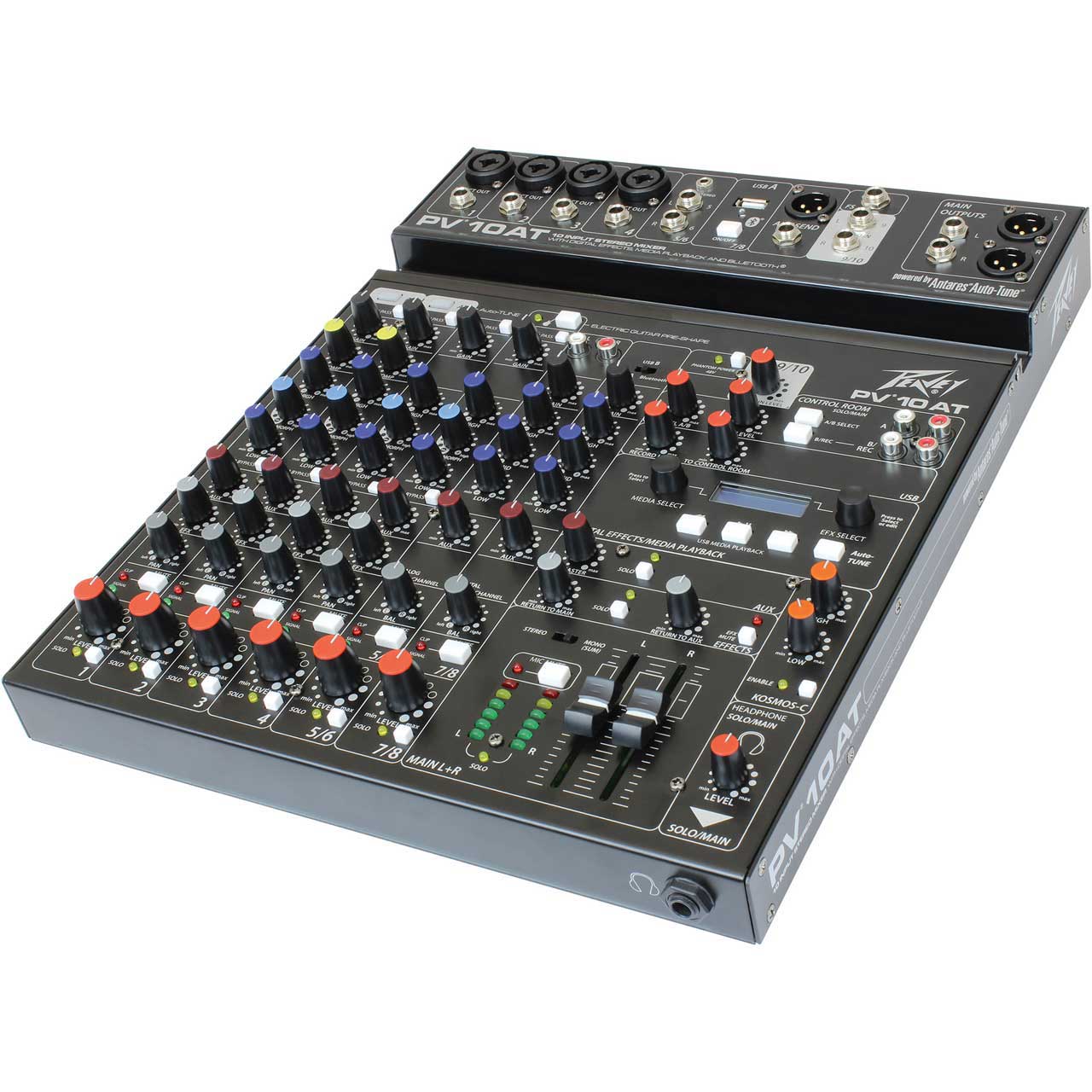

Peavey PV 10 AT 120US Compact 10 Channel DJ Mixer with Bluetooth and Antares Auto-Tune

PV 10 AT 120 - Overview

• Features:

  • New rugged, slim, low-profile console design
  • Convenient tablet cradle
  • 2 Channels of Antares Auto-Tune
  • 4 combination XLR/1/4" low noise mic preamps
  • Selectable Hi Pass Filter on first 4 inputs
  • 3-band EQ on all channels
  • 4 channels of Peavey's exclusive MidMorph EQ
  • EQ bypass per channel
  • 2 channels of built-in compression
  • Individual channel mutes
  • Individual Listen/Solo function
  • LED clip and signal present indication
  • 4 Channels of direct out
  • Stereo pan control per channel
  • Channel 5/6 stereo 1/4", RCA, or 3.5mm input channel
  • Dual selectable control room outputs
  • One pre-fader AUX send
  • KOSMOS bass and treble enhancement
  • Main stereo outputs with 1/4" unbalanced and balanced XLR connectors
  • Precision 60 mm faders on master
  • High quality master LED meter bridge
  • Master mic mute
  • Studio quality headphone output
  • Equipped with Bluetooth wireless connectivity, Bluetooth 3.0 + EDR, A2DP
  • On-board USB-A MP3 and WAV playback
  • Stereo USB-B streaming audio in and out, 16-bit, up to 48kHz sample rates
  • Built-in Digital Effects with LCD Display
  • Peavey's exclusive on-board Hi Z guitar input
  • Global 48V phantom power
  • Product Dimensions: 12.75" wide x 15.1" deep x 2.1875" high (32.39 cm x 38.35 cm x 5.56 cm)
  • Weight Packed: 9.48 lb(4.3 kg)
  • Width Packed: 16.14"(40.9956 cm)
  • Height Packed: 16.54"(42.0116 cm)
  • Depth Packed: 3.54"(8.9916 cm)


• Specifications:

  • Gain
  • Mic Input Gain Adjustment Range: 4 dB to 59 dB
  • Mic Input to Left/Right Balance Output 79 dB (max gain)
  • Line Input Gain Adjustment Range: -16 dB to 40 dB
  • Line Input to Left/Right Balance Output 60 dB (max gain)
  • Stereo 5/6 1/4" Gain Adjustment Range: Off to +18 dB
  • Stereo 5/6 1/4"to Left/Right Output 42 dB (max gain)
  • Stereo 5/6 3.5mm / RCA Gain Adjustment Range: Off to +28 dB
  • Stereo 5/6 3.5mm / RCA to Left/Right Output: 47 dB (max gain)
  • Stereo 9/10 Gain Adjustment Range: Off to +18 dB
  • Stereo 9/10 to Left/Right Output 28 dB (max gain)

    Frequency Response
  • Mic Input to Left/Right Output, Max Input Gain 14 Hz to 25 kHz +0 dB/-1 dB
  • Mic Input to Left/Right Output, input gain 12:00 9.5 Hz to 29 kHz +0 dB/-0.8 dB

    Total Harmonic Distortion
  • <0.006% Typical, Mic to Left/Right Output (22 Hz to 22 kHz BW)

    Equivalent Input Noise
  • -128 dBu (input terminated with 150 ohms, bandwidth 20 kHz)

    Crosstalk/Attenuation
  • Adjacent Input Channels: (1 kHz) >90 dB Mute Button Attenuation (1 kHz) >90 dB
  • Left to Right Outputs: (1 kHz) >70 dB Channel Fader Kill (1 kHz) >85 dB

    Common Mode Rejection Ratio (Mic Input)
  • 50 dB minimum (20 Hz to 20 kHz)
  • 70 dB typical @ 1 kHz

    Meters
  • 6 segment, peak reading (0 db = +4 dBu)

    Signal/Overload Indicators
  • Red LED lights 5 dB below clipping

    Dimensions/Weight
  • 12.75" wide x 15.1" deep x 2.1875" high (32.39 cm x 38.35 cm x 5.56 cm)
  • 8.26 lbs


• Item Includes:

  • 1x Peavey PV 10 AT 120US Compact 10 Channel DJ Mixer with Bluetooth and Antares Auto-Tune


• GTIN:

  0014367646269
